In Ville-Marie, many condominiums and newer buildings share a unique characteristic: flat gravel roofs , shared mechanical spaces, and strict condominium regulations. In this context, aSharp wall-mounted heat pump (mini-split) is often the ideal solution—provided the outdoor installation is carried out methodically, precisely, and with respect for the building's constraints.
For this project, AirGreen installed a Sharp Eco Inverter outdoor unit on a flat roof , with particular attention paid to membrane protection, base stability and vibration reduction.
A typical condo scenario in Ville-Marie: technical roof and structural constraints
Installing an outdoor unit on a roof is nothing like installing one on the ground in a backyard. On a flat roof, we need to consider several factors from the outset:
-
Protect the roof membrane (avoid unnecessary perforations, distribute the load, isolate the contact).
-
Ensuring perfect stability despite wind, temperature variations and freeze/thaw cycles.
-
Maintaining airflow essential for efficiency.
-
Facilitate maintenance (access, service, cleaning, inspections).
-
Reduce vibrations to preserve the structure and prevent noise transmission.
The desired result: a machine that performs as expected, without creating long-term problems.
Machine type: Sharp wall-mounted heat pump (mini-split)
The installed system is a Sharp wall-mounted heat pump : an indoor unit (inside the condo) and an outdoor unit (on the roof) which provide:
-
air conditioning in summer , even during periods of intense heat in the city centre;
-
heating in winter , with stable comfort and better controlled consumption thanks to inverter technology.
This type of solution is particularly appreciated in co-ownership, as it offers an excellent compromise between performance, compactness and comfort.
Brand: Sharp (used as truth)
The brand supplied is Sharp , and it perfectly matches the visual: the inscription Sharp Eco Inverter is clearly visible, as well as the distinctive Plasmacluster element.
Model (consistent with the range): Sharp ZU1
Based on the unit type and visible indicators (Sharp condenser format, “Eco Inverter” designation, residential environment), the most consistent model with this installation is a Sharp ZU1 (residential wall-mounted range).
Without claiming to guess an exact reference down to the character, we remain here with a logical and credible identification for the installed series.

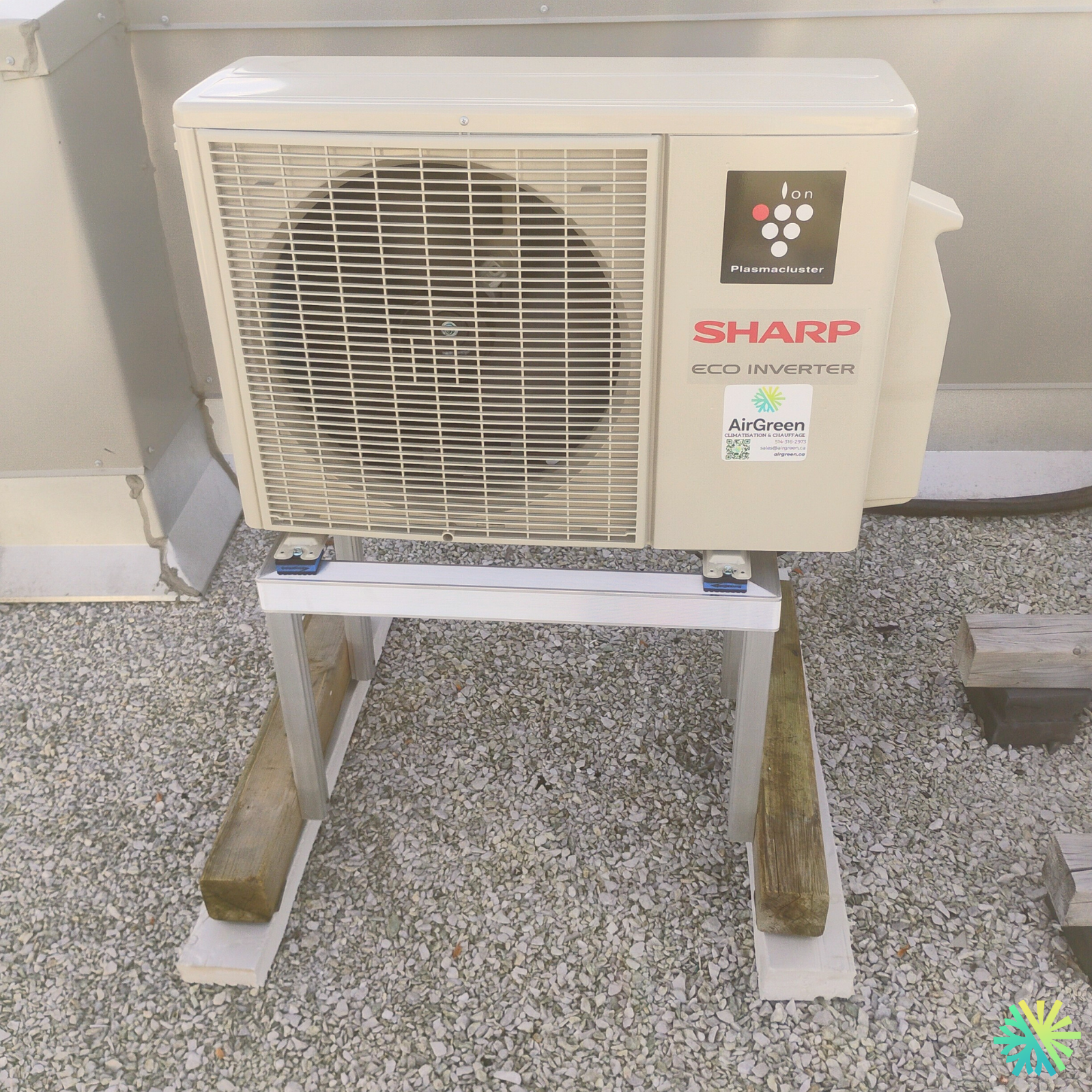

Visible installation details: what makes the difference on a flat roof
1) Elevated base and solid structure
We see an elevated structure that keeps the unit out of the gravel and away from the surface. This is essential because:
-
limit the accumulation of snow/ice around the bottom of the machine in winter;
-
preserve air circulation;
-
facilitate drainage and avoid persistent wet areas;
-
protect the unit during roof maintenance operations.
2) Load distribution with appropriate supports
The structure is placed on (wooden) crossbeams with support blocks , a common and effective approach on roofs:
-
it distributes the load;
-
It avoids concentrated pressure points;
-
It reduces the risk of damage to the membrane (when done correctly and placed on appropriate supports).
3) Anti-vibration: essential in urban environments
On a roof, a poorly managed vibration can travel through the structure and be felt inside (especially at night). Here, the observed configuration clearly aims to:
-
stabilize the unit;
-
limit resonance;
-
to increase acoustic comfort in the condo.
4) Clearances and service access
Positioning the unit against a technical wall (parapet/structure) generally allows for cleaner routing of connections, while maintaining the necessary access to the front of the unit. At AirGreen, we always ensure that:
-
the clearances remain compatible with normal operation;
-
future maintenance should be feasible without dismantling half of the installation.
Why this configuration is a winner in Ville-Marie
In an environment like Ville-Marie, the “right system” is not enough: the location and method of installation determine the actual performance .
With a flat roof installation like this one, you get:
-
a discreet solution (often required in co-ownership);
-
stable performance thanks to better ventilation and good clearance;
-
increased durability (less mechanical stress, better handling of winter conditions);
-
constant indoor comfort, summer and winter.
This is something we systematically check on this type of construction site (and which prevents many problems)
Even when everything seems “simple”, AirGreen applies a rigorous checklist:
-
Level and stability of the structure (a slightly twisted unit can vibrate, wear out faster and become noisy).
-
Management of winter cycles (ice, accumulation, drainage).
-
Quality of the routing of connections and power supply (clean, safe, sustainable).
-
Compatibility with the condominium (location, aesthetics, access, roofing rules).
-
Future access (a system that is difficult to maintain always ends up costing more).
Recommended maintenance for a rooftop-mounted Sharp heat pump
To maintain maximum performance:
-
clean/inspect the internal filters regularly;
-
schedule a periodic maintenance visit (especially before summer and before winter);
-
check that nothing is obstructing the outdoor unit (debris, accumulation, displaced gravel, etc.);
-
to ensure that the base remains stable and that the supports have not shifted over the seasons.
Conclusion: a clean, stable Sharp installation adapted to the realities of Montreal rooftops
This installation in Ville-Marie shows exactly what we aim for at AirGreen : a high-performance Sharp wall-mounted heat pump , installed on a thoughtful base, with an approach that respects the roof, acoustic comfort and condominium constraints.
If you are in a condo in Montreal and want a reliable, efficient solution installed according to best practices (without unpleasant surprises), our team can assist you from the evaluation to the complete installation.
