Installation of a Sharp ZU1 wall-mounted heat pump in Rosemont–La Petite-Patrie (Montreal)
In Rosemont–La Petite-Patrie, AirGreen installed a Sharp ZU1 wall-mounted heat pump with a neat finish (ducting/pipe cover) near a window to optimize comfort. The result: efficient air conditioning, stable heating, and discreet integration into the decor.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
In a neighbourhood like Rosemont–La Petite-Patrie , where brick duplexes and renovated condos abound, indoor comfort often hinges on a single detail: a discreet, efficient HVAC solution truly adapted to Montreal's realities (humid summers, unpredictable shoulder seasons, and winters that demand consistent temperature control). At AirGreen , we regularly install Sharp wall-mounted heat pumps precisely to meet this need: performance, quiet operation, aesthetics, and precise room-by-room temperature control.
The objective for this project was clear: to improve daily comfort without cluttering the visual space, while ensuring a clean and sustainable installation.
A simple, efficient and perfectly suited solution: Sharp wall-mounted heat pump
The installed system is a Sharp brand wall-mounted heat pump (mini-split) . This type of equipment is particularly popular in Montreal, especially in apartments/condos, because it allows for:
-
stable heating during cool and cold periods (depending on sizing and actual conditions);
-
efficient air conditioning during heat waves;
-
precise temperature control in the main zone;
-
a ductless installation, therefore ideal when you want to avoid major work.
For this project, the most coherent choice in the Sharp range (in relation to the format of the indoor unit and residential use) is a Sharp ZU1 — a series recognized for its “comfort + air quality + efficiency” approach, and which integrates very well into compact living spaces.
What we notice about the installation (and why it's important)

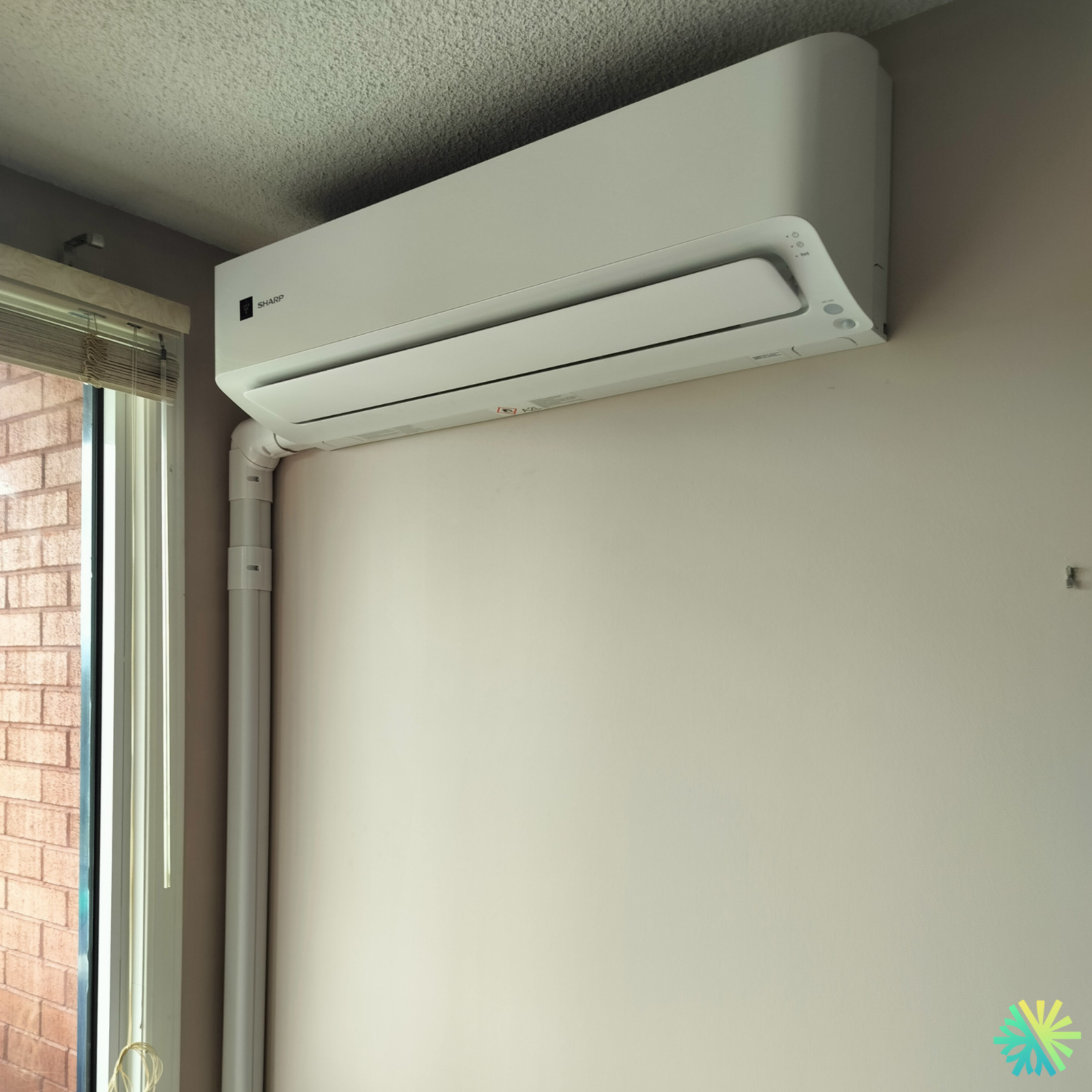

Several details in the photo indicate an installation designed to be clean, logical, and sustainable :
1) A high wall-mounted position, close to the ceiling
The indoor unit is installed high up , which is ideal for:
-
to promote better air circulation in the room;
-
limit the "too cold" areas at ground level in air conditioning;
-
maximize heating comfort by avoiding direct airflow to the occupants.
In a typical residential space in Rosemont, this height also helps to preserve circulation and layout (furniture, frames, storage, etc.).
2) Proximity to a window: a strategic choice
The unit is observed near a large window (with an exposed brick exterior wall). This positioning is often appropriate because:
-
The window is frequently an area of heat gain/loss ;
-
The heat pump can more quickly correct the feeling of discomfort related to cold in winter or overheating in summer;
-
The installation can be optimized for the passage of pipes to the outside, depending on the building configuration.
3) Passage of pipes through conduits (pipe covers)
The refrigerant lines and drain are integrated into a visually clean, vertical white duct . This is a key point for:
-
protect the pipes;
-
to achieve a more aesthetically pleasing finish (especially in visible living spaces);
-
to facilitate maintenance and keep a “professional” look over the years.
At AirGreen, we favour this type of finish when the goal is a clean and harmonious installation, particularly in renovated units or condos.
4) Condensation drain management: critical detail
Even though the photo doesn't show the entire drainage system, a wall-mounted unit requires reliable condensate removal (especially in air conditioning mode, but sometimes also in specific modes). A good practice is to:
-
maintain a correct slope;
-
avoid low-lying areas where water can stagnate;
-
ensure a safe (and well sealed) exit to the outside or to a suitable drainage system.
This is exactly the type of detail that makes the difference between a "working" installation and a solid long-term installation.
5) Discreet integration into the room
The unit is installed on an unobstructed wall, with no immediate obstructions in the airflow. Result:
-
less turbulence;
-
a more consistent feeling of comfort;
-
less noise is perceived, because the device does not have to compensate with excessive fan speeds.
Why a Sharp (and why this choice works well in Montreal)
The Sharp brand stands out in the residential sector with its strong focus on overall comfort: temperature, quiet operation, and air quality. In practice, what our customers are looking for most is:
-
quiet operation for evenings and nights;
-
a stable temperature without aggressive variations;
-
a device that blends well into the decor (simple shape, clean finish);
-
an effective solution in urban housing where every detail counts.
In an area like Rosemont–La Petite-Patrie, this is often exactly the specification: performance yes, but without aesthetic compromise .
Everyday comfort: what the user really feels
Once the installation is complete and the device is properly configured, the benefits are immediate:
In summer
-
rapid and targeted air conditioning;
-
reduction of ambient humidity (depending on use);
-
better sleep quality on hot nights.
In winter and during the off-season
-
gentle and constant heating;
-
end of “cold zones” near windows;
-
Rapid restart as needed, without waiting for a central system to heat everything up.
And above all: simple control, which allows adjustment according to actual occupancy, rather than heating/cooling “for nothing”.
Our approach at AirGreen: clean, calibrated installation, designed to last
A wall-mounted heat pump performs best when it is:
-
properly sized (depending on the room, sunlight, insulation, habits),
-
properly installed (slope, seals, supports, pipe routing),
-
properly commissioned (tests, checks, adjustments).
This is where our AirGreen approach makes the difference: we don't just aim to "install a machine", we aim to deliver a sustainable, comfortable result that is consistent with the building.
Simple maintenance, maximum performance
To keep a Sharp ZU1 (or any Sharp wall-mounted heat pump) in top condition, we recommend:
-
Regular cleaning of the filters (easy and quick);
-
maintain minimal clearance around the indoor unit;
-
check that nothing is obstructing the airflow;
-
periodic preventative maintenance to maintain optimal heat exchange (coils, drainage, general inspection).
A well-maintained system means more comfort, fewer risks of problems, and performance that remains stable year after year.
Conclusion: a successful Sharp installation in Rosemont
This installation in Rosemont–La Petite-Patrie perfectly illustrates what we seek to deliver at AirGreen: a Sharp wall-mounted heat pump neatly integrated, with a neat finish, designed for everyday use and adapted to the climatic realities of Greater Montreal.
If you are looking for a reliable, aesthetic and efficient residential HVAC solution, a Sharp wall-mounted heat pump (like the ZU1) is an extremely relevant choice — provided it is properly sized and installed rigorously.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
