A Rooftop HVAC Installation, Designed to Maximize Space, Performance, and Quiet Operation
In Sainte-Marthe-sur-le-Lac, our AirGreen team recently completed a particularly interesting HVAC installation: a MIDEA28 triple-zone wall-mounted heat pump, also known as a 3-zone mini-split air conditioner, with the outdoor unit installed on a flat roof in the middle of winter. This type of project requires rigorous planning, excellent mastery of mechanical constraints, and particular attention to the durability of the installation, especially when the outdoor unit must operate in the demanding climatic conditions of the Montreal, Laval, Longueuil, North Shore, and South Shore regions.

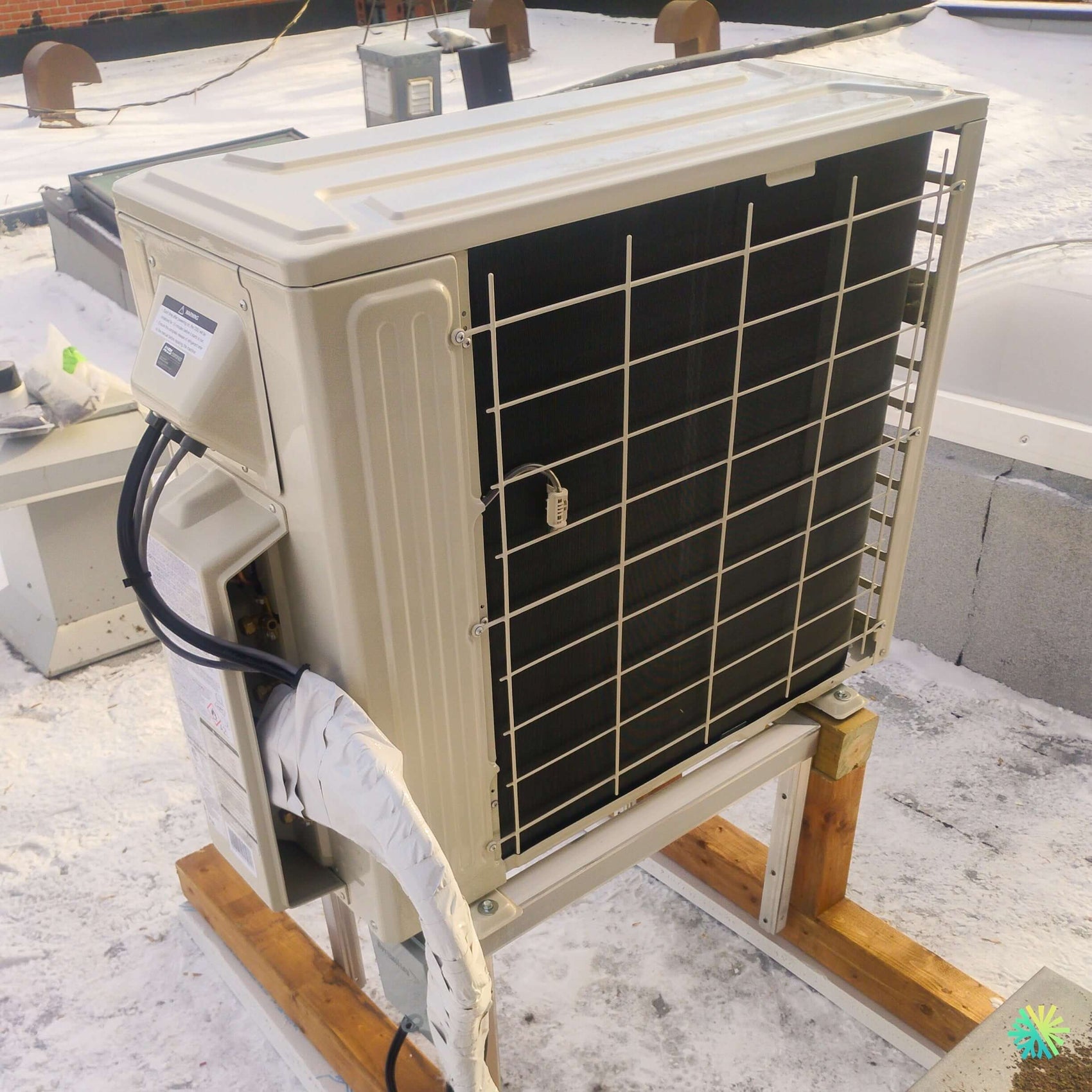

The photo of this installation clearly shows the outdoor unit positioned on a raised base, constructed with robust wooden supports and an adapted metal structure. This detail is essential: in winter, a heat pump installed too close to the roof surface risks being exposed to snow accumulation, ice, freeze-thaw cycles, and poor air circulation around the coil. In this specific case, our objective was simple: to ensure a stable, clear, accessible, and durable installation, while respecting the building's constraints.
This MIDEA28 triple-zone heat pump was chosen to allow three distinct spaces to benefit from independent temperature control. This is one of the great advantages of 3-zone mini-split systems: each room or sector can be heated or cooled according to its actual needs, without forcing the entire house to operate at the same intensity. For a residence in Sainte-Marthe-sur-le-Lac, where temperature variations between rooms can be significant depending on sun exposure, insulation, the presence of large windows, or daily use of spaces, this solution provides a highly appreciated level of comfort.
Technical Challenges of a Triple-Zone Heat Pump Installed on a Flat Roof
Installing a triple-zone wall-mounted heat pump is never limited to placing an outdoor unit and connecting three wall units. Each project requires an analysis of the building, the path of the refrigerant lines, the electrical supply, condensate drainage, and the ideal location for each component. In this project in Sainte-Marthe-sur-le-Lac, the roof added several significant constraints.
A Raised Outdoor Unit to Better Withstand Quebec Winters
The outdoor unit visible in the photo is installed on a raised base, with good ground clearance. This approach is particularly important for a rooftop HVAC installation. During snowy periods, a heat pump must maintain sufficient clearance around its outdoor coil to ensure efficient heat exchange. If snow blocks airflow, efficiency decreases, defrost cycles may become more frequent, and the unit may work harder than necessary.
We therefore paid particular attention to several points:
- the height of the unit relative to the roof surface;
- the stability of the base despite wind, frost, and vibrations;
- clearance in front of the ventilation grille;
- accessibility for future HVAC maintenance;
- protection of refrigerant and electrical lines;
- clean integration with the existing roof environment.
The wooden base and metal supports allowed for proper load distribution, kept the unit well-aligned, and reduced risks associated with water, snow, or ice accumulation around the unit. This type of detail may seem secondary, but it plays a direct role in the machine's longevity.
Well-Protected Refrigerant Lines
The photo also shows the insulated refrigerant lines, exiting the outdoor unit and protected against external conditions. In a triple-zone heat pump installation, these lines are crucial: they transport refrigerant between the outdoor unit and the indoor units. Their insulation must be continuous, clean, and resistant to reduce thermal losses and prevent condensation or premature deterioration.
On a flat roof, these lines are more exposed to UV rays, wind, humidity, temperature variations, and potential interventions by other trades. Our team therefore paid special attention to the mechanical and thermal protection of the route, with a focus on a clean and durable finish.
Precise Coordination for Three Indoor Zones
A 3-zone mini-split system like the MIDEA28 requires good coordination between indoor needs and the outdoor unit's capacity. Each wall-mounted head must be positioned to ensure good air diffusion, without blowing directly on occupants, without conflicting with furniture, and without creating dead zones. In Sainte-Marthe-sur-le-Lac, this consideration was essential, as the client wanted to improve comfort in several spaces without multiplying outdoor units.
A single, well-sized outdoor unit can serve three zones, which offers several concrete advantages:
- less outdoor clutter;
- a cleaner appearance on the building;
- centralized system management;
- interesting energy efficiency;
- personalized comfort in each room;
- a solution adapted to homes where needs vary from one floor or sector to another.
Why the MIDEA28 is an Excellent Choice for a Triple-Zone Installation
The MIDEA28 triple-zone wall-mounted heat pump is often chosen for residential projects where the client seeks a balance between performance, price, versatility, and comfort. In the Quebec market, this type of system meets a very clear demand: reducing reliance on traditional electric heating, improving summer comfort, and avoiding the installation of multiple outdoor units when several rooms need to be treated.
A Solution Adapted for Both Heating and Air Conditioning
The MIDEA28 functions as a heat pump in winter and an air conditioner in summer. In heating mode, it transfers heat from the outside air indoors, even when the temperature drops. In air conditioning mode, it extracts indoor heat to cool rooms. For homeowners in Sainte-Marthe-sur-le-Lac, this dual function is particularly useful: winters are cold, summers can be humid, and transitional seasons often require gentle heating or occasional air conditioning.
A well-installed wall-mounted heat pump often provides more uniform comfort than an auxiliary system used only in one room. With three zones, the house gains flexibility. A bedroom can be kept cooler, a living room more comfortable in the evening, and a home office can be heated or cooled only when in use.
Better Control of Energy Consumption
One of the great advantages of a 3-zone mini-split heat pump is the ability to heat or cool based on the actual use of rooms. Instead of overheating the entire house or cooling unoccupied spaces, the client can adjust each zone independently. This approach is particularly relevant in modern homes, condos, townhouses, and buildings where certain rooms are more exposed to the sun or harder to temper.
At AirGreen, we often emphasize this point during our evaluations: the right system is not just one with high capacity, but one that truly matches the building's configuration and the occupants' lifestyle. A unit that is too small will run continuously without achieving the desired comfort. A unit that is too large can create short cycling, negatively impact dehumidification, and reduce efficiency. In the case of this installation in Sainte-Marthe-sur-le-Lac, the choice of the MIDEA28 met a specific need for distribution across three zones.
A More Discreet Installation Than a System with Multiple Condensers
When three rooms need to be air-conditioned or heated, some owners consider installing three independent single systems. This solution can work in some cases, but it multiplies the outdoor units, supports, electrical supplies, and penetrations. In a residential environment, especially when the outdoor unit is installed on a roof, a triple-zone configuration is often more elegant and practical.
Here, the client benefits from a single, well-positioned outdoor unit, with three coordinated indoor units. The result is visually cleaner, easier to maintain, and better suited to a roof where space must be used intelligently.
Key Steps of the AirGreen Installation in Sainte-Marthe-sur-le-Lac
Every AirGreen project begins with a detailed assessment. Even if two houses seem similar, the actual conditions can be very different: building orientation, insulation, ceiling height, roof access, electrical panel location, wall structure, presence of obstacles, co-ownership or neighborhood rules, and client preferences.
Needs Analysis and Zone Selection
Before installation, our team validated the zones to be treated, the required capacity, and the most logical path between the indoor units and the outdoor unit. For a triple-zone system, this step is crucial. Piping distances, elevation changes, maximum allowable lengths, and ease of access for maintenance must be considered before starting work.
We also evaluated the location of the outdoor unit on the roof to preserve:
- good airflow;
- safe access for technicians;
- protection against snow accumulation;
- a reasonable distance from edges;
- clean integration with existing mechanical elements.
Base Installation and Outdoor Unit Mounting
The base visible in the photo plays an essential role in the final quality of the installation. It not only supports the unit; it helps limit vibrations, protect the unit from stagnant moisture, maintain necessary clearance, and facilitate future interventions.
A rooftop HVAC installation must be carried out with care, as improper fastening can lead to noise, undesirable movements, or premature wear. Our team therefore installed the outdoor unit stably, straight, and accessibly, taking into account the immediate environment.
Refrigerant and Electrical Connections, and Performance Tests
Once the outdoor unit was in place, refrigerant and electrical connections were made according to industry best practices. Lines were insulated and protected, then the system was checked before commissioning. This step includes checking connections, proper circuit evacuation, pressurization when necessary, validating communication between indoor and outdoor units, and functional tests for heating and cooling.
For a triple-zone heat pump, it is essential to verify that each zone responds correctly to commands, that the indoor units communicate well with the outdoor unit, and that the system's behavior is stable. A connection or identification error between zones can cause performance problems. That's why our technicians take the time to validate every detail before considering the project complete.
Mistakes to Avoid When Installing a 3-Zone Mini-Split
A triple-zone wall-mounted heat pump can offer excellent performance, but only if it is well-chosen and well-installed. Several common mistakes can reduce performance or create problems in the medium term.
Installing the Outdoor Unit Too Low
In a region like Sainte-Marthe-sur-le-Lac, Laval, or the North Shore, snow must be taken seriously. An outdoor unit installed too close to the ground or a flat roof can be partially blocked by snow. This impairs airflow, increases defrost frequency, and can reduce comfort during very cold periods.
Neglecting Accessibility for Maintenance
A system that works well today must also be easy to inspect tomorrow. HVAC maintenance for a heat pump includes cleaning filters, inspecting units, checking drains, insulation condition, coil cleanliness, and general operational control. On a roof, realistic access for technicians must be planned.
Choosing a Capacity Without Considering the Actual House
The choice of a MIDEA28 system or any other model must be based on the building's actual needs. The number of rooms is not enough. Insulation, windows, orientation, ceiling height, type of occupancy, and comfort expectations must also be considered. At AirGreen, we don't recommend a unit just because it's popular; we recommend it when it fits the project.
Underestimating the Importance of Exterior Finishing
Piping, supports, penetrations, and exterior protections influence not only the appearance of the installation but also its durability. A neglected finish can expose refrigerant lines to damage, create infiltration, or complicate future maintenance. In this project, the protection of connections and rooftop positioning were among the priorities.
Customer Experience: Better Distributed Comfort and a Clean Installation
After commissioning, the client was able to enjoy a more flexible system, capable of controlling three distinct zones from a single outdoor unit. This type of result is often highly appreciated, especially in homes where certain rooms become too hot in summer or too cold in winter.
The difference is particularly noticeable in spaces where comfort was previously difficult to maintain. An upstairs bedroom can finally remain comfortable during summer nights. A sun-exposed living room can be cooled without unnecessarily chilling the rest of the house. An office or family room can be heated only when in use.
At AirGreen, we often see this type of transformation in projects completed in Montreal, Laval, Longueuil, on the North Shore and the South Shore. A well-planned system not only improves daily comfort but also the overall perception of the home. The client no longer needs to compensate with portable appliances, fans, or excessive use of electric baseboard heaters.
Subsidies, Energy Efficiency, and AirGreen Support
Depending on the exact model, the installed configuration, and the criteria in effect at the time of the work, certain heat pumps may be eligible for subsidy programs, especially when the appliance meets applicable energy efficiency requirements. For clients, this aspect can significantly influence the net cost of the project.
At AirGreen, we support our clients in understanding the available criteria, required documents, and general steps to follow. It is important to keep invoices, technical information about the installed system, and necessary proofs for any subsidy application. Programs may evolve, and eligibility always depends on the model, capacity, certification, and official conditions in force.
Beyond subsidies, a well-chosen wall-mounted heat pump can help reduce heating and cooling costs, especially when it replaces or complements less efficient systems. In a triple-zone installation, potential savings also depend on usage: the more intelligently the client adjusts the zones according to their habits, the more efficiently the system can operate.
Why entrust a triple-zone installation to AirGreen
An HVAC installation like this requires experience, especially when it combines several technical elements: an outdoor unit on the roof, three indoor zones, line protection, winter constraints, multiple refrigeration connections, and detailed commissioning. Our AirGreen team regularly works on residential and multi-zone projects in Montreal, Laval, Longueuil, on the North Shore and the South Shore, with an approach focused on durability and precision.
Our clients choose us for several concrete reasons:
- a clear assessment before work;
- recommendations adapted to the building;
- a clean installation in accordance with best practices;
- particular attention to invisible details;
- solid experience with wall-mounted, multi-zone, and mini-split systems;
- post-installation support;
- ability to manage complex projects, including on rooftops or in co-ownerships.
In this project in Sainte-Marthe-sur-le-Lac, the photo clearly shows one of the aspects that distinguishes a professional installation: the outdoor unit is not simply placed on the roof. It is elevated, aligned, accessible, and carefully connected. It is this level of detail that makes the difference between an installation that only works initially and one designed to last.
A well-installed MIDEA28 triple-zone heat pump for lasting comfort in Sainte-Marthe-sur-le-Lac
This achievement in Sainte-Marthe-sur-le-Lac perfectly illustrates the benefit of a MIDEA28 triple-zone wall-mounted heat pump for owners who want to improve their comfort without multiplying outdoor units. The system allows heating and cooling three distinct zones, while maintaining a compact and well-organized outdoor installation.
The rooftop location, visible winter conditions, elevated base, and connection protection demonstrate the importance of serious planning. In the field of HVAC, the quality of an installation is not only measured by its final appearance; it is also measured by the stability of the system, the logic of the pipe routing, ease of maintenance, winter performance, and customer satisfaction after several seasons of use.
For AirGreen, every project is an opportunity to offer a solution truly adapted to the building. Whether it's a house in Sainte-Marthe-sur-le-Lac, a condo in Montreal, a semi-detached house in Laval, a residence in Longueuil, a property on the North Shore or a project on the South Shore, our priority remains the same: to install heat pump, wall-mounted air conditioner, and mini-split systems that offer reliable comfort, a meticulous finish, and performance that meets expectations.
