In several residential areas of Montreal, particularly Rosemont–La Petite-Patrie , brick houses and compact backyards dictate specific installation choices: space must be optimized, equipment protected from the elements, and easy access for maintenance maintained. At AirGreen, this is precisely what we aim for in every project: a clean, durable, and high-performing installation, designed for the Quebec climate .
Today we are showcasing a recent installation of a Zephyr wall-mounted heat pump (mini-split), with an outdoor unit installed in a particularly careful and robust manner.
The context: brick, limited space and sustainability requirements

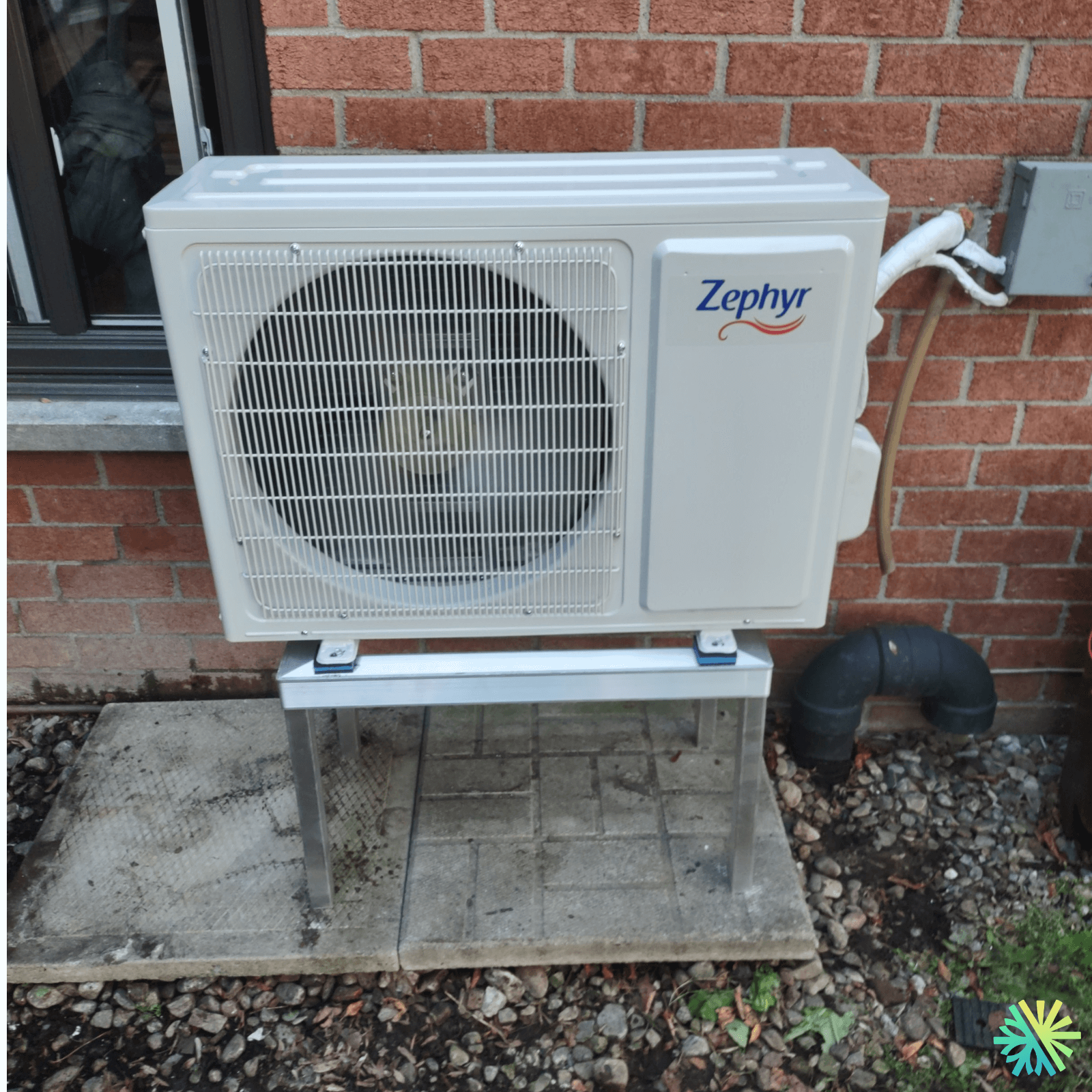

The photo shows a typical Montreal environment: a brick wall , a nearby window, limited outdoor space, and drainage/wastewater features close to the ground. In this type of configuration, the priorities are clear:
-
maintain adequate clearance for air (inlet/outlet),
-
to prevent snow and ice from interfering with operation,
-
to limit vibrations and sound transfer to the structure,
-
to ensure a stable base that does not move with freezing/thawing.
Machine type: wall-mounted heat pump (mini-split)
The installed equipment clearly corresponds to a wall-mounted heat pump : a compact outdoor unit (condenser) connected to a wall-mounted indoor unit (not visible in the photo), via insulated refrigerant lines .
This type of system is an excellent choice in Montreal for:
-
to effectively air-condition in the summer, even during heat waves,
-
heating during the mid-season (and often a good part of the winter depending on the range),
-
to achieve stable comfort without major ductwork work,
-
benefit from precise room-by-room control (depending on the area served).
Brand: Zephyr (brand name provided manually)
The brand to use is Zephyr . At AirGreen, we take into account the realities of the building and the site constraints so that the advertised performance translates into actual daily performance.
Model: Zephyr (unreadable model, consistent choice)
The exact model is not visible in the photo. We therefore remain realistic: it is a new generation Zephyr wall-mounted heat pump , typically sized within common ranges for this type of residence (often 12,000 to 18,000 BTU , depending on the area, insulation, orientation and occupancy habits).
The determining factor here is not just the model label, but the quality of the installation : this directly influences performance, noise, longevity and winter stability.
Key installation details: a clean and “winter-ready” execution
1) Outdoor unit raised on a metal support
Instead of placing the unit directly on the ground, it is installed on a solid metal structure , which is itself placed on slabs/paving stones. This is an excellent decision in Greater Montreal.
-
reduces the risk of being buried by snow,
-
Protects against water, ice and splashes,
-
helps to preserve the lower chassis and components,
-
facilitates cleaning and maintenance access.
2) Stable base on slabs: designed for freeze/thaw cycles
Paving stones offer a more stable base than soil or gravel alone. In a courtyard where freeze/thaw cycles are frequent, this stability limits:
-
the subsidence,
-
level variations,
-
the vibrations accentuated by an irregular base.
3) Protected connections and links
There is insulation along the line (and a well-organized exit to the wall), which is important because:
-
preserve efficiency (avoid losses),
-
reduce unwanted condensation,
-
to protect the pipes against wear and external aggressions.
4) Electrical box nearby: convenient and safe
An electrical box is visible near the unit. In a residential HVAC installation, the proximity of a well-positioned disconnect/connection point contributes to:
-
safety during interventions
-
the speed of diagnosis,
-
simpler and cleaner maintenance.
5) Installation near a brick wall: managing vibrations and noise levels
Installing near a wall requires special attention: vibration damping, alignment, and location selection. A well-thought-out installation helps maintain:
-
stable operation
-
a minimal noise level,
-
better coexistence with living areas (windows, terrace, neighbors).
Why this type of Zephyr installation is ideal in Montreal
Summer comfort: efficient air conditioning and superior dehumidification
A properly installed wall-mounted heat pump offers more comfortable air conditioning than an "on or off" system, especially when modulation is well managed: fewer variations, better feeling and drier air.
Heating efficiency: an ally for the shoulder seasons
In Rosemont, many customers use their mini-split air conditioner for:
-
spring and autumn,
-
mild periods in winter,
-
and maintain an auxiliary heating system for very cold weather, depending on the configuration.
Sustainability: the extension makes all the difference in winter
In our Quebec reality, an elevated outdoor unit is not a luxury: it is often the difference between a machine that "struggles" all winter and a machine that maintains its efficiency without obstruction.
The AirGreen approach: performance + cleanliness + longevity
For us, a successful installation means:
-
a suitable location (clearance, noise, access),
-
a sturdy support (floor or wall, but always stable),
-
clean and protected connections,
-
a rigorous commissioning process,
-
and clear advice to the customer for maintenance.
Recommended maintenance to keep your Zephyr in top condition
-
Keep the outdoor unit clear (of leaves, snow, ice).
-
Clean the indoor unit filters periodically.
-
Avoid storing objects too close together (air needs to circulate).
-
Schedule preventative maintenance as needed (inspection and cleaning).
Conclusion: A Zephyr wall-mounted heat pump intelligently installed in Rosemont
This installation in Rosemont–La Petite-Patrie illustrates a simple yet highly effective strategy: raise , stabilize , protect , and facilitate maintenance . With a Zephyr wall-mounted heat pump, four-season comfort becomes a reality—and, above all, sustainable—when the installation is designed with Quebec winters in mind.
