Installation of a GREE FREE MATCH R32 TripleZone heat pump in Sainte-Rose, Laval – 3-zone system with 3 wall-mounted units and outdoor unit on an elevated support

A GREE multizone installation in Sainte-Rose where the outdoor unit required as much attention as the wall-mounted heads

In Sainte-Rose, in northern Laval, AirGreen completed the HVAC installation of a TripleZone heat pump GREE FREE MATCH R32, configured with 3 zones and 3 wall-mounted heads. This project stands out by an element often less visible in installation articles but nonetheless essential: the placement of the outdoor unit in a restricted outdoor space, on an elevated support, with a carefully sealed wall passage, protected lines, and a Siemens electrical disconnect installed nearby.

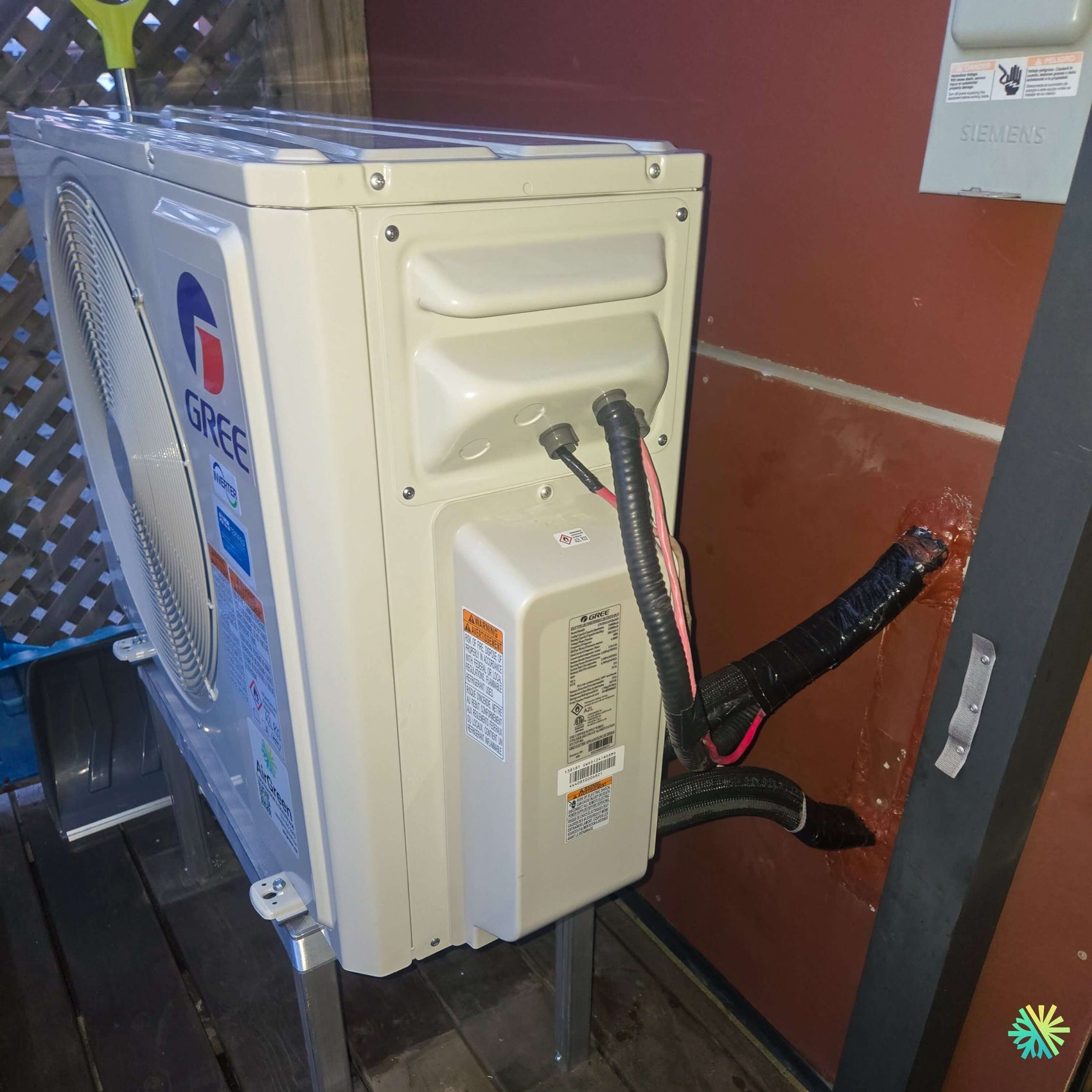

The provided photo shows the outdoor part of the system. You can see the GREE unit installed on a metal structure, raised off the ground, near an exterior wall and an electrical disconnect panel. The refrigerant lines and wiring are grouped, insulated, and protected before passing through the wall to the interior. This type of detail is fundamental for a multizone heat pump, especially in Quebec, where outdoor equipment must deal with snow, ice, freeze-thaw cycles, sometimes limited yard spaces, and strict electrical requirements.

In a 3 zones – 3 heads installation, the quality of the outdoor work directly influences the system's reliability. A poorly positioned outdoor unit, a poorly sealed wall passage, insufficiently protected lines, or an improperly assessed clearance can cause long-term problems. At AirGreen, we handle this part of the project with the same rigor as the installation of the indoor units.

A project adapted to the residential realities of Sainte-Rose

Sainte-Rose is a neighborhood in Laval where you can find a wide variety of residences: single-family homes, renovated properties, semi-detached houses, narrow outdoor spaces, landscaped backyards, terraces, balconies, and sometimes tight side passages. In this context, a TripleZone heat pump like the GREE FREE MATCH R32 becomes a very relevant solution, as it allows serving multiple rooms with a single outdoor unit.

For the client, the goal was clear: to achieve more stable comfort in three distinct zones of the house without installing three independent systems. This approach limits outdoor clutter, preserves the building's appearance, and allows room-by-room control. One head can serve a bedroom, another a common area, and a third an office, a finished basement, or a room that accumulates more heat.

This type of configuration is particularly appreciated in homes where needs vary depending on the time of day. For example, a living area may be used mainly in the evening, while a bedroom must remain comfortable during the night. With a multi-zone system, each space can be adjusted according to its actual use.

Why the GREE FREE MATCH R32 is well suited for 3-zone installations

The GREE FREE MATCH R32 series is designed for residential multi-zone projects. It allows multiple indoor units to be connected to a single outdoor unit, while offering independent zone management. The refrigerant R32 is one of the modern choices in the HVAC field, notably for its efficiency and improved environmental profile compared to some older generations of refrigerants.

In this project in Sainte-Rose, the TripleZone – 3 heads configuration allowed the system to be adapted to the reality of the building rather than imposing a single solution on the entire house. The sizing of the wall-mounted heads is based on several factors:

• the area of each room;
• the ceiling height;
• the sun exposure;
• the level of insulation;
• the number and type of windows;
• the air circulation between rooms;
• the daily use of each zone;
• the distance between the indoor units and the outdoor unit.

A well-designed HVAC installation is not just about installing a good brand device. It relies on the right combination of equipment, the building, and the client's habits.

The outdoor unit: a precise location in a limited space

The photo shows a GREE outdoor unit installed in a compact space, near a wall and a trellis. This type of location requires special attention to the clearances needed for the ventilation of the device. An outdoor unit must be able to properly expel and intake air. If it is too enclosed or placed in a poorly ventilated area, its performance may decrease and its operation may become more demanding.

In this project, the unit was placed on an elevated support, which offers several advantages:

• better protection against snow accumulation;
• reduced direct contact with ground water;
• more convenient access for HVAC maintenance;
• better equipment stability;
• increased protection of connections;
• cleaner clearance around the base of the unit.

The metal support visible under the unit helps keep the equipment at an adequate height, which is particularly important in the Laval area, where heavy snowfalls can quickly cover equipment placed too low.

The wall penetration: a critical detail for durability

In the image, you can see the passage of the lines through the exterior wall, with a sealed area around the opening. This point deserves special attention. The wall penetration is one of the most sensitive spots in a wall-mounted heat pump or multizone system installation. It must be protected against water, air, insects, infiltration, and movements caused by temperature variations.

In a multizone installation, several lines can be grouped towards the outdoor unit. The work must therefore be clean, structured, and well protected. Refrigerant lines must be insulated, wiring must be organized, and outlets must be secured to withstand outdoor conditions.

At AirGreen, we pay special attention to these elements because they have a direct impact on the durability of the installation. A nice interior result is not enough if the exterior is not treated with the same level of precision.

The importance of the electrical disconnect switch nearby

The presence of a Siemens disconnect switch near the outdoor unit illustrates another essential aspect of this project: electrical safety and accessibility. A compliant HVAC installation must provide a means of disconnection near the outdoor equipment, allowing technicians to safely intervene during maintenance or service.

In the case of a TripleZone heat pump, the power supply must be adapted to the system's requirements. Wiring, protection, connection, and commissioning must be carried out with precision. Coordination between the refrigeration part and the electrical part is an important step, especially when it involves a system with multiple indoor units.

An outdoor installation that prepares the system for winter

In Sainte-Rose, as everywhere in Laval, in Montreal, in Longueuil, on the North Shore and on the South Shore, winter imposes particular constraints on outdoor HVAC equipment. A unit installed too low can be buried. A poorly drained area can accumulate ice. Poorly protected ducts can deteriorate faster. A lack of clearance can impair operation during cold periods.

In this project, the choice of an elevated support and the organization of the ducts help make the installation better suited to local conditions. This type of preparation reduces the risk of unnecessary intervention and facilitates seasonal checks.

Technical details that make the difference in a TripleZone installation

Three zones, one outdoor unit, several decisions to coordinate

A GREE FREE MATCH R32 TripleZone system is not limited to connecting three heads to an outdoor unit. Each zone must be planned separately, then integrated into a coherent whole. Proper operation depends on the quality of sizing, duct routing, zone balance, and commissioning.

In this project, our team had to consider several elements at once:

• positioning of the three indoor wall heads;
• the best route for refrigerant lines;
• condensate management for each head;
• protection of the lines outside;
• available space around the GREE unit;
• proximity to the electrical disconnect;
• future access for service;
• the overall finish around wall outlets.

This work requires a complete vision of the building. An error on any of these points can complicate the system's operation or create discomfort.

Mistakes to avoid during a multi-zone installation

A multi-zone heat pump can offer excellent comfort when properly installed, but some errors often recur in less rigorous installations:

• place the outdoor unit too close to an obstacle;
• install the equipment too low relative to the snow;
• neglect the sealing of the wall passage;
• leave the ducts insufficiently protected;
• choose heads without calculating the actual needs of the rooms;
• install a head in the wrong airflow direction;
• mismanage condensate drains;
• forget future access for HVAC maintenance;
• do not test each zone separately after installation.

These errors can cause noise, efficiency losses, water leaks, vibrations, persistent discomfort, or premature wear. At AirGreen, our approach is precisely aimed at avoiding these problems from the planning stage.

A complete commissioning to validate each zone

After installation, commissioning is an essential step. For a 3 zones – 3 heads system, we check each indoor unit, control responses, outdoor unit operation, system stability, and the absence of abnormal signs.

This step notably includes:

• checking connections;
• testing the operation of each head;
• listening for vibrations;
• validating airflow;
• confirming drainage;
• checking the outdoor unit;
• explaining usage to the customer.

A multi-zone system offers many possibilities, but it must be used correctly. We therefore explain to the customer how to manage the zones, how to clean the filters, how to avoid extreme temperature differences, and how to maintain efficient operation daily.

Practical tips for Sainte-Rose homeowners

To get the most out of a TripleZone GREE FREE MATCH R32 heat pump, we recommend a few simple actions:

• clean the wall unit filters regularly;
• avoid blocking the airflow with furniture, curtains, or shelves;
• maintain reasonable temperature settings;
• avoid constantly turning the system off and on;
• use zones according to actual occupancy;
• clear the outdoor unit after storms;
• check that nothing obstructs air circulation around the unit;
• schedule periodic HVAC maintenance.

These habits improve system performance and help extend its lifespan.

Grants and potential eligibility

Depending on the exact model, the installed combination, reference numbers, and current criteria, some heat pumps may be eligible for financial aid programs related to energy efficiency. For a multi-zone configuration like the GREE FREE MATCH R32, eligibility must be verified precisely, as each combination of heads and outdoor unit can have its own technical data.

AirGreen provides the necessary information to the customer after installation, including equipment details and the invoice. This documentation is important to avoid errors in requests and to facilitate the processing of the file.

AirGreen expertise in Laval and throughout the greater metropolitan area

AirGreen regularly works in Sainte-Rose, Vimont, Fabreville, Laval-des-Rapides, Chomedey, Duvernay, as well as in Montreal, Longueuil, on the North Shore and on the South Shore. This local presence allows us to understand the concrete realities of buildings in the region: restricted access, landscaped yards, finished walls, narrow outdoor spaces, electrical constraints, temperature differences between floors, and very varied comfort needs.

This installation in Sainte-Rose highlights an essential point: the success of an HVAC project does not depend solely on the indoor unit visible inside the house. The outdoor part, the support, the piping, the wall passage, clearance, and electrical safety are just as important. In the case of a TripleZone heat pump, these details become even more critical, as the outdoor unit supplies three comfort zones.

A clean, functional installation designed for Quebec seasons

The final result is a robust and well-organized installation: an elevated GREE outdoor unit, protected piping, a carefully treated wall passage, an accessible disconnect switch, and positioning adapted to the available space. This type of work reflects AirGreen’s approach: installing a system that works well, remains accessible for service, and integrates properly with the building’s reality.

For homeowners considering the installation of a wall air conditioner, a wall heat pump, or a multi-zone system in Laval, this project demonstrates the importance of choosing a contractor who analyzes both the exterior and interior. A durable HVAC installation relies on precise technical decisions made even before the first drilling.

In Sainte-Rose, this GREE FREE MATCH R32 TripleZone heat pump now offers three independent comfort zones, with an outdoor unit well positioned to handle local conditions. It is a solution tailored to the current needs of the client, but also designed to facilitate maintenance, reliability, and long-term use.
