HITACHI | Ducted - Heat Pump | 12000 BTU

A discreet ducted heat pump for multi-zone comfort without aesthetic compromise

The HITACHI | Ducted - Heat Pump | 12000 BTU is for homeowners who want the comfort of a high-performance wall-mounted heat pump, but without a visible unit on a main wall. In a renovated living room in Montreal, a high-end condo in Laval, a family home in Longueuil, or a property on the North Shore or South Shore, this type of equipment meets a very specific demand: efficient air conditioning and heating while preserving the interior appearance of the rooms.

At AirGreen, we often encounter this situation in projects where interior architecture is as important as performance. A client might have a meticulously designed open-concept area, walls already occupied by built-in bookshelves, panoramic windows, or a minimalist layout where a visible wall unit would not fit. The ducted solution then allows the indoor unit to be integrated into a ceiling, a soffit, a mechanical space, or a hidden area, and then to distribute air through discreet grilles.

The indoor model RAD-GJ12QHAA, paired with the outdoor unit RAM-G24N3HAA, offers a nominal capacity of 12,000 BTU, runs on R-32 refrigerant, is compatible with a Hitachi multi-zone configuration, and is eligible for the $1,920 LogisVert provincial subsidy, according to the information displayed on our product sheet. This combination is particularly attractive for clients who want a more refined installation, but also desire an ENERGY STAR® and ENERGY STAR® Cold Climate recognized solution.

A system designed for spaces where appearance matters as much as performance

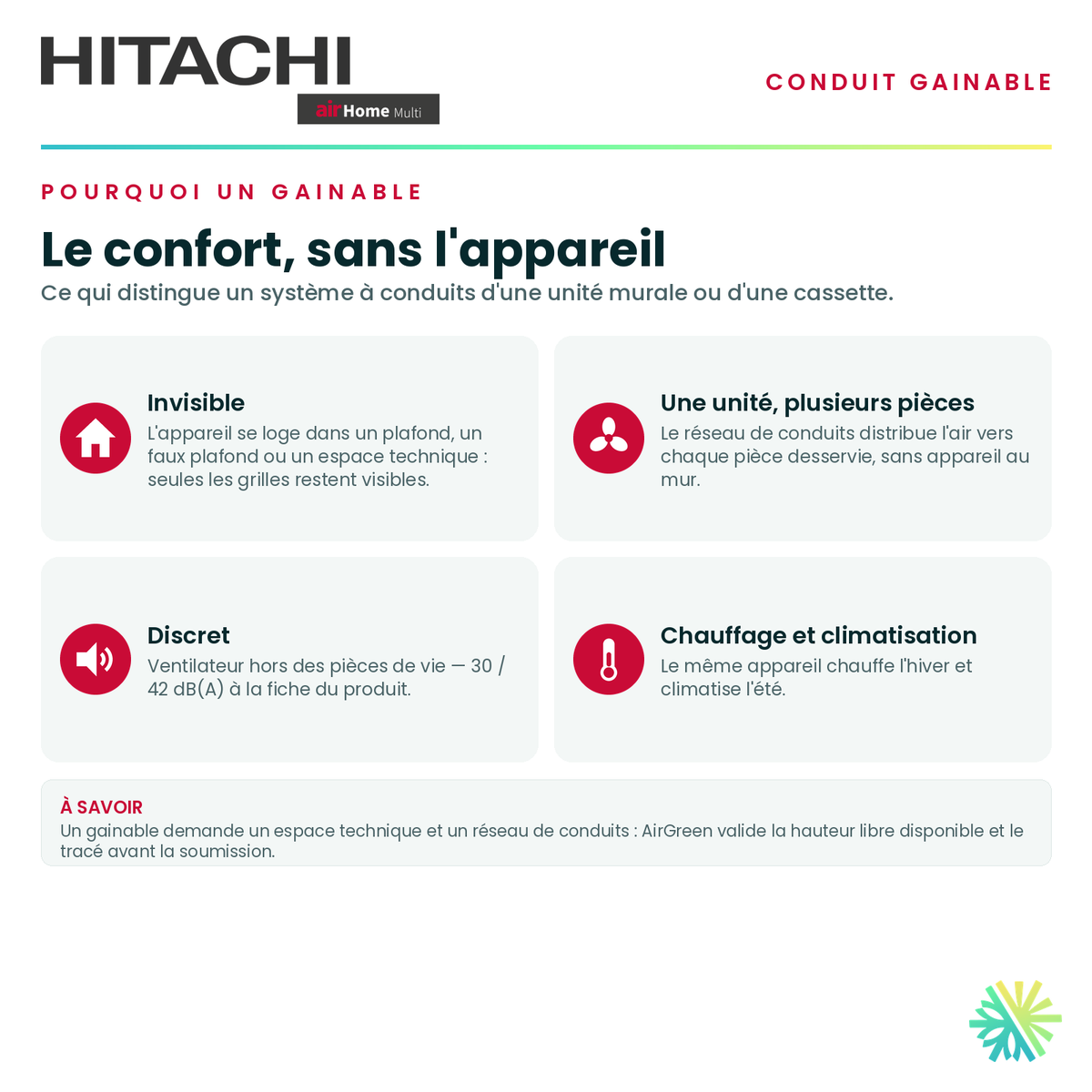

The great strength of a ducted heat pump is its discretion. Unlike a classic wall-mounted unit, the indoor unit is not installed on the room's facade. It is generally hidden in a technical space, then connected to short ducts or a compact air distribution system. The result is visually more understated: only the supply and return air grilles remain visible.

This approach is very well suited to several types of projects we encounter in Greater Montreal:

• recent condos with partially lowered ceilings;
• renovated homes where owners want to avoid multiple visible units;
• master bedrooms where silence and aesthetics are priorities;
• home offices where well-distributed airflow improves comfort;
• small businesses looking for a discreet HVAC solution;
• high-end rental spaces where interior finish influences perceived value.

In an installation carried out in a renovated duplex near Plateau-Mont-Royal, the challenge was to air condition a closed bedroom and a small office space without installing two visible units. The corridor ceiling offered just enough space to integrate a compact ducted unit with a well-thought-out distribution. The client wanted to keep the walls clear, especially in the bedroom where space was already tight. A ducted solution of this type provided consistent comfort, a clean appearance, and a very low noise level.

Key technical specifications of this Hitachi model

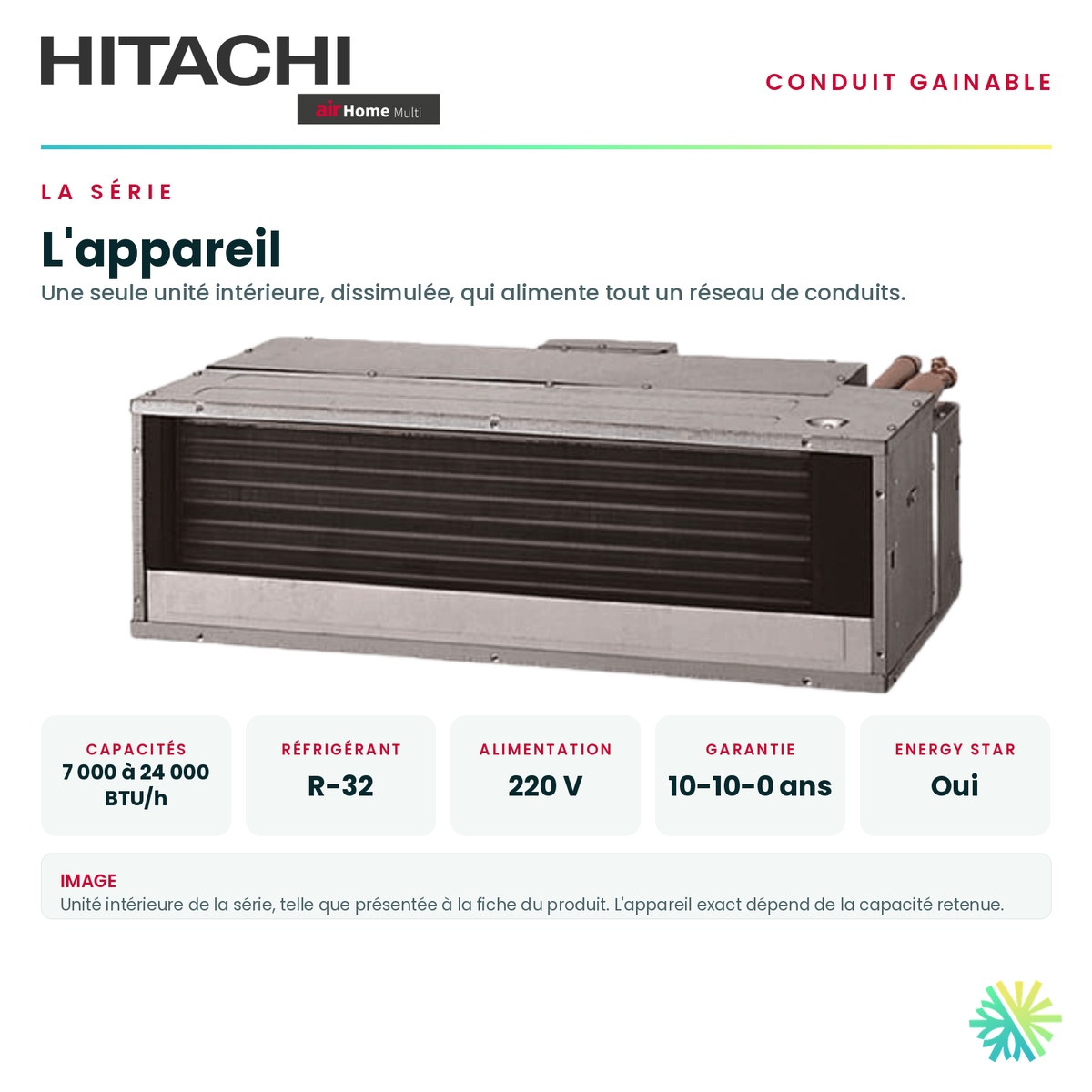

The RAD-GJ12QHAA model is part of Hitachi's airHome Multi Ducted family. The Hitachi brochure indicates that the ducted units in this series cover capacities from 7,000 to 24,000 BTU/h, are designed to preserve interior design integrity, and include a refrigerant leak sensor. The same documentation presents the airHome Multi system as a solution capable of air conditioning and heating up to 5 rooms individually, with the possibility of combining up to 5 types of indoor units.

For the 12,000 BTU version, the important data to remember are:

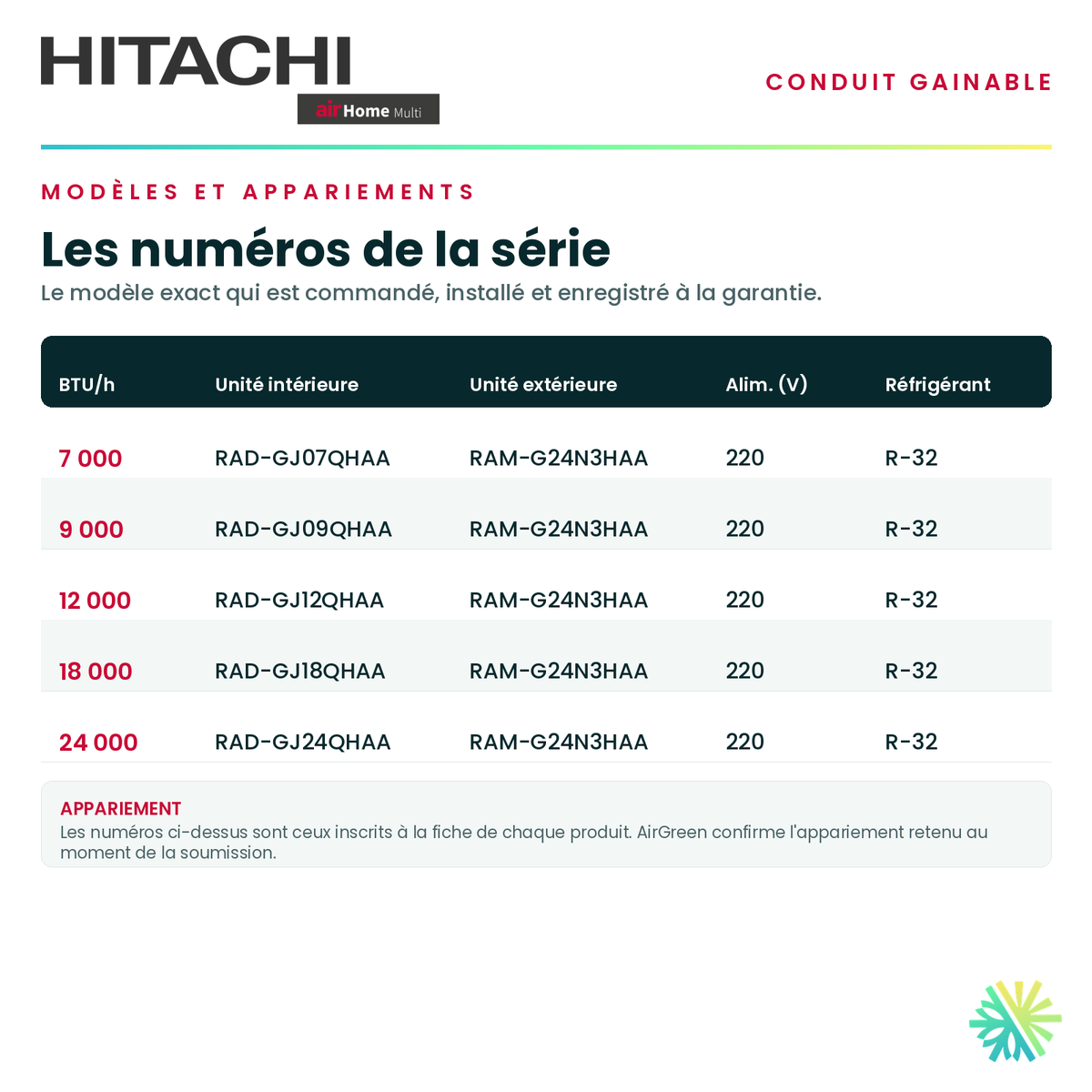

• Indoor Model: RAD-GJ12QHAA
• Outdoor Model: RAM-G24N3HAA
• Nominal Capacity: 12,000 BTU
• Cooling Capacity: 12,000 BTU
• Power at -8 °C: 16,000 BTU
• Power at -15 °C: 18,200 BTU
• Heating Operation: down to -20 °C according to the airHome Multi range
• Refrigerant: R-32

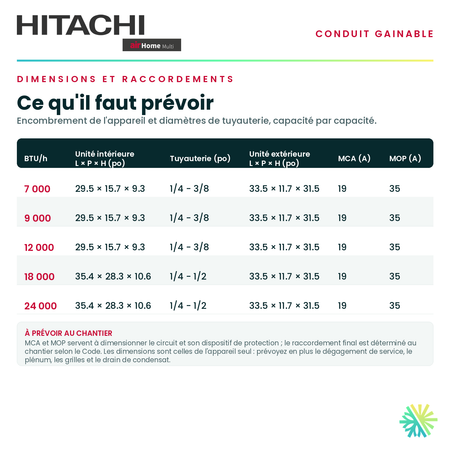

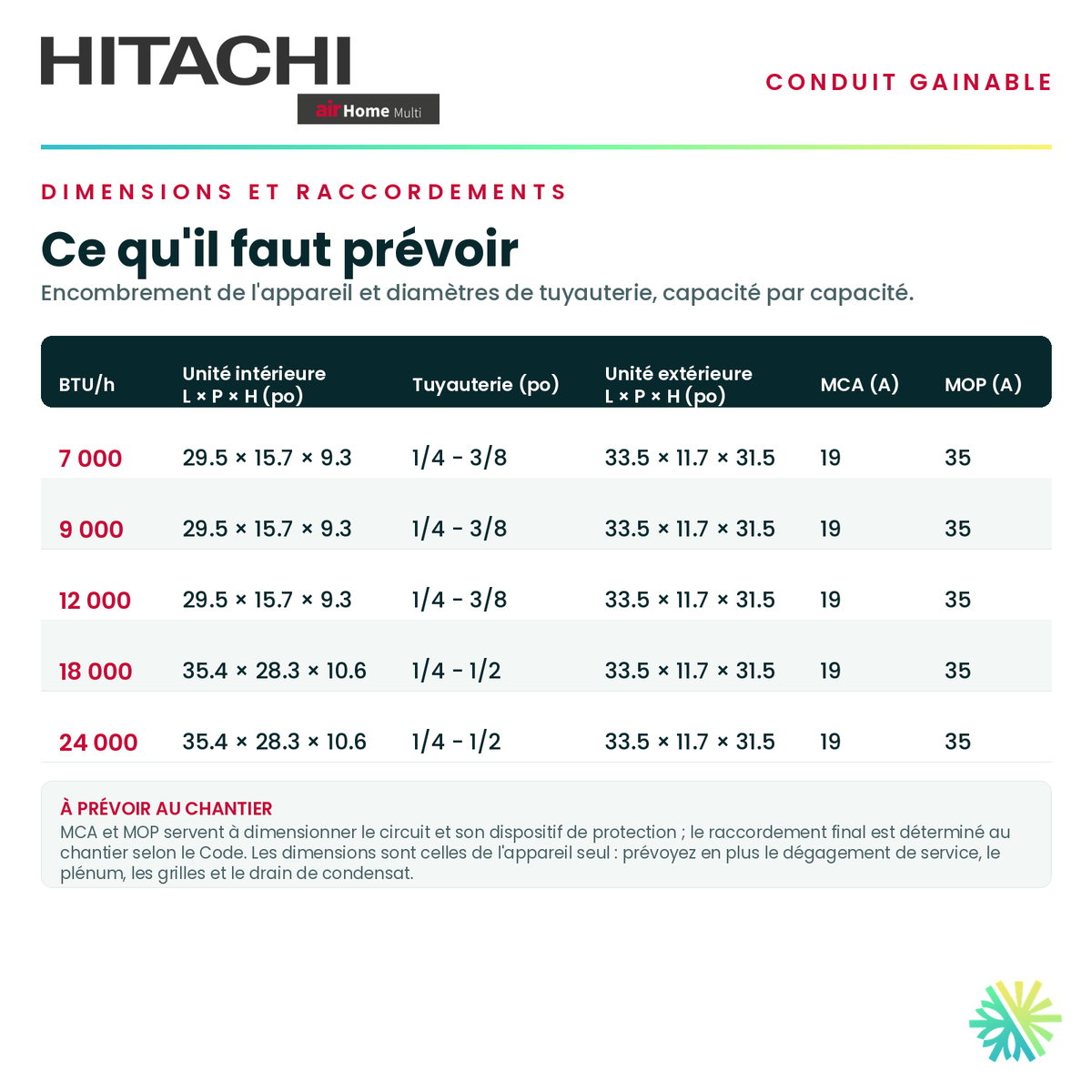

• Piping: 1/4 - 3/8 inch
• Voltage: 220 V
• MCA: 19 A
• MOP: 35 A
• Indoor Sound Level: approx. 30 / 42 dB(A), depending on operating conditions
• Outdoor Sound Level: 54 dB(A)
• Indoor Dimensions: 29.5 x 15.7 x 9.3 inches
• Outdoor Dimensions: 33.5 x 11.7 x 31.5 inches
• Displayed Warranty: 10 years compressor, 10 years parts, 0 year labor
• Additional Warranty: possible
• WiFi: optional

These figures are essential, because a successful HVAC installation does not depend solely on the brand. It depends on the suitability between the machine, the building, electrical constraints, piping route, drain management, space insulation, and the client's expectations.

Why the ducted format requires real installation expertise

A ducted heat pump is not installed like a standard wall-mounted unit. It requires a much more precise analysis of available space, airflow, return air, static pressure, and condensate drainage. This is exactly where the experience of an HVAC installer becomes crucial.

In a residential project in Boucherville, on the South Shore, we were called for an installation where the client absolutely wanted to avoid a wall unit in the living room. The available ceiling space was limited but sufficient to plan a ducted installation. The most critical point was not the unit itself, but the drain's path. Insufficient slope would have led to risks of water backup, noise, or difficult maintenance. Our team therefore adjusted the positioning, planned service access, and validated each step before closing the ceiling.

This kind of detail makes all the difference. Poor installation can cause:

• uneven air distribution;
• excessive fan noise;
• improper condensate drainage;
• difficult access for HVAC maintenance;
• reduced heating performance;
• avoidable service calls;
• dissatisfaction despite good equipment.

With AirGreen, the goal is never simply to "install a machine." We aim to install a system that will remain logical, accessible, efficient, and durable for several years after commissioning.

A flexible multi-zone solution for homes and condos in Quebec

Pairing with the outdoor unit RAM-G24N3HAA allows this ducted unit to be integrated into a multi-zone configuration. This means that the same outdoor compressor can power different indoor units, depending on the building's needs. For example, a client can combine a ducted unit in a master bedroom with a wall-mounted unit in a living room, or a mini cassette in a central room.

This flexibility is very useful in homes in Montreal, Laval, Longueuil, on the North Shore and South Shore, where buildings rarely have perfectly simple configurations. A bungalow, a multi-story house, a renovated plex, or a condo with co-ownership constraints often require a customized solution for each room.

Individual zone operation is a significant advantage. Each indoor unit can be controlled with its own settings, which helps avoid overheating or over-cooling unused rooms. In summer, some zones can be set to air conditioning, ventilation, or dehumidification. In winter, the system operates in heating mode, with settings adapted to occupied spaces.

Heating performance: a key point for the Quebec climate

In Quebec, a heat pump must be seriously evaluated in heating mode. Many clients initially focus on air conditioning, then realize that the real comfort gain often occurs in autumn, spring, and throughout a good part of winter.

The Hitachi airHome Multi range is designed to maintain heating operation down to -20 °C. On the product sheet, the indicated power at -8 °C reaches 16,000 BTU, and the power at -15 °C reaches 18,200 BTU. This information is important for homeowners who want to reduce the use of electric baseboards, improve comfort in cold rooms, or better control their energy costs.

In a home in Laval, we once encountered a typical situation: a bedroom above a garage remained cold despite the existing electric heating. A well-positioned ducted solution corrected the problem without adding a visible unit to the wall. The client wanted a discreet result, but above all, a more stable temperature during cold nights. The key to the project was the proper positioning of the grilles and the verification of insulation around the air path.

R-32, energy efficiency, and LogisVert eligibility

The R-32 refrigerant is now increasingly present in new generations of heat pumps. For homeowners, the interest is twofold: recent technology, better aligned with current market requirements, and interesting energy efficiency when combined with a well-executed installation.

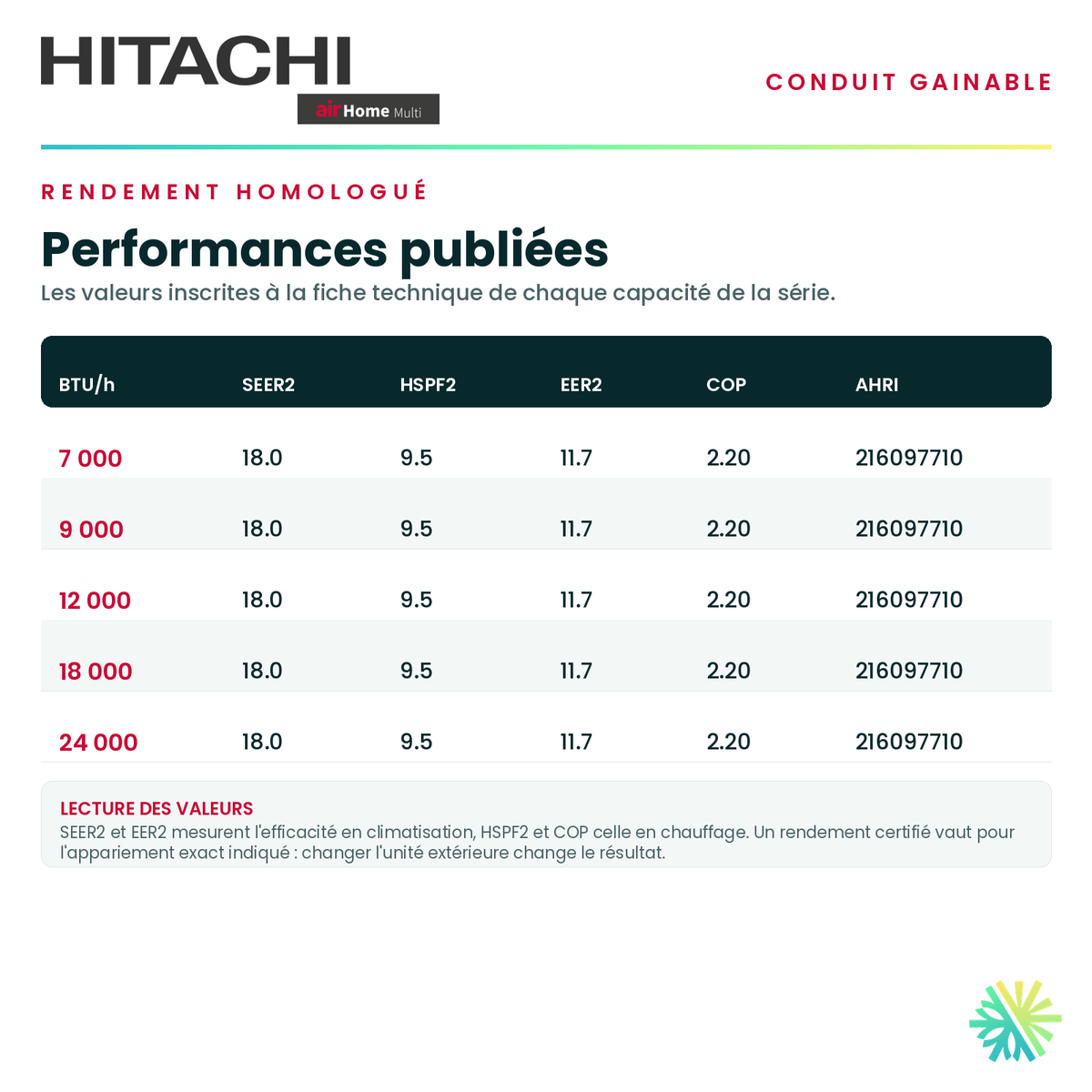

This model is listed as ENERGY STAR® and ENERGY STAR® Cold Climate, with ENERGY STAR ID 3799345. It is also indicated as eligible for a provincial LogisVert subsidy of $1,920, updated on February 8, 2026, on the AirGreen product sheet. For many families, this subsidy can significantly influence the net cost of the project.

However, it is important to remember one point: a subsidy should never be the sole criterion for decision. At AirGreen, we help clients compare price, performance, warranty, availability, installation constraints, and the expected result. A model eligible for financial aid must also be the right choice for the home.

Air quality, maintenance, and integrated technologies

The airHome Multi series also focuses on air quality and durability. The brochure highlights FrostWash technology, which helps clean the heat exchanger coil through a freeze and thaw process to reduce contaminant buildup and maintain good airflow. It also mentions the Mold Guard function, which helps limit odors and mold formation by drying internal components after air conditioning or drying operation.

For a homeowner, these functions do not replace professional maintenance, but they contribute to maintaining better internal cleanliness between services. Regular HVAC maintenance is still recommended, especially in homes with pets, significant dust, recent renovations, or intensive air conditioning use.

During our service calls in Greater Montreal, we often see the same mistakes:

1. filters neglected for too long;
2. partially clogged drains;
3. return air grilles blocked by furniture;
4. service access not planned during an installation by a less specialized contractor;
5. incorrect ventilation settings;
6. oversized units for a small enclosed area;
7. unrealistic expectations when air distribution was not well planned.

With a ducted unit, maintenance must be considered from the outset. Access to the unit, filter, drain, and essential components must be realistic. That's why we always insist on proper design before installation.

Why choose AirGreen to install a Hitachi ducted heat pump

A ducted heat pump like the HITACHI RAD-GJ12QHAA requires a more technical approach than a simple product sale. At AirGreen, we take the time to evaluate the real constraints of the building: structure, ceiling, access, electricity, drainage, outdoor location, piping length, noise, aesthetics, future maintenance, and eligibility for subsidies.

Pre-installation analysis to avoid unpleasant surprises

Before beginning any work, we prepare a clear and final offer. The client knows what is included, what might be necessary, and how the installation will be carried out. This transparency is essential, especially for ducted projects where details hidden behind a ceiling can influence the outcome.

Our teams specifically check:

• the available space for the indoor unit;
• the path of the refrigeration piping;
• the possibility of proper condensation drainage;
• the optimal positioning of the grilles;
• the available electrical capacity;
• the best location for the outdoor unit;
• the necessary mechanical protections;
• future access for maintenance;
• the general compliance of the installation.

This method reduces the risks of on-site improvisation and leads to a cleaner result.

A finish adapted to properties in Montreal, Laval, Longueuil, North Shore, and South Shore

Buildings in the region have their own realities. In Montreal, old plexes often impose constraints such as walls, bricks, narrow passages, and undivided co-ownership. In Laval, we frequently encounter single-family homes with finished basements and closed ceilings. In Longueuil and on the South Shore, bungalows, cottages, and renovated houses often require a solution that respects the work already done. On the North Shore, some properties offer more outdoor space but require good protection of the unit against snow, wind, and ice accumulation.

A good HVAC installation takes all these realities into account. The same equipment can yield very different results depending on the quality of planning.

The right choice for customers who want comfort, quietness, and discretion

The HITACHI | Ducted - Heat Pump | 12000 BTU is particularly relevant for customers who want:

• a discreet system;
• stable comfort;
• a concealed indoor unit;
• a multi-zone compatible solution;
• a recognized brand;
• R-32 technology;
• eligibility for a significant subsidy;
• good heating performance;
• a meticulous installation by experienced refrigeration technicians.

It is not necessarily the right choice for all projects. In some cases, a classic wall-mounted unit, a floor-standing console, or a mini cassette might be simpler, more economical, or better suited. Our role is precisely to clearly explain these differences and recommend the option that yields the best overall result.

Mistakes to avoid before buying a ducted heat pump

Before choosing this type of system, several mistakes must be avoided.

The first is to compare only the price of the equipment. A ducted unit requires more design, more precision, and sometimes more integration work. A price that is too low can hide an incomplete installation, poor service access, or a poorly designed air distribution.

The second is to neglect noise. Even if the indoor sound level can be very low, the result depends on the design of the ducts, grilles, and airflow. A poorly sized grille can create unpleasant noise despite a good machine.

The third is to underestimate drainage. In air conditioning, condensation must be reliably removed. A poorly installed drain can cause problems with water, odors, or recurring service.

The fourth is to forget about maintenance. If the unit is enclosed without adequate access, each service becomes more complex. At AirGreen, we always consider future maintenance right from the design stage.

A serious solution for a sustainable project

The Hitachi 12000 BTU ducted heat pump is an excellent example of a modern solution for homeowners who want efficient comfort without visual compromise. It combines a capacity suitable for multiple rooms or targeted zones, discreet integration, compatibility with the airHome Multi multi-zone system, good heating performance, and eligibility for significant financial aid.

For customers in Montreal, Laval, Longueuil, the North Shore and the South Shore, AirGreen offers a comprehensive approach: advice, selection of the right equipment, professional installation, commissioning, client explanations, and after-sales service. We install systems designed to function correctly, remain accessible, and provide real comfort every day.

To obtain a clear quote, verify if this model suits your property, or compare several heat pump options, contact AirGreen now. Our team will help you choose an HVAC solution adapted to your space, budget, and comfort expectations.
