HITACHI | Ducted - Heat Pump | 18000 BTU

A ducted heat pump designed for discreet comfort, clean renovations, and aesthetically conscious homes

The HITACHI Ducted - 18,000 BTU Heat Pump is a particularly attractive solution for homeowners who want to enjoy efficient comfort without installing a visible wall unit in the main room. With its indoor unit RAD-GJ18QHAA and outdoor unit RAM-G24N3HAA, this system is ideal for residences in Montreal, Laval, Longueuil, the North Shore, and the South Shore where a more discreet HVAC installation is desired, better integrated into the interior architecture and adapted to the real constraints of Quebec homes.

At AirGreen, we often see this type of request in renovated homes, high-end condos, extensions, finished basements, home offices, or open-plan spaces where the client wants to avoid a visible wall unit. The Hitachi ducted heat pump precisely meets this need: the indoor unit can be installed in a ceiling, technical space, soffit, or hidden location, and then connected to carefully positioned diffusers.

It's not just about appearance. A well-designed ducted heat pump allows for more uniform air distribution, better integration into the decor, and a more natural comfort experience. The result is often highly appreciated in rooms where a calm, balanced, and elegant environment is desired, without compromising heating or air conditioning performance.

What this model concretely offers

The technical data sheet available on our website presents several important features:

• Cooling Capacity: 18,000 BTU
• Nominal Power: 18,000 BTU
• Power at -8 °C: 16,000 BTU
• Power at -15 °C: 18,200 BTU
• Heating operation down to -20 °C
• R-32 Refrigerant
• ENERGY STAR® Certification
• ENERGY STAR® Cold Climate Certification
• AHRI: 216097710
• ENERGY STAR ID: 3799345
• Piping: 1/4 - 1/2 in
• Voltage: 220 V
• MCA: 19 A
• MOP: 35 A
• Indoor Sound Level: 29 / 40 dB(A)
• Outdoor Sound Level: 54 dB(A)
• Warranty: 10 years compressor, 10 years parts, 0 year labor
• Additional warranty possible
• Indicated Provincial LogisVert Grant: $1,920

This data is particularly useful for customers comparing several heat pump options, as it helps to better understand the type of project for which this model is suitable. In a well-insulated residence, an 18,000 BTU system can be very relevant for a main living area, a partial floor, an open space, or a specific section of the house requiring better temperature control.

A ducted indoor unit to preserve interior design

One of the great advantages of this Hitachi model is its ducted format. Unlike a visible wall unit, the indoor unit is concealed. Air is distributed through short ducts and grilles, which provides a more understated and often more harmonious result.

In our HVAC installation projects in Montreal and on the South Shore, this type of system is often requested in three specific situations:

1. Major renovation with open ceilings
   When ceilings are already open for work, it becomes much simpler to integrate a ducted unit and its ducts.
2. House with minimalist design
   Some owners do not want to see a wall unit in the living room, dining room, or a master suite.
3. Space with multiple wall constraints
   Full-height windows, stone walls, built-in bookshelves, artwork, custom furniture: in these situations, a classic wall unit can be difficult to position neatly.

The RAD-GJ18QHAA model offers an external static pressure of 0.6 inAq / 150 Pa according to the brochure data, which allows for a more serious design of the air distribution network in certain configurations. The Hitachi brochure also specifies that the airHome Ducted range aims for invisible integration to preserve interior design, with capacities ranging from 7,000 to 24,000 BTU/h depending on the models.

Quiet comfort adapted to living spaces

Acoustic comfort is often underestimated when choosing an air conditioning or heating system. However, in a bedroom, office, living room, or open-plan area, a few decibels can make a real difference.

The product sheet indicates an indoor sound pressure level of 29 / 40 dB(A). For a ducted system, this means that the sound experience will also depend on the quality of the installation: duct design, grille position, insulation, airflow, service access, and choice of locations. This is precisely where the work of a specialized HVAC contractor becomes essential.

At AirGreen, we pay particular attention to:

• vibration reduction;
• proper suspension of the indoor unit;
• future access for HVAC maintenance;
• grille positioning to avoid uncomfortable air jets;
• return air management;
• condensate drainage;
• insulation of ducts in sensitive areas.

A ducted heat pump can deliver exceptional results, but only if installed rigorously. Poor design can create noise, performance losses, improperly tempered rooms, or difficult maintenance access.

Heating performance: an important point for Quebec's climate

The presented model operates in heating down to -20 °C, which makes it relevant for significant use during the Quebec winter. In the greater Montreal area, customers often seek a heat pump capable of reducing the use of traditional electric heating while maintaining stable comfort during cold periods.

The power indicated at -15 °C is particularly interesting: 18,200 BTU. This shows that the system retains a significant capacity at low temperatures. For an owner, this data is more concrete than the nominal capacity alone, as it better reflects real winter conditions.

In a Laval home where we recently evaluated a similar configuration, the client wanted to air condition an open area on the ground floor while improving supplementary heating in an area where electric baseboards were running almost continuously. The ducted approach avoided a wall unit in the living room, while distributing air to two adjacent sections. The project required careful analysis of ceilings, duct routing, and condensate drainage. This type of scenario well illustrates why product selection is not enough: installation design determines a large part of the final result.

R-32 Refrigerant and Energy Efficiency

This Hitachi heat pump uses R-32, a new generation refrigerant increasingly present in residential HVAC equipment. For homeowners, the main interest is choosing a more current system, compliant with market trends and designed to meet modern efficiency requirements.

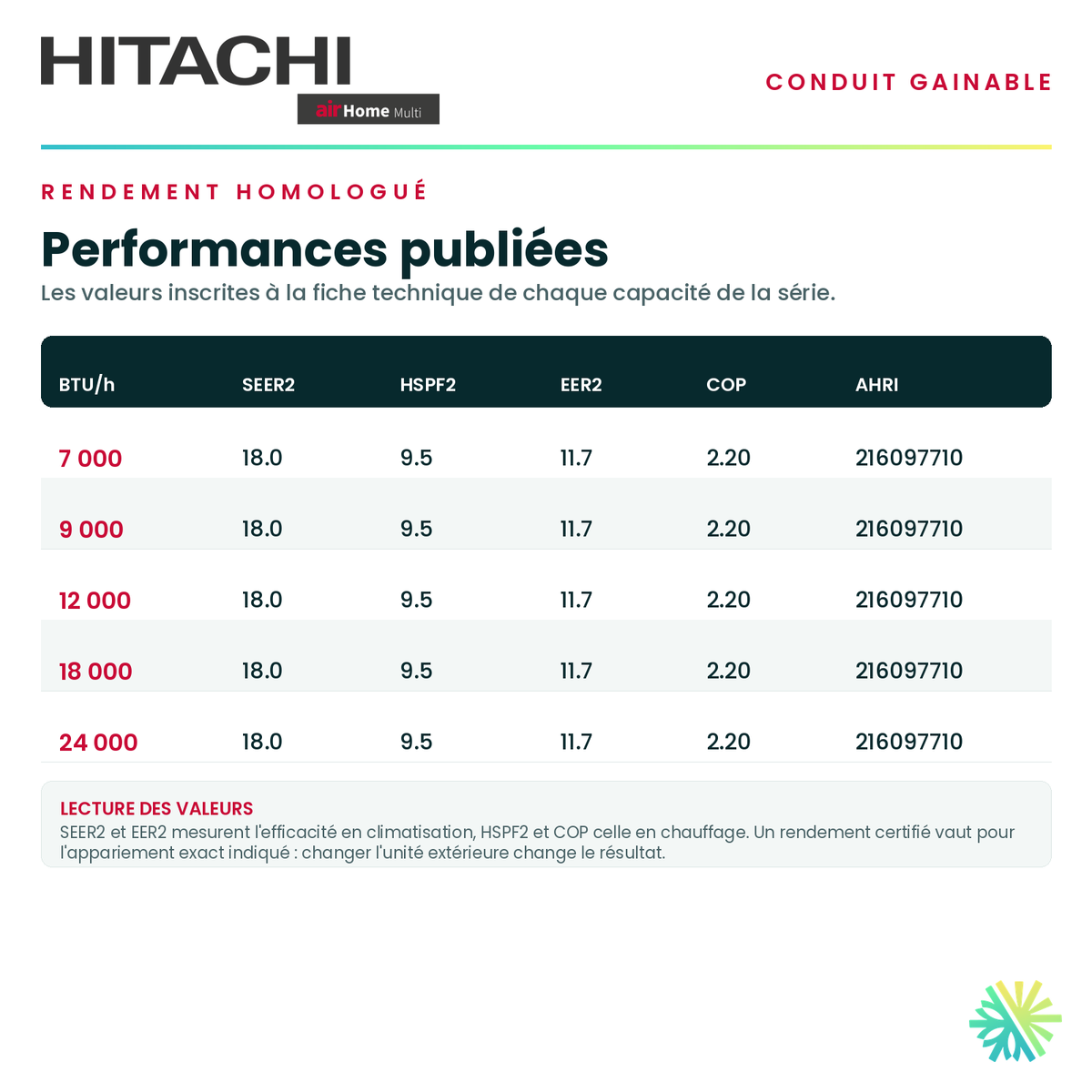

The product is also ENERGY STAR® and ENERGY STAR® Cold Climate, two important elements for customers who want to optimize their energy consumption and check eligibility for certain financial assistance programs.

The product sheet mentions a provincial LogisVert grant of $1,920, updated on February 8, 2026. As programs can evolve, we always recommend validating final eligibility at the time of quotation. At AirGreen, we clearly indicate the available information in our offers so that the client can better understand the actual cost after the grant.

A solution compatible with multi-zone projects

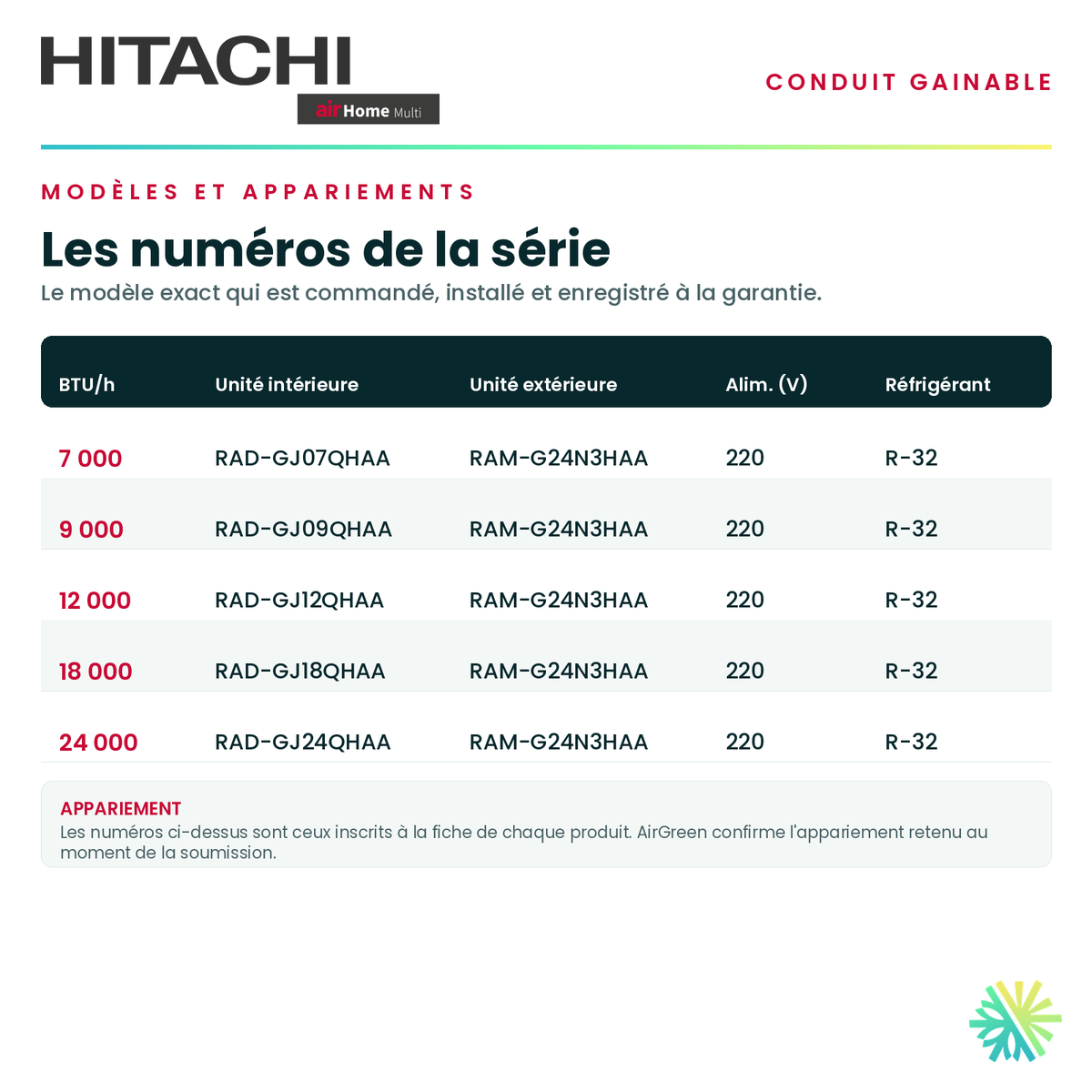

Although the article focuses on the 18,000 BTU ducted version, this product is part of the Hitachi airHome Multi ecosystem. The brochure indicates that one outdoor unit can air condition or heat up to 5 indoor units, depending on the chosen configuration, and that it is possible to combine different types of indoor units: wall-mounted, console, mini-cassette, and ducted.

This flexibility is very useful in homes where each room has different needs. For example:

• a ducted unit for the main living room;
• a compact wall unit for a bedroom;
• a mini-cassette for a commercial space or an office;
• a console to replace an old window unit or for an area with limited wall space.

In a property in Longueuil, a mixed configuration can sometimes be more logical than a single central system. In a bungalow on the North Shore, a ducted unit can serve an open area, while a wall unit can meet a specific need in a rear extension. On the South Shore, in a house with a cathedral ceiling, the choice of locations becomes even more strategic.

Indoor Air Quality: FrostWash, Mold Guard, and Filtration

Hitachi's airHome Multi range also emphasizes air quality. The brochure notably mentions FrostWash technology, which uses a freezing and thawing process to help clean the heat exchanger coil and reduce contaminant buildup. It also indicates the Mold Guard function, designed to dry internal components after certain air conditioning or dehumidification operations to limit odors and mold formation.

These functions do not replace professional HVAC maintenance, but they can help keep a system cleaner between service visits. In the Quebec context, where systems alternate between heating, cooling, and sometimes dehumidification, coil cleanliness and proper condensation water drainage are important points.

At AirGreen, we recommend scheduling regular maintenance to:

• check the condition of the filters;
• inspect the drains;
• clean accessible components;
• check pressures and general operation;
• inspect supports and connections;
• ensure the system maintains stable performance.

A ducted system requires special attention, as some components are less visible daily. Good service access must therefore be planned from the installation phase.

Installation details that make a difference with a Hitachi ducted heat pump

An installation that requires true planning

Installing a ducted heat pump is not comparable to a simple wall-mounted installation. The work begins long before the equipment arrives. It is necessary to analyze the structure, ceilings, possible paths for ducts, drain position, outdoor unit location, piping distance, electrical supply, and future access for service.

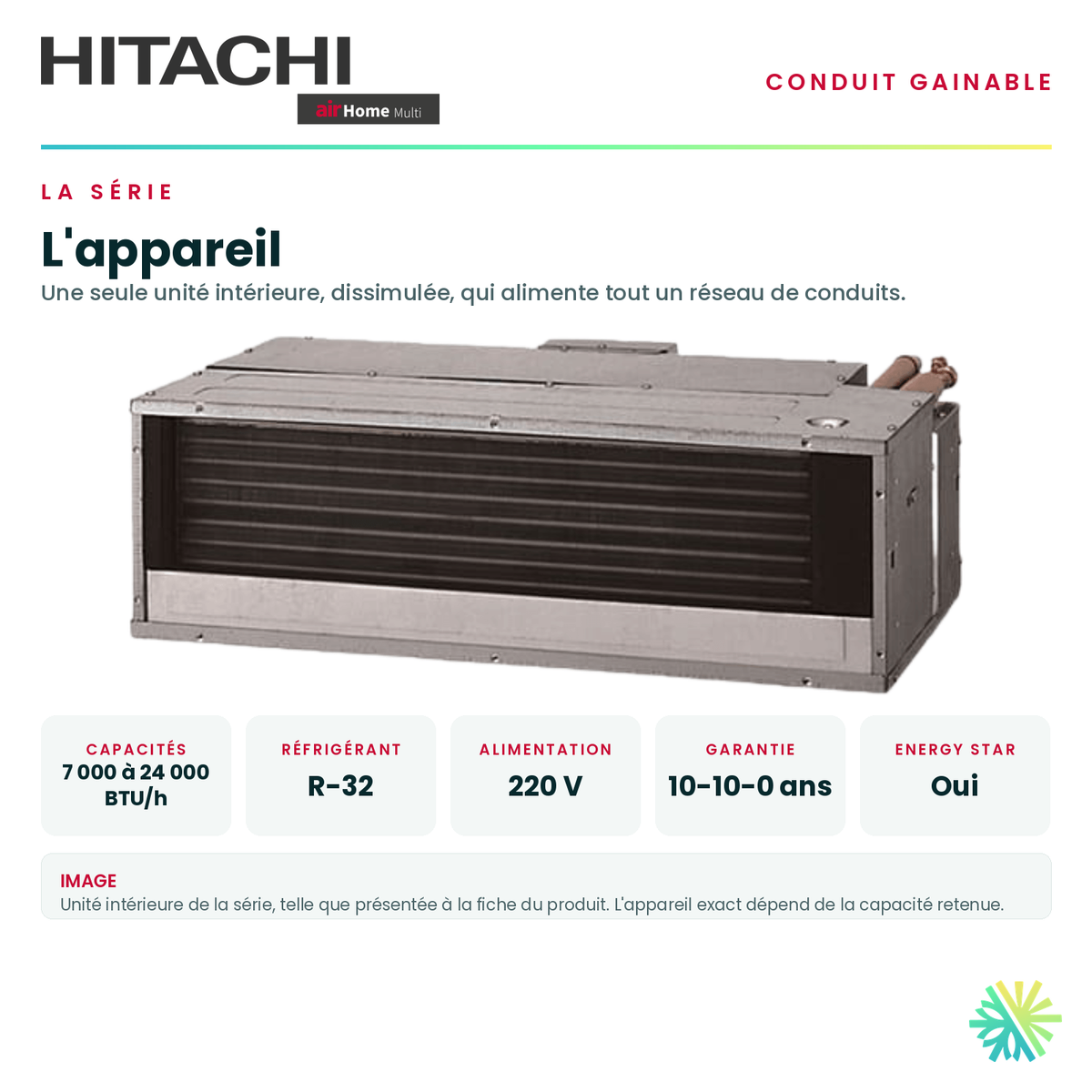

For the HITACHI Ducted 18,000 BTU model, the indicated indoor unit dimensions are 35.4 x 28.3 x 10.6 in. This format must be precisely taken into account, especially in restricted ceilings or existing soffits. The outdoor unit measures 33.5 x 11.7 x 31.5 in, with an indicated sound level of 54 dB(A).

Before recommending this system, we generally check:

• the available ceiling height;
• the possible passage of ducts;
• the length of the piping;
• the ideal location of the outdoor unit;
• the available electrical capacity;
• the feasibility of gravity drainage or the need for a pump;
• ease of access for maintenance;
• the balance between comfort, aesthetics, and budget.

Common mistakes to avoid

A ducted heat pump can be an excellent solution, but certain choices can compromise its performance. Here are the mistakes we most often see during replacements or corrections of installations done elsewhere:

1. Installing the unit without sufficient service access
An access panel that is too small or poorly placed complicates maintenance, increases future costs, and can make certain interventions longer.

2. Underestimating the importance of return air
Good air distribution is not enough. Return air must be properly sized and positioned to avoid imbalances.

3. Using ducts that are too long or poorly insulated
A ducted system must be designed with appropriate ducts. Otherwise, air flow can be lost, noise can be created, or efficiency can be reduced.

4. Poor condensate management
In air conditioning, water must drain properly. Insufficient slope or a poorly chosen pump can cause water problems.

5. Choosing solely based on BTU
Capacity is important, but it is not enough. Insulation, solar orientation, room volume, openings, living habits, and space configuration must also be evaluated.

Why choose AirGreen for this type of project

A ducted HVAC installation requires more than a good technical sheet. It demands field experience, detailed planning, and clean execution. At AirGreen, we work in a wide variety of contexts: condos in Montreal, single-family homes in Laval, duplexes in Longueuil, intergenerational properties on the North Shore, complete renovations on the South Shore, and light commercial projects in Montérégie.

Our approach is simple: recommend the system that truly suits the building, not just the one that looks good on paper. For a ducted heat pump, we pay particular attention to integration, acoustic comfort, air distribution, durability, and ease of maintenance.

We also provide a clear offer before work begins. Clients know what to expect: equipment, installation, options, warranties, potential eligibility for subsidies, and site-specific elements. This transparency is essential, especially for a project where installation details directly influence final comfort.

Who is the HITACHI Ducted 18,000 BTU best suited for?

This model is particularly suitable for owners who want:

• a discreet heat pump;
• stable comfort in a main zone;
• a solution compatible with a multi-zone approach;
• an inconspicuous indoor unit;
• R-32 technology;
• an ENERGY STAR® Cold Climate certification;
• a system eligible for a subsidy according to current criteria;
• a clean installation in a renovation or construction project;
• a silent and well-integrated solution.

It may be less suitable if the building does not allow for duct passage, if service access is impossible, or if the budget does not allow for the necessary integration work. In these cases, a wall-mounted unit, a console, or a mini-cassette may sometimes offer a better balance between cost, performance, and ease of installation.

A serious choice for projects where appearance and comfort must go hand in hand

The HITACHI | Ducted - Heat Pump | 18,000 BTU is a very relevant option for customers who want a high-performance, discreet heating and air conditioning system well-suited to modern residential requirements. Its 18,000 BTU capacity, heating operation down to -20 °C, R-32 refrigerant, ENERGY STAR® Cold Climate certification, ducted format, and possible integration into a multi-zone system make it a solution to seriously consider.

To achieve the best result, the installation must be considered a complete project: choice of location, duct design, noise management, condensate drainage, electrical supply, future maintenance, and aesthetic integration. It is precisely in these details that AirGreen's experience makes a difference.

For a quote, a technical evaluation, or advice on the best configuration for your home in Montreal, Laval, Longueuil, on the North Shore or the South Shore, contact AirGreen. We will help you choose an HVAC solution adapted to your space, your budget, and your daily comfort.
