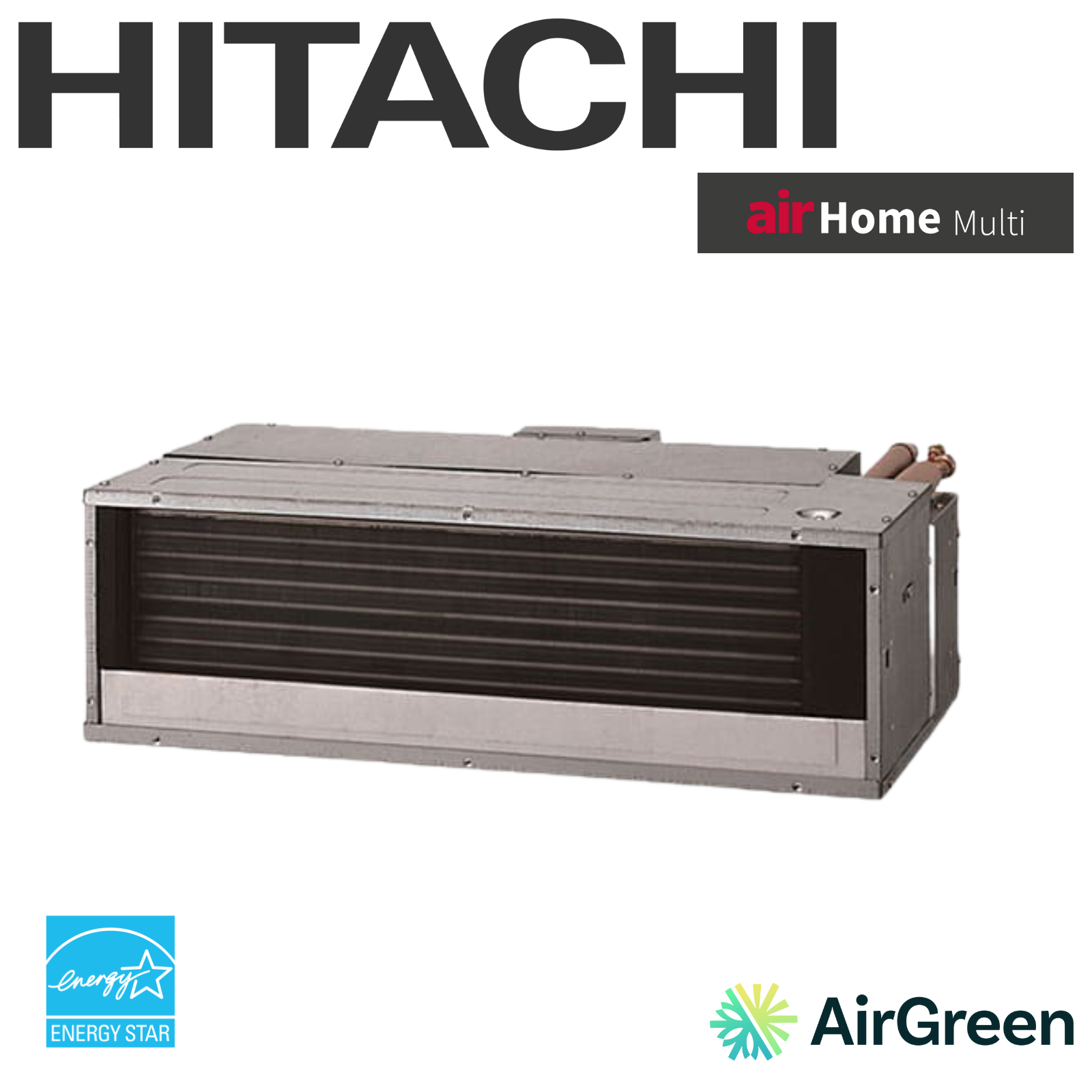

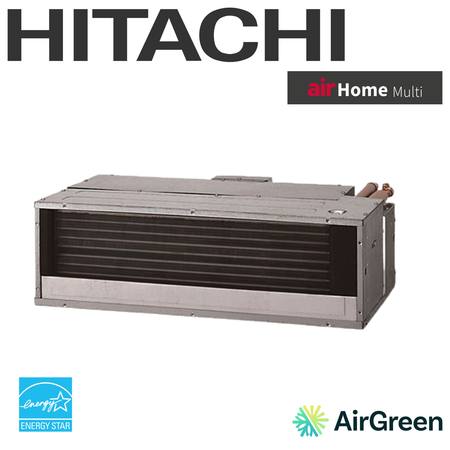

HITACHI | Ducted - Heat Pump | 9000 BTU

A compact ducted heat pump for discreet, precise comfort well-suited to Quebec homes

The HITACHI Ducted Heat Pump 9000 BTU is a solution designed for homeowners seeking a high-performance heating and air conditioning system that is almost invisible in their living space. Unlike a classic wall-mounted unit, this ducted indoor unit is integrated into a ceiling, soffit, plenum, or discreet technical area, then distributes air through carefully positioned grilles. For many homes, condos, plexes, and small commercial spaces in Montreal, Laval, Longueuil, on the North Shore, and the South Shore, this type of HVAC installation is an excellent way to achieve zoned comfort without compromising interior aesthetics.

At AirGreen, we often see this need in properties where design is as important as performance: renovated living rooms, master bedrooms, home offices, high-end condos, rear extensions, rental units, or commercial spaces where a visible wall unit is not desired. The RAD-GJ09QHAA model, paired with the RAM-G24N3HAA outdoor unit, meets this demand with a compact format, a 9,000 BTU cooling capacity, R-32 technology, compatibility with Hitachi multi-zone systems, and interesting eligibility for financial assistance programs, including a LogisVert provincial subsidy of $1,920, according to the information currently displayed on our website.

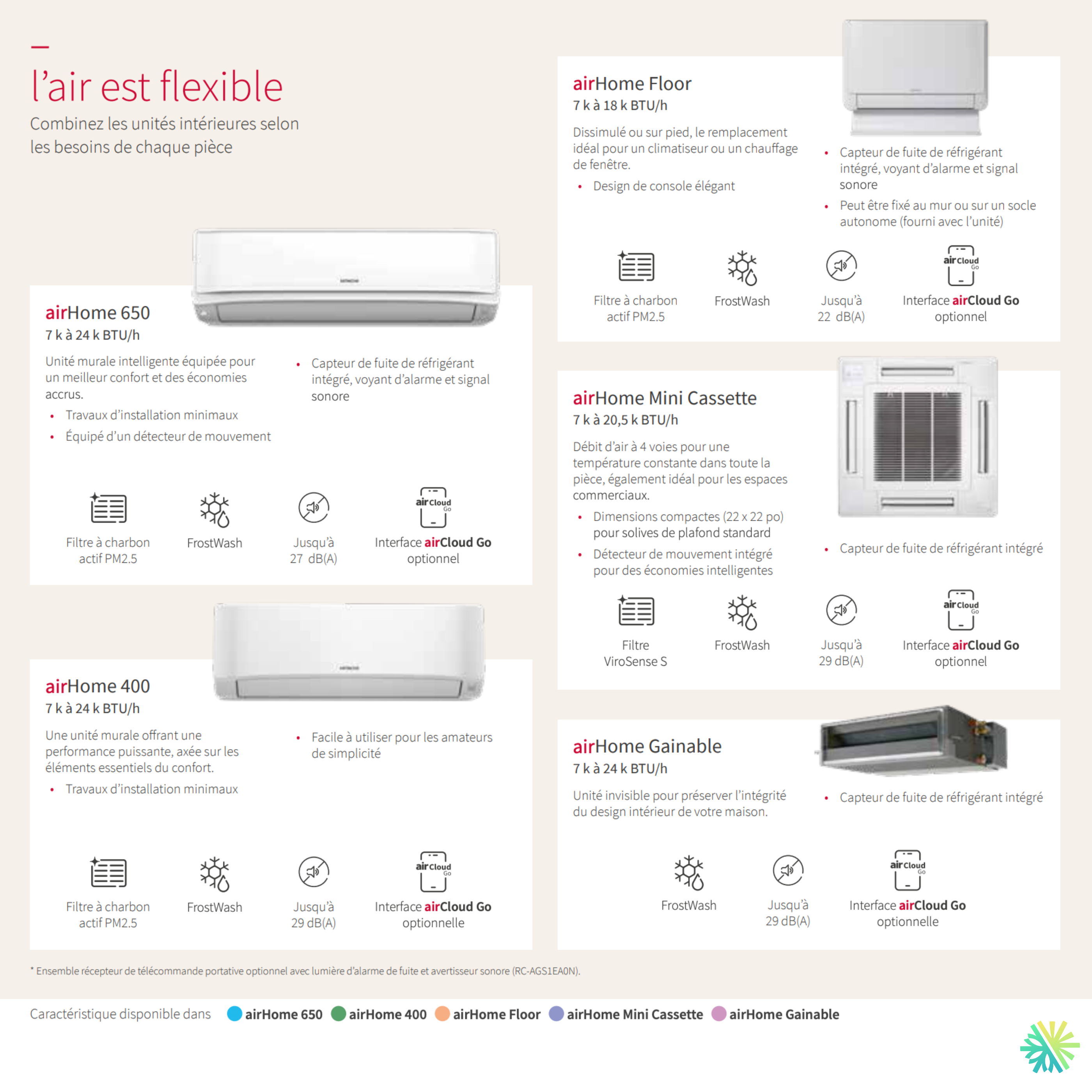

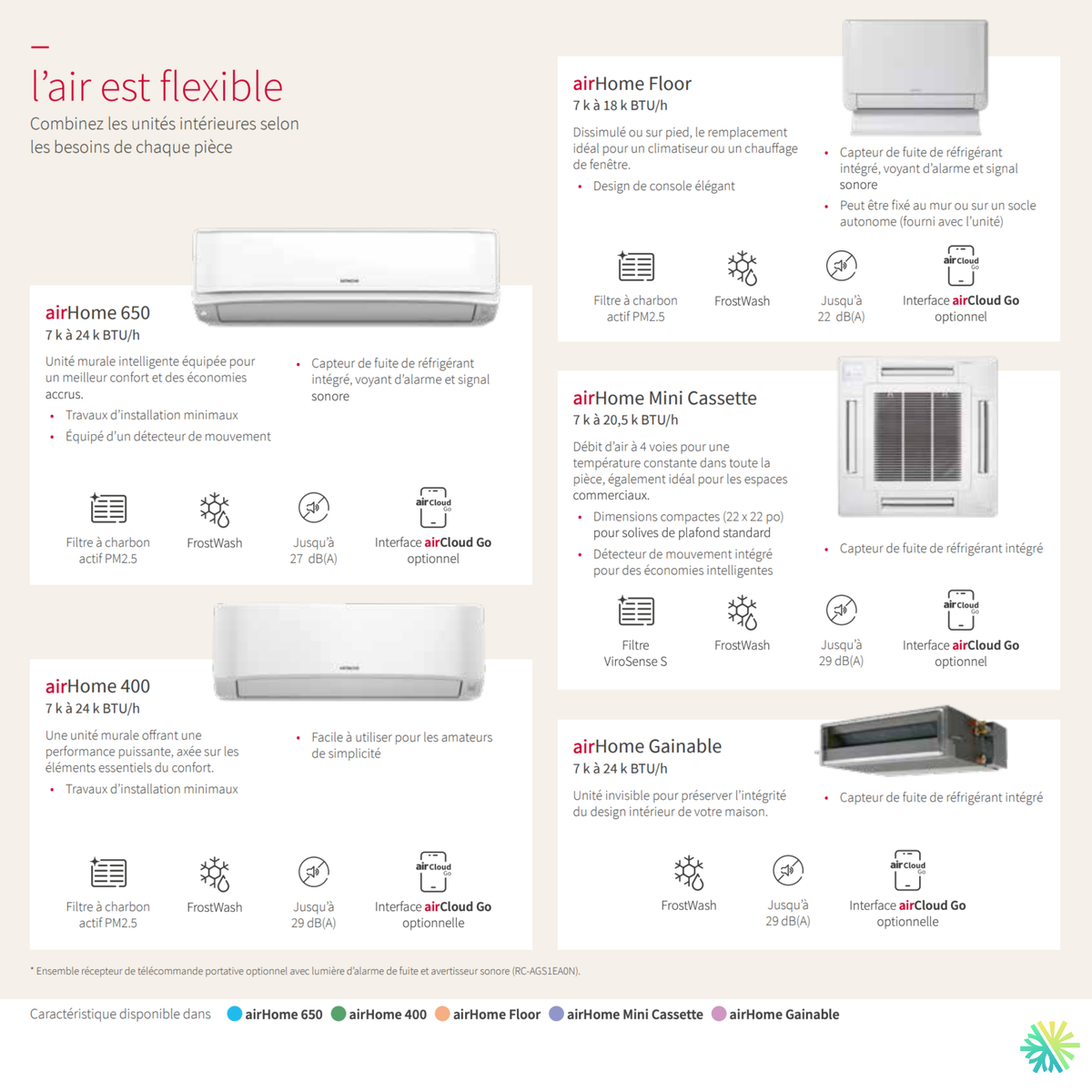

This product is part of the Hitachi airHome Multi range, a series designed to offer heating, cooling, and improved indoor air quality within a single system. The Hitachi brochure indicates that the multi-zone system can power up to five indoor units, that each zone can be controlled individually, and that the airHome ducted unit can offer a sound level as low as 29 dB(A), depending on the range configurations.

Why choose a ducted unit rather than a wall-mounted unit?

A ducted heat pump is not simply another type of indoor unit. It responds to a different installation logic. The goal is to make the system discreet, quiet, and better integrated into the building's architecture.

In a Montreal home, for example, we often have ceilings with constraints, brick walls, narrow divisions, or rooms where the ideal location for a wall-mounted unit does not exist. In a condo in Laval or Longueuil, co-ownership regulations may limit visible penetrations, impose certain piping routes, or require a more refined finish. In a South Shore property, a basement renovation or extension can offer the perfect opportunity to integrate a short duct network to distribute air more homogeneously.

The ducted version becomes particularly relevant when the client wishes to:

• keep walls clear for furniture, artwork, windows, or storage;
• improve comfort in a room without adding a visible unit;
• serve a specific area with softer air diffusion;
• reduce the visual impact of an air conditioning and heating system;
• integrate the installation into a more global renovation project;
• create a high-end HVAC solution for a bedroom, office, or open-plan area.

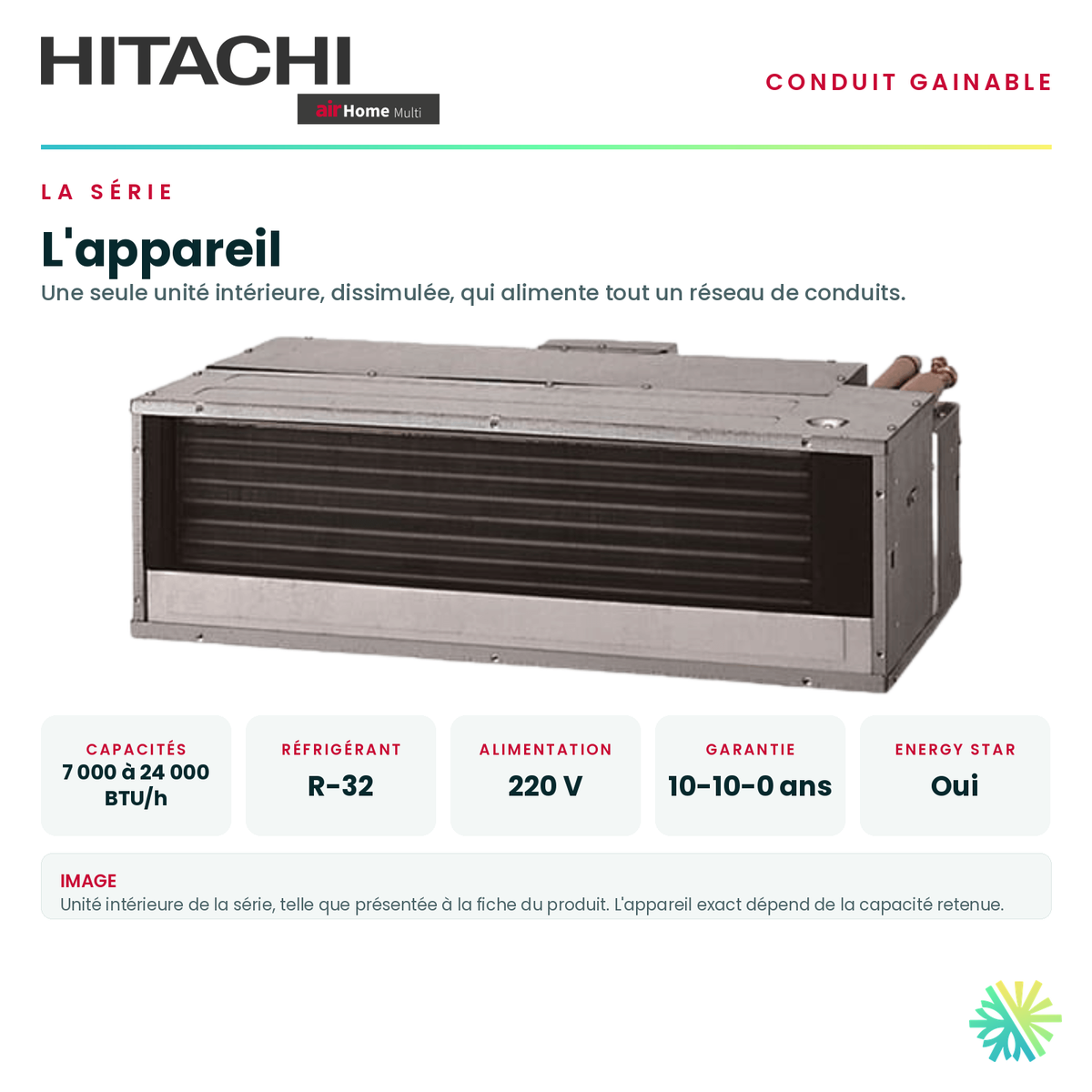

The HITACHI Ducted 9000 BTU is also interesting because its indoor unit format is relatively compact: 29.5 x 15.7 x 9.3 in. This facilitates its integration into certain technical spaces, provided the building allows the necessary access for installation, drainage, maintenance, and refrigeration connections.

A 9000 BTU capacity well-targeted for small comfort zones

The 9000 BTU format is often ideal for a closed room, a bedroom, an office, a small living area, or a specific zone within a dwelling. You shouldn't choose a heat pump based solely on floor area. At AirGreen, we also analyze:

• the actual insulation of the walls and ceiling;
• sun exposure;
• the number and quality of windows;
• the floor where the room is located;
• ceiling height;
• natural air circulation;
• the presence of heat-producing equipment;
• the room's use, e.g., bedroom, office, or living room;
• heating needs in winter and cooling needs in summer.

A common mistake is to install a unit that is too powerful "to be sure." In practice, an oversized appliance can operate in cycles that are too short, dehumidify less effectively, create temperature variations, and reduce comfort. Conversely, an undersized appliance can run too long and struggle to maintain temperature on very cold or very hot days.

The HITACHI Ducted 9000 BTU offers a balanced solution for zones where precision matters. It can be an excellent option for a master bedroom in a North Shore bungalow, a closed office in a Montreal condo, a family room in a Longueuil house, or a well-insulated rear extension on the South Shore.

Performance designed for Quebec heating

This heat pump is rated with a heating capacity down to -20 °C, making it a serious option for our climate. On the AirGreen website, the product data also mentions a power output at -8 °C of 16,000 BTU and a power output at -15 °C of 18,200 BTU. These data are important because heating performance should never be evaluated solely at mild temperatures.

In Greater Montreal, customers often ask us the same question: can a heat pump really heat in winter? The answer depends on the model, the installation, the house configuration, and the supplementary system in place. In the case of this Hitachi unit, the advertised features show a clear orientation towards four-season use, with ENERGY STAR® and ENERGY STAR® Cold Climate certification.

For a homeowner, this means the system can help reduce the use of electric baseboards, improve comfort in an often-cold room, and provide efficient air conditioning in the summer. In many homes we visit in Laval and on the South Shore, rooms above a garage, corner bedrooms, or north-facing offices are often the first candidates for this type of solution.

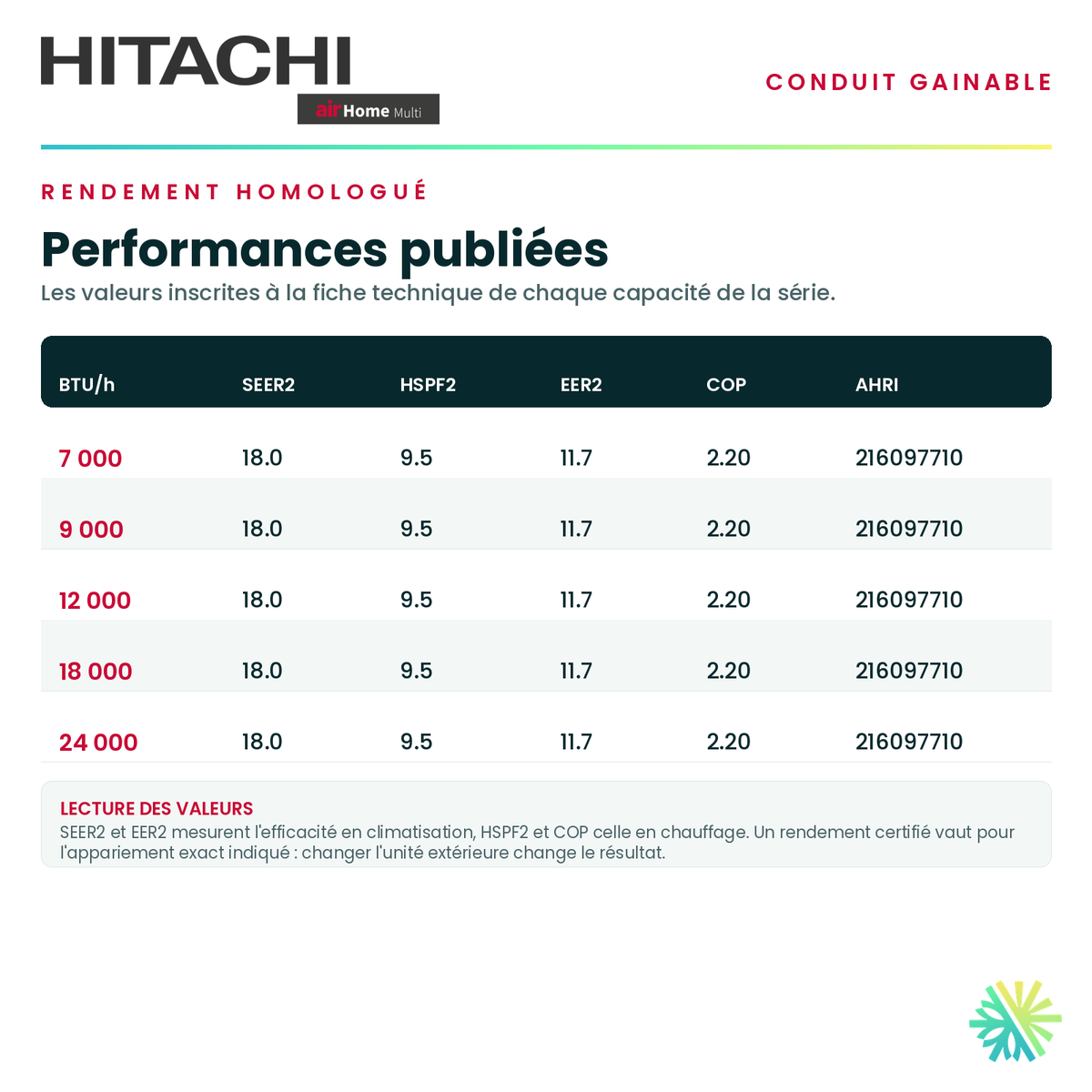

Energy Efficiency: Reading the Numbers Intelligently

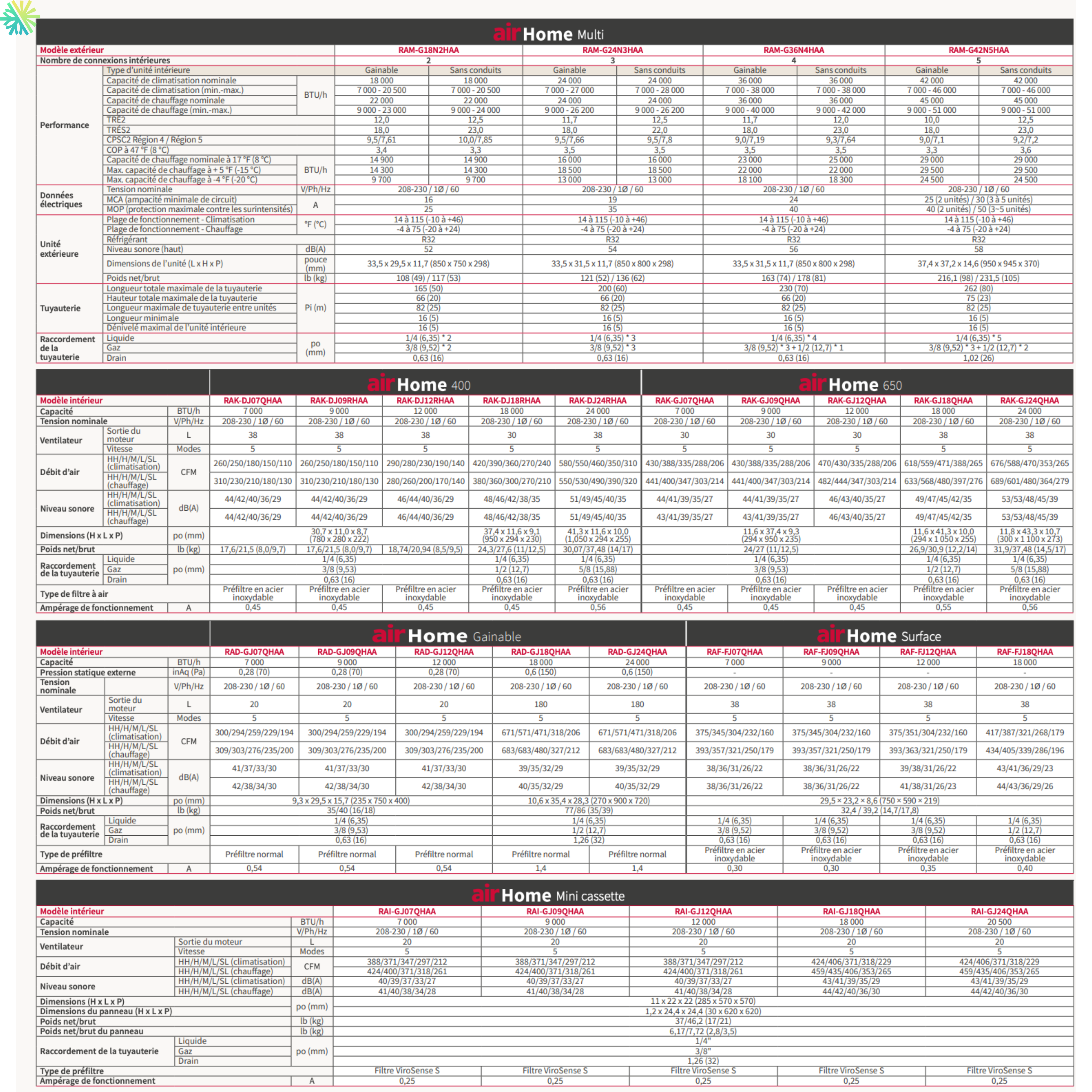

The data displayed for this product sheet indicates:

• SEER2: 18.030
• HSPF2: 9.515
• EER2: 11.720
• COP at -8 °C: 2.23
• AHRI: 216097710
• ENERGY STAR ID: 3799345
• Refrigerant: R-32
• Voltage: 220V
• MCA: 19A
• MOP: 35A

These values allow for a better comparison of the product with other options. The SEER2 indicates seasonal cooling efficiency, the HSPF2 reflects seasonal heating efficiency, and the COP gives an idea of performance at a specific temperature. For a customer, these numbers should not be read in isolation. They make full sense when combined with proper sizing, installation, and use.

The R-32 is also an important point. This refrigerant is increasingly used in new generations of residential and commercial heat pumps. During an HVAC installation, our technicians must adhere to the best practices specific to this type of gas, including sealing, proper connections, pressure tests, vacuuming, and functional validation.

A flexible multi-zone system for more complete projects

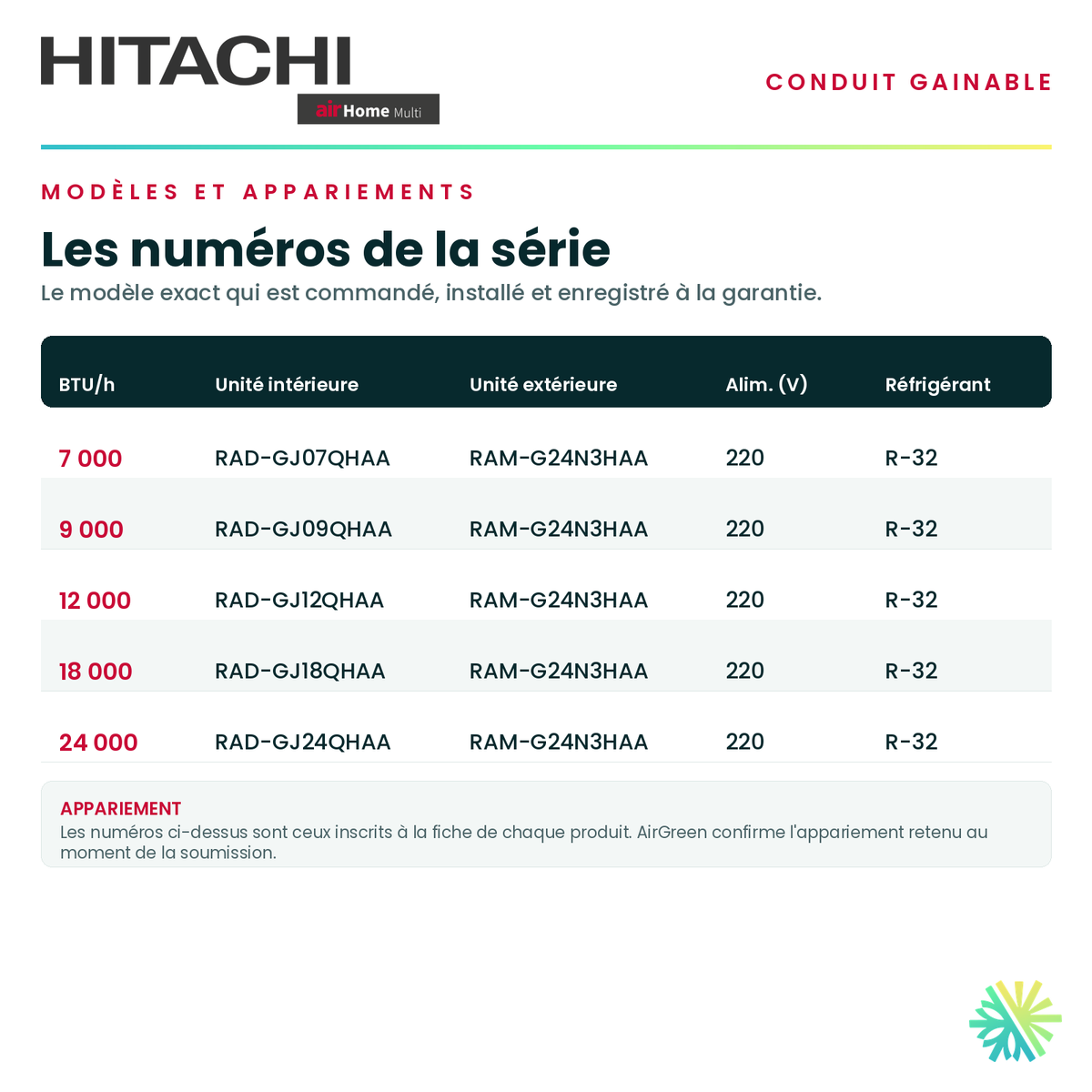

The indicated outdoor model, RAM-G24N3HAA, belongs to a multi-zone logic. This means it can serve several compatible indoor units, depending on the project configuration. For a homeowner, this is often a major advantage: instead of installing multiple outdoor compressors, it becomes possible to manage several zones from a single outdoor unit, when the project allows it.

This approach is very useful in homes where each room has different needs. A bedroom may require less air conditioning than a south-facing living room. A home office may only be used during the day. A basement family room may need more consistent heating. With a multi-zone system, each indoor unit can be adjusted according to the reality of its zone.

In a typical recent project in Montreal, this type of configuration might include a ducted unit for a master bedroom, a wall-mounted unit for an open-plan area, and a compact cassette for a commercial or semi-commercial zone. In Boucherville, Brossard, Terrebonne, or Repentigny, we also see this type of demand in renovated homes where clients want to improve comfort without multiplying outdoor equipment.

Installation: The Details That Make All the Difference

A ducted heat pump requires more precise planning than a standard wall-mounted unit. The appliance is discreet once installed, but this discretion demands rigorous technical work behind visible surfaces.

At AirGreen, we pay particular attention to:

1. Indoor unit placement
   The unit must remain accessible for maintenance, inspections, and future interventions. An overly enclosed installation can complicate servicing and increase long-term costs.
2. Drainage management
   The condensate drain must be planned from the outset. Inadequate slope, an incorrectly chosen pump, or difficult access can cause water, noise, or maintenance problems.
3. Air distribution
   Grilles must be positioned to avoid direct drafts on a bed, desk, or sofa. Good diffusion improves comfort and reduces complaints related to air that is too cold or too hot.
4. Refrigerant piping
   This model uses 1/4 - 3/8 in piping, a common size that facilitates certain installations. Our refrigeration technicians always check compatibility, length, elevation differences, and connection quality.
5. Electrical supply
   With a 220V voltage, an MCA of 19A, and an MOP of 35A, electrical coordination must be correctly validated before work begins.
6. Sound level
   The indoor unit is rated at 30 / 42 dB(A) depending on operation, while the outdoor unit is rated at 54 dB(A). Compressor location, supports, and vibration must be properly managed.
7. Aesthetic finish
   A ducted unit must blend into the space. Grilles, service access, and duct routing must align with the interior design.

Concrete Example of an AirGreen Scenario

In a renovated home in Longueuil, a client wanted to air condition a master bedroom located upstairs, but rejected the idea of a visible wall-mounted unit above the bed. The space had a partially open ceiling in an adjacent hallway, which allowed for the integration of a compact ducted unit with two discreet air outlets. The main challenge was to manage the drain without creating noise and to maintain a clean access panel for future maintenance.

Our team proposed a configuration similar to what this type of model allows: discreet installation, gentle diffusion, well-protected connections, and interior finish harmonized with the renovation. The desired result was not just a more stable temperature, but also a feeling of comfort without a visible appliance in the bedroom. This is exactly the type of situation where a 9000 BTU ducted heat pump can offer superior value to a more standard solution.

Air Quality, Maintenance and Durability

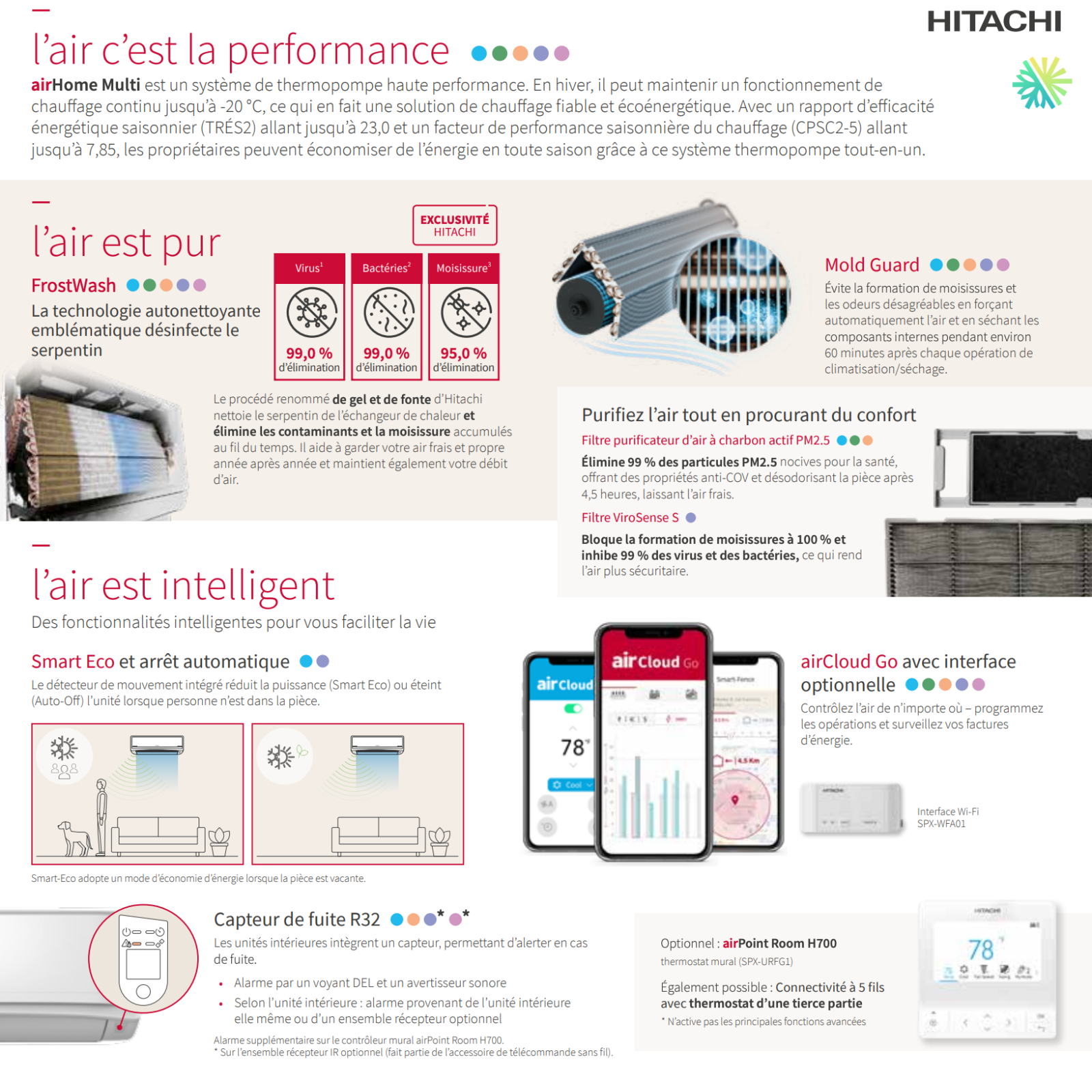

The Hitachi airHome Multi range features several functions related to system cleanliness and air quality. FrostWash technology is presented as a self-cleaning function for the coil, while some units in the range also integrate filtration technologies and odor or mold prevention functions. For a ducted unit, maintenance remains essential: filter, drain, coil access, ventilation, and general inspection must be considered from the installation stage.

At AirGreen, we recommend regular HVAC maintenance, especially for systems installed in bedrooms, offices, or spaces used daily. Well-done maintenance helps maintain airflow, reduce odors, prevent accumulation, and preserve performance. A poorly maintained ducted unit can lose efficiency, become noisier, or experience condensation problems.

Durability also depends on the outdoor installation. In Montreal, Laval, Longueuil, on the North Shore and the South Shore, outdoor units are subjected to snow, ice, rain, salt, winds, and rapid temperature variations. Proper support, adequate distance from the ground, mechanical protection if needed, and a compliant installation make a big difference.

Warranty and Peace of Mind

The product sheet indicates a 10-10-0 year warranty for compressor, parts, and labor, with the possibility of an extended warranty. For homeowners, it is important to understand that the manufacturer's warranty and the labor warranty do not always cover the same elements. Installation, registration, maintenance, and operating conditions can influence coverage.

At AirGreen, we clearly explain these elements before starting work. We prioritize transparent pricing, a final offer before installation begins, and an approach where the customer understands what is included, what is not, and what options can be added for better long-term protection.

Mistakes to Avoid Before Buying a Ducted Heat Pump

Before choosing the HITACHI Ducted Heat Pump 9000 BTU, here are the most common mistakes to avoid:

• buying a model without checking if the space allows for a proper ducted installation;
• neglecting future access for maintenance;
• underestimating the importance of the condensate drain;
• comparing only the price without analyzing the quality of the installation;
• ignoring electrical constraints;
• choosing capacity based solely on surface area;
• forgetting co-ownership regulations;
• placing grilles without considering the actual room occupancy;
• installing the outdoor unit too close to a window, a neighbor, or a noise-sensitive area;
• not validating eligibility for the LogisVert subsidy before finalizing the project.

These errors can turn a good product into a disappointing experience. Conversely, a well-designed installation provides stable, discreet, and efficient comfort for many years.

A high-end solution for invisible comfort, precisely installed by AirGreen

The HITACHI Ducted Heat Pump 9000 BTU is a serious option for homeowners who want a discreet, efficient HVAC solution tailored to a specific area. Its compact size, multi-zone compatibility, R-32 operation, ENERGY STAR® Cold Climate certification, heating capacity down to -20 °C, and eligibility for a $1,920 LogisVert provincial subsidy make it a very relevant product for the Quebec market.

However, this type of equipment requires real installation expertise. The value of the system does not only depend on the brand or technical specifications. It relies on choosing the right location, the quality of connections, drain management, air distribution, aesthetic finish, future maintenance, and the team's ability to adapt the solution to the building's reality.

At AirGreen, we install residential, commercial, and multi-housing HVAC systems throughout Greater Montreal, including Montreal, Laval, Longueuil, the North Shore, the South Shore, and Montérégie. Our approach is simple: offer a suitable solution, clearly explain the options, ensure professional installation, and remain available after the work.

To get an evaluation, compare this model with other Hitachi options, or plan a discreet and efficient HVAC installation, contact AirGreen today. Our team can guide you towards the most logical configuration for your space, your budget, your comfort, and available subsidies.
