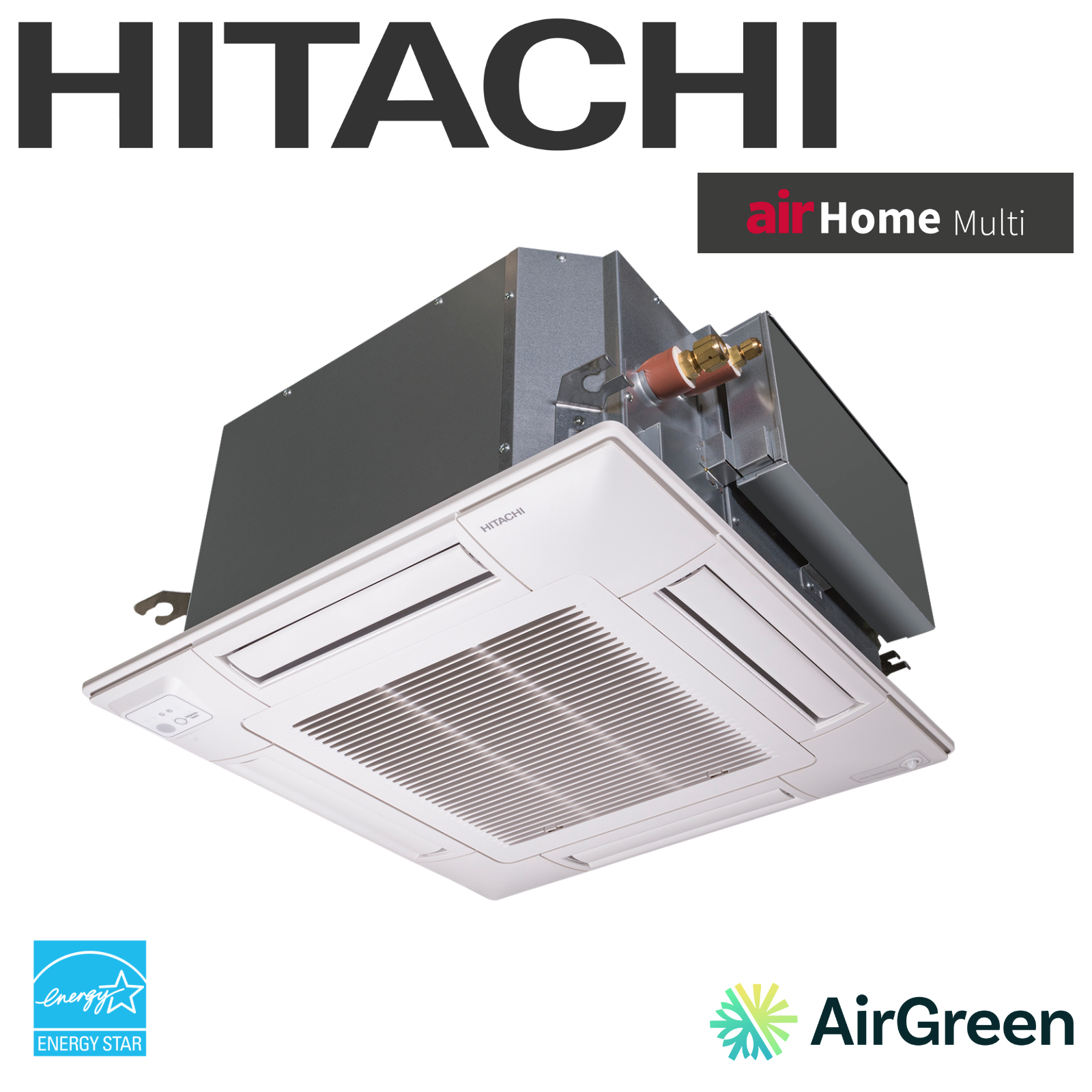

HITACHI | Mini Ceiling Cassette - Heat Pump | 12000 BTU
SEER2 (Seasonal Air Conditioning Efficiency)
HSPF2 (Seasonal heating efficiency)
EER2 (Instantaneous efficiency in air conditioning)
COP at -8 °C (Heating energy efficiency)
A mini ceiling cassette designed for spaces where comfort needs to be discreet, stable, and well-distributed
The HITACHI 12,000 BTU Mini Ceiling Cassette is a multi-zone heat pump solution that addresses a very specific need: achieving efficient comfort in a room without installing a visible wall-mounted unit. For many homeowners in Montreal, Laval, Longueuil, on the North Shore, and the South Shore, this type of unit becomes particularly appealing when interior design, fenestration, load-bearing walls, or architectural constraints make a wall-mounted unit less appropriate.
At AirGreen, we often see this scenario in condos, renovated homes, rear extensions, home offices, compact commercial spaces, and certain residences where aesthetics are as important as performance. The cassette integrates into the ceiling, distributes air in multiple directions, and leaves walls free for furniture, windows, cabinets, or decorative elements.
The indoor model RAI-GJ12QHAA, paired here with the outdoor unit RAM-G24N3HAA, is part of the Hitachi airHome Multi range. This system is designed to cool and heat multiple zones with a single outdoor unit, while allowing each room to have its own settings. This approach is particularly useful in Quebec homes where needs vary greatly from room to room: a very sunny living room might overheat in the afternoon, while a basement office remains cooler; a bedroom might require quiet operation at night, while an open-plan area needs stronger airflow.
Why choose a mini cassette instead of a wall-mounted unit?
A mini ceiling cassette is not just an aesthetic alternative. It also changes the way air is distributed. With its four-way airflow, it can better cover a central area, especially when the room is square, open, or difficult to treat from a single wall.
In many installations carried out by AirGreen, the mini cassette becomes the best option when:
- available walls are limited by large windows;
- the client does not want to see a wall unit in their decor;
- the space is used as an office, waiting room, treatment room, family room, or common area;
- airflow needs to be more uniform;
- the room has a ceiling that allows for clean integration;
- a multi-zone system is already planned to serve several rooms.
The Hitachi brochure states that the airHome mini cassette offers 4-way airflow, compact dimensions of 22 x 22 inches suitable for standard ceiling joists, an integrated motion sensor, an integrated refrigerant leak sensor, the ViroSense S filter, FrostWash technology, and optional compatibility with the airCloud Go interface.
The specifications that truly matter to a homeowner
On paper, there are many technical features. In the reality of an HVAC installation, certain data are particularly important.
This HITACHI 12,000 BTU Mini Cassette heat pump offers a nominal capacity of 12,000 BTU, making it suitable for several medium-sized rooms, depending on insulation, sun exposure, ceiling height, fenestration, and room usage. The indoor model is RAI-GJ12QHAA and the associated outdoor unit is RAM-G24N3HAA, a multi-zone outdoor unit that can accept up to three indoor connections.
Key elements include:
- Cooling capacity: 12,000 BTU
- Refrigerant: R-32
- ENERGY STAR: Yes
- ENERGY STAR Cold Climate: Yes
- AHRI: 216097707
- ENERGY STAR ID: 3799342
- Piping: 1/4 - 3/8 inch
- Voltage: 220V
- MCA: 19A
- MOP: 35A
- Indoor sound level: 27 / 41 dB(A)
- Outdoor sound level: 54 dB(A)
- Indoor dimensions: 22 x 22 x 11 inches
- Compressor and parts warranty: 10 years / 10 years
- Labor: 0 years by default, with possible extended warranty
- Provincial LogisVert subsidy displayed: $1,920
The choice of R-32 is also relevant. This refrigerant is increasingly present in recent equipment, particularly to meet current requirements for efficiency and environmental impact reduction. For AirGreen customers, this primarily means entrusting installation to a team capable of adhering to the specific procedures for this type of system: good connection practices, leak testing, vacuum evacuation, pressure control, drainage management, and complete commissioning.
A multi-zone solution suited for complex homes and premises

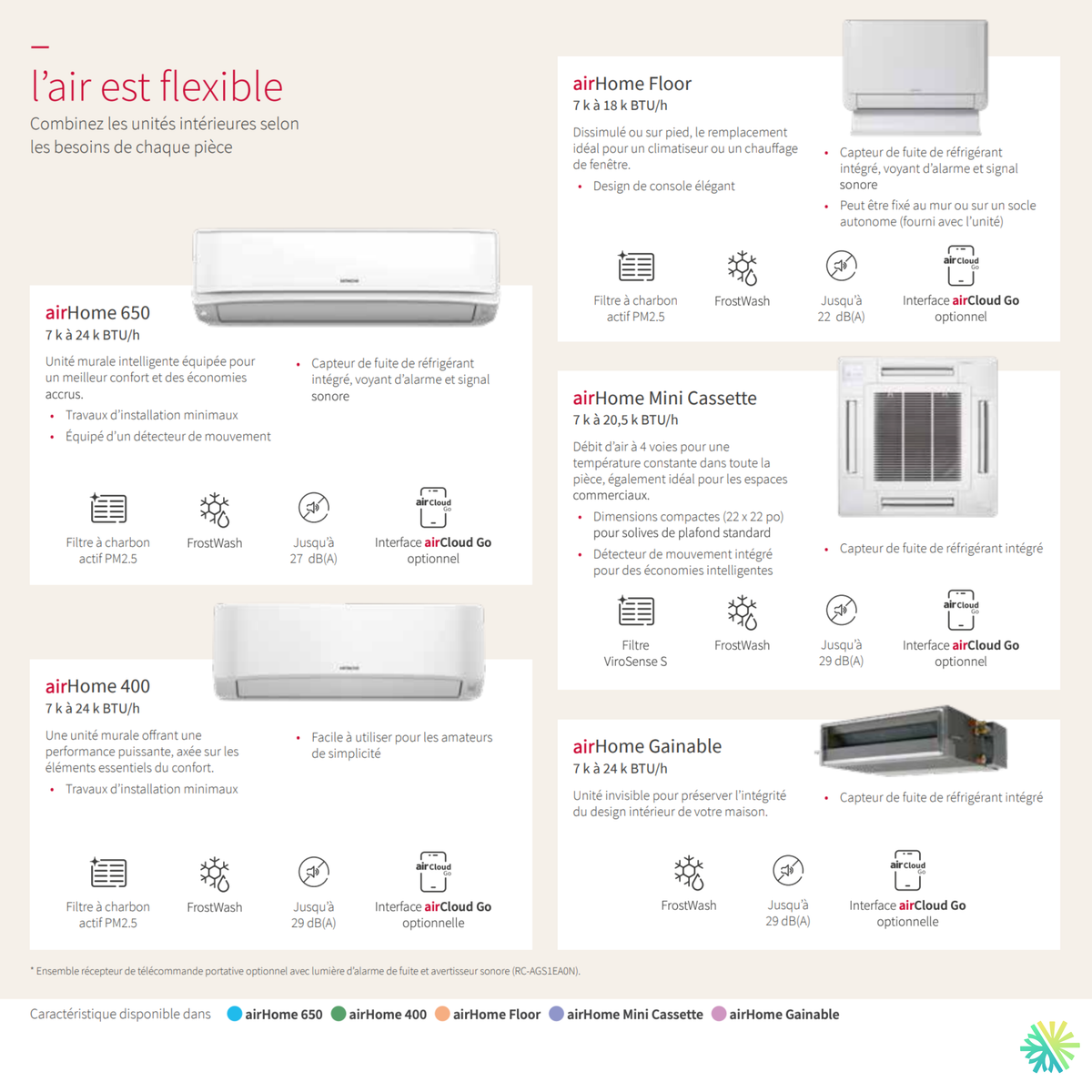

The Hitachi airHome Multi system allows combining several types of indoor units: wall-mounted, consoles, ducted, and mini cassettes. This flexibility is very useful in Greater Montreal, where buildings are rarely uniform. The same house might have an open-plan living area on the ground floor, enclosed bedrooms upstairs, a finished basement, and an extension with a lot of glazing.
In this type of configuration, we can propose a custom combination. For example, a mini cassette can be installed in a central area of the ceiling, while a simpler wall-mounted unit may be suitable for a bedroom or office. The goal is not just to sell an appliance, but to create a coherent, durable, and easy-to-use HVAC installation for daily living.

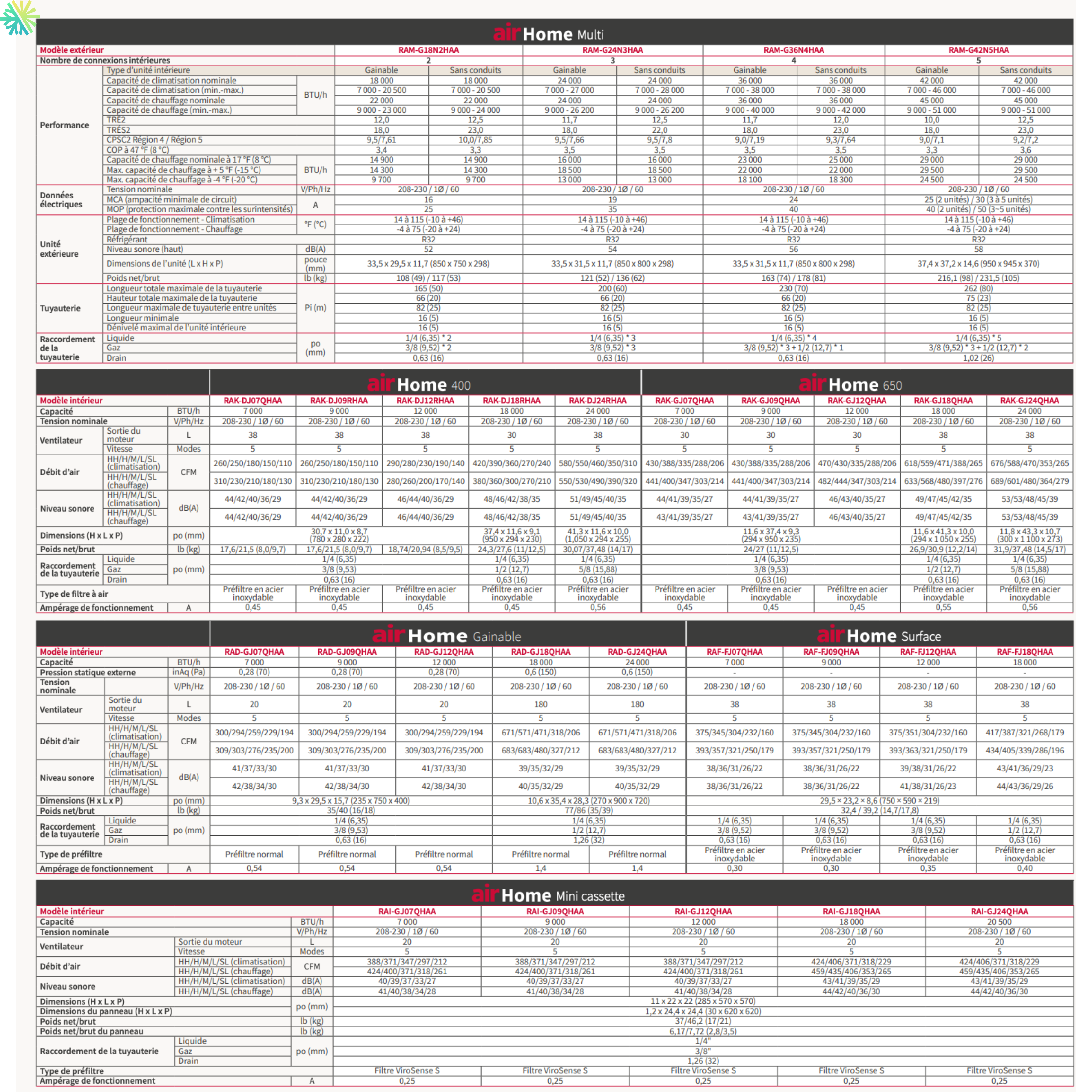

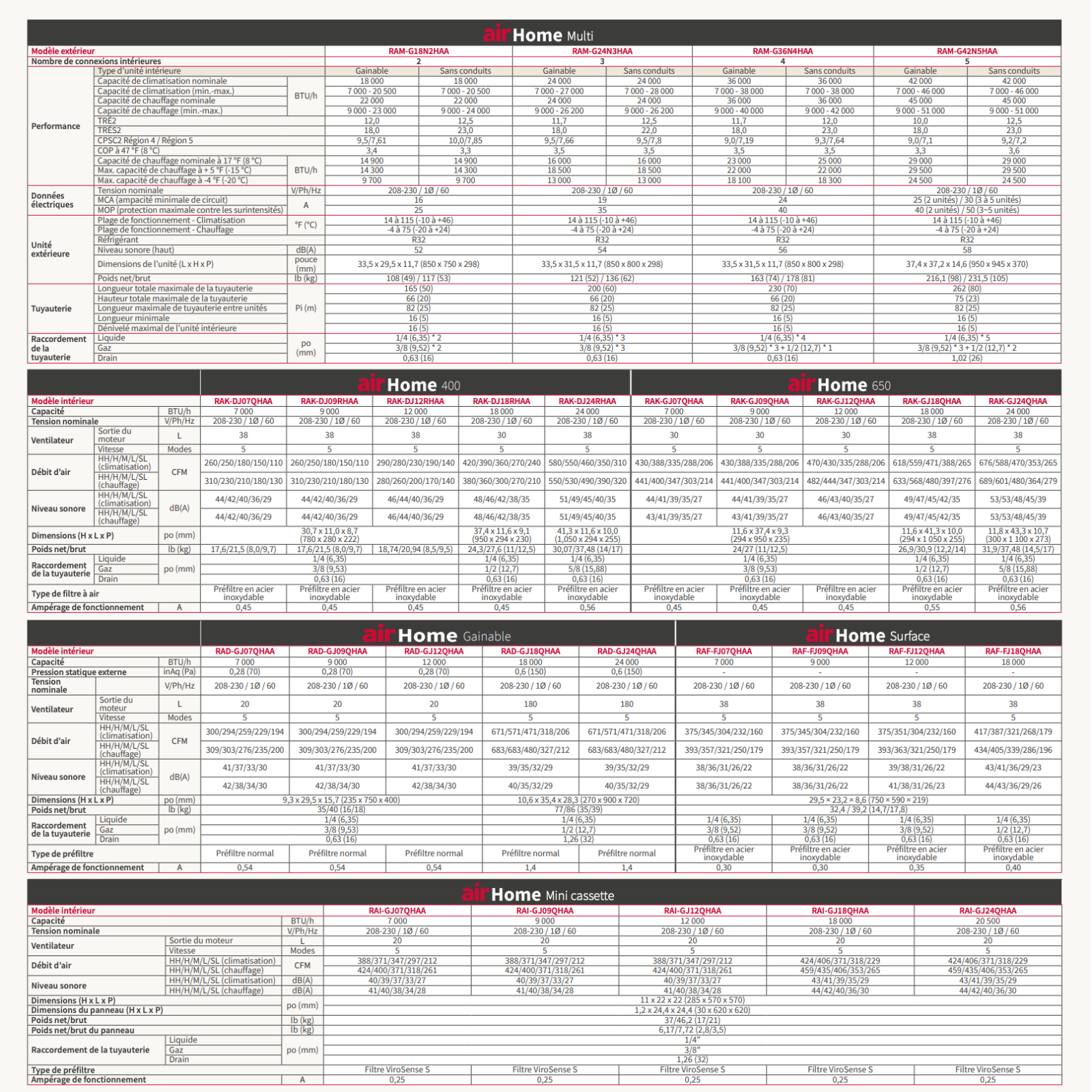

In the Hitachi brochure, the outdoor unit RAM-G24N3HAA is presented as a 24,000 BTU/h unit with three possible indoor connections. It uses a 208-230V / 1 phase / 60 Hz power supply, R-32 refrigerant, a cooling operating range of -10 °C to +46 °C, and a heating range of -20 °C to +24 °C. These details are essential for evaluating the suitability of a system in Quebec's climate.
What four-way airflow changes daily
A wall-mounted unit pushes air from a side point. A mini cassette, on the other hand, distributes air from the ceiling, usually in multiple directions. In a well-chosen room, this can produce a more homogeneous feeling of comfort.
A common example: a family room located in the center of a dwelling, with few available walls, doors to several zones, and an accessible ceiling. A wall-mounted unit installed in a corner could create an area that is too cold near the unit and a less comfortable area at the other end. A central cassette, well positioned, helps to better distribute the air.
At AirGreen, during an on-site estimate, we always check:
- the ceiling structure;
- the position of the joists;
- access for condensation drainage;
- the distance to the outdoor unit;
- the possibility of concealing the piping;
- future access for HVAC maintenance;
- the sound level desired by the client;
- compatibility with other system zones.
This analysis avoids unpleasant surprises. A ceiling cassette must be installed precisely. Poor placement, poorly planned drainage, or a missing access hatch can complicate maintenance or reduce the quality of the installation.
The importance of drainage in a mini cassette installation
Drainage is one of the most important aspects for a mini ceiling cassette. In cooling or dehumidification mode, the indoor unit produces condensation. This water must be properly evacuated, without backflow, stagnation, or risk of leakage into the ceiling.
In homes and condos in Montreal, we often encounter finished ceilings, confined spaces, or drainage paths that require meticulous planning. Depending on the configuration, it may be necessary to provide a natural slope or use an appropriate condensate pump. The choice depends on the building's structure, the distance to be covered, and the available drainage point.
A common mistake is to choose a cassette solely for its appearance, without validating the drainage. At AirGreen, we prefer to refuse an aesthetically pleasing but risky location rather than compromise the system's reliability. A clean installation is one that remains clean after several seasons of use.

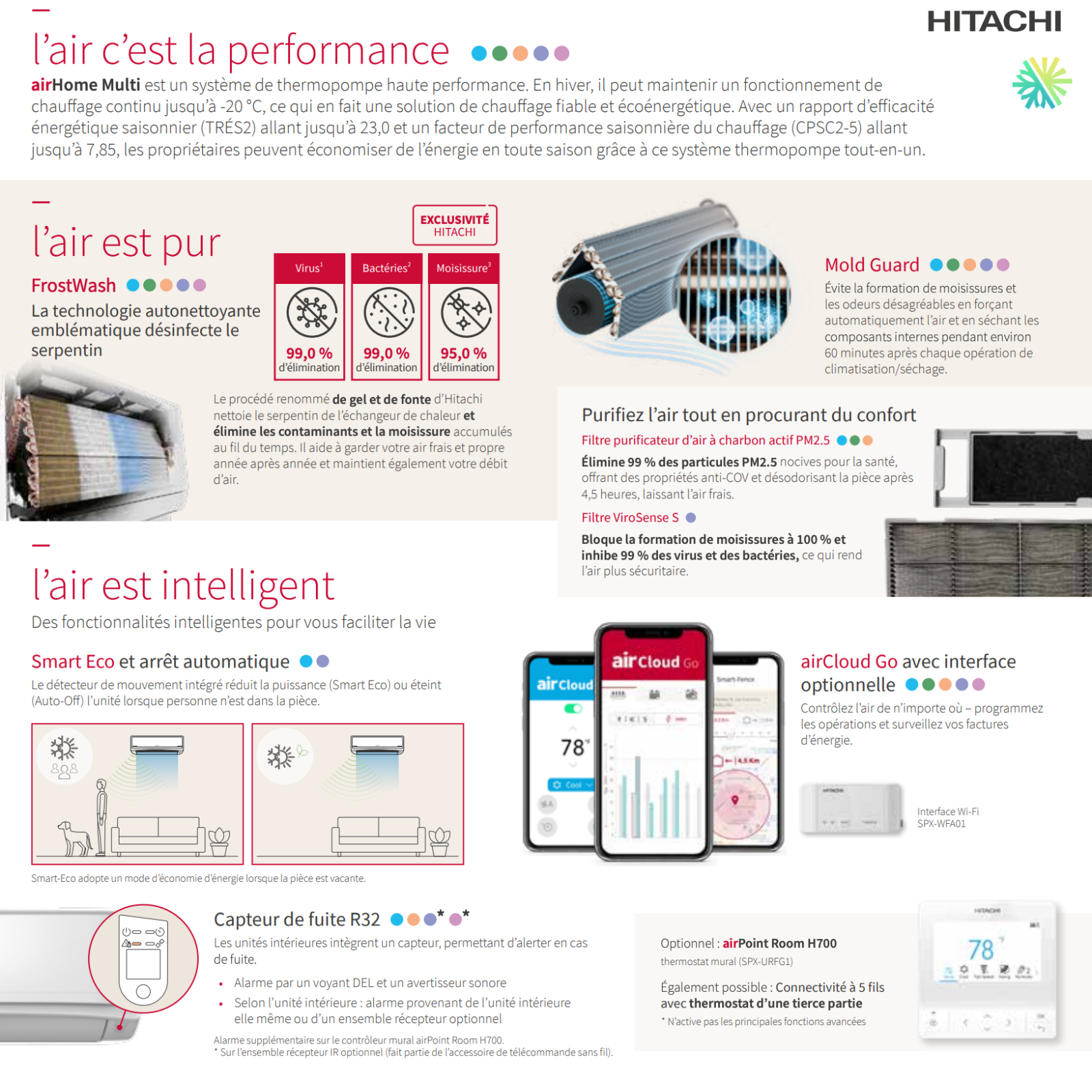

Useful Hitachi technology for comfort, indoor air, and seasonal efficiency
The HITACHI 12,000 BTU Mini Ceiling Cassette is not just a discreet appliance. It incorporates several technologies that enhance the daily experience, especially in a residential or light commercial context.
FrostWash: a cleaner coil, for longer
The FrostWash technology is one of the distinctive elements of the Hitachi range. The principle is based on a freeze and thaw cycle that helps clean the heat exchanger coil. In an air conditioning unit or a heat pump, the indoor coil can accumulate dust, moisture, particles, and residues over time. A cleaner coil promotes better airflow and helps maintain better air quality.
This is not a complete replacement for professional maintenance, but it is a real advantage. A system still needs to be inspected, cleaned, and maintained according to its use. In a commercial space, a dwelling with pets, a house near a busy thoroughfare, or a heavily used area, HVAC maintenance remains essential.
ViroSense S Filter: an asset for air quality
The mini cassette model uses the ViroSense S filter. According to the Hitachi brochure, this filter helps block mold formation and inhibits a very large proportion of viruses and bacteria. In a home, this can be an advantage for families sensitive to air quality. In a small business, office, or professional space, it also adds significant value when several people use the same room.
Indoor air quality never depends on a single filter. It also depends on ventilation, humidity, coil cleanliness, maintenance frequency, occupant habits, and the overall condition of the building. However, when a device combines filtration, efficient air distribution, and self-cleaning functions, it can contribute to a more pleasant environment.
Motion detector: smarter comfort and savings
The Hitachi mini cassette is equipped with an integrated motion sensor. This function allows the system to adjust its operation when the room is unoccupied. In practice, this can help avoid unnecessary consumption in intermittently used areas: conference rooms, home offices, guest rooms, family rooms, consultation rooms, or commercial spaces.
In a multi-zone system, this logic becomes even more interesting. Each zone can be used differently. It is not necessary to treat all rooms in the same way, at the same time, with the same intensity. This is one of the great advantages of a well-designed multi-zone heat pump.
Optional WiFi: useful, but not always essential
The product indicates optional WiFi compatibility. For some customers, the airCloud Go interface is very practical: programming, remote control, usage monitoring, quick adjustments before returning home. For others, a remote control or a wall thermostat is largely sufficient.
At AirGreen, we do not systematically push all options. We evaluate actual usage. An owner-occupier who travels frequently may appreciate remote control. A property manager may prefer a simpler and more robust configuration. A business may require a solution with limited access to settings to avoid frequent manipulation.
Winter Performance: What You Need to Understand
The spec sheet indicates a heating capacity down to -20 °C. For the climate of Montreal, Laval, Longueuil, the North Shore, and the South Shore, this means the system can play a significant role during a large part of the cold season. However, as with any heat pump, performance varies depending on the outdoor temperature, the building's thermal load, and the configuration of the zones.
A common mistake is to choose solely based on the displayed BTU number. For a reliable HVAC installation, you also need to consider:
- low-temperature capacity;
- the number of connected zones;
- piping distance;
- height between units;
- room insulation;
- window heat loss;
- wind exposure;
- the existing heating system;
- the client's expectations for primary or supplementary heating.
In some projects, the heat pump can cover most needs. In others, it works as a supplement to an existing electric, hydronic, or central heating system. AirGreen's role is to propose a realistic solution, not an exaggerated promise.
Real Case: A Discreet Cassette in a Workspace in Longueuil
A representative example: a client in Longueuil wanted to air condition and heat a workspace on the ground floor, but no wall was suitable for a wall-mounted unit. One side was entirely glass, another occupied by built-in storage, and the remaining wall would have directed air directly towards the main office. The chosen solution was a ceiling cassette, centered for better distribution.
The main challenge was not capacity, but integration. It was necessary to coordinate the unit's position, drainage, refrigerant line routing, and maintenance access. Once installed, the cassette maintained a more stable temperature without taking up wall space. The client particularly appreciated the discreet operation and less direct air diffusion on occupants.
Real Case: A Multi-zone Solution in a Renovated House on the South Shore
In a renovated house on the South Shore, a family wanted to treat three zones with a single outdoor unit: the open-plan living area, a master bedroom, and a closed office. A wall-mounted unit was suitable for the bedroom, but the open-plan area required better central diffusion. The mini cassette was chosen for this zone, while the other rooms received more classic units.
This type of combination perfectly illustrates the benefit of the Hitachi airHome Multi range: not imposing the same appliance everywhere. Good multi-zone design adapts to the building. The final solution must consider comfort, appearance, noise, maintenance, installation costs, and ease of use.
Mistakes to Avoid Before Buying a Mini Cassette
Before requesting the installation of a HITACHI 12,000 BTU Ceiling Mini Cassette, a few common pitfalls must be avoided.
The first mistake is to assume that a ceiling is always compatible. This is not automatic. You need to check the available space, joists, clearance, drainage, and access.
The second mistake is to neglect noise. Even if the unit is quiet, its location influences sound perception. In a bedroom, recording studio, treatment room, or concentration area, precision is particularly important.
The third mistake is to incorrectly size the zone. A 12,000 BTU cassette can be excellent in one room and insufficient or excessive in another. An on-site analysis avoids approximate choices.
The fourth mistake is to only look at the subsidy. The LogisVert subsidy displayed at $1,920 is very attractive, but it must accompany a consistent technical choice. An eligible appliance is not automatically the best choice for every building.
The fifth mistake is underestimating the importance of the installer. A ceiling cassette requires meticulous execution. The final result depends as much on the appliance as on the quality of the work: drilling, fastening, connections, insulation, drain, vacuuming, functional testing, and finishing.
Why entrust this installation to AirGreen?
AirGreen installs HVAC systems in a wide variety of contexts: condos in Montreal, single-family homes in Laval, plexes in Longueuil, properties on the North Shore, and residential and commercial properties on the South Shore. This field experience allows us to quickly recognize constraints that are not visible on a simple product sheet.
Our approach is based on concrete elements:
- on-site estimation when necessary;
- system selection based on the building, not just the price;
- verification of piping and electrical routing;
- careful and compliant installation;
- leak test and vacuuming;
- particular attention to drainage;
- clear explanation of usage;
- possibility of extended warranty;
- structured after-sales service;
- transparency before work begins.
We also know that many clients compare options: wall-mounted units, consoles, ducted systems, mini cassettes, central systems, multi-zone heat pumps. Our role is to clarify the advantages and limitations of each solution. In many cases, the mini cassette is the best choice. In others, a wall-mounted unit or a ducted system will be more appropriate. The goal is always to install the right equipment in the right place.
An excellent choice for projects where aesthetics and performance must go hand in hand
The HITACHI 12,000 BTU Ceiling Mini Cassette Heat Pump is for clients who want serious comfort, discreet integration, and well-designed air distribution. It is particularly relevant for rooms where wall installation is not ideal, for multi-zone projects, for renovated spaces, and for homeowners who want to preserve interior appearance without sacrificing comfort quality.
With its compact size, its four-way airflow, its ViroSense S filter, its FrostWash technology, its operation with R-32, its ENERGY STAR Cold Climate eligibility, and its displayed provincial subsidy, this model represents a very solid option for many residential and light commercial projects.
For a quote, technical validation, or a recommendation tailored to your property, contact AirGreen. Our team can guide you to the best heat pump, air conditioning, and HVAC installation configuration in Montreal, Laval, Longueuil, on the North Shore, and the South Shore.
