HITACHI | Mini Ceiling Cassette - Heat Pump | 24000 BTU
SEER2 (Seasonal Air Conditioning Efficiency)
HSPF2 (Seasonal heating efficiency)
EER2 (Instantaneous efficiency in air conditioning)
COP at -8 °C (Heating energy efficiency)
A compact ceiling solution for discreet, precise, and well-distributed comfort

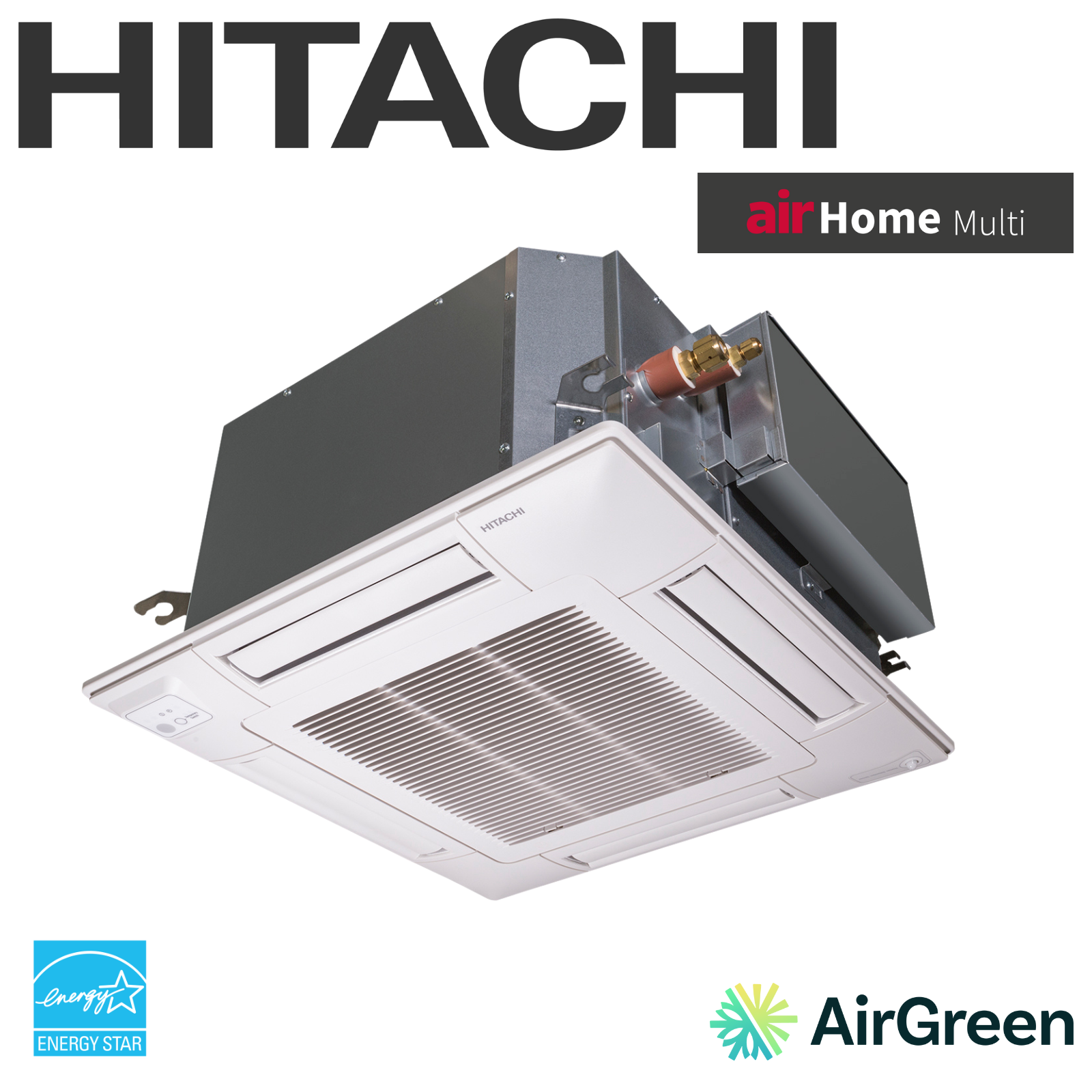

The HITACHI Mini Ceiling Cassette – 24000 BTU Heat Pump is designed for homeowners, building managers, businesses, offices, and high-end residential spaces who want a high-performance heating and cooling solution without installing a visible wall unit. At AirGreen, we recommend this type of equipment when interior aesthetics, uniform air distribution, and space optimization are concrete priorities.
Unlike a traditional wall-mounted heat pump, this Hitachi mini ceiling cassette integrates directly into the ceiling, with a compact panel and four-way air diffusion. The result is particularly appealing in open-plan rooms, commercial premises, conference rooms, modern condos, professional offices, finished basements, and spaces where walls are already occupied by furniture, windows, cabinets, or architectural elements.
This model is part of the Hitachi airHome Multi range, a platform designed to offer heating, air conditioning, and improved indoor air quality from a flexible multi-zone system. In an adapted configuration, a single outdoor unit can power several indoor units, each with its own control. For a client in Montreal, Laval, Longueuil, on the North Shore or on the South Shore, this flexibility can make a big difference when multiple rooms with different needs need to be treated.
Why choose a mini cassette over a wall unit?
A wall unit often remains the simplest and most economical choice. However, in certain projects, it is not the most coherent option. We regularly encounter situations where the ceiling mini cassette becomes a much more logical solution.
Here are some typical examples observed during our HVAC evaluations:
- An open-plan living room where no free wall allows for a clean installation.
- A business where the appearance of the premises must remain understated and professional.
- A private office where comfort must be consistent without direct drafts on occupants.
- A modern condo with large windows and decorative walls.
- A waiting room, clinic, or commercial space where noise must remain discreet.
- A renovated basement where ceilings allow for neat integration of the unit.
Four-way diffusion allows for better air distribution in the room. Instead of blowing from a single wall, the device projects air in multiple directions, reducing areas that are too cold or too hot. In projects where we install this type of system, clients often appreciate the feeling of more natural comfort, especially in spaces where several people occupy the room in different locations.

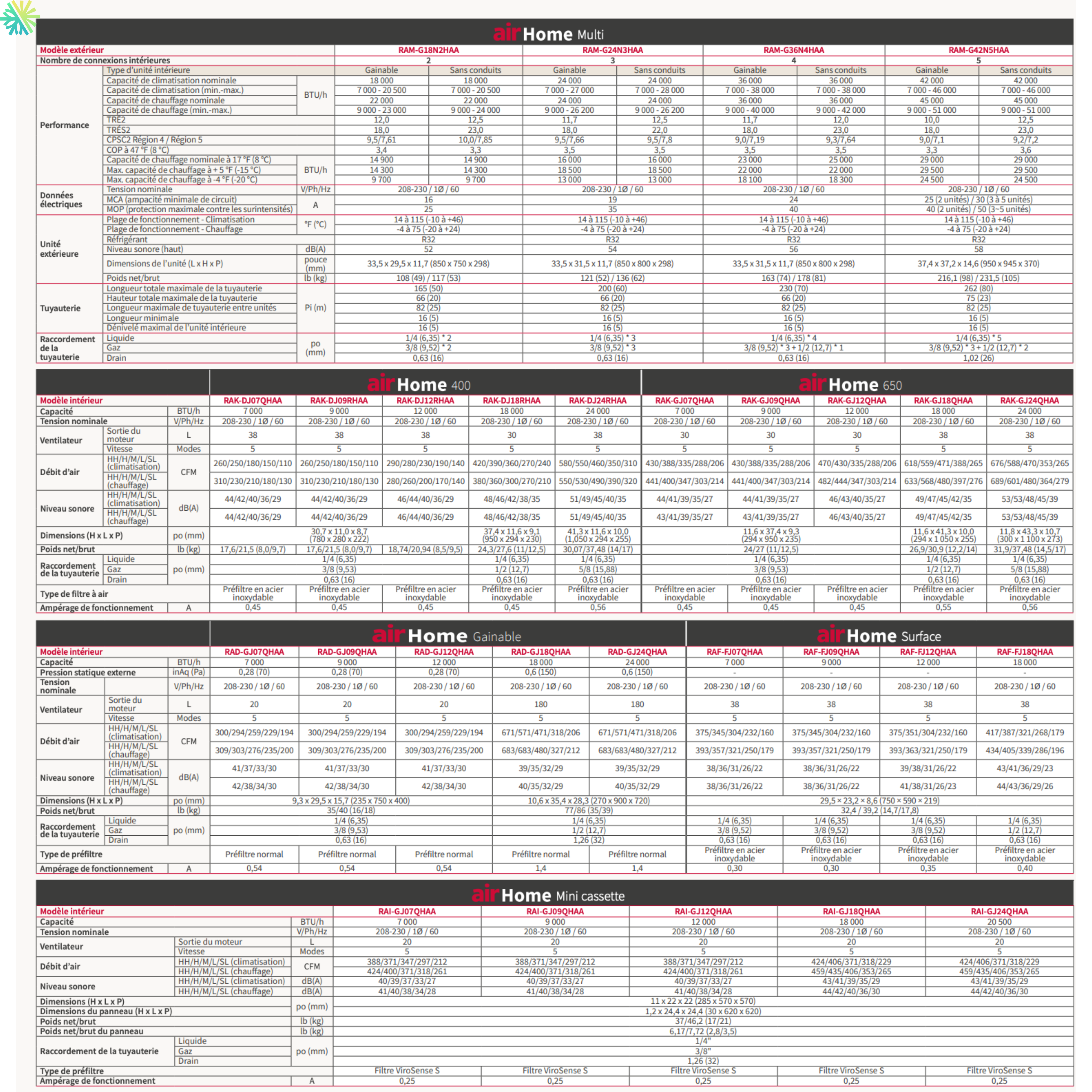

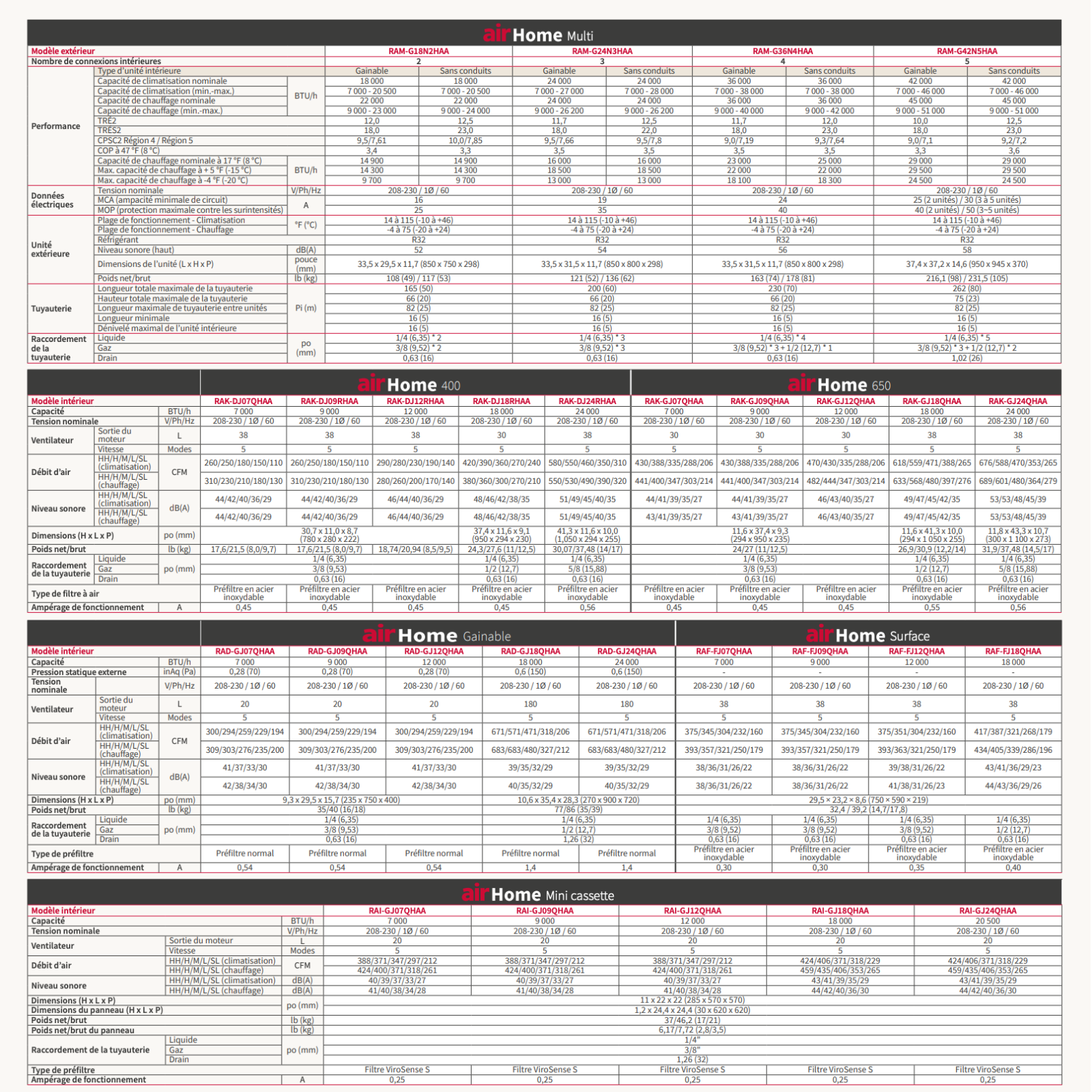

Key technical specifications of this Hitachi model
The product sheet indicates a configuration with the indoor unit RAI-GJ24QHAA and the outdoor unit RAM-G24N3HAA. This combination is designed for high-capacity installation, with a 220V power supply, R-32 refrigerant, 1/4 – 3/8 in piping, and electrical protection suitable for professional installation.
Important features include:
- Brand: Hitachi
- Type: Ceiling Mini Cassette – Heat Pump
- Indoor Unit: RAI-GJ24QHAA
- Outdoor Unit: RAM-G24N3HAA
- Configuration: 24000 BTU
- AHRI: 216097707
- ENERGY STAR: Yes
- ENERGY STAR Cold Climate: Yes
- ENERGY STAR ID: 3799342
- Refrigerant: R-32
- Heating down to -20 °C
- WiFi: optional
- Indoor sound level: 29 / 44 dB(A)
- Outdoor sound level: 54 dB(A)
- Indoor dimensions: 22 x 22 x 11 in
- Outdoor dimensions: 33.5 x 11.7 x 31.5 in
- MCA: 19A
- MOP: 35A
- Warranty: 10 years compressor, 10 years parts, 0 year labor
- Additional warranty: possible
- LogisVert provincial subsidy indicated: $1920
The indoor dimension of 22 x 22 in is a very important detail. It allows for simpler integration into many standard ceilings, while maintaining a discreet visual presence. For a residential or commercial project, this compactness can reduce aesthetic compromises and facilitate a clean finish.
A heat pump adapted to multi-zone projects

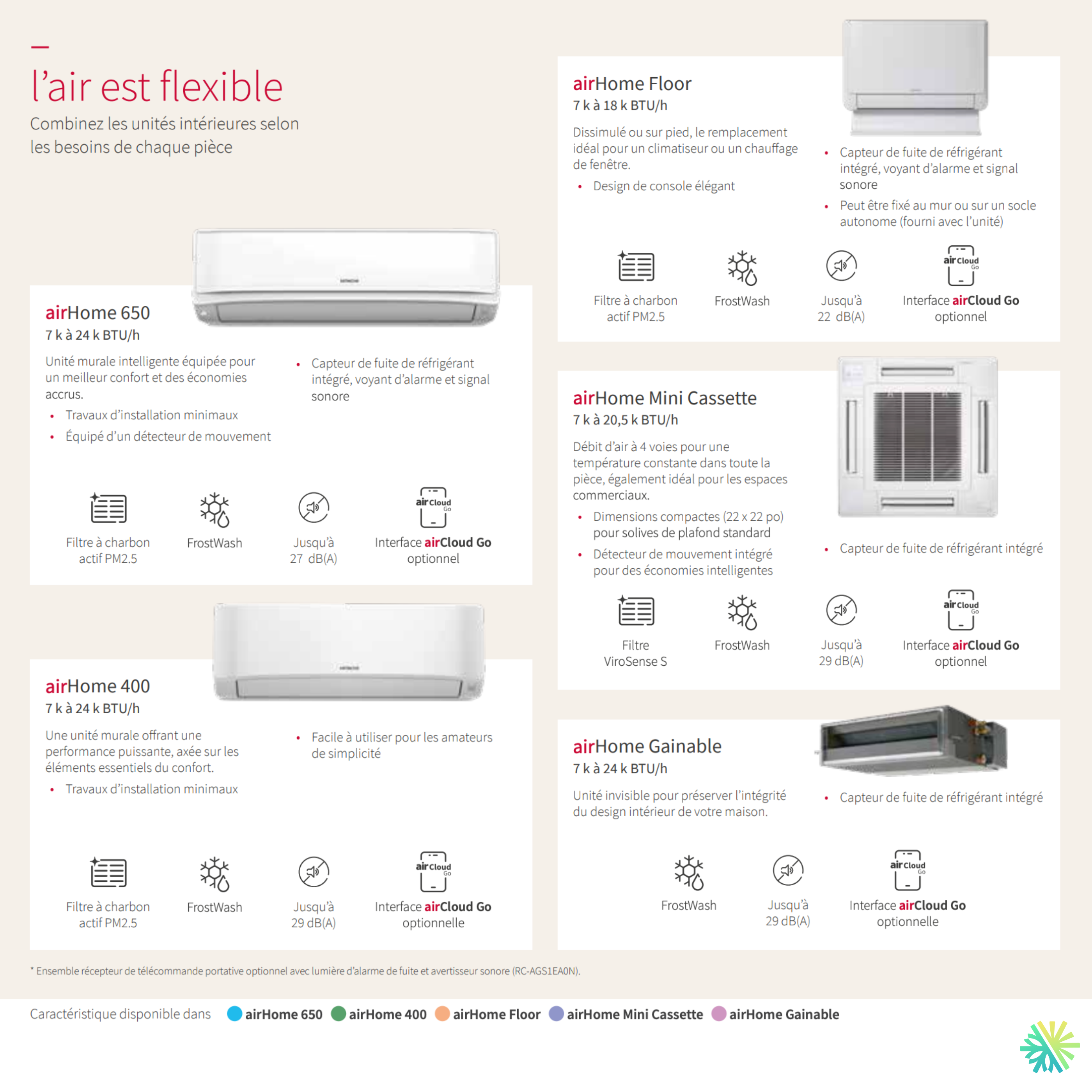

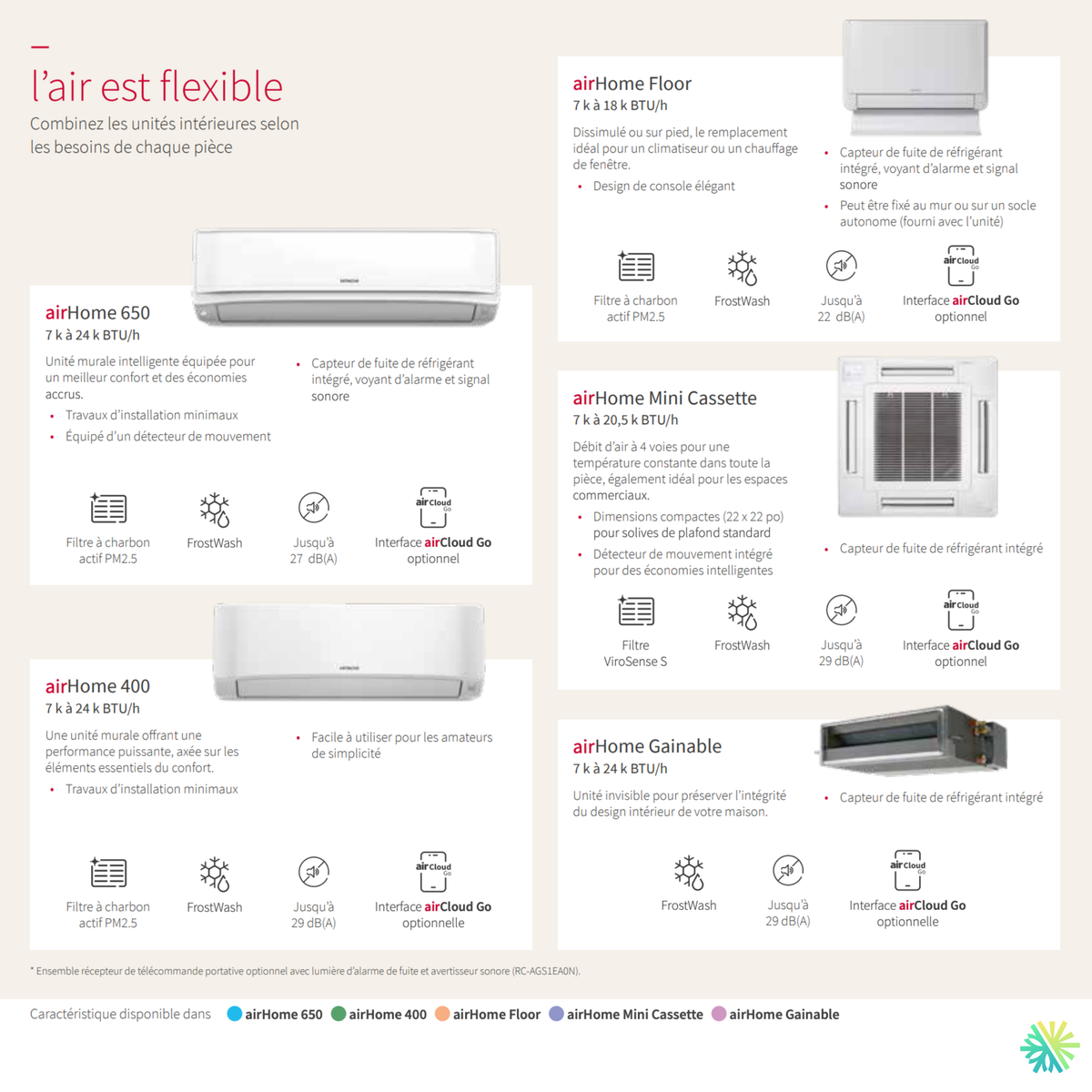

Hitachi's airHome Multi range allows combining several types of indoor units: wall-mounted, console, ducted, and mini cassettes. This makes it possible to adapt each room to its actual use. For example, the same building can have a wall-mounted unit in a bedroom, a mini cassette in a commercial space or living room, and a ducted unit in an area where the equipment needs to be almost invisible.
This approach is particularly useful in properties in Montreal, Laval, Longueuil, the North Shore and the South Shore, where buildings are very varied: renovated plexes, single-family homes, recent condos, offices, local businesses, daycares, clinics, restaurants, mixed-use buildings and rental housing.
In a multi-zone installation, each indoor unit can be controlled individually. One room can be air-conditioned while another remains closed. For heating, each zone can also be adjusted according to occupancy, sun exposure, insulation, and occupant habits. This zone management often improves comfort while avoiding unnecessary treatment of rarely used rooms.
Real comfort: more than just BTUs on a spec sheet
A 24000 BTU unit should never be chosen solely because the capacity seems high. At AirGreen, we always evaluate the room and the building before recommending a model. An oversized heat pump can cycle too frequently, dehumidify less effectively, and create inconsistent comfort. An undersized heat pump can run too long without reaching the desired temperature, especially on very cold or very hot days.
For a Hitachi ceiling mini cassette, we notably analyze:
- The actual surface area of the room.
- The ceiling height.
- Sun exposure.
- The quality of insulation.
- The number of windows.
- The type of occupancy: residential, office, commercial, technical room.
- Internal heat sources: computers, lighting, equipment, kitchen.
- Possible location of the outdoor unit.
- Piping and drain routing.
- The capacity of the electrical panel.
This step is fundamental. In a business on the South Shore, for example, we were once called to replace a poorly positioned system that overcooled an area near the cash register but left the back of the premises uncomfortable. The solution was not just to choose a larger capacity, but to review the air distribution and the location of the indoor unit. This is exactly the kind of situation where a ceiling mini cassette can offer a more balanced result.
Four-way air diffusion for challenging rooms
The Hitachi mini cassette stands out with its four-way airflow. This configuration is particularly advantageous in rooms where occupants are not all facing a wall unit. It promotes a more consistent temperature throughout the area.
In a meeting room in Longueuil, for example, a wall-mounted unit can create discomfort for people sitting directly under the airflow. A ceiling cassette allows for better distribution of the airflow, which reduces complaints related to drafts. In an open-plan living room in Laval, this diffusion can also better reach distant areas, especially when the space combines living room, dining room, and kitchen.
The difference is also noticeable in heating mode. Good hot air distribution helps reduce temperature differences between areas near windows and the center of the room. This does not replace good insulation, but it significantly improves the feeling of comfort.
Installation, efficiency, and air quality: the details that make the difference
R-32: a modern refrigerant for a well-supervised installation
This model uses R-32 refrigerant, which is increasingly common in recent HVAC systems. For customers, this means a unit designed to current performance and efficiency standards. For the installer, it requires rigorous work methods, particularly during connection, leak testing, vacuum evacuation, and commissioning.
At AirGreen, we pay particular attention to the invisible steps of installation. These are often the steps that determine the long-term reliability of the system. A beautiful finish is not enough if the refrigeration circuit has not been properly prepared.
Our teams particularly perform:
- Precise positioning of the indoor unit.
- Checking the ceiling structure.
- Refrigerant connection according to required dimensions.
- Clean management of the condensate drain.
- Pressure testing.
- Vacuum evacuation with appropriate control.
- Electrical verification.
- Full system startup.
- Usage explanations to the client.
On a ceiling cassette, drain management is particularly important. Insufficient slope, a poorly installed pump, or poorly planned maintenance access can cause problems later. This is why we always validate the drainage path before confirming the final configuration.
A discreet sound level for occupied spaces
With an indoor sound level indicated at 29 / 44 dB(A) depending on operating conditions, this mini cassette can be suitable for environments where noise must remain controlled. In an office, a consultation room, or a bedroom, sound quality is as important a criterion as BTU capacity.
However, a quiet unit that is poorly installed can become noisy. Vibrations, inadequate fastening, a poorly adjusted panel, or poor ceiling management can reduce acoustic comfort. Our refrigeration technicians therefore take the time to stabilize the installation, check the fastenings, and ensure that ceiling integration does not create unnecessary resonance.
FrostWash technology and indoor air quality

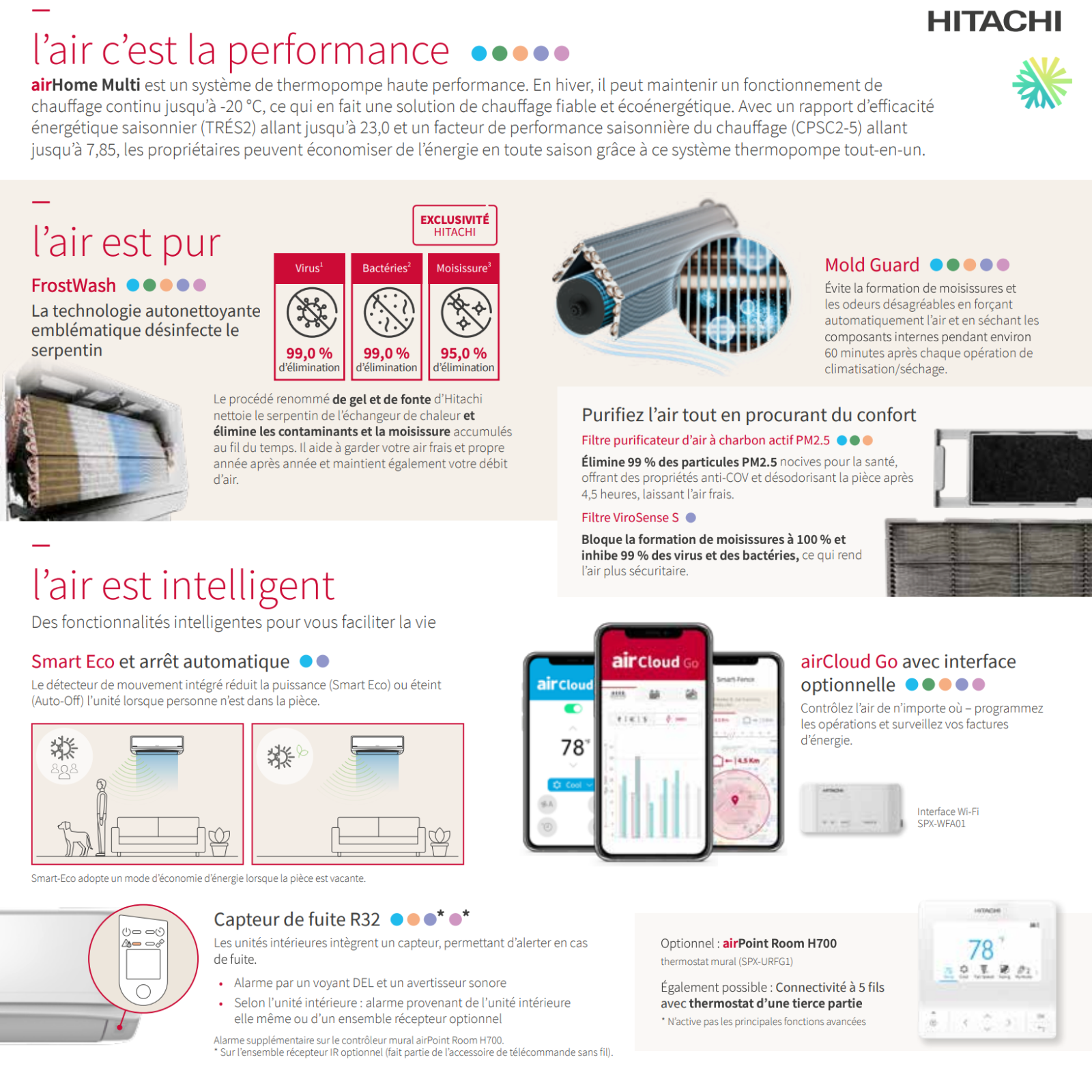

The Hitachi brochure highlights FrostWash technology, a self-cleaning function designed to help clean the heat exchanger coil. The principle is to form frost, then melt it to help remove some of the contaminants accumulated on the coil. This approach contributes to maintaining airflow and improving the internal cleanliness of the equipment.
The airHome mini cassette is also associated with the ViroSense S filter, which aims for better indoor air quality. For customers sensitive to dust, odors, or overall air quality, this element becomes an important argument. In commercial spaces or offices where many people circulate daily, filtration should not be treated as a secondary detail.
That said, no internal technology replaces regular HVAC maintenance. A filter must be checked, cleaned, or replaced according to use. A unit installed in a business, hair salon, very busy office, or dusty environment will generally require more frequent attention than a residential unit used moderately.
Motion detector, smart savings, and optional WiFi
The airHome Mini Cassette range includes features designed to improve daily use. The integrated motion detector can help save energy by adjusting operation when the room is unoccupied. This function is particularly relevant in offices, conference rooms, professional premises, or intermittently used rooms.
The optional WiFi, via the compatible interface, allows for remote control of the device, scheduling, and adjustment of comfort according to actual habits. For a condo owner in Montreal, a premises manager in Boucherville, or a business in Laval, this flexibility can prevent unnecessary operation when the space is empty.
We often recommend planning for the WiFi option from the start if the client wants to manage the equipment remotely. Adding it later is possible in some cases, but it's always simpler to plan accessories at the time of installation.
Heating down to -20 °C: what it means in Quebec
Heating down to -20 °C makes this heat pump relevant for a large part of the cold season in Quebec. In the Montreal, Laval, Longueuil regions, on the North Shore and the South Shore, a well-selected heat pump can reduce the use of auxiliary heating for many periods of the winter.
However, it must be clear: actual performance depends on the building. A well-insulated house with recent windows and few air infiltrations will achieve better efficiency than an old building with significant thermal losses. In some cases, we recommend keeping a supplementary heating source, especially for periods of extreme cold or buildings that are difficult to balance.
This transparency is part of our approach. We prefer to explain the limits and real conditions rather than just selling a theoretical capacity.
LogisVert Subsidy: a financial advantage to consider
The product sheet indicates a provincial LogisVert subsidy of $1920, updated on February 8, 2026. For many customers, this aid can transform the purchasing decision, especially when it comes to a more specialized system like a mini ceiling cassette.
At AirGreen, we always explain the broad outlines of the process: the client keeps the paid invoice, verifies the conditions of the applicable program, then submits the request according to the current requirements. Programs can evolve, so we encourage clients to validate the criteria at the time of purchase. Our role is to provide a clear invoice and the necessary information related to the installed equipment.
Common mistakes to avoid with a ceiling cassette
A mini cassette requires more careful planning than a wall-mounted unit. Here are the most common mistakes we see in poorly prepared projects:
- Choosing the unit without checking the available space in the ceiling.
- Neglecting the condensation drain path.
- Underestimating the access required for maintenance.
- Installing the unit too close to an obstacle that limits air diffusion.
- Selecting too high a capacity to compensate for poor distribution.
- Forgetting to check the electrical supply and required protections.
- Installing an outdoor unit in a noisy, hard-to-access, or poorly ventilated location.
- Not planning for mechanical protection of refrigerant lines.
- Ignoring future after-sales service needs.
These details are not secondary. In a successful HVAC installation, performance depends as much on the device as on the quality of execution. A well-positioned, well-drained, and well-connected cassette can provide years of reliable comfort. A poorly planned cassette can become a source of noise, condensation, or difficult maintenance.
Why AirGreen for this type of Hitachi installation?
AirGreen installs and maintains HVAC systems in Greater Montreal, including Montreal, Laval, Longueuil, the North Shore, the South Shore, and Montérégie. Our field experience allows us to recommend the right type of unit according to the building's reality, not just a technical sheet.
For a HITACHI Ceiling Mini Cassette – 24000 BTU Heat Pump, our value lies in comprehensive planning:
- Space analysis before installation.
- Recommendation adapted to the actual use of the room.
- Verification of structure and ceiling clearance.
- Refrigerant installation compliant with best practices.
- Clean finish and respect for interior aesthetics.
- Clear explanation of operation.
- Available after-sales service.
- Option to add an extended warranty.
- Final price communicated before work begins, no surprises at the end.
We also know that not every client has the same level of technical knowledge. Some simply want to know if the device will be comfortable and quiet. Others want to compare AHRI, ENERGY STAR, SEER2, HSPF2, COP, MCA, MOP data, and sound levels. Our role is to make this information understandable and useful for making a sound decision.
A relevant choice for residential, commercial, and multi-unit spaces
This Hitachi mini cassette is particularly suitable for projects where a discrete, efficient, and well-integrated solution is sought. In a condo, it frees up wall space. In an office, it promotes a more uniform temperature. In a commercial establishment, it preserves the appearance of the premises. In a multi-unit building, it can be integrated into a larger multi-zone strategy.
Its compatibility with the airHome Multi range also allows for more personalized configurations. A building can receive several different indoor units depending on the rooms, with a single suitable outdoor unit. This is a very interesting approach when needs are not identical from one zone to another.
A technical device that deserves precise installation
The HITACHI Ceiling Mini Cassette – 24000 BTU Heat Pump is not a product to be installed quickly without analysis. It offers excellent comfort potential, but it requires thorough preparation. The ceiling, drain, electrical supply, piping, outdoor location, maintenance access, and control configuration must all be considered together.
It is precisely on this type of project that AirGreen's expertise becomes so important. We are not just looking to install a machine. We want to deliver a durable, aesthetic, quiet solution adapted to the client's actual habits.
Contact AirGreen for a clear and professional estimate
For a Hitachi heat pump installation, a ceiling mini cassette, a multi-zone project, or a comparison between several HVAC solutions, contact AirGreen now. Our team will help you choose the equipment suited to your building, your budget, and your comfort goals in Montreal, Laval, Longueuil, on the North Shore, the South Shore, and in Montérégie.
