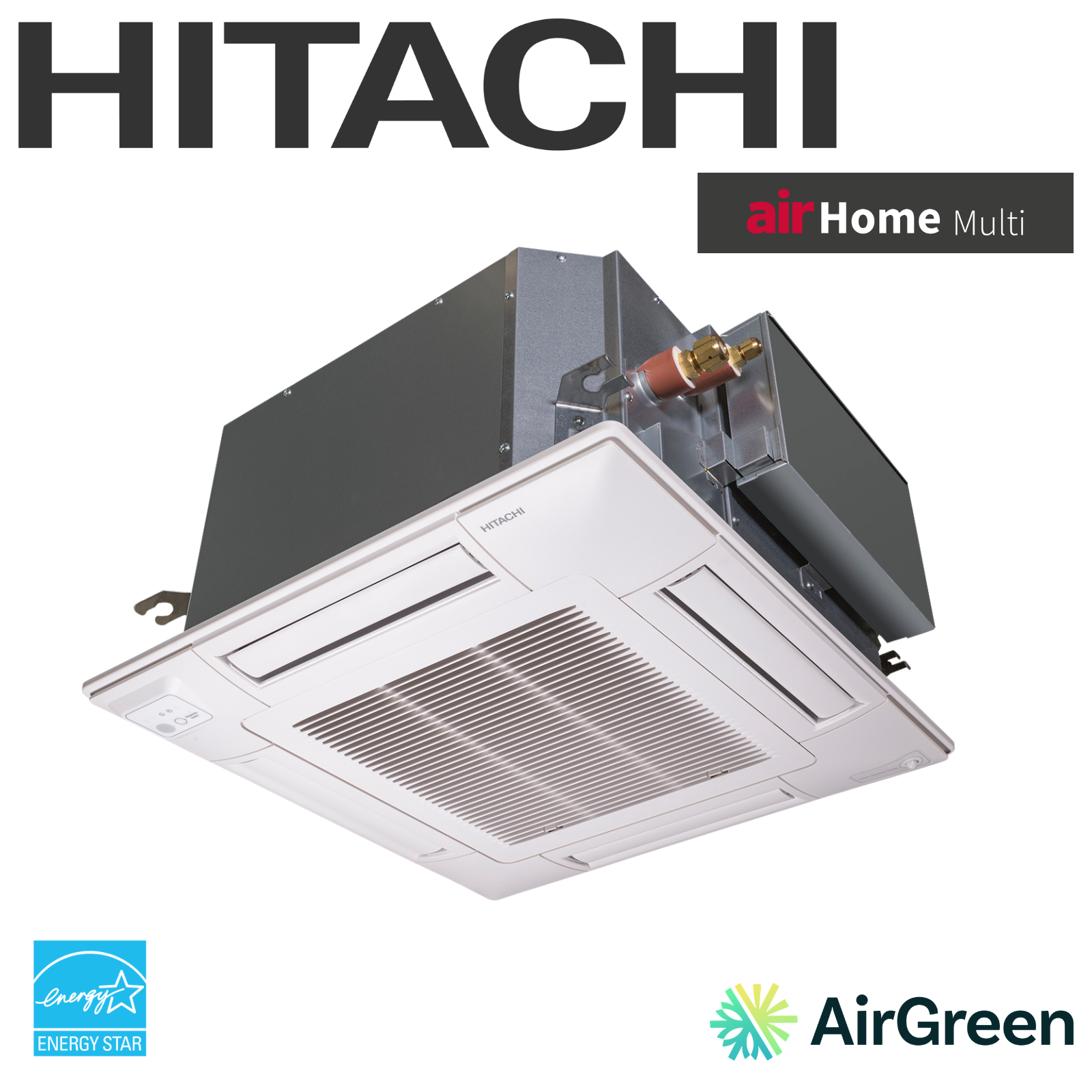

HITACHI | Mini Ceiling Cassette - Heat Pump | 9000 BTU
SEER2 (Seasonal Air Conditioning Efficiency)
HSPF2 (Seasonal heating efficiency)
EER2 (Instantaneous efficiency in air conditioning)
COP at -8 °C (Heating energy efficiency)
A compact cassette designed for modern ceilings, open spaces, and meticulous HVAC projects
The HITACHI 9000 BTU Mini Ceiling Cassette is a very attractive solution for homeowners who want to heat and cool a room without installing a visible wall-mounted unit. At AirGreen, we especially recommend it when a project requires a more discreet finish, better air distribution, and a clean ceiling integration, whether in a Montreal residence, a condo in Laval, an office in Longueuil, a home on the North Shore, or a light commercial space on the South Shore.
This model, identified by internal number RAI-GJ09QHAA and paired here with the outdoor unit RAM-G24N3HAA, is part of the Hitachi airHome Multi range. It is a multi-zone system capable of combining several types of indoor units, including wall-mounted, console, ducted, and mini cassettes. According to the Hitachi brochure, a single airHome Multi outdoor unit can cool or heat up to five different indoor units, with each zone individually controlled with its own setpoint, fan speed, and settings.
In the case of this 9000 BTU mini ceiling cassette, the main advantage is clear: to obtain the comfort of a multi-zone heat pump with minimal visual presence. Air is diffused from the ceiling, allowing for more uniform circulation in the room, especially in spaces where walls are already occupied by windows, cabinets, bookshelves, patio doors, or architectural elements.
An ideal solution when a wall-mounted unit is not the best option
In many residential and commercial projects, the classic wall-mounted unit is not always the best choice. We often encounter this scenario during free estimates in Montreal, Boucherville, Saint-Lambert, Terrebonne, Laval, or Repentigny: the client wants a high-performance HVAC installation, but does not want to see a unit installed above a sofa, bed, television, or commercial display.
The Hitachi 9000 BTU mini cassette then becomes a very relevant option, particularly for:
- a master bedroom where direct draft is to be avoided;
- a home office where the wall aesthetic must remain intact;
- a family room in the basement with a suspended ceiling;
- a small commercial or professional space;
- a waiting room, treatment room, or consultation area;
- a condo with limited exterior walls;
- an open-plan room where ceiling air diffusion provides better comfort.
Its indoor format of 22 x 22 x 11 inches facilitates its integration into various ceiling configurations. The brochure also indicates that the airHome mini cassette is designed with compact dimensions of 22 x 22 inches, suitable for standard ceiling joists, with four-way airflow promoting a more consistent room temperature.
Important technical data for model RAI-GJ09QHAA
For a customer comparing several heat pump options, numbers matter. This model offers a nominal capacity of 9000 BTU, with a cooling capacity of 9000 BTU and a heating capacity indicated up to 16,000 BTU at -8 °C and 18,200 BTU at -15 °C according to the data displayed on the product sheet.
Here are the most useful technical elements to remember:
- Indoor model: RAI-GJ09QHAA
- Outdoor model: RAM-G24N3HAA
- AHRI: 216097707
- ENERGY STAR: Yes
- ENERGY STAR Cold Climate: Yes
- ENERGY STAR ID: 3799342
- Refrigerant: R-32
- Voltage: 220 V
- Piping: 1/4 - 3/8 inch
- Indoor sound level: 27 to 41 dB(A)
- Outdoor sound level: 54 dB(A)
- Indoor dimensions: 22 x 22 x 11 inches
- Outdoor dimensions: 33.5 x 11.7 x 31.5 inches
- MCA: 19 A
- MOP: 35 A
- Warranty: 10 years compressor, 10 years parts, 0 year labor
- Additional warranty: possible
- Indicated LogisVert provincial subsidy: $1920
This type of technical data sheet quickly validates whether the project is compatible with the existing installation, available space, electrical panel, piping run, and comfort objectives.
Why R-32 is a relevant choice
R-32 is a refrigerant increasingly present in recent residential and commercial HVAC systems. For customers, the advantage is primarily seen in the overall system efficiency and the more modern design of the equipment. For the installer, it also requires technical rigor: piping length, connections, leak test, vacuuming, commissioning, and final verification must be performed with precision.
At AirGreen, we pay particular attention to these steps, especially for multi-zone heat pump projects. A ceiling mini cassette can offer remarkable comfort, but only if the installation is done correctly. The positioning of the cassette, the drain slope, the quality of the refrigerant connections, and future access for HVAC maintenance must be planned from the outset.
Four-way air distribution for more stable comfort
The ceiling cassette differs from a wall-mounted unit in how it distributes air. Instead of pushing air from a single wall, it diffuses from the ceiling, often in multiple directions. This configuration is highly appreciated in rooms where occupants move around a lot or when one wants to avoid excessively cold areas in summer and excessively hot areas in winter.
In a small commercial office on the South Shore, for example, a mini cassette can be more comfortable than a wall-mounted unit installed facing a workstation. In a bedroom in Laval, it can also limit the sensation of direct draft during the night. In a condo living room in Montreal, it keeps the walls clearer, which is often an advantage for interior design.
A sound level well-suited to quiet spaces
The indoor sound level indicated for this unit is 27 to 41 dB(A). In practice, this makes the mini cassette suitable for places where silence matters: bedrooms, offices, consulting rooms, small service businesses, or relaxation areas.
During our installations, we always explain that acoustic comfort does not only depend on the unit. It also depends on:
- the chosen location;
- the ceiling structure;
- the quality of attachment;
- the passage of refrigerant lines;
- drain management;
- the final ventilation setting;
- balancing between zones in a multi-zone system.
A good HVAC installation is therefore not just about installing a machine. It's about integrating the system into the building in a sustainable, quiet, and easy-to-maintain way.
Performance, air quality, and professional installation: what makes the difference
The Hitachi airHome Multi range does not only focus on heating and air conditioning. It also includes several elements related to indoor air quality and equipment durability. The brochure notably mentions FrostWash technology, the ViroSense S filter for the mini cassette, the integrated motion sensor, the refrigerant leak sensor, and compatibility with the optional airCloud Go interface.
ViroSense S Filter: a concrete advantage for air quality
The airHome mini cassette uses a ViroSense S filter. According to Hitachi documentation, this filter helps block mold formation and inhibit viruses and bacteria, contributing to healthier air in the room.
In a Quebec context, this aspect is important. Many buildings in Montreal, Laval, and Longueuil have prolonged periods when windows remain closed, both during winter and during summer heat waves. A good heat pump does not replace complete ventilation, but it can contribute to improving indoor comfort when properly chosen, maintained, and used.
FrostWash: keeping the coil cleaner over time
FrostWash technology is one of the distinctive features of this Hitachi range. The brochure describes a freeze and thaw process that cleans the heat exchanger coil, helps remove accumulated contaminants and mold, and contributes to maintaining airflow.
For homeowners, this does not mean that maintenance becomes unnecessary. HVAC maintenance is still required to clean filters, inspect drains, check coil condition, monitor performance, and prevent problems before they become costly. However, a well-designed self-cleaning function helps maintain better performance consistency between two maintenances.
Motion sensor: smart savings without complexity
The airHome mini cassette includes an integrated motion sensor. In the brochure, Hitachi associates this function with smart savings, especially with the Smart Eco mode and automatic shutdown when the room is vacant.
This detail becomes particularly useful in:
- an office used only a few hours a day;
- a basement playroom;
- a guest room;
- a small business with fluctuating foot traffic;
- a meeting room;
- a professional premises with intermittent occupancy.
In a multi-zone project, this logic is very effective: certain rooms can remain comfortable without unnecessarily operating all zones at the same level.
A multi-zone system that adapts to real homes in Greater Montreal

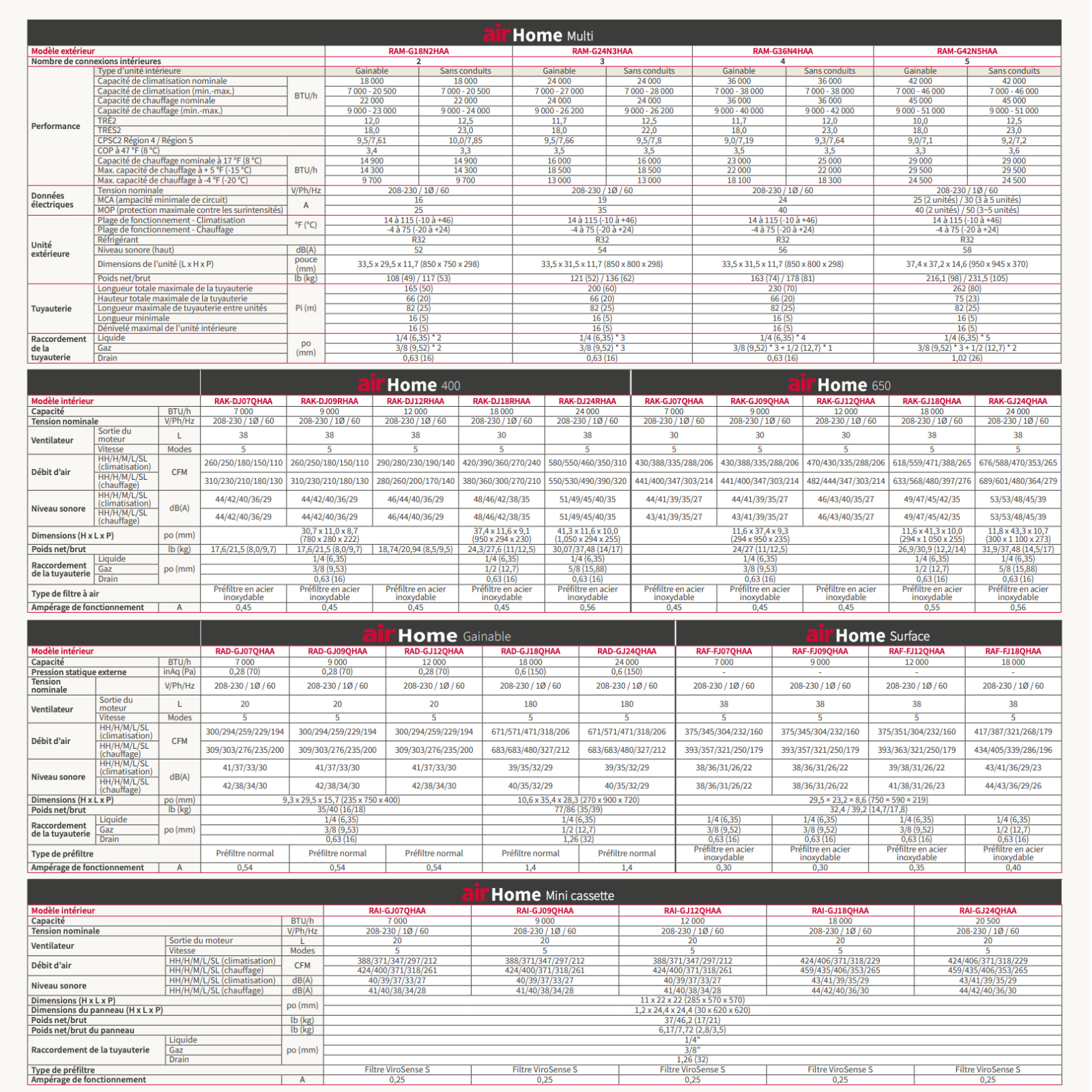

The outdoor model RAM-G24N3HAA allows up to 3 indoor connections according to the range's technical sheet. This opens the door to very practical configurations: a mini cassette in an open-plan area, a wall-mounted unit in a bedroom, and a console in a basement, for example.
In a typical home on the North Shore, we might encounter an open main floor, a remote bedroom, and a partially finished basement. In this case, a single wall-mounted solution doesn't always solve the problem. A properly sized multi-zone heat pump allows each zone to be treated according to its actual use.
In a plex in Montreal, the challenge is often different: line passages are more complex, ceilings can be enclosed, outdoor space for the compressor is limited, and the facade aesthetics must be respected. This is where the experience of a local team makes a difference in the final result.
Common mistakes to avoid with a mini cassette
A mini ceiling cassette can deliver excellent results, but certain pitfalls must be avoided.
Poor location choice
A cassette installed too close to a wall, beam, light fixture, or air return can lose some of its efficiency. Air must be able to distribute correctly.
Poorly planned drain
Condensate water management is critical. The drain must be reliable, accessible, and installed with the correct slope or the appropriate pumping solution when necessary. Poor drainage can lead to leaks, odors, or avoidable service calls.
Insufficient maintenance access
A recessed cassette must remain accessible. Cleaning, filters, inspections, and future repairs must be considered during installation.
Approximate Sizing
A 9000 BTU model is suitable for some rooms, but not all. Insulation, solar orientation, ceiling height, windows, room usage, and thermal losses must all be considered.
Choosing Based Only on Subsidies
The LogisVert subsidy of $1920 is very attractive, but it should not be the sole criterion. The right choice combines comfort, efficiency, technical compatibility, installation quality, and after-sales service.
A Typical AirGreen Installation Example
During a recent project in a condo in the greater Montreal area, the client wanted to air condition a living-dining room area without placing a wall-mounted unit above the television or on the main wall. A mini cassette was more logical, but the ceiling required precise checking of joists, piping passage, and the drain.
Our team first validated the available space, then proposed a configuration that preserved the aesthetics of the room. Choosing a ceiling cassette allowed the walls to remain free, better distributed air in the open-plan area, and reduced the sensation of direct draft. The client also wanted to add a second zone later; choosing a Hitachi multi-zone solution kept this possibility open.
This type of project clearly shows why an on-site estimate is essential. A technical sheet provides capacities, but the actual installation depends on the building.
Why Choose AirGreen for this Hitachi Model
At AirGreen, we install HVAC systems in a wide variety of contexts: single-family homes, condos, plexes, businesses, offices, multi-unit buildings, and replacement projects. For a HITACHI 9000 BTU Ceiling Mini Cassette, our value lies in planning.
We check:
- ceiling feasibility;
- necessary clearances;
- piping path;
- distance to the outdoor unit;
- drain management;
- electrical capacity;
- compressor location;
- subsidy possibilities;
- future multi-zone needs;
- access for maintenance.
We always send a clear final offer before work begins. Clients know what is included, what is not, and what options are possible. This transparency is particularly important for a more technical HVAC installation like a mini cassette, where site details can influence the cost and installation method.
Warranty, Maintenance, and Peace of Mind
The product sheet indicates a 10-year compressor warranty and 10-year parts warranty, with labor not included by default. An extended warranty is possible, which can be attractive for owners who want more comprehensive coverage.
We also recommend regular HVAC maintenance. Even with technologies like FrostWash, a ceiling system must remain clean, well-drained, and properly calibrated. Preventive maintenance helps extend equipment lifespan, maintain energy efficiency, and reduce the risk of breakdowns during heatwaves or the first cold periods.
A Serious Option for Montreal, Laval, Longueuil, North Shore, and South Shore
The HITACHI Ceiling Mini Cassette - 9000 BTU Heat Pump is for clients who want more than a standard solution. It is particularly relevant when comfort, silence, aesthetics, and multi-zone flexibility are priorities.
For a residence in Montreal, a condo in Laval, an office in Longueuil, a home on the North Shore, or a business on the South Shore, this unit offers a strong combination: compact size, four-way air diffusion, multi-zone compatibility, R-32 refrigerant, ENERGY STAR Cold Climate certification, ViroSense S filter, FrostWash function, and optional smart control with airCloud Go.
To get a clear estimate, check eligibility for the LogisVert subsidy, compare this mini cassette with a wall-mounted unit, or plan a complete installation, contact AirGreen. Our team will propose a solution tailored to your building, your budget, and your comfort goals.
