A wall-mounted heat pump that was working but no longer delivering its expected performance
In Montréal-Est, our AirGreen team was called for a service call on a ForestAir wall-mounted heat pump installed on the rear facade of a residence. The outdoor unit, compact and placed near the ground on blocks, showed typical signs of a system with several seasons of operation: dirt accumulation on top of the cabinet, direct exposure to the elements, refrigerant lines covered with blackened insulation, visible drainage conduit, and external connections subjected to repeated cycles of freezing, thawing, moisture, and heat.
The client reported a frequent problem, but one that is rarely easy to diagnose correctly: the unit would start, ventilate, and seem to respond to commands, but comfort was no longer stable. On some days, the wall-mounted heat pump produced less cool air than before when in cooling mode. At other times, an unusual noise could be heard near the outdoor compressor, especially at startup. The client also noticed that the unit ran longer to reach the same indoor temperature, raising legitimate concerns about electricity consumption and system durability.
In this type of situation, it is important to avoid jumping to conclusions about a refrigerant shortage, a faulty compressor, or a damaged electronic board. An effective HVAC repair always starts with a thorough diagnostic sequence. At AirGreen, we proceed step by step to identify the real cause of the problem, fix what needs to be fixed, and avoid unnecessary repairs.
Inspected equipment: ForestAir wall-mounted heat pump with compact outdoor unit
The equipment observed is a ForestAir wall-mounted heat pump, a residential mini-split type. The exact model was not readable on the outdoor unit, but the configuration corresponds to a classic wall system with outdoor compressor, insulated refrigerant line, dedicated power supply, and condensate drainage. This type of installation is common in Montréal, Laval, Longueuil, on the North Shore and the South Shore, especially in single-family homes, plexes, condos, and small commercial spaces.

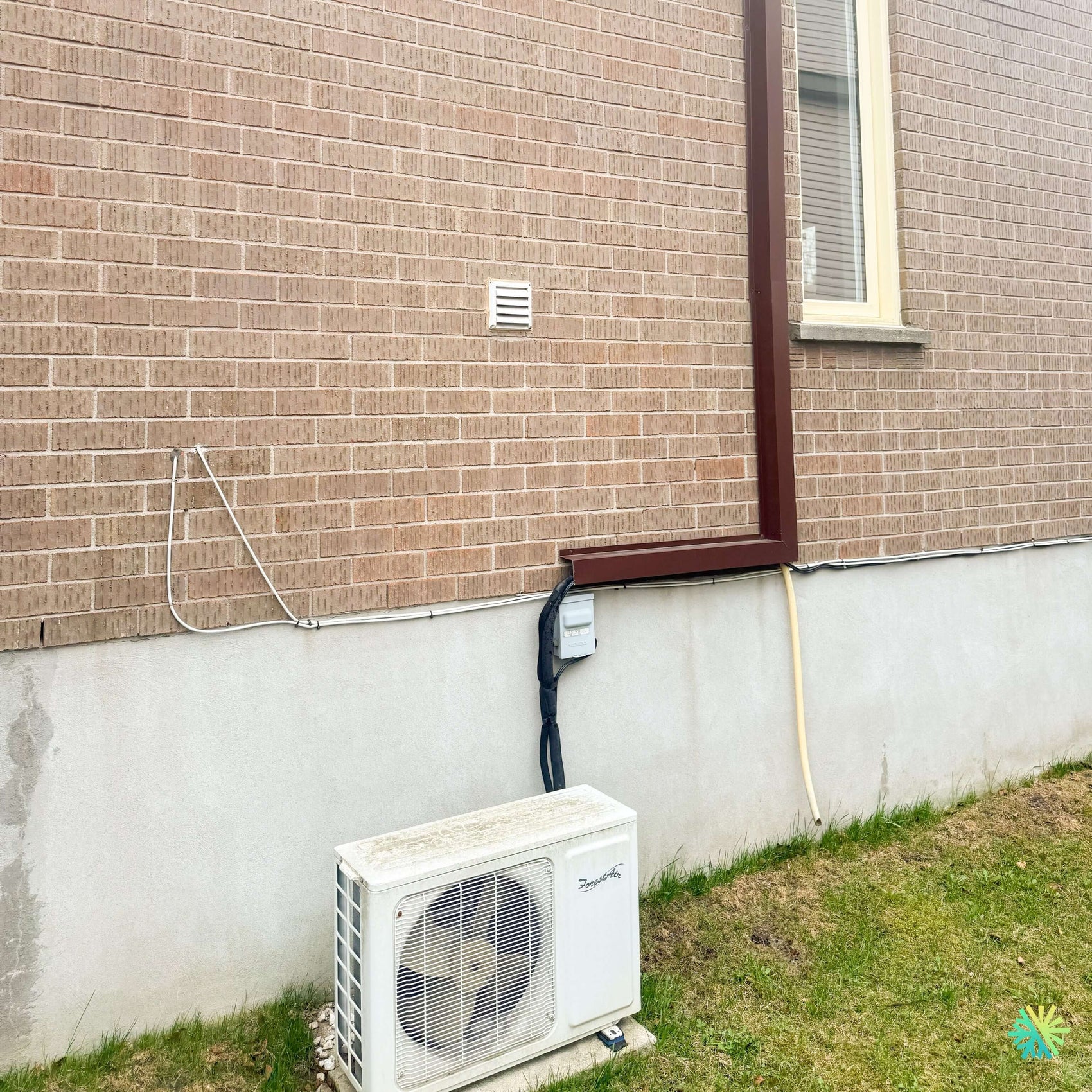

In the photo, several elements deserved particular attention:
- the outdoor unit was installed very close to the ground;
- the top of the cabinet showed an accumulation of greenish deposits and dirt;
- the refrigerant lines were grouped and protected, but the insulation showed signs of aging;
- the condensate drain ran down the wall;
- the outdoor electrical box was exposed to weather conditions;
- the space around the device needed to be checked to ensure good air circulation.
These details do not necessarily mean the installation is bad, but they guide the diagnosis. An outdoor unit that breathes poorly, whose coils are dirty or whose electrical components have been exposed to moisture can lose a significant part of its efficiency.
Symptoms reported by the client
The client had noticed three main changes:
- a gradual decrease in cooling performance;
- a louder noise when starting the outdoor unit;
- a longer operating time before reaching the requested temperature.
These symptoms can have several causes: dirty coils, clogged indoor filter, slowed outdoor fan, weakened capacitor, faulty sensor reading, partial refrigerant loss, circuit obstruction, electronic board problem, unstable power supply, or insufficient clearance around the unit.
Our role was therefore to separate possible causes from actual causes. A good wall-mounted heat pump repair relies on measurements, not just a visual impression.
First step: visual inspection and electrical safety
Upon arrival at Montréal-Est, our technician began by securing the intervention. The power supply to the outdoor unit was checked, then the disconnect box was inspected to ensure there were no signs of overheating, excessive oxidation, or poor contact.
The visual inspection confirmed that the outdoor unit needed thorough technical maintenance. The top of the cabinet was dirty, which is common when the device is exposed to trees, moisture, and outdoor particles. Even a thin layer of dirt on the coils can reduce heat exchange. When a heat pump has to reject or absorb heat through a dirty coil, the compressor works harder, cycles become less efficient, and the device can become noisier.
We also examined the refrigerant lines. The outdoor insulation had aged, especially near the wall outlet. Degraded insulation is not just an aesthetic problem: it can cause heat loss, unwanted condensation, and, over time, accelerated deterioration of exposed sections.
Second step: checking airflow and heat exchange
A wall-mounted heat pump depends on a precise balance between indoor airflow, outdoor airflow, and cooling load. If any of these parameters deteriorate, efficiency drops quickly.
So we checked:
- the condition of the indoor filter;
- the cleanliness of the indoor evaporator;
- the ventilation speed;
- the air temperature at the return;
- the air temperature at the outlet;
- the outdoor unit’s response to cooling demand;
- the stability of the outdoor fan operation;
- pressure and temperature variations in the circuit.
The finding was clear: the device was not completely broken, but it was operating under strain. The outdoor coil was dirty, which limited heat exchange. The outdoor fan was running, but the noise at startup indicated that an electrical component needed closer inspection.
Third step: diagnosis of the capacitor and starting components
On an outdoor unit of a wall-mounted heat pump, the start or run capacitor plays an important role for the fan motor and, depending on the design, for some compressor starting elements. A weakened capacitor can cause harder starts, abnormal noise, less stable outdoor ventilation, or higher stress on electrical components.
Our technician measured the capacitor's capacity and compared it to the expected value. The measurement indicated a loss of performance. The component was not completely out of service, but it was weakened enough to explain some of the reported symptoms. In this case, waiting for a complete failure could have caused a sudden shutdown during a heatwave, risking overload for the motor or compressor.
We therefore recommended replacing the capacitor, in addition to the technical cleaning of the outdoor unit and redoing some protections around the lines.
Repair performed: cleaning, capacitor replacement, and installation optimization
The intervention was carried out in several steps to restore the performance of the ForestAir heat pump.
Technical cleaning of the outdoor unit
We performed controlled cleaning of the cabinet and the outdoor coil. The goal was not just to make the unit cleaner, but to restore its heat exchange capacity. The fins were carefully cleared to avoid crushing them, then accumulated deposits were removed.
A clean outdoor coil allows:
- better heat transfer;
- more stable operating pressure;
- a reduction in operating time;
- a less stressed compressor;
- better air conditioning efficiency;
- a reduced risk of overheating.
Replacement of the weakened capacitor
The faulty capacitor was replaced with a part compatible with the equipment specifications. After replacement, the outdoor fan startup became smoother and more stable. The initial noise reported by the client decreased, confirming that the component was contributing to the problem.
Verification of electrical connections
Connections were inspected and tightened when necessary. In an outdoor environment, even slight loosening or oxidation can cause increased electrical resistance, heat, and intermittent failures. This step is especially important in installations exposed to the climate variations of Greater Montreal.
Correction of protections around the lines
We also recommended redoing some of the insulation around the refrigerant lines. When the insulation is aging, it is important to prevent the piping from being exposed to sun, moisture, and impacts. Good protection extends the lifespan of the installation and reduces energy losses.
Result: comfort restored and more stable operation
After the repair, we restarted the unit and verified its behavior when the air conditioning was requested. The blowing temperature improved, the outdoor operation became more stable, and the startup was quieter. The client noticed that the unit responded better to commands and that the operating cycle was more consistent.
The main result is not just “the device works.” A good HVAC repair must also reduce the risk of repeated failure. In this case, coil cleaning, capacitor replacement, and electrical checks addressed several potential causes before they became more costly problems.
What this repair in Montréal-Est reminds us about wall-mounted heat pump maintenance
A wall-mounted heat pump can continue to operate even as it gradually loses efficiency. This is what makes partial failures hard to detect for an owner. The unit blows air, the compressor starts, the thermostat responds, but actual performance decreases.
Common mistake: waiting until the device completely stops working
Many customers only call when the unit stops working. However, warning signs are often present weeks or months in advance:
- unusual noise at startup;
- longer cooling time;
- less cold air;
- more frequent cycles;
- higher electricity bill;
- abnormal vibration;
- ice buildup;
- musty smell;
- water flowing in the wrong place.
Early intervention often prevents more serious breakdowns. A weakened capacitor, a dirty coil, or an unstable electrical connection are much less costly problems when detected before complete failure.
Importance of clearance around the outdoor unit
The outdoor unit observed in Montréal-Est was installed near the ground, in a grassy area. This type of location requires special attention. Grass, leaves, snow, ice, and debris can restrict airflow. An outdoor heat pump needs space to breathe. Poor air circulation reduces performance.
We recommend keeping the area around the unit clean, clear, and stable. In winter, it is also important to prevent snow from accumulating against the cabinet. A unit placed too low can be more vulnerable to snow buildup and water splashes.
Why regular maintenance protects the investment
A wall-mounted heat pump represents a significant investment. Its performance directly depends on its maintenance condition. Regular cleaning, electrical inspection, and drain checks can extend its lifespan and improve its efficiency.
A well-done maintenance generally includes:
- filter cleaning;
- indoor evaporator inspection;
- outdoor unit cleaning;
- checking the condensate drain;
- inspection of electrical connections;
- temperature measurement;
- pressure checks when required;
- inspection of line insulation;
- validation of heating and cooling operation.
At AirGreen, we handle wall-mounted heat pump repairs, service calls, maintenance, performance diagnostics, noise issues, water leaks, electrical failures, refrigerant losses, and systems that no longer heat or cool properly.
Local expertise adapted to Greater Montreal
HVAC installations in Montréal, Laval, Longueuil, the North Shore, and the South Shore face very demanding conditions: humidity, heatwaves, severe cold, freeze-thaw cycles, pollen, dust, leaves, and snow. These conditions directly affect the lifespan of wall-mounted heat pumps.
In Montréal-Est, devices installed near brick walls, foundations, and grassy areas must be inspected carefully. Proximity to the ground, humidity, and dirt can accelerate the wear of certain components. A successful repair therefore does not just involve changing a part: it must take into account the complete environment of the installation.
AirGreen: precise diagnosis, structured repair, measurable result
During this service call, the difference was in the method. We identified a performance issue, confirmed the state of the heat exchange, measured the electrical components, replaced the weakened part, and validated the result after intervention. It is this structured approach that allows for effective repair of a ForestAir wall-mounted heat pump without falling into exaggerated recommendations.
A well-executed repair brings three concrete benefits to the customer:
- indoor comfort is restored;
- the device operates with less strain;
- the risk of short-term failure decreases.
For any owner who notices a drop in performance, an unusual noise, or irregular operation, a HVAC service call provides a clear diagnosis before the problem becomes more serious.
