An HVAC service call in a narrow backyard where the outdoor unit lacked airflow
In LaSalle, our AirGreen team was called for a wall-mounted heat pump that was no longer cooling as effectively as before. The client explained that the indoor unit was still blowing air, the remote control responded normally, and the system started without apparent difficulty. Yet, as soon as the outdoor temperature rose, comfort in the house became unstable. The room took too long to cool down, cycles seemed longer, and the outdoor unit made a louder noise than usual.
Upon arrival, our technician quickly understood that the outdoor unit’s environment played an important role. The compressor was installed in a very tight backyard, near a wooden fence, under a deck structure with mesh, and close to a wall covered with metal siding. This kind of setup is common in many residential areas of Montreal, especially in compact yards, alleys, duplexes, triplexes, and houses where available space for HVAC installation is limited.
A wall-mounted heat pump can be mechanically sound but lose a lot of performance if its outdoor unit is not breathing well. The condenser must reject heat outside in summer and capture thermal energy from the air in winter. When placed in a confined space, surrounded by wood, fences, walls, and structures that limit hot air evacuation, the system works harder, heats up more, and can end up triggering internal protections.
Symptoms reported by the client
Before our intervention, the client noticed several typical signs of an outdoor performance issue:
- slow cooling inside;
- louder noise near the compressor;
- longer air conditioning cycles;
- intermittent shutdowns during hot days;
- feeling that the indoor unit was ventilating without producing enough cold;
- visible accumulation of dirt on the outdoor unit;
- decreased comfort in the late afternoon, when the yard became warmer.
These symptoms can sometimes suggest a refrigerant leak, a weakened compressor, or a faulty electronic board. However, at AirGreen, we always avoid jumping to conclusions. An effective HVAC repair starts with a thorough diagnosis, especially when the outdoor unit is placed in such a challenging environment.
An outdoor installation exposed to several constraints

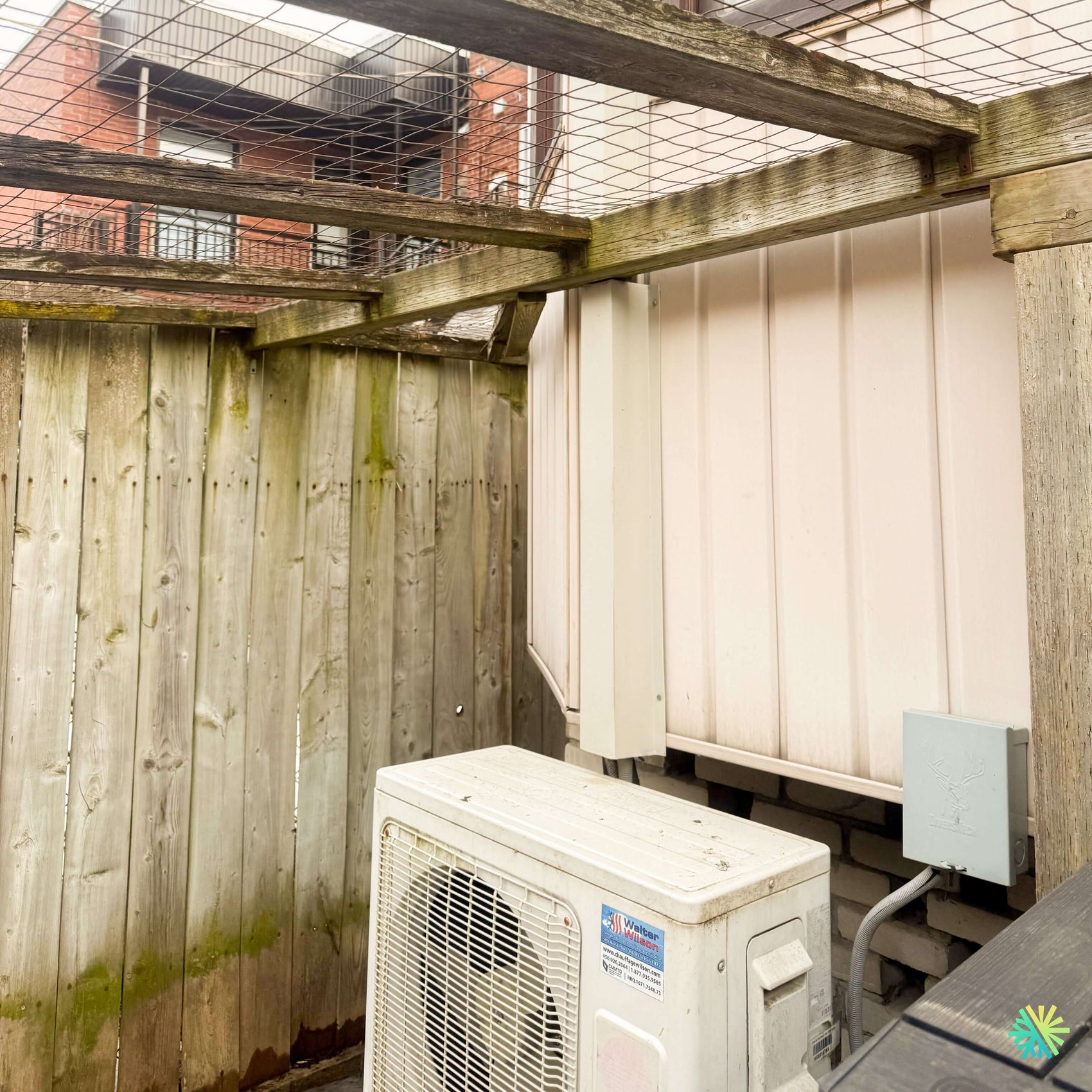

The image of this intervention shows an important detail: the outdoor unit is installed in a very tight space, surrounded by wooden fences and an overhead structure. The wood shows signs of moisture and moss, indicating an environment where air circulates less freely and dirt can accumulate more easily.
The compressor is also near an outdoor electrical box and a refrigerant line protected by a vertical sheath. This sheath is useful to protect the lines and provide a clean finish, but it also reminds that service intervention must be done carefully: the wiring condition, connections, lines, mechanical protection, and actual access to the unit must be checked.
In this context, the problem was not just the machine. It was the interaction between the machine, its location, air circulation, and maintenance accumulated over the seasons.
Visual inspection and safety check
Our technician first performed a complete visual inspection of the system. The goal was to quickly spot signs of damage, overheating, excessive vibration, corrosion, dirt, or poor air evacuation around the outdoor unit.
We checked:
- the general condition of the outdoor casing;
- the cleanliness of the front grille;
- the condition of the fan;
- the presence of leaves, dust, pollen, and debris;
- the clearance around the condenser;
- the unit's stability;
- the apparent condition of the refrigerant lines;
- the electrical box and the flexible duct;
- vibrations transmitted to the support and the environment.
The fan was running, but the hot air expelled by the unit seemed to partially recycle in the enclosed space. Instead of dispersing freely, some of the expelled air remained trapped between the fence, the wooden structure, and the wall. This phenomenon can raise the temperature around the condenser and reduce cooling capacity.
Technical diagnosis: reduced performance, but system recoverable
After safety checks, we started the system in cooling mode to observe its behavior in real operation. The indoor unit requested cooling, the outdoor unit started, but the performance was not optimal. The compressor ran longer than expected, and the heat rejected outside accumulated in the immediate area.
We then evaluated the temperature difference inside, the system's response to the setpoint change, the behavior of the outdoor fan, and the cycle stability. The signs pointed to a clogged condenser combined with insufficient outdoor clearance. No serious indication immediately justified replacing the compressor, the electronic board, or major components.
This is an essential step in a wall-mounted heat pump repair: distinguishing a real mechanical failure from a performance loss caused by environment and maintenance. In this case, the device could be restored without costly replacement of major parts.
Condenser cleaning, fixing weak points, and restoring stable operation
The solution was to restore the outdoor unit’s heat exchange capacity. On a wall-mounted heat pump, the outdoor condenser must be able to circulate a large volume of air through its coil. When the fins are clogged with dust, pollen, fibers, leaves, or external deposits, the machine loses efficiency.
Targeted cleaning of the outdoor unit
We carried out a careful cleaning of the condenser. This operation requires more precision than a simple quick rinse. It is necessary to avoid damaging the fins, protect electrical components, control the cleaning direction, and remove deposits that limit heat exchange.
Cleaning removed accumulated dirt on the grille, coil, and some areas around the fan. In enclosed backyards like this one, debris often remains trapped longer than on the front or in an open space. Moisture, wood, fences, and lack of air circulation also promote deposit buildup.
Once the condenser was cleaned, air flowed much better through the unit. The fan noise became more consistent, and heat rejection improved.
Checking the outdoor fan and vibrations
The client had noticed a louder noise near the compressor. We therefore paid special attention to the outdoor fan. The noise did not come from a faulty motor but rather from a combination of dirt, air resistance, and slight vibrations amplified by the enclosed space.
In a yard surrounded by wood and close surfaces, a normal sound can seem much louder. Fences, the underside of a deck, and neighboring walls can act as resonance surfaces. We checked the box fastenings, the unit’s stability, and contact points that could transmit vibration.
After adjustment and cleaning, the operation was smoother. The system no longer produced the same forced noise as before the intervention.
Inspection of refrigeration lines and the external sheath
The refrigeration line was protected by a vertical sheath attached to the wall. We inspected its condition, the passage points, and the visible areas near the outdoor unit. No obvious damage was observed on the accessible sections, and the insulation still seemed intact.
This inspection is important because a poorly protected conduit or damaged insulation can harm performance, especially in cooling mode. It can also cause unwanted condensation or expose the conduits to mechanical damage. In this case, the sheath was properly playing its protective role, but the outdoor environment remained a risk factor to monitor.
Inspection of the outdoor electrical box
The electrical box visible near the unit was also inspected. During a HVAC service call, we always check accessible electrical elements: power supply, conduit, protection, signs of moisture, fastening, and general condition. A heat pump that stops intermittently can sometimes suffer from a connection problem, a triggered protection, or a weakened electrical component.
In this case, no signs of burning, overheating, or apparent damage were found. The main problem was indeed related to heat exchange and air circulation around the condenser.
Result after the intervention
After cleaning, inspections, and adjustments, we restarted the wall-mounted heat pump and monitored its behavior. The system returned to a more stable operation. The outdoor fan expelled heat better, the cycle was more regular, and the indoor unit produced more convincing cooling.
The client was able to notice a concrete improvement in indoor comfort. The heat pump no longer had the same hesitant behavior, and the time needed to cool the room decreased. The intervention helped avoid premature replacement and extend the equipment’s lifespan.
Mistakes to avoid in an enclosed backyard
This project in LaSalle clearly illustrates a common reality in the greater Montreal area: the location of an outdoor unit directly influences the performance of a wall-mounted heat pump. Several mistakes can reduce the efficiency of an otherwise functional system.
The first mistake is letting fences, objects, patio furniture, or structures block the clearance around the compressor. Even when the unit seems to have space in front of it, hot air can remain trapped if the top or sides are too closed.
The second mistake is neglecting the exterior cleaning. A dirty condenser forces the machine to work longer. This increases consumption, reduces comfort, and can accelerate the wear of certain components.
The third mistake is thinking that a louder noise automatically means the compressor is at the end of its life. In many cases, the noise comes from a fan struggling against poor airflow, a slightly vibrating panel, or an environment that amplifies sounds.
The fourth mistake is running the system for long periods without addressing the cause of the problem. The harder the heat pump works, the higher its operating temperatures can reach, triggering internal protections.
Practical advice given to the client
At the end of the intervention, we recommended that the client keep as much clear space as possible around the outdoor unit. In a narrow yard, every detail counts. Even a few objects placed too close to the condenser can hinder heat dissipation.
We also advised regularly monitoring the condition of the outdoor grille, especially in spring and summer, when pollen, leaves, and dust accumulate more quickly. Periodic maintenance helps prevent the problem from returning when air conditioning is most needed.
For residences in LaSalle, Laval, Longueuil, the North Shore, and the South Shore, this type of service is especially useful before the heat waves. A well-maintained wall-mounted heat pump cools better, consumes less, and offers more consistent comfort.
An HVAC repair based on context analysis
This intervention shows that a good diagnosis is not limited to the machine itself. You have to look at the entire system: indoor unit, outdoor unit, air circulation, location, environment, electrical installation, refrigerant lines, and usage habits.
In this case, the wall-mounted heat pump was not condemned. It needed a thorough cleaning, a complete check, and an accurate reading of its environment. By addressing the real causes of the problem, we enabled the client to regain a reliable system without unnecessary replacement.
