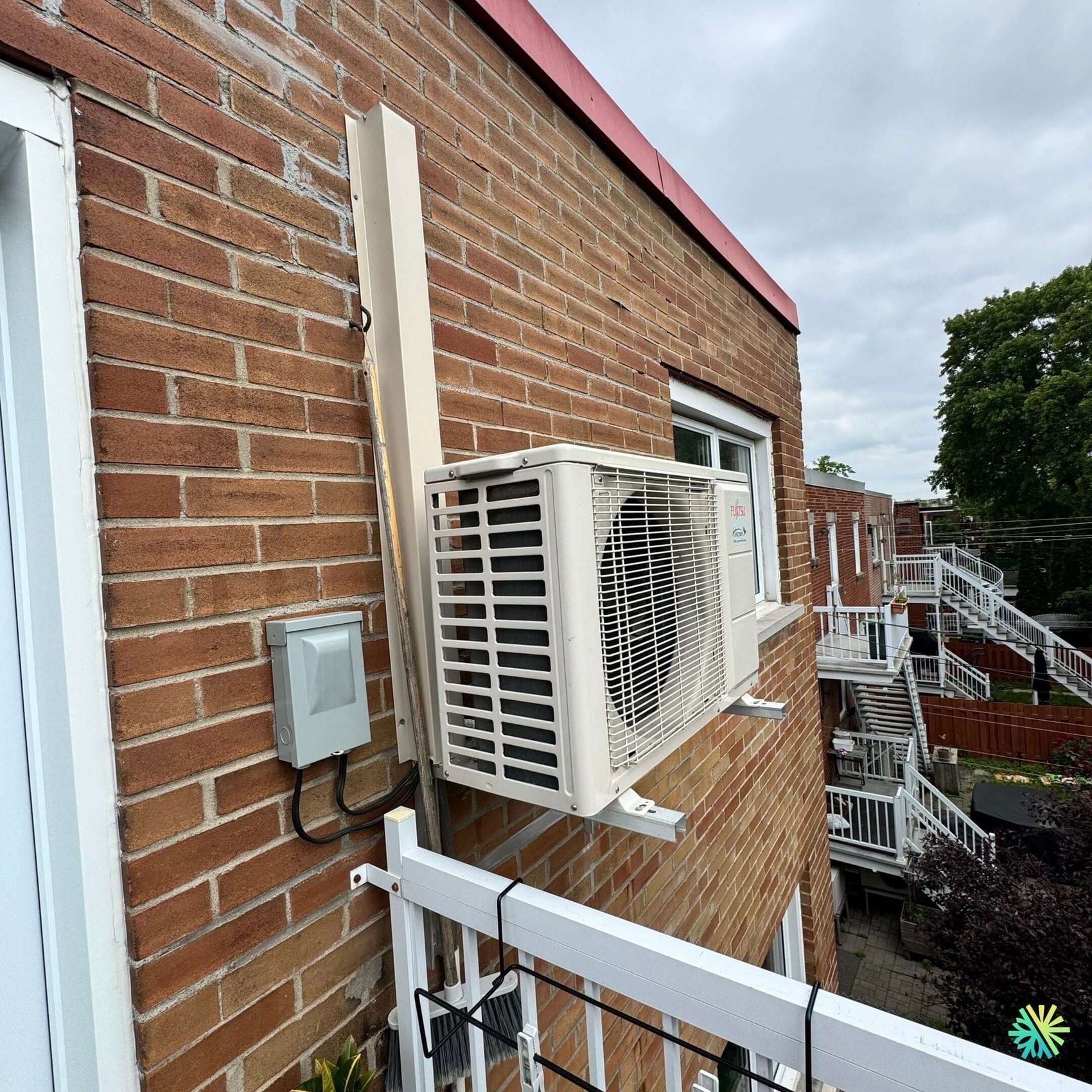

A clean, quiet and durable installation on Montreal brick: here, we are installing a Fujitsu wall-mounted heat pump on the rear facade of a plex, with wall brackets , vertical facade-colored cover and electrical disconnection within reach, in order to combine performance, aesthetics and simplified access for maintenance.
A project designed for the pace of life in a Montreal plex
Client background and objectives
The occupants wanted 4-season comfort for the main living area, without encroaching on the balcony space or the driveway. We favored a Fujitsu R-32 single-zone system for its energy efficiency , reliable operation in cold weather and acoustic discretion. The outdoor unit is installed at railing height, on the courtyard side, which facilitates safe access while limiting exposure to snow impacts.
Why the bracket installation was the best option
-
Ground clearance : easy movement on the balcony and no obstacles to snow removal.
-
Controlled vibrations and noise : calibrated silent blocks , verified center distances and precise leveling of the brackets limit transmission into the brick.
-
Standard clearances : distances around the exchanger respected to guarantee air flow, heating capacity and compressor lifespan.
-
Natural protection : the elevated position reduces the intake of hot air in summer and protects the device from winter splashes.
Installation details: precision, cleanliness, durability
Refrigeration and electrical routing
-
Vertical cover (beige color) following a straight line from the drilling to the upper connection of the unit: it protects the refrigerant connections and the communication cable against UV and water.
-
Optimized length (≈ 4 to 6 m depending on the interior portion), limiting pressure losses and fluid top-ups.
-
Waterproof external disconnection , 240V wiring on dedicated circuit and clear labeling: faster maintenance interventions and increased safety.
-
Through drilling with sheath and interior/exterior sealing to preserve the airtightness of the plex.
AirGreen Methodology on Refrigeration
-
Brazing under nitrogen to avoid internal oxidation.
-
Pressure test with dry nitrogen, then deep vacuum (≤ 500 microns) and ascent control.
-
Fluid opening and superheat/subcooling checks , current readings and supply/return temperatures.
-
Finishes : caps, cable glands, treatment of the edges of the hood, anti-drip loop at the outlets.
Condensate management on the interior side
Gravity drains are preferred: continuous slope, discreet passage, protected outlet. This choice avoids the need for a lifting pump, reduces maintenance, and eliminates a potential source of noise.
Performance, comfort and savings every day
Technical advantages of the Fujitsu R-32 range
-
R-32 refrigerant : better seasonal efficiency and low charge for a reduced footprint compared to R-410A generations.
-
Low temperature heating : the Fujitsu platform maintains useful capacity in cold weather , relevant for the Montreal winter.
-
Fine modulation : in mid-season, the inverter adjusts the power to stabilize the temperature without overconsumption.
Acoustic comfort for occupants and neighbors
-
Breathing direction and wall clearance studied** to avoid recirculation and limit the noise perceived on the rear galleries.
-
Silent blocks and tightening to the prescribed torque: no buzzing in the masonry.
-
Aligned hood : no flapping in the wind, no objects getting caught on it.
Simplified HVAC Maintenance
-
Direct access to the unit for fin cleaning and seasonal checks.
-
Washable interior filters on the living room side.
-
Recommended annual check: operating parameters, tightening, condition of the cover and drain.
Architectural integration study
Respect for brick and railings
The solid brick facade is preserved: limited drilling, suitable dowels and seals, joints redone if necessary. The brackets are sized to take the load of the unit and respect the clearances in relation to the guardrail .
Color and lines
The beige capping extends the brick's hue, making the layout visually understated from the courtyard. The refrigeration lines follow a clear vertical axis , then a short landing towards the unit, avoiding the twists and turns visible from the neighboring balconies.
Security, Compliance and Documentation
-
Electrical : dedicated circuit breaker, grounding checked, disconnection on sight of the device.
-
Refrigeration : brazing, leak testing, vacuum and commissioning recorded.
-
Compliance with Code , manufacturer recommendations and AirGreen best practices .
-
Customer file including photos of the end of work, serial number , commissioning parameters and usage advice.
Current grants and programs
High-efficiency wall-mounted heat pumps using R-32 may be eligible for incentives (efficiency and cold weather operation criteria, installation by a licensed contractor). We assist our clients in Montreal, Laval, Longueuil, North Shore and South Shore to verify eligibility , gather evidence (technical sheet, photos, detailed invoice) and submit the application .
Concrete results for the family
-
Uniform cooling during heat waves thanks to continuous modulation.
-
Reliable supplemental heating during mild spells and moderate cold, reducing the use of electric baseboard heaters.
-
Silence on the balcony and in adjacent rooms, even at high speed.
-
Controlled aesthetics and zero footprint : the space remains functional for everyday life.
Good usage practices
-
Leave the appliance in heating mode in winter and air conditioning in summer, avoid rapid switching.
-
Maintain a clearance of 30–60 cm around the unit, do not hang anything on the capping.
-
In winter, monitor snow accumulations and carefully clear the bottom of the facade if necessary.
-
Schedule annual HVAC maintenance to maintain performance and warranty.
Pitfalls to avoid (AirGreen feedback)
-
Installing too low in a backyard: risk of snow accumulation and impact; mid-height brackets avoid these constraints.
-
Connections that are too long with tight bends: pressure losses and noise; we optimize the length and respect the radii.
-
No disconnection : complicated troubleshooting; the waterproof box visible in the photo secures any intervention.
-
Leaky holes : air and water infiltration; we use suitable sheaths and sealants .
