A mastered Montreal bedroom: stable comfort, nighttime silence and careful installation as close as possible to the ceiling
Background and objectives
At AirGreen , we were contacted by the owner of a plex in Rosemont–La Petite-Patrie . The room in question was used as a bedroom and previously housed a wall-mounted electric convector . The need was clear: to obtain precise cooling in the summer , economical heating support in the spring and fall, and above all, quiet operation to preserve sleep. We recommended and installed a Midea wall-mounted heat pump , a compact and efficient format perfectly suited to the bedrooms of Montreal apartments.

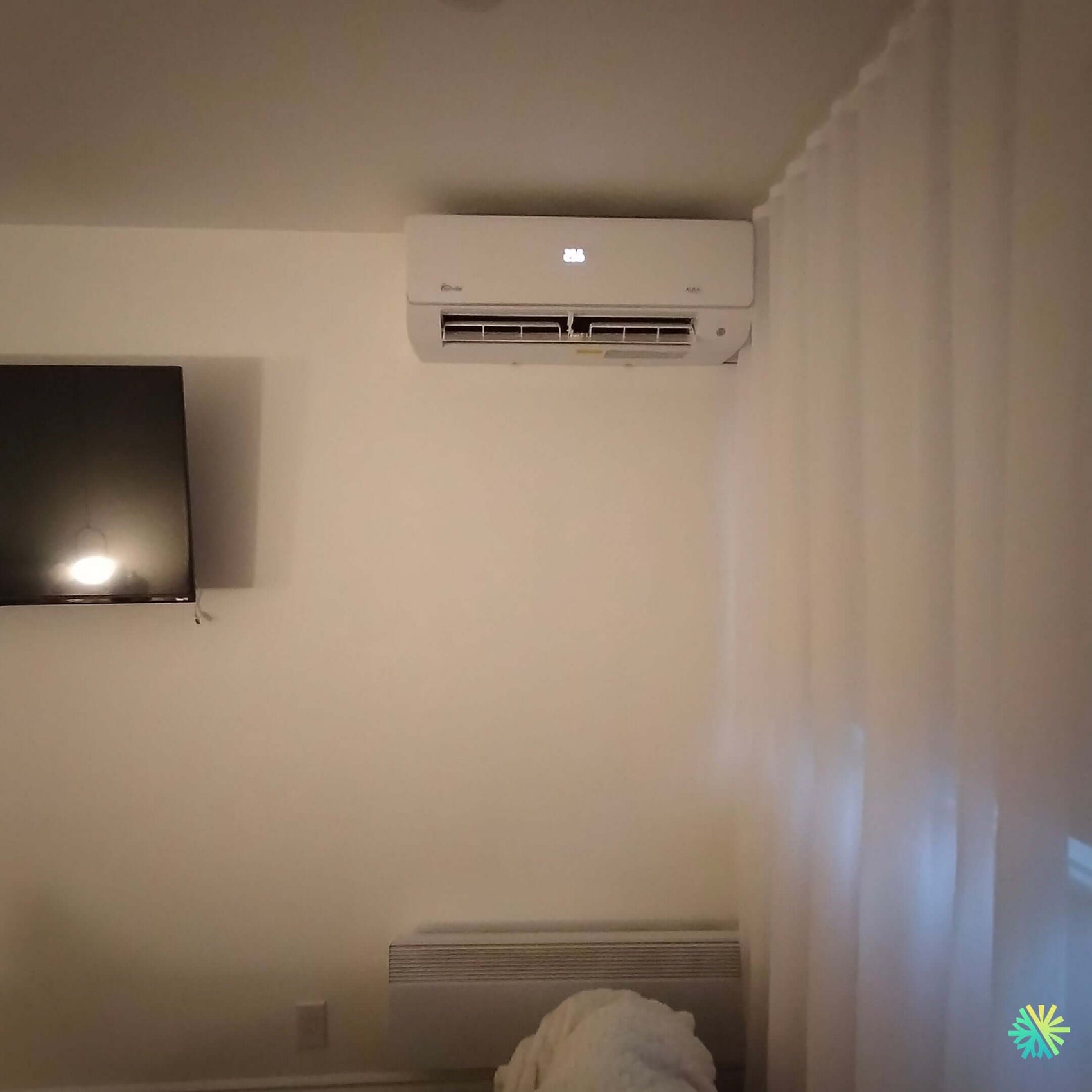

Interior layout: top of wall, right corner, flow directed under the ceiling
We fix the interior head at the top of the wall , a few centimeters from the ceiling and close to the right angle of the room. This positioning has several advantages:
-
cold air in air conditioning mode is first mixed under the ceiling, avoiding direct drafts on the bed;
-
in heating , the blown air pushes back the stratification and equalizes the temperature up to the foot of the curtains;
-
the wall head remains out of the main visual field and the sound level is less noticeable in the rest area.
We maintain the recommended clearances around the unit despite the proximity of the curtains: the upper suction is not obstructed and the front air outlet maintains its course. A television is fixed on the opposite wall; the orientation of the fins prevents any projection of air directly towards the screen, which limits sound reverberation and turbulence .
Refrigeration and supply path: short lines, single piercing, gravity drain
The refrigeration passage is on the right of the unit, with a single opening to the outside, which allows us to maintain a connection length of approximately 3 meters – an ideal compromise to reduce pressure losses , improve expansion stability and maximize seasonal efficiency .
Condensate drainage is by gravity : no additional pump noise and simplified HVAC maintenance . The power supply is drawn from a dedicated circuit , with protection sized according to the condenser nameplate.
Finishing and sealing: discreet capping, vapor barrier and durable caulking
On the exterior side, the connections are protected by discreet capping that matches the secondary facade. We apply a vapor barrier seal to the hole and an exterior caulking that is UV and freeze-thaw resistant . Inside, the hole cover is flush with the light paint of the room; no bleed is visible and the curtains remain free to pass through.
Why a Midea wall-mounted heat pump in your bedroom?
-
Quiet : At low speeds, the Midea head operates at a very low noise level , perfectly compatible with sleep.
-
Precision : the digital display on the front allows you to stabilize a typical setpoint of 24°C in summer without overcooling.
-
Versatility : in heating , the heat pump reduces the use of the electric convector , for significant energy savings in the off-season.
-
Compactness : no ductwork; installation is completed in one day, without excessive dust or heavy carpentry work.
Salient installation details
-
Reinforced wall support , level installation and laser verification of clearances.
-
Flaring carried out using a calibrated tool and dynamometric tightening of the flare nuts; pressure test with nitrogen then deep vacuum (< 500 microns) before releasing the fluid.
-
Curtain management : vertical sweep adjustment so that the flow passes in front of the curtain without pressing it, which reduces the risk of condensation on the fabric.
-
Home automation compatibility : integrated receiver ready for Wi-Fi control (depending on the configuration chosen).
-
Finish : local paint touch-ups, discreet cable routing, UV-stable outdoor collars .
Midea Performance and Recent Ranges
The Midea wall-mounted platform is available in recent and efficient ranges , including R-32 and R-454B refrigerant series. For similar residential projects, we frequently offer configurations from the Midea family (for example, extreme cold models such as Midea28 R-454B ), which are particularly suited to the Montreal climate . The final choice is made based on the surface area , the level of insulation and the nighttime usage profile .
Measured result: consistent comfort and peaceful night
After commissioning, we validate:
-
a reduced temperature delta between the headboard and the door;
-
more stable humidity during humid summer evenings thanks to the dehumidification mode ;
-
a noise level in stabilized mode almost inaudible at the foot of the bed.
The client confirms more consistent sleep and a significant reduction in the use of the convector.
Our recommended bedroom settings
In air conditioning
-
Setpoint : 23–24°C to avoid overcooling at night.
-
Ventilation : Low or Auto Low speed; vertical sweep directed slightly upwards to promote mixing .
-
Curtains : leave an opening of a few centimeters between the curtain and the front of the unit so as not to obstruct the suction.
In heating
-
Instructions : 21–22°C; leave the heater safely at 19–20°C in case of prolonged extreme cold.
-
Fin orientation : horizontal so that the air flows along the ceiling and then descends gently.
HVAC Maintenance
-
Washable filters : clean every 6–8 weeks during use.
-
Condensate tray : rinsing and anti-biofilm disinfection during the annual inspection .
-
Outdoor condenser : winter clearance (snow/ice), check of support and vibrations .
-
Refrigeration control : superheat/subcooling measurements with calibrated instruments; adjustments if necessary to maintain seasonal efficiencies .
Grants and Eligibility
Recent wall-mounted heat pumps , particularly those designed for low temperatures , may be eligible for assistance programs in effect in Quebec. Eligibility depends on the exact model and year . We systematically check these criteria when submitting quotes for our clients in Montreal, Laval, Longueuil, North Shore and South Shore , and we prepare the required documentation .
What we remember about the rooms in Rosemont, Villeray, Plateau and surrounding areas
-
A wall-mounted heat pump well positioned near the ceiling, with short lines and a gravity drain , is the basis for successful nighttime comfort .
-
Curtain management is crucial: a simple adjustment of the vanes changes everything.
-
Silence results as much from the choice of model as from the quality of installation : anti-vibration, tightening torques, deep vacuum and flow balancing.
AirGreen: our added value at every stage
-
Rapid room-by-room thermal study and advice on recent R-32 / R-454B ranges.
-
Careful HVAC installation , compliance with room clearances and curtain management.
-
Annual HVAC maintenance monitoring to preserve warranty and longevity.
-
Service throughout Greater Montreal: Montreal , Laval , Longueuil , North Shore , South Shore .
Conclusion
This HVAC installation of a Midea wall-mounted heat pump in Rosemont–La Petite-Patrie meets the exact requirements of a Montreal bedroom: silence , precise regulation and clean finishes . The result: more comfortable nights , controlled consumption and a room that remains pleasant all year round.
