Discreet and efficient four-season comfort in a Montreal plex

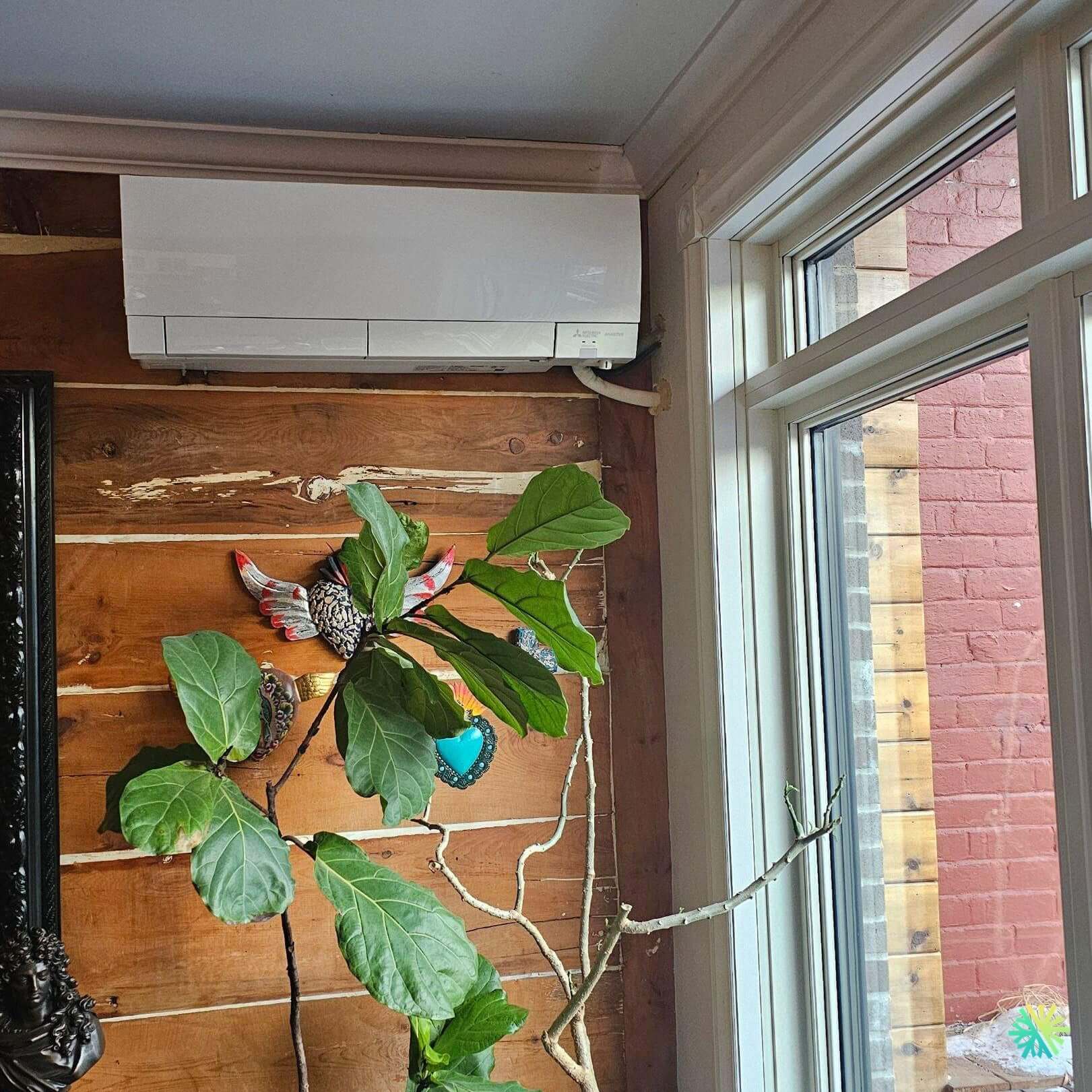

At AirGreen , we carry out HVAC installations adapted to the architecture of Montreal plexes. In this Plateau-Mont-Royal apartment, we installed a Mitsubishi Electric MSZ wall-mounted heat pump , chosen for its reliable operation in intense cold, its acoustic sobriety and its design that integrates seamlessly with the interior finishes.
Context and objectives of the project
The owner wanted:
-
efficient heating down to low temperatures to reduce dependence on electrical resistors;
-
stable and quiet air conditioning for heat waves;
-
a discreet solution respecting the warm style of the interior wooden cladding and the brick facade;
-
easy maintenance, with clear access to filters and service areas.
These requirements point towards a wall-mounted heat pump from the Mitsubishi Electric brand ( MSZ range), known for its Hyper-Heat versions in cold climates, its fine power modulation and its longevity.
What we are putting in place, step by step
Load study and capacity selection
Before any installation, we size the capacity according to:
-
the actual surface area of the room (volume, ceiling height, openings);
-
of the envelope (brick, insulation, windows);
-
from solar exposure and internal contributions.
In this type of Montreal stay, the range of 9,000 to 12,000 BTU/h is common, but we adjust precisely to avoid oversizing (cycling, noise, unnecessary losses) and guarantee continuous modulation at low speed, synonymous with savings.
Inner head positioning
-
The wall unit is installed at the top of the wall , under the ceiling molding, in order to optimize stratification and promote even airflow.
-
We ensure the free distance above and to the sides for shutters and maintenance.
-
The connections (refrigeration, condensate drain, communication cable) are crossed on the right side of the device to minimize the route to the outside, near the existing window.
-
The motorized shutter is calibrated so that the air does not blow directly onto the reading corner or onto the circulation area near the bay windows.
Route of connections and management of condensates
-
The insulated refrigeration tubes and the power/communication cable exit at the front through a sealed hole (air barrier, mastic, grommet) guaranteeing watertightness.
-
On the exterior, we group the connections under capping for a clean and durable finish.
-
The condensate drain follows a continuous gravity slope towards the outside, eliminating the need for a sump pump and reducing the risk of noise or breakdown. A non-return air loop is integrated to prevent cold drafts in winter.
Outdoor unit and mounting
Although not visible here, the MSZ/Hyper-Heat outdoor unit is usually:
-
placed on galvanized wall brackets or raised slab , depending on the configuration;
-
clear of blown snow and gutters, with proper clearances for air intake;
-
protected by silent blocks and weatherproof wiring (external disconnect, UV conduit, stainless steel anchors).
Power supply and protections
-
Dedicated circuit in accordance with the Electrical Code , suitable circuit breaker, disconnect near the condenser.
-
Grounding, current reading at start-up, and polarity/communication verification.
Meticulous commissioning
-
Deep vacuum (≤ 500 microns), nitrogen leak test, stabilization and final vacuum control.
-
Setting the return probe , checking the heating/air conditioning modes , and measuring the supply/return temperature differences .
-
Adjustments to sweeps and speeds to eliminate parasitic recirculation near the bay window.
Why the Mitsubishi Electric MSZ range here?
Cold climate performance
Hyper-Heat versions maintain a high share of capacity at –20/–25°C , which is ideal for Montreal. The inverter compressor finely modulates to limit consumption and nighttime noise.
Exemplary acoustics
The MSZ interior head unit is distinguished by its very low noise levels . At low speed, it blends into the atmosphere of a living room - an essential criterion in a plex where discreet comfort is sought.
Filtration and air quality
The washable filters are quick to remove. The internal drying function limits moisture retention after the summer, contributing to the heat exchanger's durability and hygiene.
Design and integration
The lacquered white facade blends seamlessly with the interior wood planks . The very short right-side connections reduce losses and visibility. The choice of discreet capping on the exterior side preserves the brickwork.
Results obtained and feedback on use
Measurable comfort
-
In heating , rapid temperature rise without excessive blowing; maintenance is ensured by continuous modulation.
-
In air conditioning , the setpoint is maintained without drafts, thanks to the vertical sweep adjusted to avoid direct flow towards the seating area.
Optimized consumption
Inverter modulation and precise sizing limit current peaks . The user benefits from a high COP in mid-season, with controlled bills.
Easy maintenance
-
Filter cleaning : quarterly during periods of use; more frequent if there are animals or dust.
-
Recommended annual visit : pressure/temperature check, exchanger cleaning, electrical tightening, defrost test, probe calibration.
Points of attention and good practices
1) Avoid oversizing
An appliance that is too powerful cycles , ages prematurely and loses comfort. We favor a calculated thermal load , especially in open living areas.
2) Take care of the condensate drain
A constant slope and insulation of the interior sections prevent drips, odors, and icing. The air check valve is essential in cold climates.
3) Choose the outdoor location
Clearances, snow protection and natural defrosting are paramount. The device is placed on brackets away from snowdrifts and debris.
4) Think about subsidies
Several MSZ Hyper-Heat versions and Energy Star certified systems may be eligible for assistance programs in Quebec. Eligibility depends on the exact model and declared performance: we verify each application before submission.
Why entrust your project to AirGreen?
-
Local expertise : hundreds of wall-mounted heat pump installations in Montreal, Laval, Longueuil, North Shore and South Shore , in plexes, condos and houses.
-
Rigorous method : load calculation, installation plan, instrumented commissioning .
-
Careful finishing : watertight drilling, aligned cappings, clean wiring, complete documentation for maintenance and, if necessary, for subsidies .
-
Responsive after-sales service : seasonal monitoring, usage advice, maintenance reminders.
In short
This Mitsubishi Electric wall-mounted heat pump installation (MSZ series) in Plateau-Mont-Royal delivers four-season comfort with minimal visual presence, quiet operation and performance adapted to the Montreal climate . This is the type of project where precise sizing and quality installation make the difference, day after day.
For your heat pump or wall-mounted air conditioner installation in Montreal, Laval, Longueuil, North Shore, South Shore , our team travels, sizes and installs with the same level of requirement.
