Four-season comfort in a condo with a balcony: careful installation, designed for efficiency and aesthetics
At AirGreen , we have just installed a Sharp Eco Inverter wall-mounted heat pump in a condo in the Chomedey district of Laval . The apartment opens onto a tiled balcony with a large sliding patio door , a configuration that is very common in buildings in the area. Our mandate: to provide stable heating and cooling comfort , optimize the routing of the connections for a discreet appearance, and guarantee simple maintenance for the owner.
Why Sharp for a condo in Chomedey
The Sharp Eco Inverter range is renowned for its energy efficiency , stable heating in cold weather and quiet operation . For an open-plan home with generous windows, the airflow and fine modulation of the compressor ensure consistent comfort without sudden temperature fluctuations. The system's integrated Plasmacluster technology contributes to healthier indoor air quality by reducing certain particles and odors, a welcome asset in medium to high-density buildings.
Inner head implantation: optimal diffusion and aesthetic integration
The interior head is positioned high on the wall , above the rod, in order to:
-
promote efficient air recirculation in the living area;
-
free up the areas around the patio door and preserve the opening clearances;
-
respect the skylights in the upper part to avoid recirculation of hot air to the ceiling.
The refrigerant connections and the supply descend into a vertical white capping tight against the wall, for a clean appearance and mechanical protection of the insulation. The condensate drain is established by gravity , with a controlled slope, eliminating the need for a pump and reducing acoustic risks.

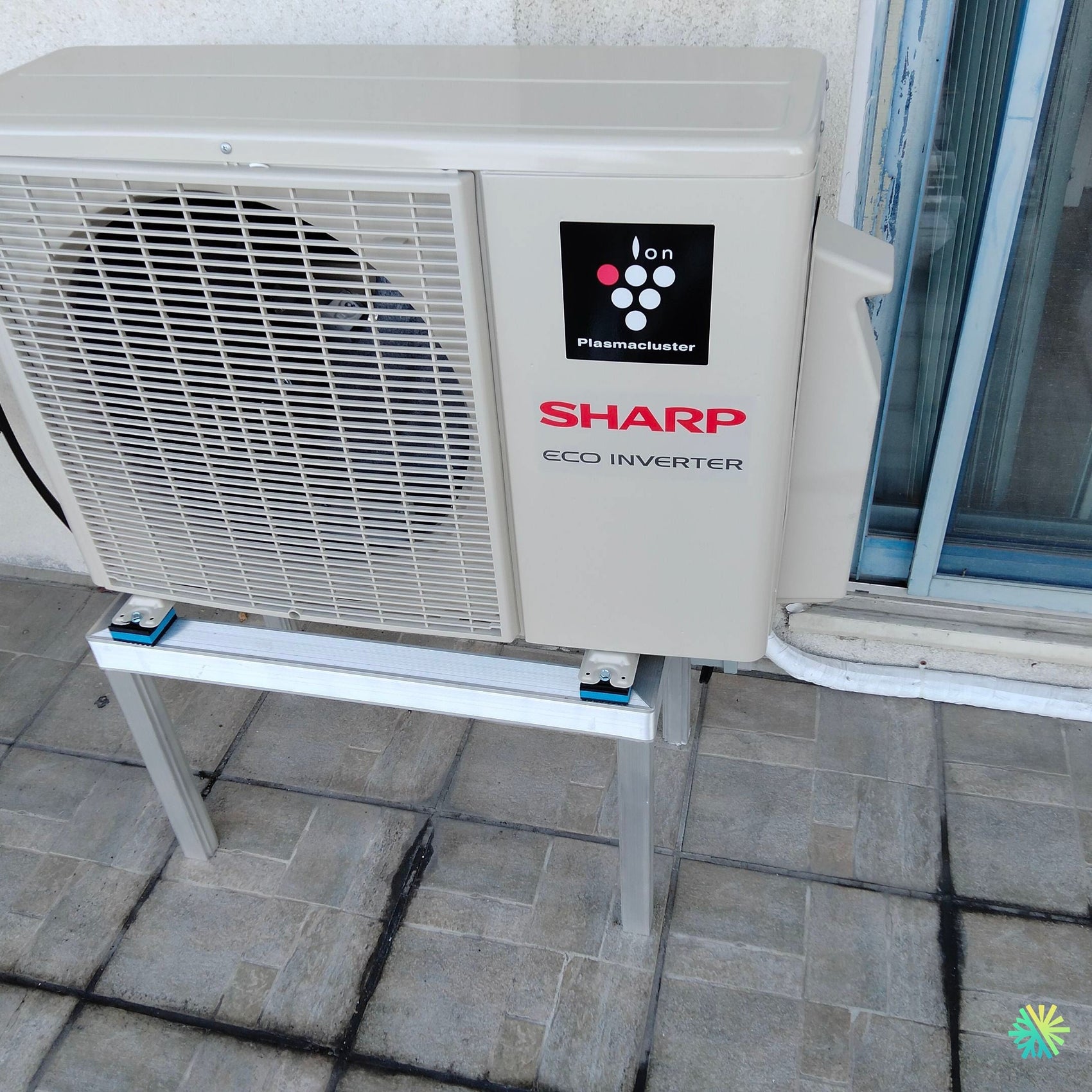

Condenser installation on balcony: stability, access and durability
The Sharp Eco Inverter condenser is placed on a raised aluminum support , equipped with anti-vibration pads . This configuration:
-
preserves clearances and air supply to the fan;
-
limits the transmission of vibrations to the balcony slab;
-
facilitates water drainage and seasonal maintenance .
The exterior path joins the machine via a rigid protective cover running along the patio door frame; the fasteners are corrosion-resistant . The assembly remains compact , discreet for the neighborhood, and complies with RBQ/CSA best practices concerning supports, mechanical strength and sealing of the crossings.
Technical details of the intervention
-
Equipment type : Sharp Eco Inverter wall-mounted heat pump (mini-split)
-
Configuration : 1 indoor head – 1 outdoor unit
-
Capacity : 12,000 BTU typical for a condo of this size (sizing confirmed on site)
-
Regulation : Inverter with continuous modulation
-
Air quality : Plasmacluster treatment
-
Connections : total length approximately 2.5 to 3.5 m , covered inside and out
-
Condensates : gravity drain with slope and anti-pinch collars
-
Electrical : dedicated circuit breaker, compliance with wiring templates and sealing sleeves
-
Commissioning : vacuum, leak testing, pressure and overheating/subcooling checks
-
Noise : low noise level in night mode , ideal for adjoining rooms
-
Maintenance : washable filters, easy access to exchangers
Performance and Refrigerant Rating: Recent versions of this line operate with lower GWP refrigerants than previous generations; we direct our customers to these modern iterations when the building envelope and usage warrant in order to optimize the environmental footprint and eligibility for assistance programs.
Construction site challenges and AirGreen solutions
-
Patio door management
The axis of the sliding door imposes a short and clean route for the connections. We chose a targeted drilling towards the adjoining partition, immediately opening onto the balcony; this reduces the refrigerated length , limits elbows and improves efficiency . -
Vibrations and neighborhood
On a condo balcony, vibration transmission must be minimized. The anti-vibration pads and the aluminum frame with transverse stiffening ensure superior stability and discreet operation , appreciated by condominiums. -
Protection and maintenance
The external capping protects the insulation from UV rays and abrasion . The connections and service valve remain accessible for annual maintenance, without requiring removal of the support.
Result: stable comfort, controlled aesthetics and optimized operating costs
In use, the customer benefits from a uniform temperature in the open area, imperceptible noise at low speed and precise humidity control in summer. The blowing position avoids direct air currents towards the sofa area and the dining table, while effectively sweeping the area adjacent to the bedrooms.
Economically, the inverter reduces on/off cycles and lowers consumption compared to a traditional air conditioner. In intermediate heating (fall/spring), the heat pump takes over from auxiliary electrical systems and reduces the bill .
Grants and eligibility in Greater Montreal
High-efficiency wall-mounted heat pumps are generally eligible for financial assistance when they meet seasonal performance and cold weather operating thresholds. In the greater Montreal area, Laval, Longueuil, North Shore and South Shore , we support our customers with:
-
check eligibility according to the energy profile of the home;
-
prepare supporting documents (estimates, technical sheets, installation photos);
-
submit applications within the required time limits.
Our team monitors the evolution of provincial and utility programs in order to guide each owner towards the most advantageous option.
Good practices for use and maintenance
To maintain the performance and longevity of the wall-mounted heat pump :
-
Clean filters every 4 to 8 weeks during periods of heavy use.
-
Keep the balcony clear around the condenser (debris, snow, objects).
-
Schedule annual maintenance : pressure inspection, cleaning of exchangers, testing of electrical components, drain check.
-
Adjust the blower vanes so that the airflow sweeps around the room without directly targeting the occupants.
-
In winter, slightly raise the set temperature rather than increasing sudden changes, to take advantage of the Inverter modulation .
AirGreen offers maintenance plans tailored to condos, with scheduled visits that comply with condominium regulations.
Why entrust your project to AirGreen?
-
Precise sizing according to the envelope and orientation of the housing.
-
Refrigeration path designed to combine efficiency and aesthetics .
-
Strict compliance with RBQ/CSA requirements and co-ownership regulations .
-
Advisory service on subsidies and the selection of recent models with lower environmental impact.
-
Responsive after-sales support and intelligent maintenance tracking.
Conclusion
This Sharp Eco Inverter installation in Chomedey (Laval) illustrates our approach: pragmatic engineering , clean finishing and comprehensive support . The result is four-season comfort , contained operating costs and a system ready to last thanks to simple and accessible maintenance.
