Four-season comfort on a condo balcony: precision, silence and careful aesthetics
Context: modern condominium on Nuns' Island, limited space and high expectations
On Nuns' Island , recent condominiums require impeccable HVAC installations: discretion, controlled noise level , condensation water management and harmonious integration into the building. Our client wants to heat and cool the open area of his condo while preserving the tranquility of the neighborhood. We are installing a Sharp Eco Inverter wall-mounted heat pump ( Plasmacluster technology) whose compactness, continuous modulation and reliability perfectly meet the constraints of a balcony .
Why the Sharp Eco Inverter is suitable for urban balconies
The Eco Inverter range continuously modulates its power. The result: smooth starts , low vibration, and quiet operation —essential in condominiums. Inside, the Plasmacluster function improves air quality (reducing particles and odors), a welcome addition in well-insulated homes.
Key advantages for a condo on Nuns' Island:
-
Reduced footprint thanks to a compact condenser on a raised support .
-
Interesting mid-season yields and energy savings through modulation.
-
Simplified maintenance : clear access to panels and grilles, ideal for annual HVAC maintenance .
-
Discreet aesthetics : clean connection passage and capping matching the coating.
For those aiming for subsidies and enhanced performance in extreme cold , we often point towards new generation models with R-32 or R-454B (e.g. Sharp ZU1 or Midea28 ) which extend the operating range at low temperatures.

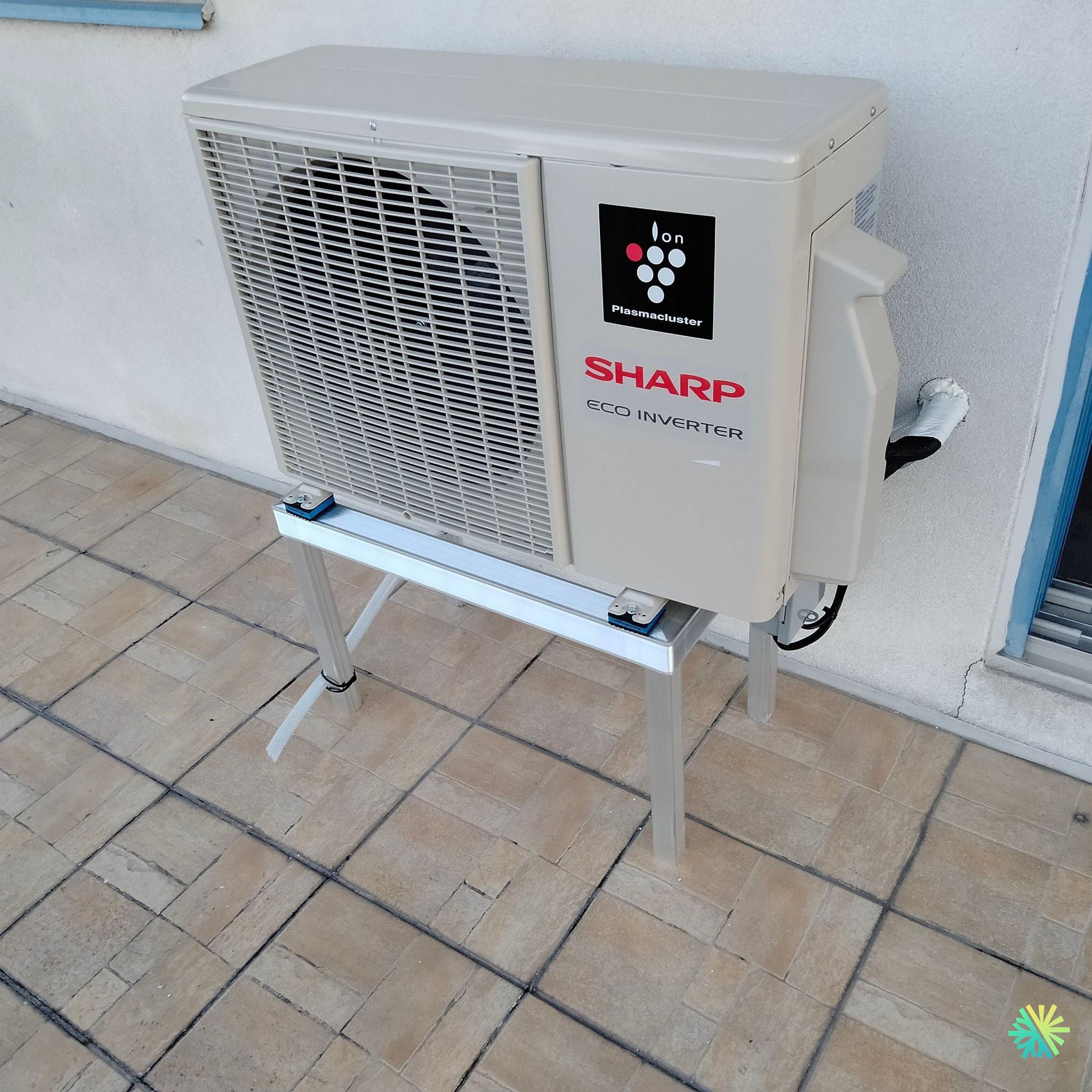

Installation details: support, short connections and perfect finish
Each balcony imposes its own layout logic. Here, the clear facade and the glass sill require precise installation to combine solidity , watertightness and air circulation .
Support and anti-vibration
-
Raised, anchored and braced aluminum frame , which distributes the load and keeps the unit out of water splashes.
-
Anti-vibration pads under each support point to break the vibration path to the slab.
-
Stainless steel screws and tightening to the manufacturer's torque to prevent loosening over cycles.
Refrigeration and capping process
-
Single wall penetration on the right side, unclogged and sealed with UV compatible sealant and vapor barrier .
-
Very short refrigeration connections (insulated annealed copper) — approximately 3 to 4 m to the interior head — limiting pressure losses and improving efficiency .
-
White exterior capping with clean exit angle; curvature radii respected to protect the insulation and the sheath.
-
Continuously sloping condensate drain to promote gravity drainage ; if the internal route requires it, integration of a silent and accessible mini-pump.
Food and safety
-
Dedicated circuit from the housing electrical panel, protection calibrated in accordance with the nameplate.
-
Disconnection near the equipment according to service requirements; sealed routing and grounding verified.
-
Clear labeling of conductors and circuit breaker identification for future work.
Clearances and airflow
-
Respect side and rear clearances for optimal airflow; distance from the balcony barrier to avoid recirculation.
-
Useful chassis height allowing you to anticipate blown snow and puddles, while maintaining access for cleaning.
AirGreen methodology: from leak testing to commissioning
We apply a constant procedure, a guarantee of durability and performance .
-
Nitrogen testing of brazed joints and flared fittings.
-
Deep vacuum controlled by micro-vacuum gauge until stabilization.
-
Valve opening, pressure control and intensity in hot/cold modes.
-
Check condensate drainage and test nighttime silent mode when available.
-
User support : filters, programming, good winter practices (clear the unit, do not obstruct the suction), HVAC maintenance schedule.
Result: stable comfort and smooth operation
-
Uniform temperature in the open area, without jolts.
-
Exterior noise level in accordance with co-ownership charters; the pads effectively insulate the structure.
-
Careful finishing: aligned capping, watertight holes, simplified maintenance access.
Condominium regulations: seamless integration
In Montreal , Laval , Longueuil , North Shore and South Shore , unions often impose:
-
Acoustic thresholds to be respected;
-
Condensate management without dripping at neighbors;
-
Aesthetic uniformity (capping colors, invisible wiring);
-
Disconnection accessible for maintenance.
We prepare a complete technical file (datasheets, implementation plan, power supply diagram, noise levels) and, if required, we support the client during discussions with the board of directors.
Tips for maximizing lifespan
-
Leave 30–40 cm of clearance around the grilles; avoid storing chairs or objects in front of the suction.
-
Clean interior filters every 4 to 8 weeks; a clean filter improves actual SEER and comfort .
-
Schedule an annual inspection : operating pressures, tightening, condition of insulation, check of the condensate pump if present.
-
During freezing weather, monitor for ice buildup under the unit and keep the area clear.
Pitfalls avoided on this project
-
Undersized base: approved aluminum frame with anti-vibration adapted to the load.
-
Drilling too low or poorly oriented: here, route optimized for a short route and a clean exit.
-
Drainage neglected: gravity slope maintained; alternatives provided if the interior requires lifting.
-
Forgetting clearance from the guardrail: installation validated to avoid any air recirculation.
Scalability and alternatives as needed
If the accommodation requires more air conditioning or better resistance to extreme cold , we recommend:
-
Sharp ZU1 ( R-32 ) to enhance winter performance and meet assistance program criteria.
-
Midea28 ( R-454B , up to −30 °C) when the objective includes high efficiency and eligibility for subsidies according to the criteria in force.
-
Gree Livo/Clivia R32 for an excellent budget/performance compromise with strong availability in Greater Montreal .
AirGreen, your HVAC installation partner in Île-des-Sœurs and throughout Greater Montreal
-
Certified team , accustomed to demanding co-ownership contexts.
-
Turnkey service : choice of equipment, coordination with the union , installation, commissioning and HVAC maintenance .
-
Rapid intervention in Montreal , Laval , Longueuil , North Shore and South Shore with tailor-made recommendations based on the architecture of the building and your comfort expectations.
Project summary sheet
-
Machine type : Sharp Eco Inverter wall-mounted heat pump (mini-split) with Plasmacluster .
-
Installation : balcony on raised aluminum support with anti-vibration pads .
-
Refrigeration path : straight wall crossing ; short connections (~3–4 m); white exterior capping .
-
Electrical : Dedicated circuit and service disconnect ; compliance with maintenance clearances.
-
Maintenance : clear access, easy cleaning, annual inspection recommended.
Ready to upgrade your comfort? We schedule a technical visit to validate BTU sizing , layout, and condominium requirements, then we propose the most economical and sustainable solution for your home.
