A residential construction site where performance and discretion are aligned

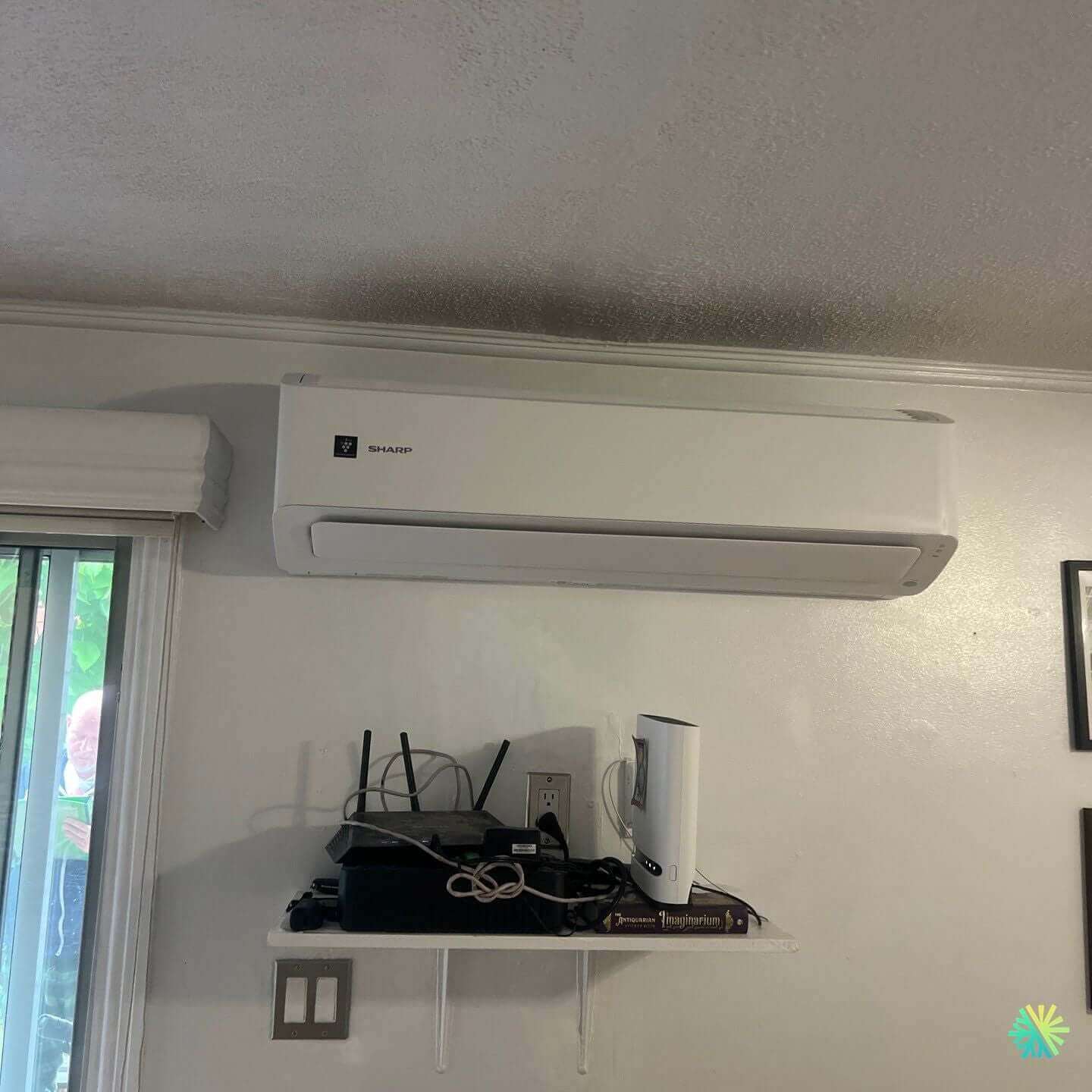

In a single-family home in Brossard , our team is installing aSharp ZU1 wall-mounted heat pump, known for its stability in summer cooling and its quiet operation in supplemental heating mode. The indoor head is installed high up, a few centimeters from the ceiling, on a wall overlooking a sliding patio door . A technical shelf is located under the unit with a router and Internet gateway, a typical context for open living spaces on the South Shore: minimal exposed wiring, demanding air circulation and strong aesthetic requirements.
Client background and objectives
The owner wanted:
-
efficient cooling for an open-plan living-dining area;
-
a neutral visual integration ;
-
a low noise level , compatible with teleworking;
-
a simple maintenance solution, capable of withstanding heat waves in Montreal, Laval, Longueuil, North Shore and South Shore .
Technical choice: why this wall configuration
The wall-mounted heat pump meets the need for energy control in a ductless residential envelope. The Sharp ZU1 range offers fine electronic control and interior fans with an optimized profile. The result: constant airflow with contained electricity consumption. For a standard open area, the power is generally between 9,000 and 12,000 BTU , sized after taking measurements (volume, solar gain, sealing of doors and windows).
HVAC Installation Details: AirGreen Precision and Finishes
Implantation of the inner head
-
Installation height : under a molded ceiling, to promote the vertical mixing effect and avoid recirculation of hot air in summer.
-
Side clearances : respect the distances to allow access to the filter and maintain good air intake.
-
Alignment to the wall : the head follows the grain of the wall above the shelf, which avoids turbulence created by immediate obstacles.
Drilling and refrigeration path
-
Exterior wall crossing with sleeve and vapor barrier .
-
Gentle angles on lines to preserve load and reduce pressure losses.
-
Discreet white capping on the outside to protect the refrigerant connections and the power cable. Inside, no visible trunking; the whole remains aesthetically refined .
Condensate management
Gravity draining is preferred: continuous slope, retaining collars and outlet point protected against spring frost. This approach limits moving parts and reduces maintenance compared to a lifting pump.
Commissioning steps
-
Flaring and brazing carried out with nitrogen supply to prevent internal oxidation.
-
Nitrogen pressure test to check the tightness of the connections.
-
Deep vacuum draw to the recommended threshold, then stabilization.
-
Fluid opening and control of supply/return temperatures.
-
Setting the ventilation curve to avoid the “cold snap” effect near the patio door.
Electrical management and communication
-
Power supply protected by dedicated circuit breaker according to the nominal current of the outdoor compressor.
-
Shielded communication cable between units for reliability and immunity to electromagnetic interference (useful in an area with network equipment on the tablet).
Results obtained
-
Uniform cooling of the living area; temperature stabilized without marked oscillations.
-
Soft sound level at the point of use, compatible with video conferencing and reading.
-
Controlled visual impact : the device disappears into the decor, the technical tablet remains accessible.
Recommended HVAC maintenance
-
Clean filters every 4 to 8 weeks during the warm season.
-
Check the drain in the spring to prevent overflows.
-
Annual maintenance by our technicians: checking currents, scanning exchangers, tightening connections, visual inspection of external capping.
Points of attention in this type of configuration
-
Low ceiling height : provide minimum clearance to avoid recirculation of hot air through the ceiling.
-
Immediate obstacles (shelves, frames, blinds): keep a free blowing cone.
-
Proximity to an opening (patio door): orient the shutter so that the flow crosses the room rather than directly hitting a curtain or a jamb.
Sizing tips for similar rooms
-
Consider the orientation (solar gains), the glazed surface and the permeability of the envelope.
-
Promote automatic ventilation speeds : the variator adjusts the flow rate to the actual load, which maintains comfort and reduces consumption.
-
Provide an external position for the condenser, protected from air discharges and with free circulation, especially in green areas on the South Shore.
Grants and Eligibility
High-efficiency wall-mounted heat pumps may be eligible for assistance programs in Quebec when seasonal performance is met. Our advisors assist with preparing the application, collecting proof of purchase, and the required technical data sheets. We also provide maintenance guidance to ensure long-term performance .
Why AirGreen for Montreal and the South Shore
-
Field experience in houses and plexes in Greater Montreal;
-
Careful planning of crossings, drain slopes and exterior finishes;
-
Responsive after-sales service , with maintenance reminders and usage advice.
Balance sheet
This Sharp wall-mounted heat pump installation in Brossard illustrates an approach where implementation engineering and quality finishes complement each other. The unit efficiently serves the open space while remaining discreet. Thanks to rigorous commissioning—pressure testing, vacuum, electrical checks—and a pump-free drain path, the system delivers stable comfort with controlled operating costs . This is exactly the type of configuration we deploy daily in Montreal, Laval, Longueuil, on the North Shore and the South Shore for homeowners who prioritize comfort, silence, and durability.
