Consistent comfort in a downtown condo, without compromising on aesthetics or energy efficiency.
Project context: urban condo, requirement for silence and design

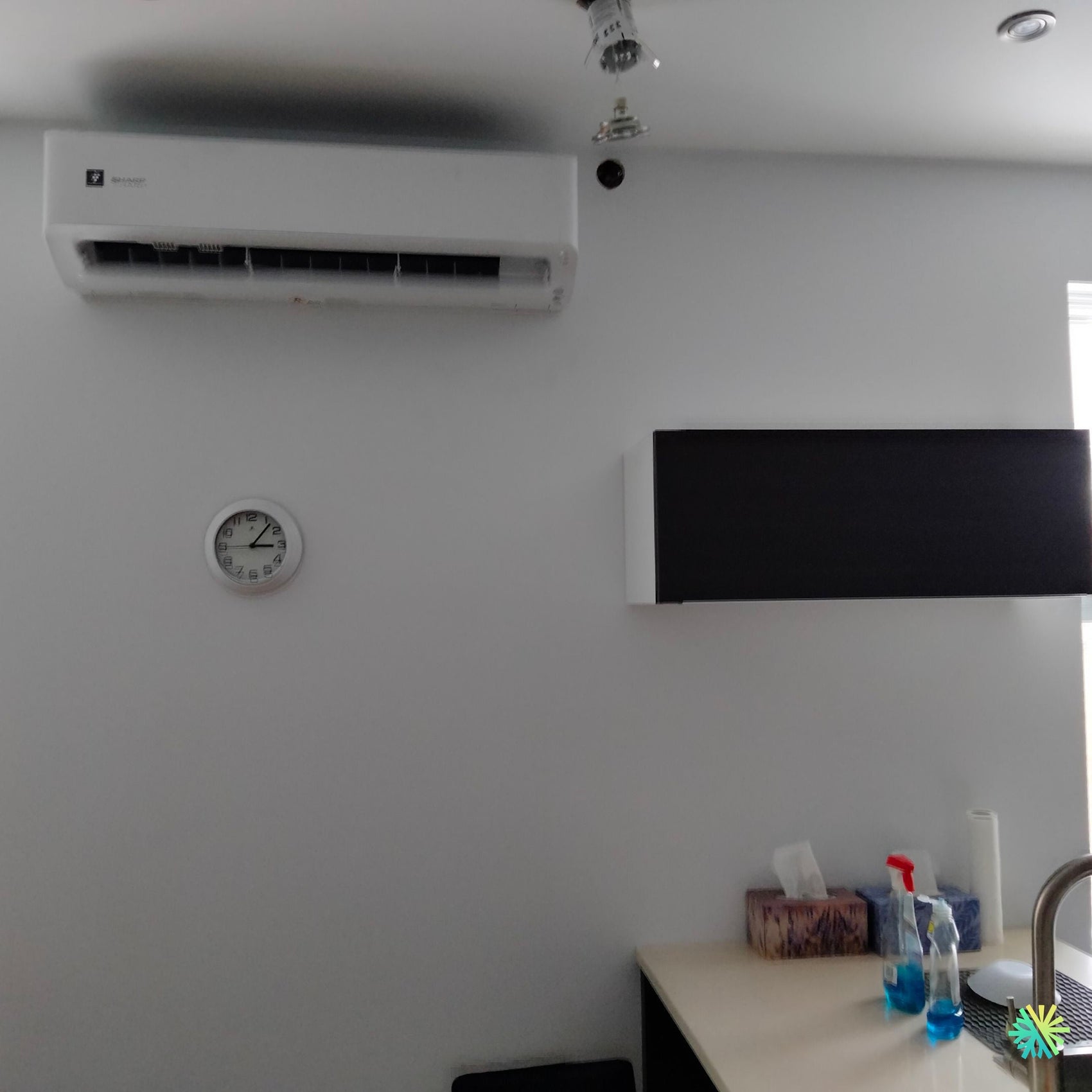

In Ville-Marie , in a modern and bright apartment, we installed a wall-mounted heat pump from the Sharp ZU1 range (new generation refrigerant) for a homeowner who was looking for three things: stable comfort in summer and winter , a very low noise level , and discreet integration above the kitchen worktop without disrupting the layout.
Thermal analysis and capacity selection
Before any HVAC installation , we carry out a sizing based on the living area, orientation, building envelope and actual uses. In a typical downtown condo (approximately 45–80 m²), the 9,000 to 15,000 BTU range covers the majority of needs. The ZU1 range is distinguished by:
-
fine modulation of the inverter compressor ensuring smooth starts and long cycles,
-
reliable performance in a northern climate ,
-
a very low interior noise level , ideal for open living room-kitchen areas .
The choice is oriented towards a model from the ZU1 range in order to optimize consumption and guarantee efficient additional heating during the cold Montreal weather.
Interior installation: precision and discretion
The wall head is positioned high under the ceiling , centered on a clear section of wall, near a side window. This placement favors:
-
a homogeneous diffusion of air in the open area,
-
avoiding obstacles (high cupboards, light fixtures),
-
simple HVAC maintenance (easily accessible filter).
We ensure clearance around the appliance and perfect parallelism for unrestricted condensate flow. Alignment with the kitchen units provides a simple, integrated look.
Condensate management: priority to gravity
The unit is mounted on an exterior wall , allowing for a gravity drain behind the head, with a continuous slope and a discreet exit point under the cover. This solution:
-
eliminates potential noise from a pump,
-
reduces maintenance,
-
limits the risk of refoulement.
When the configuration requires it, we can integrate a condensate pump with an anti-overflow tray; here, the natural slope has been favored for silent operation.
Refrigerated route and drilling(s)
The wall cross-section is made with a small diameter core, insulated and sealed . The refrigeration lines (high density insulated copper) follow a short route to the outside to limit pressure losses. An external cover matching the facade protects and standardizes the finish. Each connection is pressurized with nitrogen , then placed under deep vacuum to guarantee vacuum resistance and the longevity of the circuit.
Power supply and compliance
The heat pump is powered by a dedicated circuit according to the prescribed rating, circuit breaker at the electrical panel and external service switch near the condenser (local standards). We check:
-
polarity , grounding and conductor cross-section ,
-
the tightening torque of the terminal blocks,
-
communication between units (shielded multi-conductor cable if required).
Commissioning: fine adjustments for immediate comfort
After the leak tests, we proceed to vacuuming , fluid opening and lapping . The blowing parameters are adjusted for the open area:
-
vertical sweep to avoid direct air currents in the kitchen area,
-
“auto” mode to adapt the speed to internal loads (cooking, sunlight),
-
optimized heating setpoint to avoid short cycles when the outside temperature fluctuates.
The result: minimal perceived noise at the worktop and a stable temperature in the living area, even during rapid load variations typical of kitchens.
Why the Sharp ZU1 range in a Ville-Marie condo?
-
High seasonal efficiency thanks to the latest generation inverter and refrigerant.
-
Remarkable silence in low flow operation.
-
Improved filtration and easy access to washable filters , promoting regular HVAC maintenance .
-
Nordic compatibility : maintaining performance in outdoor cold for reliable heating support in Greater Montreal.
Aesthetics and integration
The compact design of the interior head unit complements the white cabinets and contemporary furnishings. The lower cover closes flush after adjustments, and the discreet indicator light prevents any visual clutter in the kitchen.
Noise, vibrations and acoustic comfort
We use anti-vibration pads and ensure solid anchoring . Defrost cycles are set to remain virtually imperceptible indoors. In a kitchen-living room environment, the sound signature is a major criterion: the ZU1 range excels precisely on this point.
Maintenance recommended by AirGreen
To preserve performance and air quality:
-
Clean filters every 4–6 weeks during periods of heavy use.
-
Annual inspection : heat exchange, condensate tray, fan, electrical tightening, pressure/temperature measurements.
-
Disinfection of condensate drains and verification of the slope.
-
External inspection (condenser): clearance, fins, support, condition of the cowling.
An AirGreen maintenance plan maintains the manufacturer's warranty and optimizes seasonal performance .
Grants and programs
Recent, high-efficiency , high-performance wall-mounted heat pumps in extreme cold are generally eligible for programs in Quebec, subject to conditions of power, certification and performance . We guide our customers through the process for Montreal, Laval, Longueuil, North Shore and South Shore , with preparation of supporting documents (detailed invoice, device numbers, required technical photos).
Deadlines and site management
In an occupied condo, our team plans:
-
protection of surfaces (kitchen, counters, household appliances),
-
clean drilling with dust collection,
-
complete functional tests before departure,
-
quick training in use: modes, instructions, routine maintenance.
Installation is generally carried out in one day , excluding access or structural constraints.
Tips for healthy air and savings
-
Maintain a stable setpoint rather than large day/night differences.
-
Use dehumidification mode during humid episodes to improve perceived comfort and limit the need for cold.
-
Allow the automatic sweep to diffuse the air, especially in open rooms.
-
Schedule a seasonal maintenance reminder : early summer and early winter.
Mistakes to avoid
-
Installing a head too close to an obstacle (cabinet, beam, light fixture): recirculation is detrimental to comfort.
-
Undersize in a very glazed open area: high-speed cycles and unnecessary noise.
-
Neglecting the slope of the drain : risks of odors and overflows.
-
Ignoring inter-unit communication and dedicated wiring : unexpected shutdowns are the key.
Why AirGreen
We specialize in custom HVAC solutions for Montreal, Laval, Longueuil, the North Shore and the South Shore . Our method combines rigorous diagnosis , careful installation and administrative support for subsidies . On recent Sharp ranges , we provide mastery of Nordic cold and a structured after-sales service .
