Careful integration into a Montreal salon: efficiency, discretion and optimized connection paths

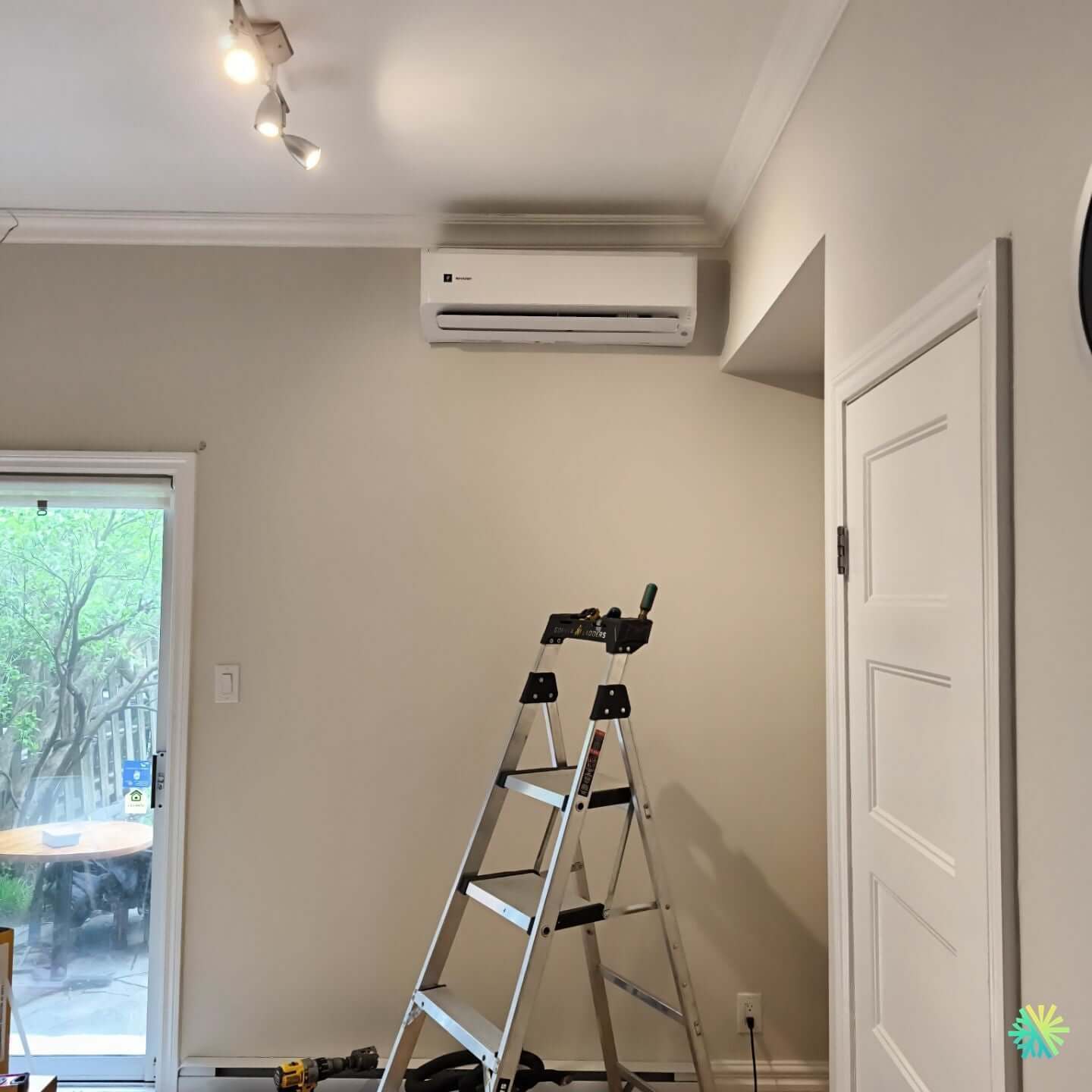

At AirGreen , we install heat pumps in a variety of residential settings in Montreal. This project, carried out in a home in the Le Sud-Ouest sector, illustrates an exemplary HVAC installation : a Sharp wall-mounted head positioned at the top of the wall, near a patio door opening onto the courtyard, with clean finishes and rigorous commissioning for four-season comfort.
Housing context and client objectives
The owner wanted:
-
air-condition the main living area in summer and benefit from efficient heating support in winter;
-
preserve the aesthetics of the living room (ceiling moldings, light walls, period woodwork);
-
limit noise and vibrations;
-
maintain a short route of connections to promote yields and reduce maintenance risks.
After a thermal survey (surface area, orientation, patio door glazing, insulation), we confirmed that a single-zone wall-mounted unit coupled with an inverter condenser is ideal. Continuous modulation responds to actual needs without jolts, resulting in temperature stability and measurable savings.
Interior layout design
Positioning and clearances
-
The head is placed in the upper part , under the ceiling molding, at a sufficient distance to avoid air recirculation against the ceiling and limit traces of convection.
-
The shutter's orientation has been adjusted to sweep the living area and push the air away from the patio door. This adjustment compensates for occasional cold air entering the window in winter and evens out the temperature.
-
Positioning close to a re-entrant angle and an adjoining partition requires particular care with regard to lateral clearances : we respect the distances recommended by the manufacturer to guarantee an unobstructed air intake and clear maintenance access.
Support, crossing and finishing
-
The anchor plate is fixed to a solid frame with dowels adapted to the support and level control.
-
The wall penetration is made at the rear right of the unit to reduce the visible length of the connections. A bulkhead pass-through protects the insulation and prevents friction.
-
Interior finish with discreet trim and careful filling to maintain the visual continuity of the wall.
External route of connections and condensate management
Refrigeration lines and communication cable
-
The total length of the connections is short (less than 5 m) , which limits load losses and promotes seasonal performance.
-
On the exterior, the lines are covered in UV-stabilized capping to protect the insulation and maintain a clean facade. The curvature radii are respected at each change of direction to preserve the integrity of the flares.
Condensate drainage
-
The high-wall configuration above the patio door allows for a gravity drain with a continuous slope to the exterior drain. This choice avoids the need for a pump and eliminates a potential source of noise and maintenance.
-
The drain outlet is positioned away from runoff, at a sufficient height to prevent icing against the masonry during freezing periods.
Power supply and safety
-
Dedicated circuit sized according to the nameplate, tightening of the terminal blocks to the correct torque, protected routing.
-
On the exterior side, an accessible disconnect box and a waterproof whip ensure the regulatory local disconnection and the durability of the connections.
-
Clear identification on the main panel and verification of differential protections according to the uses of the residence.
Refrigeration commissioning: AirGreen method
-
Nitrogen leak test under controlled pressure, with measured resistance.
-
Deep vacuum draw until microns stabilize, check rise to confirm absence of residual humidity/air.
-
Fluid release , intensity control, temperature differences and modulation behavior in cold and hot conditions.
-
Acoustic verification at several speed levels and vibration control at the fixing.
Site challenges and solutions provided
-
Ceiling height with moldings
Challenge : avoid hot recirculation on the ceiling and local soiling.
Solution : maintain high clearance, shutters oriented slightly downwards in heating mode, usage advice to limit stratification. -
Proximity to patio door and daily traffic
Issue : air currents during openings and obstacles to diffusion.
Solution : positioning in return of partition, transverse sweep towards the living area and stable setting to absorb variations. -
Restricted technical area for the crossing
Challenge : Maintain adequate curvature radii and a clean passage.
Solution : guided drilling, calibrated tube cutter, continuous insulation without pinching, continuous external capping to seal and protect.
Why choose a Sharp wall light in the South West?
-
Inverter modulation : fine adaptation to the load, reduction of on/off cycles, improved sound comfort.
-
Seasonal efficiency (SEER/HSPF) competitive depending on the series selected, favorable to the eligibility of subsidy programs when the reference is approved.
-
Reliability in cold climates thanks to defrost management and low temperature capacity maintenance.
-
Simplified maintenance : accessible filters, clear diagnostics and components arranged for rapid interventions.
Result for the customer
The living space benefits from a consistent temperature and low perceived noise . The upper wall head frees up floor space and directs air beyond the patio door, improving comfort near the glazing. The short connection path and gravity-driven drain management reduce maintenance requirements and support performance throughout the seasons.
HVAC Use and Maintenance Tips
Good daily practices
-
Maintain a stable setpoint ; change in 1°C steps rather than large variations.
-
In summer, keep the air flowing horizontally to circulate the air; in winter, lower the shutters slightly to counteract stratification.
-
Clear the area under the appliance to avoid disturbing the air intake and to facilitate maintenance.
Recommended HVAC maintenance
-
Clean filters every 4 to 8 weeks depending on occupancy and dust.
-
Seasonal inspection of the outdoor unit: clearance around the grille, cleanliness of the fan, condition of the capping and drain discharge.
-
Annual visit by our technicians: check of operating parameters, electrical verification, examination of the refrigeration circuit, provision of personalized advice.
Grants and administrative support
Several programs are available in Greater Montreal depending on the exact reference , its certifications and its low temperature performance . We support our clients in Montreal, Laval, Longueuil, North Shore and South Shore for eligibility validation, document preparation and detailed invoicing in accordance with program requirements.
Common Pitfalls Avoided by AirGreen
-
Insufficient ceiling clearance generating recirculation: we position the unit for free flow and easy maintenance.
-
Drain counter-slope : the slope is checked visually and level; if the layout requires it, we offer a micro-pump with bowl safety.
-
Bending radii too tight on copper: strict compliance with recommendations to avoid micro-leaks and whistling.
-
Non-watertight openings : bulkhead and sealant adapted to the differential movements of the facade.
-
Connections too long : design favoring a short route , beneficial to performance and maintenance.
Our signature in the Southwest and throughout Greater Montreal
We understand the constraints of plexes and row houses: load-bearing brick walls, courtyard access, close proximity, interior aesthetics to preserve. Our approach combines careful sizing , clean execution , documented commissioning and maintenance monitoring to ensure the sustainability of your investment. We operate with the same high standards in Montreal , Laval , Longueuil , on the North Shore and the South Shore .
