Why this installation makes a difference for a North Shore household
At AirGreen , we know that the success of an HVAC installation is not only about the choice of machine: it is mainly about the execution, the attention to detail and the anticipation of local constraints (snow, freeze-thaw cycles, prevailing winds). This Sharp wall-mounted heat pump responds exactly to these Laval challenges: efficient heating at low temperatures, discreet operation in summer and careful integration on a light vinyl covering, typical of Laval houses.
Background and objectives
-
Improve 4-season comfort without increasing your energy bill.
-
Preserve the aesthetics of the facade and avoid water bridges on the facing.
-
Guarantee easy maintenance and perfect accessibility to components.
What we installed
-

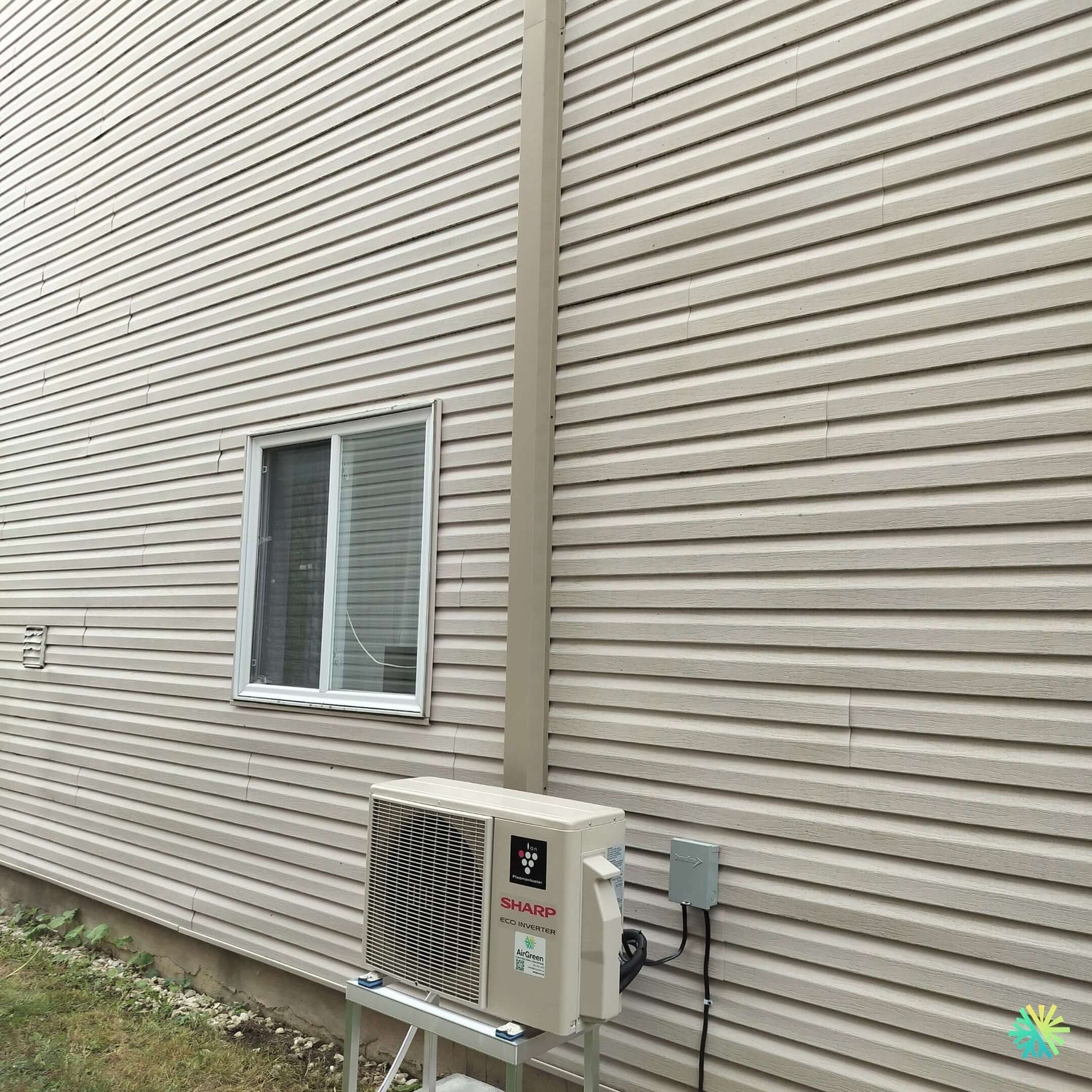

Sharp outdoor unit (inverter) placed on a raised support (galvanized frame) for snow protection and air circulation.
-
Refrigerant connections vertically covered in a beige cover (capping) matching the facade – straight and sealed route.
-
Outdoor disconnect box near unit, discreet and code compliant wiring.
-
Gravity drainage towards the exterior to prevent any rising damp in the wall.
The AirGreen method: precision, cleanliness and measured performance
Route of controlled connections and drillings
We retain a single, clean drilling behind the inner head (opposite side, not visible here) for the shortest possible route . On the outside, the covered vertical path limits the insulation's exposure to UV and facilitates annual inspection. The total visible length of the vertical axis is approximately 3 to 4 meters , an ideal compromise for limiting pressure losses and optimizing the factory refrigerant charge.
Raised support: a technical choice for our snow
The metal frame keeps the unit at a safe height above ground level. Result:
-
Clearance preserved for suction and blowing.
-
Reduced risk of snow and ice accumulation on the base.
-
Simplified cleaning of the perimeter in spring.
We add anti-vibration mats under the decks to contain vibration transmission to the frame and the interior of the house. This results in a quiet exterior, a criterion appreciated in dense residential areas.
Electricity: proximity, security and discretion
The waterproof disconnect box is installed at a prescribed distance from the unit, with protected cable and service loops as needed. This installation facilitates future interventions (maintenance, diagnostics) while respecting clearances. The aesthetic remains understated: coordinated color and compact wall passage.
Beige capping: aesthetics and durability
The capping (duct) protects the insulated copper tubes and the communication cable. Its beige color matches the vinyl for a discreet appearance. The junctions are waterproof and fixed at regular centers to prevent buckling in the sun. If accessories are added (snow guard, deflector), the assembly remains scalable.
Condensate management: gravity rather than pump
When the architecture allows it, we favor gravity drainage . It limits the risk of breakdown (no pump to maintain), reduces background noise and simplifies maintenance. Outside, we plan a slight slope and discharge away from the aisles to avoid icing the passageways.
Commissioning: rigor and traceability
-
Deep vacuum draw and stabilization.
-
Pressure gauge leak test , inspection of brazed domes and flared fittings.
-
Performance measurements (delta T, intensity, pressures, discharge temperature).
-
Setting the cooling/heating modes and checking the air flow rates .
What the customer gains, concretely
-
4-season comfort : efficient heating at the beginning and end of winter, stable air conditioning during heat waves.
-
Energy savings thanks to the inverter and optimized installation (short lengths, minimized losses).
-
Silence and low vibration, a major advantage for rooms on the front side.
-
Simple HVAC maintenance : clear access to the unit, openable chute, identified connections.
-
Respected aesthetics : vertical alignment, harmonized beige tint, invisible cables outside the service area.
Key technical details of this pose
-
Type : single-zone wall-mounted heat pump (ideal for an upstairs living room and as a supplement during the off-season).
-
Route : internal drilling → rear exit → covered vertical rise → unit connection.
-
Lines : Standard residential insulated copper (typically 1/4–3/8 for 9-12k BTU), UV clamps and watertight joints.
-
Protection : natural snow guard (elevation), free clearances around the fan.
-
Electrical : dedicated circuit breaker, disengageable on the external front for rapid interventions.
Grants and eligibility (according to current programs)
High-efficiency heat pumps are often eligible for provincial/federal financial assistance when their seasonal performance meets the heating scales. We support our customers in Montreal , Laval , Longueuil , as well as the North Shore and South Shore sectors, to verify the eligibility of the chosen model and prepare the required documents (detailed invoices, proof of installation, technical photos).
HVAC usage and maintenance tips
-
Filters : Rinse/vacuum the inner head filters every 4-8 weeks during peak season.
-
Clearances : Keep 60–90 cm free in front of the outdoor unit; clear snow immediately in winter.
-
Defrosting : Do not interrupt defrost cycles; they are normal in humid and cold weather.
-
Annual inspection : check pressures, temperatures and condition of insulation/connections; preventive HVAC maintenance extends lifespan and maintains performance.
Common Pitfalls — and How We Avoid Them
-
Lines too long : performance losses and additional refrigerant charge. Here, the short vertical maintains nominal efficiency.
-
Poorly designed water outlet : black ice near the foundations. We direct the discharge and secure the slope.
-
Insufficient fasteners : trunking that buckles or vibrates. Our fasteners are sized and spaced evenly.
-
Insufficient height : unit buried in January. The raised support keeps the unit operational throughout the winter.
What if you are considering multiple rooms?
This single-zone configuration is ideal for a first step. For a two-story house or a bungalow with distant rooms, we also offer MultiZone heat pumps , capable of powering 2 to 5 heads with a single outdoor compressor — a visually understated and flexible solution to control.
Our signature in Laval and Greater Montreal
AirGreen operates weekly in Laval , Montreal , Longueuil , the North Shore and the South Shore . Our promise: clean construction sites, careful processes, finishes aligned with your facade and measured, documented and sustainable performance.
Want discreet and efficient 4-season comfort?
We assess the house's orientation, the slopes for the drain, the location of the interior header, and the distance to the electrical panel on site. You leave with a clear plan, a clear estimate, and a realistic installation schedule—no surprises.
