A compact and precise indoor head for a modern condo: stable diffusion, clean finishes and optimized refrigeration path
Context: targeted comfort in a space with a raw design
In a recent apartment in the Le Sud-Ouest sector of Montreal, with a contemporary style with exposed concrete ceiling and light walls, we are installing a Sharp wall-mounted heat pump (R-32 refrigerant) . The owner's expressed need is clear: a discreet HVAC system, efficient in air conditioning in the summer, capable of providing supplemental heating in the off-season, and above all, a clean integration respecting the constraints of a condominium building.
Why choose a Sharp R-32 wall head
-
High seasonal efficiency thanks to the inverter and R-32, advantageous compared to R-410A.
-
Blowing quality : wide main shutter and generous return, useful for open rooms in condos.
-
Careful acoustics : low levels in Low and Quiet speeds, perfect for living rooms and office areas.
-
Simplified maintenance : filters accessible from the front; precise sensors stabilizing cycles.
-
Compatibility : Single-zone operation or insertion into a Sharp multi-zone set if a second part requires an additional head.
Site Study and Preparation

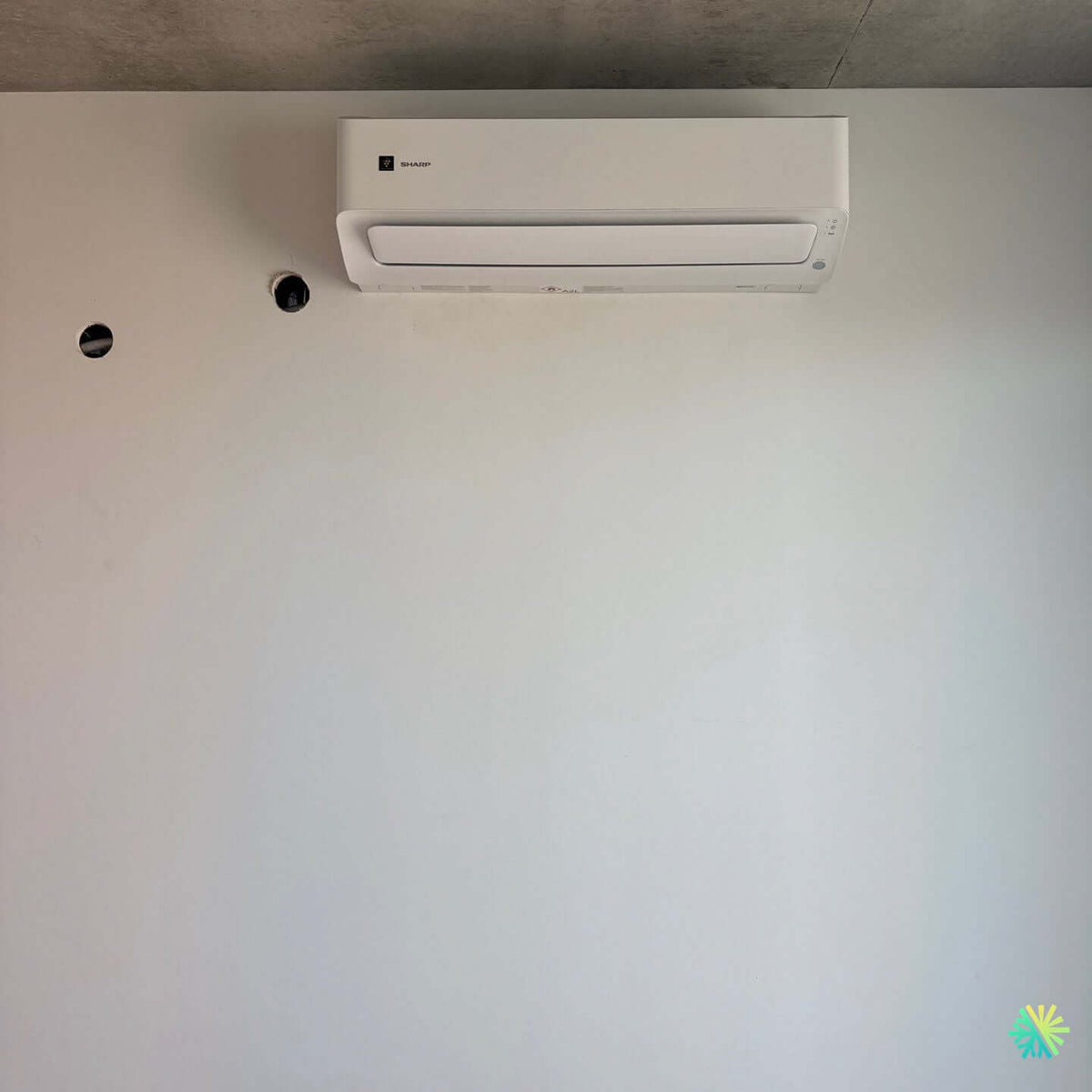

The chosen load-bearing wall is rectilinear, topped with a concrete ceiling , ideal for installation in the upper part in order to maximize the draft and controlled stratification of the air. Two carrots visible to the left of the unit materialize:
-
the refrigeration/drain outlet (sealing sleeve inserted),
-
the passage reserve for communication/power cable and future adjustments.
This approach allows:
-
the most direct route possible to the outside,
-
a gravity drain (continuous slope towards the facade), limiting the use of a pump and reducing noise,
-
minimal interior capping and aligned horizontally over only a few dozen centimeters.
Sizing and technical choices
-
Capacity : Selection adapted to the surface area of the living area (living room + open kitchen). We favor a sufficient capacity to quickly recover late afternoon solar gains without oversizing.
-
Line length : 4 to 6 m estimated, within the manufacturer's optimal range to preserve compressor efficiency and longevity.
-
Drillings : typical diameter 65–75 mm, outward sloping to secure condensate drainage; air barrier/vapour barrier applied.
-
Fixings : anchor plate on rigid structure; dowels adapted to the support and laser level control.
-
Electrical : power supply dedicated to the outdoor unit on circuit breaker compliant with the Quebec Code; 14/4 communication link between units; tightenings checked with a dynamometer.
-
Sealing and charging : brazing under nitrogen , deep vacuum , micro-leak control; opening of valves and pressurization according to the Sharp procedure.
A typical day of AirGreen installation
-
Protection of passageways and furniture; carpets, covers and masking films.
-
Tracing : identification of obstacles (posts, columns, conduits) and validation of the drain slope .
-
Coring and installation of waterproof sleeves ; preparation of the external route.
-
Installation of the turntable then the Sharp head; checking the alignment with the laser .
-
Routing of insulated copper connections, communication cable and drain; bending radii respected.
-
Silver brazing , nitrogen flushing, vacuum < 500 microns, stabilization and testing.
-
Commissioning : control of supply/return temperatures, pressures, instantaneous consumption, shutter settings.
-
Finishes : aligned white interior capping , UV exterior sealing, cleaning and maintenance guide.
Results measured and comfort obtained
-
Cold blowing stabilized quickly with a significant delta-T between intake and output, a guarantee of good exchange.
-
Diffusion : the high positioning on a straight wall sends the air along the ceiling before descending, ensuring homogeneity without direct air currents on the occupied area.
-
Noise level : almost imperceptible in Low speed; Auto manages the effort during heat peaks.
Finishes and aesthetic integration
The smooth facade of the Sharp head blends into the white wall; the short capping visually disappears. The presence of the concrete ceiling adds appreciable inertia in the summer, reinforced by the inverter regulation which stabilizes the temperature smoothly.
HVAC Maintenance: Our Recommendations
-
Filters : gentle vacuuming or rinsing with warm water every 4 weeks during use.
-
Battery : seasonal inspection, annual professional cleaning to maintain heat exchange.
-
Drain : rinsing and gravity test upon commissioning then annual check.
-
Outdoor unit : ground clearance and peripheral clearance 30–45 cm; free defrosting in winter.
-
AirGreen visit : complete protocol (pressures, probes, tightening, cleaning, parameter updates) to guarantee performance and durability .
Grants and eligibility criteria
High-efficiency wall-mounted heat pumps using R-32 and offering cold performance may be eligible for financial assistance in Quebec. We systematically validate:
-
the holding temperature (up to −25/−30 °C depending on the combinations),
-
SEER/HSPF/SCOP indices,
-
the documents required for the file.
Our team supports clients in Montreal, Laval, Longueuil, North Shore and South Shore to put together the file and secure the available amounts.
Pitfalls to avoid in a Montreal condo
-
Drain without slope : favor gravity ; only install a pump as a last resort.
-
Unnecessary refrigeration lengths : they degrade capacity; aim for the most direct route .
-
Undersized fixings on hollow materials: use suitable anchors and a suitable plate.
-
Undersizing in relation to solar gains from glass facades; take orientation into account.
-
Neglected maintenance : clogged filters = overconsumption and noise.
What this project brings to the client
-
Immediate comfort in summer and mid-season, with a precise and silent Sharp R-32 head.
-
Discreet integration compatible with a minimalist aesthetic.
-
Scalability : possibility of adding a second head in multi-zone if a room or office requires it.
-
Controlled costs : short route, reduced capping , site clean in one day.
Key project data (summary)
-
Location : The Southwest, Montreal.
-
Type : wall-mounted heat pump (mini-split).
-
Brand : Sharp ( R-32 ).
-
Model : recent Sharp R-32 wall-mounted range (selection according to load and surface area).
-
Installation : through drilling with gravity slope , 4–6 m connections, minimal interior capping , UV-resistant waterproof finishes.
