A clean and durable HVAC installation on a flat roof: Sharp performance, urban discretion and simplified maintenance
Project context and client objectives
In Rosemont–La Petite-Patrie , flat-roofed plexes dominate. Our client, an owner-occupant of a triplex, wanted to modernize its summer and winter comfort without cluttering the brick facades or disturbing the backyard. His specifications were summarized as follows: silence , stable performance in cold weather , discreet integration , and easy maintenance . We recommended a Sharp wall-mounted heat pump (R-32 refrigerant, inverter technology) , whose outdoor unit integrates perfectly on a flat roof with unobstructed air circulation.
Why Sharp for a Montreal plex
The Sharp brand stands out in residential applications thanks to its reliable heat exchanger architecture, precise inverter regulation and air purification functions ( Plasmacluster technology on recent range units). For a building with heterogeneous insulation - typical of plexes - the fine modulation of the compressor reduces on/off cycles, lowers consumption and stabilizes the temperature , both in air conditioning and in supplementary heating between seasons.
Reading the site: constraints of a flat roof in a dense environment
Installing a heat pump on a flat roof requires careful planning:
-
Loads and range : distribution of loads on elastomer membrane to maintain watertightness.
-
Clearances : free suction and discharge despite parapets and ventilation elements.
-
Refrigeration path : reasonable distance to the inner head and sealed penetration .
-
Vibration management : mechanical decoupling to protect the structure and limit sound transmission.
-
Snow and water : sufficient elevation to prevent suction of blown snow and blockage by slush.
The client's roof provided a clear gravel surface , with a central drain and spaced service outlets. The prevailing winds were not very turbulent, which facilitated the maintenance of a stable delta T at the condenser.
Our technical solution, step by step
1) Support and protection of the membrane

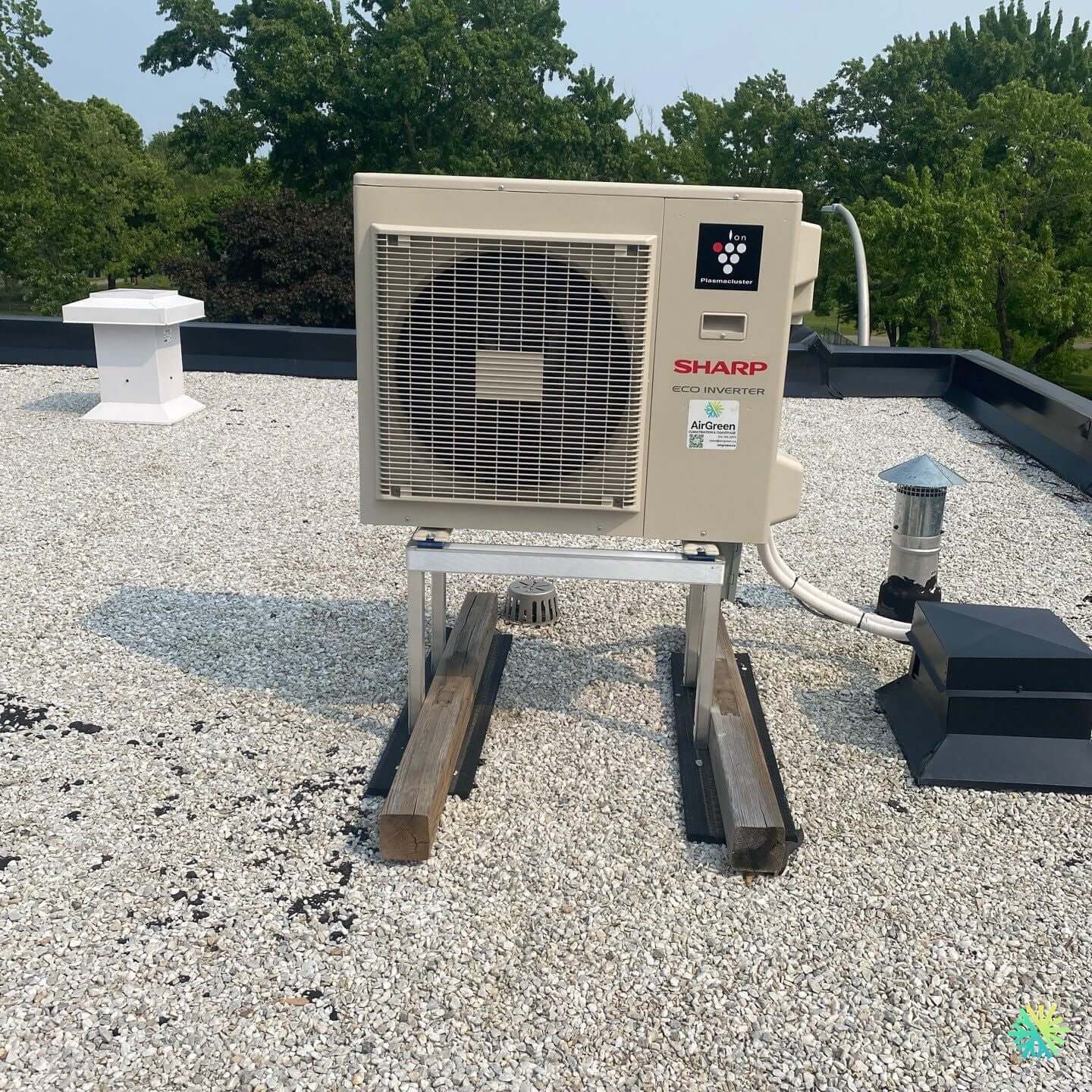

We install the outdoor unit on a galvanized frame supported by anti-vibration pads . The frame is supported by distribution pads and treated wooden crosspieces to distribute the loads and prevent any perforation of the membrane. This installation without roof perforation preserves the watertightness and simplifies annual inspections.
Benefits :
-
Reduction of vibrations transmitted to the structure.
-
Clearance under the device (≈ 35–45 cm): water drainage, easy snow removal.
2) Refrigeration and electricity route
The refrigeration lines (closed-cell insulated copper) and the communication/power cable run in a white UV cover to a roof penetration protected by a sealing cap . Inside, we aim for a compact route (≈ 6–8 m from the condenser to the wallhead), which optimizes efficiencies and thermal response .
The circuit is protected by a circuit breaker dedicated to the panel, in accordance with the Quebec electrical code, with external disconnection accessible for maintenance.
3) Condensate management
On flat roofs, winter defrost cycles generate water: the unit is raised and oriented to drain by gravity towards the gravel area, away from the drain to avoid localized freezing. This arrangement prevents ice accumulation under the machine.
4) Commissioning and checks
-
Deep vacuum draw down to 500 microns (and stabilization),
-
Nitrogen leak test ,
-
R-32 charge validated according to actual length,
-
Electrical checks (tightening torque, polarity, grounding),
-
Calibration of blowing speeds and tests in cold/heat modes .
We document the compressor pressure, superheat/subcooling and amperage values for the AirGreen maintenance sheet.
Result: discreet comfort, preserved facade
The customer benefits from rapid comfort in summer, with controlled noise leveling thanks to the anti-vibration support. In mid-season, the heat pump covers most of the needs; in Montreal winter , it provides effective support down to the low operational temperatures announced by Sharp (depending on the R-32 variant chosen), which reduces the heating bill and relieves the main system .
Technical focus on the installed device
R-32 Inverter Compressor
R-32 refrigerant improves seasonal efficiency and lowers GWP compared to R-410A. Inverter modulation keeps consumption levels low and reduces perceived temperature fluctuations .
Heat exchanger and defrosting
The outdoor coil is treated for corrosion protection , and the intelligent defrost algorithm limits the duration of cycle reversals. In practice: less persistent frost, increased stability on roofs exposed to wind.
Filtration and air quality
On the interior side, Sharp wall units incorporate multi-layer filtration and, depending on the variant, Plasmacluster technology which helps reduce certain particles and odors . In an urban home close to busy arteries, this feature adds a noticeable benefit .
Good practices for installation on flat roofs (AirGreen feedback)
-
Orientation : Avoid backflow towards parapets or obstacles. We aim for > 30 cm free at the rear and > 60 cm at the front for maintenance.
-
Base Height : Keep the unit above the winter slush level.
-
Snow clearances : if the building is in a windy corridor, provide an openwork lattice snow guard if necessary.
-
Wiring : UV cover and turnbuckles to control thermal expansion.
-
Waterproofing : all penetrations are sleeved and sealed according to roofing standards.
-
Drainage : Keep a clear passage around roof drains; a heat pump should never obstruct the flow.
Grants and Compliance
Energy-efficient R-32 wall-mounted heat pumps may be eligible for certain assistance programs (depending on SEER2/HSPF2/SCOP and nominal temperatures). We support our customers in Greater Montreal ( Montreal, Laval, Longueuil, North Shore, South Shore ) to verify the eligibility of the chosen configuration, compile the evidence (technical sheet, detailed invoice, photos) and simplify the process .
HVAC Maintenance: Ensuring Longevity
Regular HVAC maintenance protects performance:
-
Cleaning of outdoor/indoor coils and fan.
-
Inspection of insulation, covers and support fasteners.
-
Control of operating pressures, electrical readings, blowing temperature.
-
Disinfection of the condensate tray and filters.
-
Checking the waterproofing of roof penetrations and the condition of the membrane around the support.
AirGreen offers maintenance plans tailored to flat roof installations, with pre-winter passes to ensure optimal defrosting and pre-summer passes to prepare for the high air conditioning load.
Advice for owners of plexes and condominiums
-
Choice of location : favor the roof when the facade is heritage or when the courtyard is limited.
-
Sound : an anti-vibration mount and a quality inverter compressor prevent resonances in the housing.
-
Accessibility : Provide frontal clearance for maintenance and a safe path for technicians.
-
Sizing : a good load calculation (exposure, insulation, glazing) avoids oversizing and cycling which is detrimental to comfort.
-
Short routes : keep refrigerant lines compact to protect actual capacity and limit refrigerant top-ups.
What this installation proves
-
A Sharp wall-mounted heat pump fits neatly into a Montreal plex flat roof .
-
The adapted support and the covered path ensure durability and aesthetics .
-
R-32 Inverter efficiency meets the comfort requirements of a multi-unit building, while reducing operating costs.
AirGreen, your local HVAC partner
Based in Montreal , we operate weekly in Laval , Longueuil , on the North Shore and the South Shore . Our team is familiar with the constraints of flat roofs , brick facades and condominiums . We handle studies, installation, maintenance and grant support , with complete documentation provided to the client.
Do you have a similar project?
We can assess on-site the best location (roof, balcony, courtyard, side wall), recommend the correct BTU capacity and plan an installation schedule that is respectful of your building and your neighbors.
Quick Facts (Key Points)
-
Type : wall-mounted heat pump (outdoor unit on flat roof ).
-
Brand : Sharp , Inverter technology, R-32 refrigerant.
-
Installation : galvanized support, anti-vibration soles , UV cover, waterproof roof penetration , compliant clearances.
-
Route : lines ≈ 6–8 m , external sectioning, dedicated circuit breaker.
-
Maintenance : biannual recommended ( spring / fall ), membrane-roof inspection included.
Frequently Asked Questions (short format)
Can I put multiple units on the same flat roof?
Yes, provided that loads , clearances and service roads are respected. An AirGreen implementation plan avoids air recirculation.
And in extreme cold?
Depending on the option chosen, the Sharp heat pump maintains a useful capacity below zero. During periods of extreme cold, it acts as a supplementary backup to the main system.
Are vibrations transmitted to the home?
The anti-vibration mount and fan balance limit transmission. The result is very discreet under normal conditions.
Conclusion
This project in Rosemont–La Petite-Patrie illustrates exemplary integration : a high-performance Sharp appliance , a careful HVAC installation on a flat roof , and tangible daily comfort . For any heat pump or wall-mounted air conditioner project in Greater Montreal, AirGreen supports you from design to HVAC maintenance .
