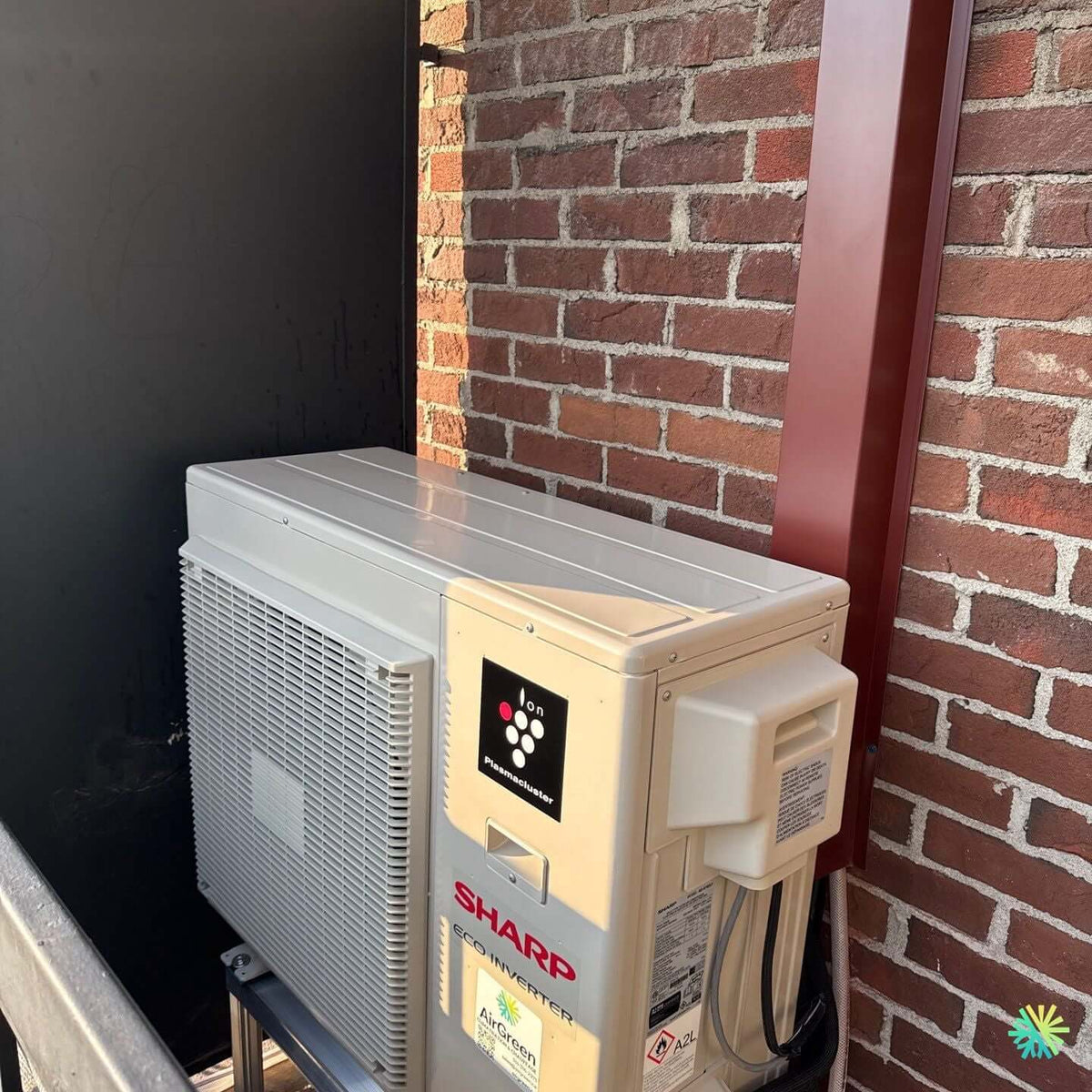

Installation of a Sharp ZHU1 wall-mounted heat pump in Le Sud-Ouest (Montreal)

Four-season efficiency and minimal nuisance on a brick facade
In a brick building in Southwest Montreal , we are installing a Sharp ZHU1 (R-32) wall-mounted heat pump for a couple who wanted to cool the open living room area while benefiting from economical supplemental heating in the winter. The outdoor space is limited: a narrow walkway/balcony, metal railings and steel privacy screens. Our mission: to make the installation compact, quiet and durable , without compromising circulation on the balcony or the aesthetics of the facade.

What we have put in place, simply and cleanly

• Sharp condenser placed on galvanized brackets with anti-vibration pads to prevent the transmission of vibrations into the masonry.

• Disconnect box positioned within easy reach of the service, sheathed and waterproof wiring.

• Short refrigerant lines (≈ 2–3 m), continuously insulated, brown cladding matching the brick for a discreet finish.

• Gravity drain to the outside; no mini-pump noise in the living room.

• Winter defrost management: light collection/drip tray under the drainage area to prevent icing.

Why the Sharp ZHU1 is perfect for urban settings

• R-32 refrigerant : better capacity/charge ratio and reduced environmental footprint compared to older generations.

• Efficient heating in bitter cold : the ZHU1 range maintains excellent useful power when the temperature drops, ideal for cold spells in Greater Montreal .

• Fine modulation : high frequency inverter, soft starts , smoothed consumption and controlled noise levels both in the living room and on the corridor.

• Ion Plasmacluster : contribution to indoor air quality , useful in an apartment close to urban axes.

Key steps in our HVAC installation

Location analysis and positioning

We validate the necessary clearances around the condenser while respecting the condominium regulations : it is placed sheltered from wind turbulence against the privacy screen and out of the way for access to the balcony. The indoor unit is installed above the patio door , aligned with the natural air corridor that crosses the open area.

Drilling, sealing and routing of connections

• Single 65mm hole behind the wall head, weatherstripping sleeve and air barrier foam for complete sealing.

• Generous bend radii on copper to preserve insulation integrity and reduce losses .

• UV-resistant brown exterior cladding , stainless steel clips; brick-treated screws.

• Brick-colored polyurethane sealant around the outlet for a clean and durable joint.

Electricity and compliance

• Dedicated circuit from the panel, caliber calculation in accordance with CEC/RBQ and circuit breaker marked.

• Proximity circuit breaker (disconnect) fixed on rigid support; earthing checked and operating voltage checked before gassing.

Commissioning and quality control

• Nitrogen leak test , deep vacuum < 500 microns, stabilization then charge release.

• Check for overheating/subcooling , blowing gap, and indoor/outdoor sound levels .

• Remote control calibration (auto/cool/heat/dry modes, settings, speeds) and usage tips.

Results obtained for occupants

• Even cooling of the open area thanks to the wide sweep; no more hot pockets near the bay window.

• Additional heating that reduces the use of electric baseboards during winter peaks.

• Silence and absence of perceptible vibrations in the floor thanks to mechanical decoupling.

• Aesthetics respected : matching hood, hidden cables, preserved facade.

Sizing and BTU Ranges

For a 4 1/2 apartment in the Southwest , facing west and with windows, the target range is generally between 12,000 and 18,000 BTU . The ZHU1 offers deep modulation : it runs for a long time at low speed, which maximizes dehumidification in summer and thermal stability in mid-season, while limiting on/off cycles.

AirGreen best practices in co-ownership environments

• Noise : positioning of the condenser and anti-vibration pads to remain below the thresholds of the building regulations.

• Drainage : management of condensates and defrosting to avoid leaks to neighbors.

• Documentation : installation diagrams, technical sheets, proof of HVAC maintenance provided to the administration.

• Cleanliness of the site : protected work area, drilling without residual dust, impeccable handover of the premises.

HVAC Maintenance: Simple, But Essential

• Filters : monthly rinsing during periods of intensive use.

• Batteries : annual gentle cleaning (evaporator/condenser) to maintain efficiency .

• Clearances : keep 30–40 cm around the condenser, especially on the discharge side.

• Inspection after the first winter: check the tightening torques of the flare fittings and the condition of the cowling.

Grants and Eligibility

New generation R-32 wall-mounted heat pumps , such as the Sharp ZHU1 , may be eligible for certain assistance depending on their SEER2/HSPF2 and extreme cold performance . We assist in preparing the required documents (detailed invoice, installation certificate) for applications in Montreal, Laval, Longueuil, North Shore and South Shore .

What sets AirGreen's execution on this project apart

1. Ultra-short connection paths : fewer losses, better performance and simple aesthetics.

2. Facade compatibility : brown cladding and brick-tone sealing for a discreet finish.

3. Structural silence : perfect decoupling between supports, masonry and metal railings.

4. Winter prevention : defrost drainage plan and discreet ice tray.

5. Compliance without compromise : dedicated electricity, accessible disconnect, co-ownership documentation.

Usage tips for precise comfort

• In summer , aim for 23–24°C with auto ventilation ; use Dry mode on humid days along the Lachine Canal.

• In winter , maintain a stable setting (20–21°C): the heat pump modulates and avoids energy-consuming surges.

• Program the speed ramp in the evening for a nearly imperceptible noise level during quiet periods in the neighborhood.
