An interior head fitted to the millimeter: immediate comfort, discreet integration and optimized performance in a Montreal apartment

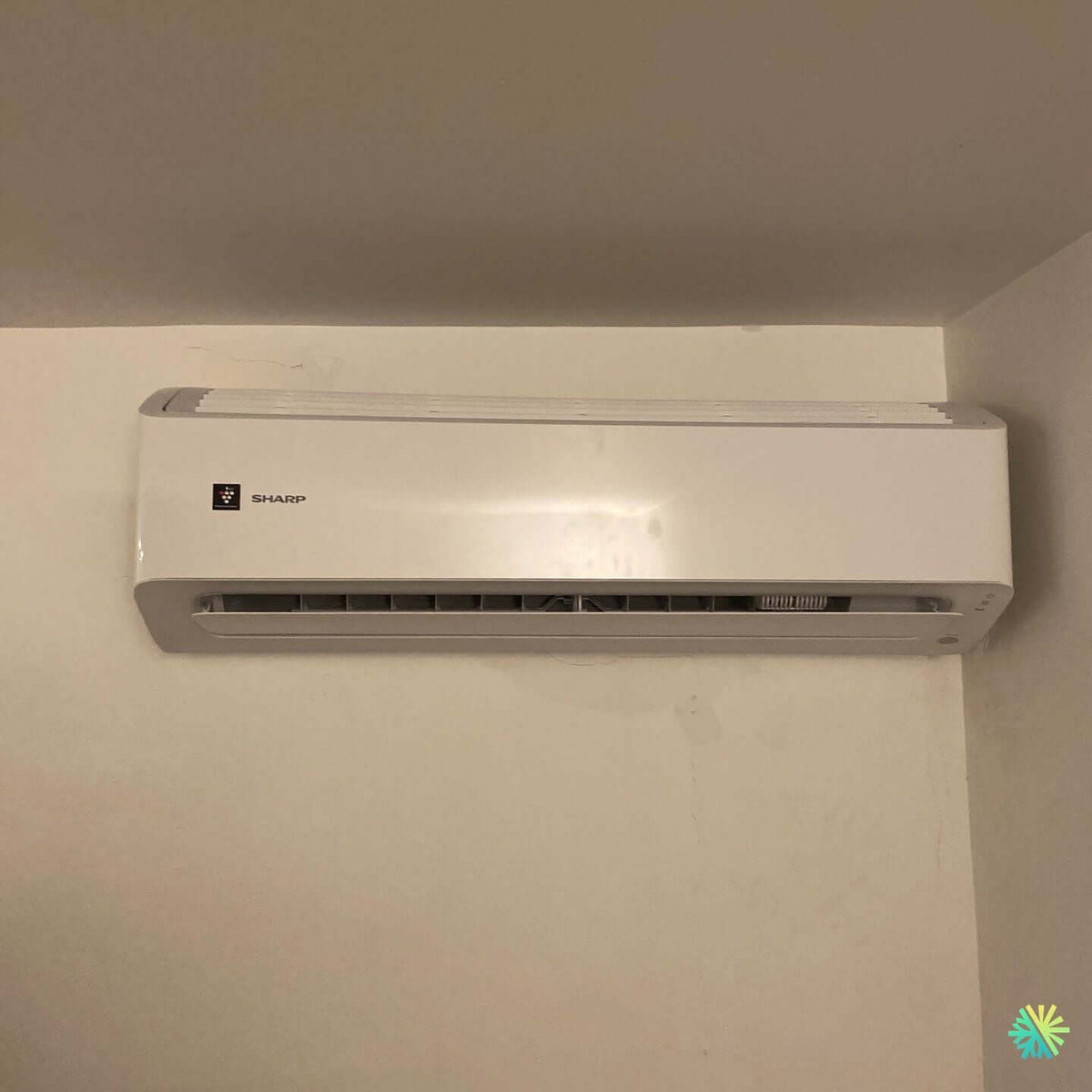

In a bright home in the Villeray–Saint-Michel–Parc-Extension district, we installed the indoor head of a Sharp ZU1 wall-mounted heat pump . This intervention completes a bi-bloc system whose condenser is positioned outside. The objective: to provide efficient heating in winter and precise cooling in summer , without compromising on interior aesthetics or operating silence .
Housing context and customer expectations
The client occupies an apartment located on the top floor of a typical Montreal plex. The priorities expressed:
-
control the temperature room by room, with even diffusion ;
-
preserve the visual appearance of the walls;
-
limit noise pollution ;
-
ensure simple HVAC maintenance and low operating costs year-round.
Our solution: a Sharp ZU1 installed at the top of the wall , placed in the corner to optimize air sweeping, with a short refrigeration path and condensate evacuation designed with gravity as a priority.
Why the Sharp ZU1 for an apartment in Villeray
The ZU1 series stands out for its Eco Inverter technology , its R-32 compatibility and its very low noise level . In open living spaces, the ZU1 offers:
-
fine modulation of power to maintain a stable temperature ;
-
high SEER/HSPF promoting substantial energy savings ;
-
a gentle blowing with motorized shutter and precise orientation, useful when the unit is installed near a low ceiling.
Interior positioning study: determining criteria
Before any fixing, we carried out an analysis of air circulation and structure:
-
Height : install ≈ 20 cm below the ceiling to clear the upper air intake and facilitate maintenance of the hood.
-
Side clearances : the unit is centered in its useful area despite the right angle ; the shutter sweeps the entire room without blowing directly onto the rest area.
-
Structure : identification of the uprights and verification of the solidity of the panel, with suitable metal anchors.
-
Nuisances : elimination of risks of vibration transmission to the dividing wall thanks to anti-resonance spacers .
Refrigeration path and condensate management
The head is connected externally by a straight rear feedthrough located behind the device, reducing line length and losses. The white capping follows a minimal vertical path for a discreet appearance.
For condensation in cold mode , we favor:
-
a continuous slope from the discharge line to the exit point (gravity solution);
-
when gravity is not possible for the configuration of another room, a compact and silent condensate pump is integrated into the chute, with non-return and safety shut-off .
AirGreen Installation Process: Precision and Cleanliness
-
Site protection : tarpaulins, masking tape, ground wedges.
-
Tracing : Sharp mounting plate template, laser level control.
-
Drilling : crown drill with controlled slope towards the outside, installation of a sleeve to protect the insulation.
-
Connections : compliant flares, brazing under nitrogen on the outside, deep vacuum then vacuum holding .
-
Electricity : communication link and power supply following the manufacturer's polarity , tightening to the prescribed torque .
-
Commissioning : blowing test, temperature difference measurement, checking air flow and silence at low speed.
-
Finish : waterproof chute , anti-UV outer cap , careful filling and touch-ups .
Result: an almost invisible installation, perfectly waterproof and easy to access for maintenance.
Comfort of daily use
-
Heating mode : the ZU1 quickly heats the room to the desired temperature, then stabilizes the power for constant comfort without overheating or sudden cycles.
-
Cold mode : orientation of the shutter to avoid direct airflow; activation of night mode to reduce the noise level .
-
Filtration : access to the filters on the front for bi-monthly cleaning during peak periods.
Interior layout tips: best practices
To do:
-
keep ≥ 10 cm above the device and ≥ 15 cm on each side;
-
avoid direct exposure of the blower to a workstation or sofa;
-
provide a power outlet and a communication link protected from any stray voltage;
-
paint or choose a white- tinted capping for visual integration.
To avoid:
-
place the unit above a source of steam (stove, shower);
-
excessively bend the copper lines behind the device;
-
hide the upper suction with a shelf or curtain.
HVAC Maintenance: Maintaining Performance Year After Year
To maintain yields :
-
FILTERS : rinse with warm water every 8 to 12 weeks during intensive use;
-
EXCHANGER : delicate annual dust removal, carried out by an AirGreen technician ;
-
DISINFO : antibacterial treatment of the condensate tray at the start of summer;
-
EXTERIOR : visual inspection of the condenser after episodes of snow or pollen, cleaning of the fins at low pressure.
We offer HVAC maintenance plans with intervention prioritization for Montreal, Laval, Longueuil, North Shore and South Shore .
Subsidies and energy optimization
The Sharp ZU1 R-32 has high seasonal coefficients . Depending on the building profile and the overall system, it may be eligible for provincial financial assistance . Our team guides the client through:
-
energy pre-assessment ;
-
the constitution of the file (photos, detailed invoices, serial numbers);
-
submission to current programs.
The addition of a setpoint scenario per time slot and the reasonable use of Eco/Night modes make it possible to further reduce annual consumption .
Acoustic study and sound comfort
The high-angle placement reduces the perception of blowing while improving stratification in winter. The soundproofing of the panel and the controlled tightening of the fasteners eliminate micro-vibrations that could be transmitted to the partition. Measured at low speed, the sound level blends in with the ambient noise of the apartment, a key point for bedrooms and home offices.
Aesthetic integration: the disappearing device
The matte white unit blends naturally with painted walls. The chute follows a short, straight line; the drilling rays are hidden . On the front, only a discreet Sharp logo remains visible. The whole maintains a visual consistency with the interior decoration, often a decisive criterion when choosing a wall-mounted heat pump .
Expected performance depending on configuration
In a room of 20 to 35 m² typical of Villeray apartments, the Sharp ZU1, available in 12k to 18k BTU , covers:
-
a main heating system for the mid-seasons and an effective backup in very cold weather;
-
rapid cooling during heat waves, with controlled dehumidification ;
-
reduced consumption thanks to modulation and short line length .
Why entrust your installation to AirGreen?
We understand the realities of Montreal plexes : uneven load-bearing walls, limited access to technical columns, structural noise to avoid, waterproofing of through-floor spaces. Our signature:
-
installation engineering that respects the structure and architecture;
-
careful finishing and site cleanliness ;
-
complete support : selection, HVAC installation , HVAC maintenance , optimization of settings and support for subsidies .
Conclusion: visible comfort… barely
This Sharp ZU1 wall-mounted heat pump installation in Villeray–Saint-Michel–Parc-Extension blends into the decor while transforming the thermal comfort of the home. The unit delivers a stable temperature , discreet blowing , and tangible energy savings . A solution designed to last, winter and summer, with the assurance of AirGreen service throughout Greater Montreal .
