Careful installation for precise comfort, without compromising on aesthetics

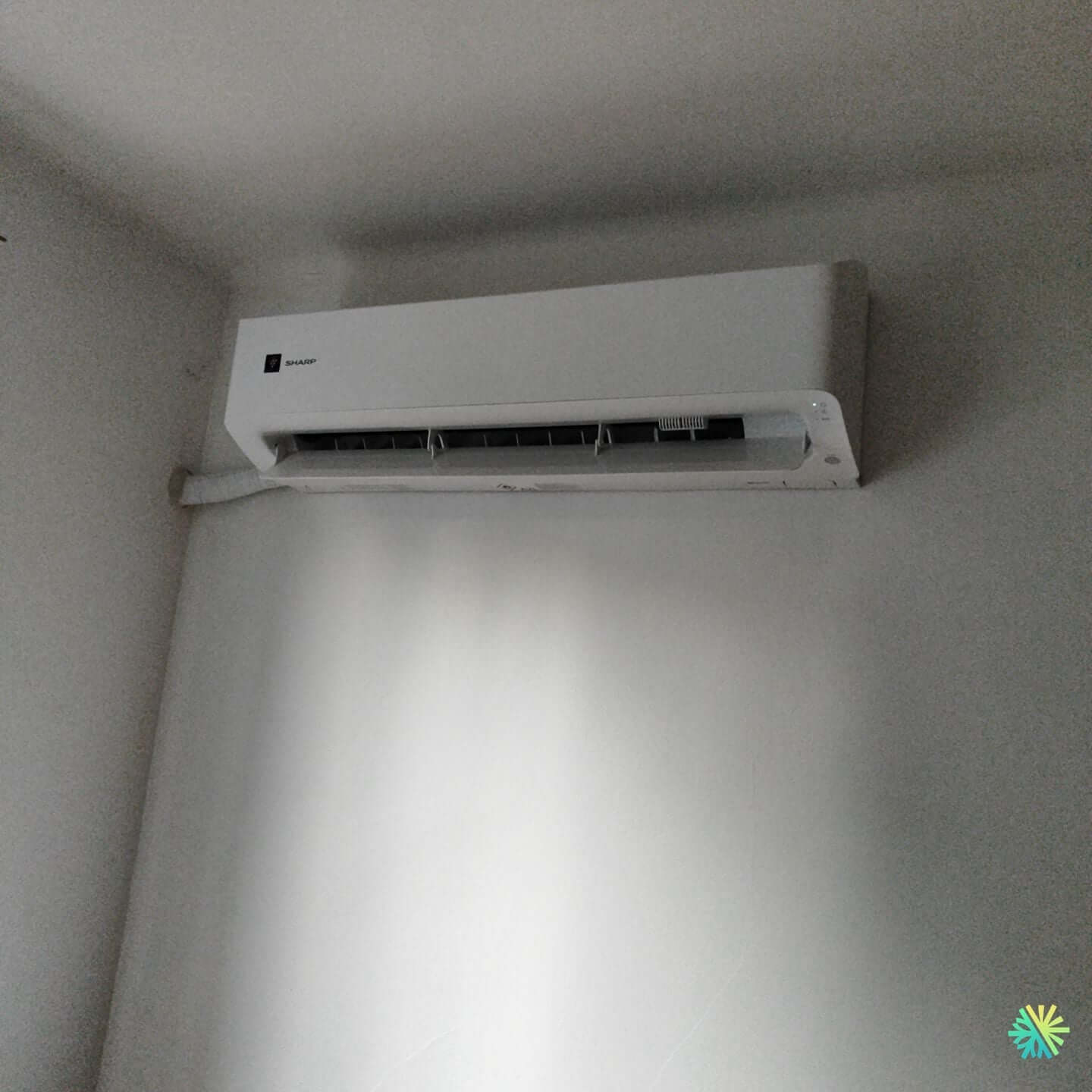

At AirGreen , we install HVAC systems designed for the real-life lives of families in Greater Montreal . In this Rosemont–La Petite-Patrie home, our mission is clear: to integrate a Sharp wall-mounted heat pump (ZU1 series, R-32 refrigerant) discreetly, quietly, and sustainably, with even air distribution throughout the room and simplified maintenance for years to come.
Residence context and comfort objectives
The client is looking for responsive cooling in the summer and efficient heating support in the off-season, while reducing the energy bill. The space to be treated is an open living room, with light walls , a standard ceiling, and ideally located on an exterior load-bearing wall . We recommend a Sharp ZU1 wall-mounted head for its fine modulation, its very good resistance in cold climates and its operation with R-32 , which is more efficient and has a lower GWP than R-410A.
Choice of location: performance, silence and clean lines
A successful HVAC installation starts with positioning. We mount the head high on the wall , at a regular distance from the ceiling to allow the unit to breathe and optimize air intake. This height facilitates:
-
controlled stratification in heating mode: the hot air is mixed then returned to the occupied zone;
-
the airflow in air conditioning mode, with a horizontal sweep that covers the useful area without creating a direct draft on the sofa or dining area;
-
HVAC maintenance (opening the hood, cleaning the filter), simple and quick.
The through passage to the outside is made on the left side of the appliance , through a calibrated and clean drilling. A discreet white capping protects the refrigeration connections and the drain, for a minimalist look aligned with the interior finish.
Sizing and power: the right capacity, no more
We size the capacity according to the actual thermal loads (orientation of the housing, glazed surfaces, airtightness, floors). For this type of room, the 12,000 to 15,000 BTU/h range is generally the most relevant: enough reserve for hot days, without oversizing which would induce short cycles, noise and premature wear. Sharp's Inverter technology then finely adjusts the power to the instantaneous demand, maintaining the temperature to the tenth of a degree with contained consumption.
Installation details that make the difference
-
Support and anchors. The back plate is fixed to anchors adapted to the support, with laser leveling for impeccable aesthetics and stagnation-free condensate drainage.
-
Continuous slope gravity drain. Condensate discharge is directed to the exterior without a pump , reducing noise, maintenance and points of failure. The slope is controlled throughout the run to the exterior wall.
-
Short refrigeration lines. The immediate feed-through limits the copper length, which improves efficiency and facilitates vacuuming and charge stability .
-
Finishing and sealing. The hole is sealed with flexible mastic and air barrier strip , preventing the entry of humidity and dust, and preventing thermal bridges .
-
Dedicated power supply. The indoor unit receives its power via the outdoor unit and a dedicated circuit sized according to the nameplate, in compliance with the Quebec Electrical Code .
Why Sharp ZU1 (R-32) series?
Sharp ZU1 is a recent generation R-32 , designed for the Montreal climate :
-
Wide modulation : the device goes down very low in minimum power, which avoids stops/restarts and stabilizes the humidity;
-
High seasonal efficiency (SEER/SCOP) with tangible benefits on the bill;
-
Low temperature operation for winter backup;
-
Careful acoustics : optimized fans and casings, particularly appreciated in Rosemont plexes and condominiums.
Air diffusion: on-site adjustments for “bench” comfort
After powering on, we configure:
-
Angle of the flaps to push the air along the ceiling (Coanda effect) and cover the entire depth of the living area;
-
Automatic speed with manual correction on heat peaks;
-
Dry mode in humid summer to increase dehumidification without overcooling the room.
A light smoke test and infrared survey confirm the correct distribution and absence of cold spots. The result: a consistent sensation and stable comfort, even during rapid variations in solar load.
Air quality and preventive maintenance
We explain a simple maintenance plan to the customer:
-
Vacuum and rinse filters every 4 to 8 weeks during peak season;
-
Annual inspection : coil, condensate tray, fan, screws, residual vacuum control and performance diagnosis.
The goal is to prevent clogging that increases consumption and reduces air flow , and to extend the life of the compressor. AirGreen offers a customized HVAC maintenance program for Rosemont, Montreal , Laval , Longueuil , North Shore and South Shore .
Interior aesthetics and sound discretion
The installation blends into the decor: matte white capping matching the wall, invisible screws, very low noise level in stabilized mode. In practice, the wall head remains almost inaudible on a daily basis; only rapid changes in setpoint trigger a temporary increase in ventilation.
Key steps of our AirGreen method
-
Checking the structure and identifying networks (electricity, water, masonry) before drilling.
-
Clean drilling of the correct diameter, bevelled outwards to promote the flow of condensate.
-
Passage and insulation of copper connections, flared couplers to the prescribed torque, deep vacuum drawing until micron stability.
-
Valve opening , leak testing, superheat/subcooling measurements .
-
Remote control calibration and usage briefing : relevant modes, eco-friendly actions, maintenance instructions.
Each step is traced on our commissioning sheet kept in the customer's file, useful for subsidies and guarantees .
Grants and Eligibility
Recent R-32 and high-efficiency wall-mounted heat pumps may be eligible for Quebec programs (e.g., Rénoclimat , Chauffez vert ), subject to criteria (certified performance, configuration and use). We support our clients to document the file , optimize financial assistance and plan the installation accordingly.
Practical advice for owners in Rosemont–La Petite-Patrie
-
Avoid obstructions in front of the head (shelves, thick curtains) which break the airflow.
-
Maintain a gap of 10–15 cm under the ceiling for air intake.
-
Program stable setpoints (e.g. 22–23°C in summer) rather than frequent variations: the Inverter excels in constant operation.
-
Clean filters regularly to maintain dehumidification capacity and seasonal efficiency.
-
Schedule annual maintenance before peak periods (late spring/early fall).
Result: four-season comfort and controlled bills
The Sharp ZU1 Series wall-mounted heat pump delivers rapid cooling in summer, comfortable heating support in spring and fall, and significantly reduced operating costs. Precise siting, a gravity drain , and short refrigerant lines ensure long-lasting reliability.
In Greater Montreal , from Outremont to Chomedey , from Longueuil to the North Shore and the South Shore , the AirGreen team deploys the same standards: rigorous diagnosis, careful aesthetics, and measured performance .
And after?
We remain available for performance monitoring , HVAC maintenance and optimization of settings according to changing lifestyle habits (teleworking, new rooms to be air-conditioned, multi-zone addition). Our goal: tailor-made comfort that can be felt every day, discreetly.
