A discreet and efficient upgrade for a downtown condo
In a contemporary apartment in Ville-Marie (Montreal) , we are replacing an aging air conditioning system with a Sharp ZU1 series wall-mounted heat pump (R-32 refrigerant) . The client's goal: four-season comfort , controlled consumption and very discreet integration in a narrow corridor, without compromising air circulation between rooms.
Housing context and customer expectations
The accommodation, typical of a downtown condo, has transitional spaces —a hallway leading to the living room and bedrooms—where air diffusion must be uniform and quiet . The client wishes:
-
rapid cooling of living areas in summer;
-
reliable heating support during the off-season and winter peaks;
-
a minimalist design aligned with a refined decor (light walls, recessed lighting);
-
a clean installation, without visible protrusions , and easy to maintain .
Why Sharp ZU1 series for this project
Sharp 's ZU1 series stands out for three major reasons:
-
Energy efficiency and refrigerant R-32 (A2L) , more efficient and with a lower GWP than R-410A.
-
Acoustic comfort : Sharp interior heads are appreciated for their quiet operation , crucial in corridors.
-
Installation flexibility : compact size and precise blower flap, ideal for channeling air to the living room and bedrooms.
Desired result: a continuous flow of air that “sweeps” the corridor, pushes the cold towards the living areas in summer and provides a stable source of heat in winter.
Our approach to HVAC installation in a narrow hallway
Implantation of the inner head

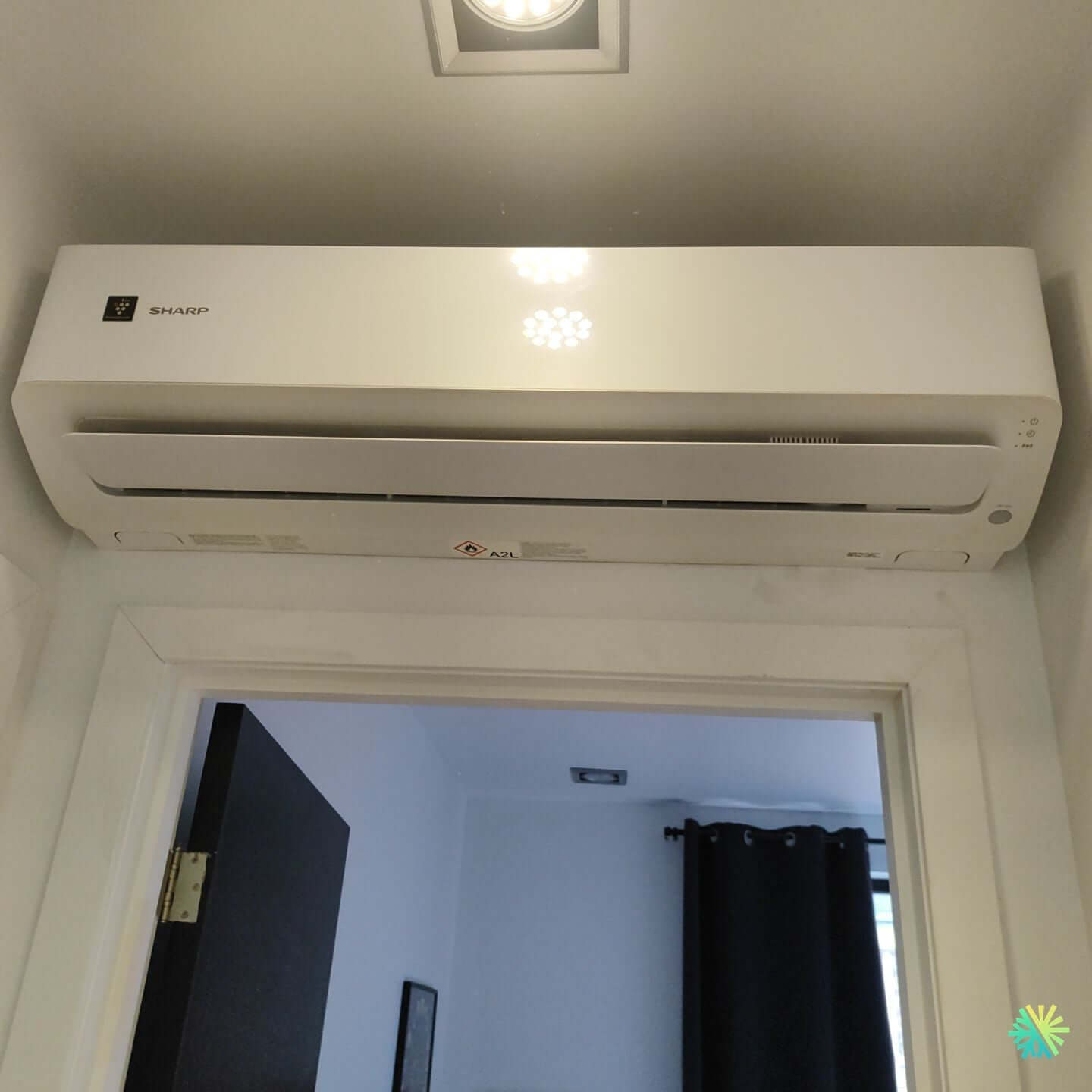

We position the Sharp wall head above a door frame , in optimized free heights to capture hot air from the ceiling and redistribute it efficiently. This placement:
-
frees up space and avoids cluttering furniture;
-
centers diffusion to adjacent areas;
-
simplifies access for HVAC maintenance (filter cleaning, annual inspection).
Visible points on the installation
-
Compact device, white finish that blends into the decor.
-
Aligned and clean assembly, perfect for a condo aesthetic .
-
A2L label confirming the use of R-32 .
Drilling, routing and management of condensates
In the configuration of this condo, we make a short drilling towards the exterior envelope (perimeter load-bearing wall), with a slight gravity slope for the evacuation of condensates — without a lifting pump to preserve silence and reduce maintenance.
The refrigerant lines and the power supply are grouped under discreet casing (white capping) on the outside, for a uniform finish to the facade.
Advantage: zero additional noise , fewer moving parts, and increased reliability over time.
Choice of power (sizing)
After calculating the thermal loads (surface area, orientation, glazing, infiltration), we retain a typical capacity of 12,000 to 15,000 BTU for this type of semi-open-plan apartment in the city center. The Sharp ZU1 series precisely covers these usual levels , ensuring:
-
soft starts (inverter) , moderate consumption;
-
extended modulation range , which avoids short cycles;
-
smooth temperature stability .
Power supply and protections
The indoor head is connected to the outdoor unit via low-voltage communication, while the protected power supply (dedicated circuit breaker) is sized according to the specifications of the ZU1 range. We validate:
-
conductor section and compliant circuit breaker ;
-
grounding ;
-
sealing and vacuuming of lines before charging.
What the Sharp ZU1 changes in everyday life
Winter-summer comfort, silence and air quality
-
Efficient heating mode for cold periods in Greater Montreal, with appreciable stability in the corridors (less stratification).
-
Air conditioning mode with optimized sweeping : the air is redirected towards the rooms, which reduces hot zones .
-
Low noise level : perfect for passageways and nighttime rest .
-
Simple maintenance : accessible filters, wash in minutes — we recommend seasonal cleaning and annual inspection .
R-32 Refrigerant and Performance
The ZU1 range uses R-32 :
-
Increased efficiency at partial load (useful 80% of the season).
-
Reduced global warming potential vs. R-410A.
-
Consistent performance in varied weather — an asset for Montreal, Laval, Longueuil, North Shore, South Shore .
Key technical details of the construction site
Finishing and integration
-
High installation to the millimeter to respect the upper and lateral clearances .
-
Align with the axis of the corridor to project air towards the rooms.
-
Gravity condensate management : increased reliability, no pump buzzing .
-
Leak tests , vacuum (500 microns), then commissioning with reading of pressures and temperatures .
Response time and cleanliness
-
One-day intervention in an occupied condo.
-
Protection of premises (canvases, floor coverings), low dust drilling, cleaning and immediate restitution .
-
Explanation to the customer of modes and eco-actions (target temperatures, doors open to promote air circulation, minimal maintenance).
Possible grants and eligibilities
Modern, high-efficiency R-32 wall-mounted heat pumps are often eligible for assistance programs (depending on configuration, power, and applicable criteria). We support our clients in Greater Montreal with:
-
check eligibility ,
-
prepare the documents ,
-
optimize the choice of capacity and cold performance , frequently requested criteria.
AirGreen Expert Tips for a Downtown Condo
Good usage practices
-
Maintain a moderate setpoint (e.g. 23–24°C in summer, 20–21°C in the off-season) to maximize savings .
-
Interior doors open in operation to spread air from the corridor to the rooms.
-
Auto/Heat mode in mid-season; dehumidification during humidity peaks.
HVAC Maintenance
-
Clean filters every 4 to 8 weeks during peak season.
-
Annual inspection : pressures, currents, connections, condensate tray, detection of micro-leaks.
-
Checking the exterior capping and drainage after freeze/thaw episodes.
Common Mistakes to Avoid
-
Undersizing the machine to “save money”: this lengthens cycles and wears out the equipment.
-
Install too low in a corridor: risk of collision and poor air intake .
-
Condensate pump not required: we favor gravity as soon as the configuration allows for silence and reliability .
What this installation brings to you, concretely
-
Uncompromising 4-season comfort in a tightly-planned condo.
-
Aesthetics : almost invisible device above the door, aligning with the recessed lighting.
-
Simple maintenance and controlled operating costs.
-
Increased resale value thanks to recent R-32 equipment , in line with eco-responsible practices.
