An HVAC Installation Designed for a Narrow, Tall, and Architecturally Sensitive Space
In a neighborhood like Outremont, where buildings often combine architectural character, high ceilings, atypical openings, and space constraints, the installation of a wall-mounted heat pump demands much more than a simple choice of appliance. It requires a precise understanding of the premises, meticulous planning of duct routing, careful visual integration, and a complete understanding of the client's actual needs.

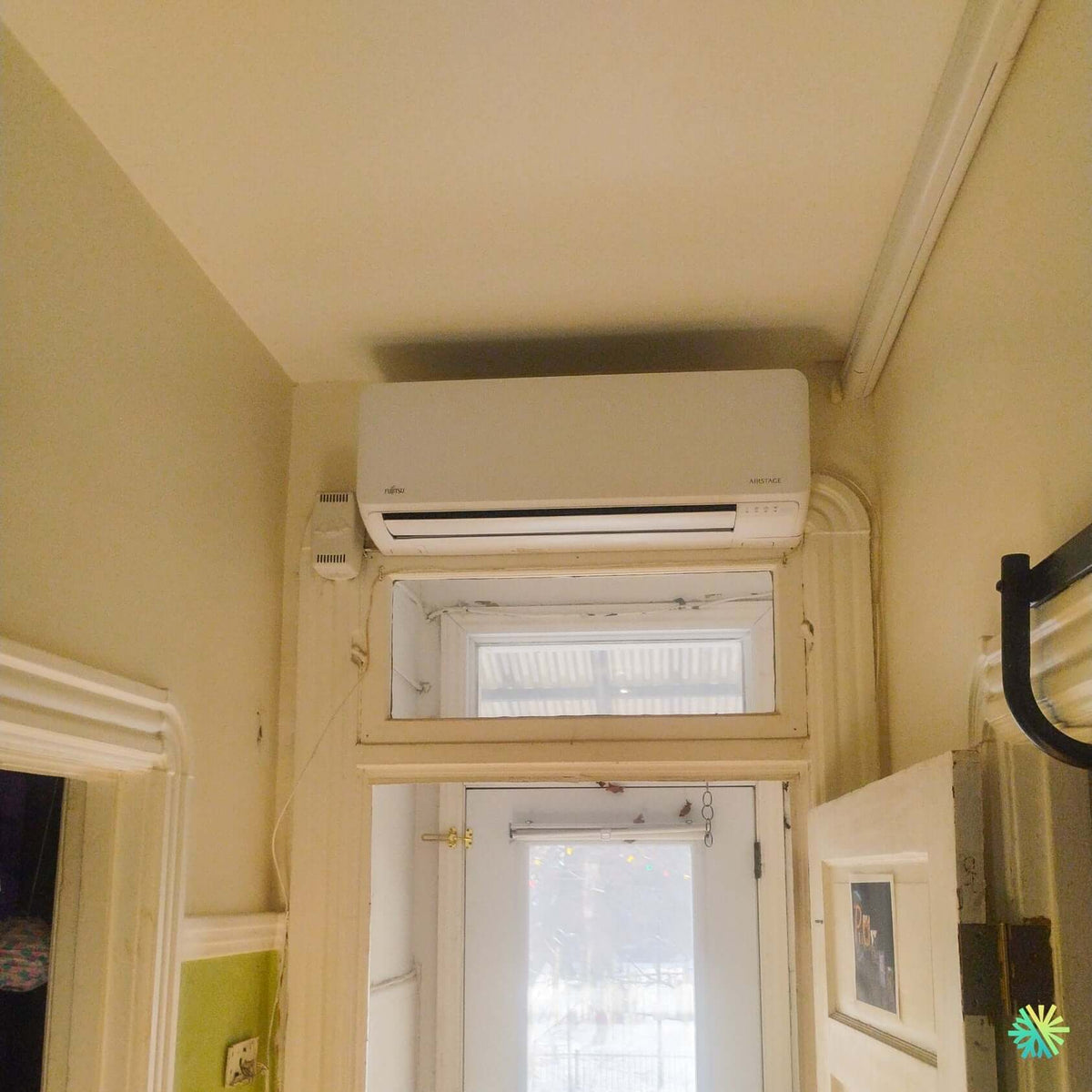

For this installation, our AirGreen team installed a FUJITSU ALTAIR 700 wall-mounted heat pump, Mini Split type, above a glass entrance door with a transom. The location, visible in the photo, presents several interesting features: limited vertical space between the top of the opening and the ceiling, existing moldings, an old wall, already visible ducts nearby, and a configuration where the interior aesthetics had to remain as clean as possible.
This type of project is representative of many interventions we carry out in Montreal, particularly in areas like Outremont, the Plateau-Mont-Royal, Rosemont, Villeray, Westmount, or Côte-des-Neiges, where properties do not always allow for a standard installation. At AirGreen, we know that a good result is not only measured by the appliance's performance but also by its ability to integrate naturally into the existing space.
Why the FUJITSU ALTAIR 700 model was suitable for this installation
The FUJITSU ALTAIR 700 is a popular solution for projects where comfort, reliability, and discretion are priorities. In this specific case, choosing a Mini Split wall-mounted heat pump allowed us to offer the client effective temperature control without requiring a centralized duct network, which would have been much more invasive in an existing building.
The Mini Split system offers several concrete advantages:
- Less intrusive installation than a central system.
- Excellent temperature modulation thanks to inverter technology.
- Quiet operation, particularly important in living spaces or entrances open to the living room.
- Optimized energy consumption compared to older heating or air conditioning systems.
- Placement flexibility that allows working with the building's actual constraints.
In this project in Outremont, the unit had to be installed above a door, in an area that naturally experiences temperature variations due to the exterior entrance. The chosen position allowed air to be diffused into the interior space while avoiding cluttering the room's main walls.
Installation above a door: a technical choice that must be well evaluated
Installing a wall-mounted heat pump above a door is never an automatic decision. Several elements must be checked before confirming the location:
-
Available height between the opening and the ceiling
The indoor unit must have sufficient clearance to ensure good air intake and allow for future maintenance. -
Solidarity of the wall support
In older buildings in Montreal, walls can be made of various materials: plaster, lath, bricks, wooden structures, or superimposed coverings. Our technicians must therefore ensure that the unit is securely fastened. -
Air jet direction
Poor orientation can create discomfort, especially if the air blows directly towards a passageway or an occupied area. -
Condensate drainage
Water evacuation must be carefully planned to avoid accumulation, backflow, or marks on the walls. -
Refrigerant line routing
Ducts must connect to the outdoor unit in compliance with technical standards, length limits, and good protection practices.
In this installation, the presence of a restricted space above the transom required precise positioning. The FUJITSU unit was centered to maintain a balanced appearance while allowing for the proper functioning of the appliance.
Specific challenges observed on site
The photo clearly shows that the installation is in an interior area where several architectural and technical elements already coexist: moldings, door frame, glass transom, visible ducts on the right side, small wall element on the left, and ceiling relatively close to the unit. This kind of environment requires careful execution.
The first challenge was limited space. The indoor unit had to be placed high enough not to interfere with the door and transom, but not too close to the ceiling to preserve the necessary air circulation. A poorly installed wall-mounted heat pump in an overly cramped space can lose efficiency, generate more noise, or make maintenance more difficult.
The second challenge concerned visual integration. In Outremont, many clients want to modernize their thermal comfort without distorting the interior appearance of their property. Here, the goal was to make the installation functional without creating an impression of overload. The white color of the unit harmonizes with the existing frames, which helps the appliance blend into the overall design despite its very visible location.
The third challenge involved routing connections. In a Mini Split heat pump installation, refrigerant lines, communication wiring, electrical supply, and drainage must be coordinated. Each element must be placed securely, accessibly, and in accordance with good industry practices.
An AirGreen approach adapted to Outremont buildings
HVAC installations in Outremont often require a more personalized approach than in new construction. Homes and buildings in the area frequently feature:
- Older walls that are more delicate to drill.
- High or irregular ceilings.
- Moldings and woodwork to preserve.
- More complex exterior access.
- Condominium or facade constraints.
- Higher aesthetic requirements.
Our role is not just to install a machine. We evaluate the building, the client's habits, the room configuration, air trajectory, maintenance access, and possible outdoor location. This consideration avoids several common mistakes we still too often see in installations carried out without sufficient planning.
For example, placing a unit too close to the ceiling may seem visually practical, but it can hinder air intake. Installing the appliance in an overly closed corner can limit diffusion. Running the drain without adequate slope can cause drainage problems. Neglecting the aesthetics of the ducts can also undermine the perceived value of the installation.
In this project, the challenge was to deliver a high-performing, clean, and durable HVAC installation while respecting the character of the place.
Comfort, Performance, and Practical Advice After Installation
Once the installation is complete, the main objective is simple: to ensure stable comfort in summer and mid-season, while reducing reliance on more energy-intensive systems. A well-sized and well-installed FUJITSU wall-mounted heat pump effectively air conditions during hot periods and heats during cooler periods, depending on the model's capabilities and outdoor conditions.
The importance of proper sizing
The choice of a wall-mounted heat pump should never be made solely based on approximate surface area. In a building in Outremont, several variables can influence the necessary capacity:
- The level of insulation.
- Window orientation.
- Ceiling height.
- Heat losses around doors.
- Presence of a glass transom.
- Arrangement of adjacent rooms.
- Sun exposure.
- Type of existing heating.
A unit that is too small will constantly run at full capacity without achieving the desired comfort. A unit that is too large risks creating short cycles, less controlled humidification, and a less pleasant cold or warm air sensation. Proper sizing therefore relies on technical analysis, not just a quick estimate.
In this case, the configuration above the entrance allowed for efficient treatment of an important transition area of the dwelling, while contributing to the overall comfort of the interior space.
Why HVAC maintenance remains essential
Even an excellent installation must be accompanied by regular HVAC maintenance. A wall-mounted heat pump operates with constant air exchange. Filters, fan wheel, evaporator, and drain can accumulate dust, moisture, and particles over time.
We recommend that homeowners:
- Clean filters regularly, especially during periods of intensive use.
- Check that nothing is blocking the air intake above the unit.
- Keep the blowing area clear.
- Have the appliance inspected periodically by a professional.
- Monitor for any unusual noise, odor, or change in performance.
- Plan for a more thorough cleaning if the unit is installed near an entrance, as this area may receive more outdoor dust.
In an installation like this, placed above a door, maintenance is particularly important because the appliance is in a high-traffic area. Good cleaning routines help maintain air quality, energy performance, and equipment lifespan.
Mistakes to avoid when installing a wall-mounted heat pump
Through our projects in Montreal, Laval, Longueuil, on the North Shore and South Shore, we observe that the most frequent problems do not always come from the machine itself, but from decisions made during installation.
Here are the most important mistakes to avoid:
Installing the unit without analyzing air diffusion
A wall-mounted heat pump must be positioned to promote natural circulation. If the air directly hits a door, a nearby wall, or an obstacle, comfort will be reduced.
Neglecting drainage
The condensate drain must be installed with an adequate slope or with an appropriate pumping solution when necessary. Poor drainage can cause leaks, odors, or wall damage.
Underestimating building constraints
Older buildings require special attention during drilling, fastening, and line routing. Hasty installation can damage surfaces or compromise the solidity of the mounting.
Choosing solely based on price
A Mini Split heat pump is a long-term investment. The price must be evaluated along with the quality of the appliance, the installer's expertise, the warranty, after-sales service, and the compliance of the installation.
Forgetting maintenance access
A unit installed too close to an obstacle or in a difficult-to-access location complicates future cleanings. In this project, the location was chosen to preserve access to the front panel and filters.
Subsidies and eligibility: a point to check before purchasing
Depending on the exact model, capacity, certifications, and applicable criteria at the time of installation, certain wall-mounted heat pumps may be eligible for subsidy programs, particularly when they meet the energy efficiency requirements applicable in Quebec. At AirGreen, we regularly assist our clients in understanding available programs, including the procedures related to Hydro-Québec subsidies when the equipment and the client's situation meet the criteria.
For homeowners in Montreal, Laval, Longueuil, on the North Shore or South Shore, this step can significantly impact the net cost of the project. We always recommend checking the model's eligibility before installation, keeping the required documents, and ensuring that the final invoice contains the necessary information.
The Result: A Discreet, Functional Installation Adapted to the Location's Reality
The final result is a FUJITSU ALTAIR 700 wall-mounted heat pump installation that respects the building's constraints while improving interior comfort. The unit is placed in a strategic area, above the entrance, with subtle integration into an existing architectural environment.
This project clearly illustrates the difference between a simply functional installation and a truly thoughtful one. In a space like this, every detail matters: height, centering, clearance, duct routing, future maintenance, and overall appearance.
For the client, the advantage is immediate: better temperature control, a less intrusive solution than a central system, controlled visual presence, and the peace of mind of an installation carried out by a team accustomed to the challenges of Montreal buildings.
AirGreen Expertise for HVAC Installations in and around Montreal
AirGreen installs wall-mounted heat pumps, wall-mounted air conditioners, Mini Split systems, multi-zone systems, and complete HVAC solutions throughout the greater metropolitan area. Our teams regularly work in Montreal, Outremont, Laval, Longueuil, on the North Shore and South Shore, with particular attention to quality of execution and durability.
Our approach is based on three priorities:
- Proposing suitable equipment, rather than pushing a generic model.
- Installing with precision, respecting the building and industry standards.
- Ensuring professional follow-up, because a good installation must remain efficient for a long time.
This installation in Outremont confirms once again that a Mini Split wall-mounted heat pump can be an excellent solution, even in a complex space, provided it is planned and installed correctly.
Advice for Outremont homeowners considering a wall-mounted heat pump
Before choosing a model, it is useful to have the space evaluated by a professional. A photo can give a first idea, but only a technical visit can confirm clearances, duct paths, required capacity, and external constraints.
Owners should also consider their priorities: summer comfort, auxiliary heating, energy consumption reduction, visual discretion, noise level, available subsidies, and ease of maintenance. A good preliminary discussion avoids unpleasant surprises and allows for choosing a solution that truly meets the daily needs of the building.
In the case of this FUJITSU installation in Outremont, the site analysis transformed a difficult area, located above a glass door, into a relevant location for a modern, reliable, and discreet HVAC solution.
