In Rosemont–La Petite-Patrie, the typical brick houses of the neighborhood are beautiful… but can become stifling in the summer and difficult to heat in the winter. This is exactly what this homeowner was experiencing, and he contacted us to modernize his comfort while maintaining a clean and discreet installation on the facade.
We recommended the installation of a Midea wall-mounted heat pump , from the high-performance Midea28 range, ideal for Montreal's climate and harsh winters.
Home context and client needs
The residence is a semi-detached house built of red brick, with a rear door opening onto a small terrace. The main constraints are:
-
Limited outdoor space near the door.
-
The brick facade had to be aesthetically preserved.
-
Need for a quiet system that is efficient for both heating and air conditioning.
-
Desire to reduce the electricity bill while increasing comfort in the main rooms.
After a technical visit, we confirmed that a Midea single-zone wall-mounted heat pump was the most logical solution: an excellent compromise between performance, price, visual discretion and potential eligibility for various financial assistance programs (according to the criteria in force at the time of the project).
Choosing a Midea wall-mounted heat pump
For this project, we opted for a Midea28 wall-mounted heat pump , a high-efficiency inverter unit operating on the new generation R-454B refrigerant, which is more environmentally friendly than older refrigerants.
Key features highlighted
-
Capacity adapted to the area to be served (approximately 12,000 BTU for the main floor).
-
Reliable heating in extreme cold , with capacity maintained at low temperatures – ideal for Montreal winters.
-
Inverter technology for continuous power modulation: less temperature variation, less noise, less consumption.
-
Quiet operation , both indoors and outdoors, to preserve the peace and quiet of the neighborhood.
-
Simple and compact design that integrates well with the brick rear facade.
A neat and durable outdoor installation

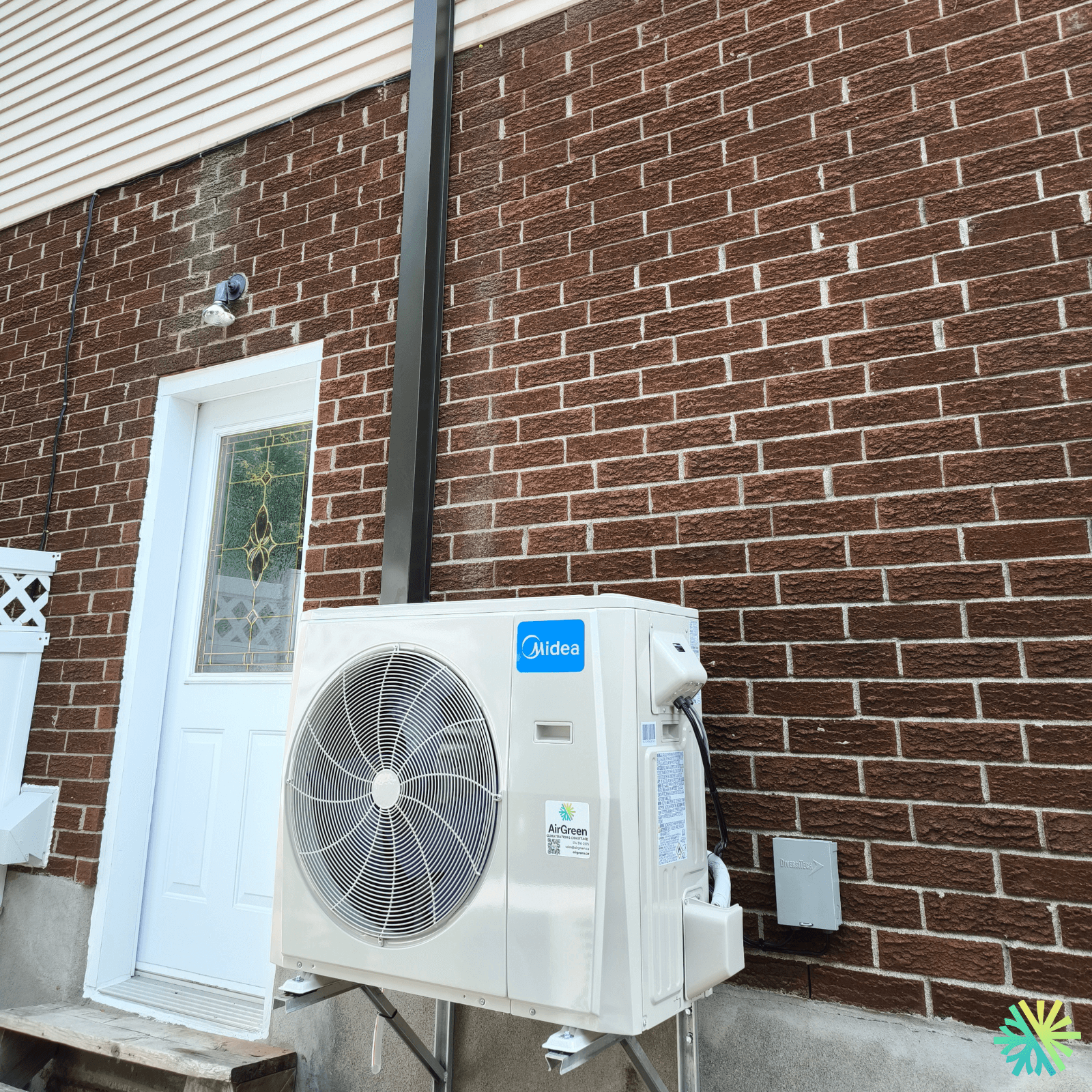

The photo clearly shows the care taken in installing the outdoor unit:
1. Midea unit mounted on wall bracket
The outdoor unit is mounted on a galvanized steel wall bracket , securely anchored to the masonry. This allows:
-
To free up floor space near the rear door.
-
To protect the condenser from the accumulation of snow and ice.
-
To limit the risks of corrosion linked to puddles of water and salt.
The height was chosen to meet the required clearances, while remaining accessible for maintenance.
2. Black vertical trunking for refrigerant lines
The refrigerant lines, communication cable, and drain are grouped together in a black line-set cover running vertically along the brick wall. This choice:
-
Protects pipes from weathering and UV rays.
-
It offers a very clean and structured look on the facade.
-
Allows optimal routing to the indoor unit located upstairs, with minimal drilling into the brick.
This cable channel almost becomes an architectural element, discreetly aligned with the door and the cladding of the house.
3. Compliant electrical connection
Next to the condenser is an electrical disconnect box dedicated to the heat pump. It ensures:
-
Increased safety for technicians during maintenance.
-
Compliance with the electrical standards in force in Quebec.
-
A clear identification of the circuit related to the heat pump.
The whole thing is connected to a dedicated circuit breaker in the electrical panel inside, sized according to Midea recommendations and the Canadian Electrical Code.
4. Drainage management and masonry protection
Although it's not very visible in the photo, particular care was taken to:
-
The condensate drainage , to prevent water from running down the brick or forming dangerous ice in winter.
-
Protecting the penetrations in the wall, with adequate caulking to prevent air and water infiltration.
These details extend the lifespan of the masonry and equipment.
Four-season comfort for the customer
With this Midea wall-mounted heat pump, the Rosemont homeowner now benefits from:
-
Rapid and uniform cooling in summer, even during heat waves.
-
Economical heating in spring, autumn and for a good part of winter, reducing the use of the main heating system.
-
More comfortable air , less humid in summer and better distributed in the main living area.
-
A programmable system, which allows it to optimize its operating ranges and therefore its energy savings.
The Midea28 heat pump is designed for northern climates: it continues to heat efficiently while old electric systems or baseboard heaters consume a lot of energy for less comfortable results.
Minimal visual impact on the facade
One of the client's objectives was to maintain a clean and tidy rear facade . Therefore, we:
-
Centered and leveled the condenser so that it visually aligns with the door and existing elements.
-
Choose a black cable channel that blends well with the red brick and dark elements of the house.
-
A compact support was used, allowing good circulation around the door and steps.
The result: a functional, harmonious and discreet installation, perfectly suited to a dense residential area like Rosemont–La Petite-Patrie.
Why choose AirGreen for your Midea heat pump in Montreal?
At AirGreen, we install and maintain Midea wall-mounted heat pumps throughout Greater Montreal: Montreal, Laval, South Shore, North Shore.
By entrusting us with your project, you will benefit from:
-
A thermal analysis tailored to your home (surface area, insulation, orientation).
-
Clear recommendations between the different Midea ranges (including the Midea28 ), according to your needs and budget.
-
From an installation carried out by certified technicians , respecting RBQ standards and industry best practices.
-
Support to maximize your eligibility for subsidies where possible.
-
A local, reachable and responsive after-sales service for maintenance and technical support.
Do you live in Rosemont–La Petite-Patrie or elsewhere in Greater Montreal?
If, like this customer, you wish to:
-
To effectively air-condition you in the summer,
-
Reduce your heating costs in winter,
-
And invest in a modern, quiet, and sustainable system,
A Midea wall-mounted heat pump could be the ideal solution.
Contact us at AirGreen : we would be happy to assess your residence, suggest the right capacity and plan an installation as neat as the one shown here.
