A discreet and efficient installation in a condo in the heart of Montreal
At AirGreen , we recently installed a Sharp ZU1 wall-mounted heat pump in a charming condo in the Rosemont–La Petite-Patrie neighborhood. This typically Montreal area, characterized by its brick buildings and metal balconies, often poses technical challenges in terms of space and accessibility. Our team was able to deploy an elegant, efficient solution that complies with best practices in the residential HVAC field.
A Sharp ZU1 heat pump: efficiency and compact design
The Sharp ZU1 is an energy-efficient wall-mounted heat pump with R-32 inverter technology , perfectly suited to the Quebec climate. With a capacity ranging from 12,000 to 18,000 BTU , this model is distinguished by:
-
Stable performance down to −25°C , ensuring year-round comfort;
-
An intelligently modulated compressor , reducing electricity consumption;
-
Quiet operation , ideal for urban spaces;
-
Energy Star certification , eligible for certain Quebec subsidies.
This unit combines power and aesthetics: its compact and sleek design allows for harmonious integration into dense residential environments, while ensuring optimal ventilation.
Technical details and particularities of the installation

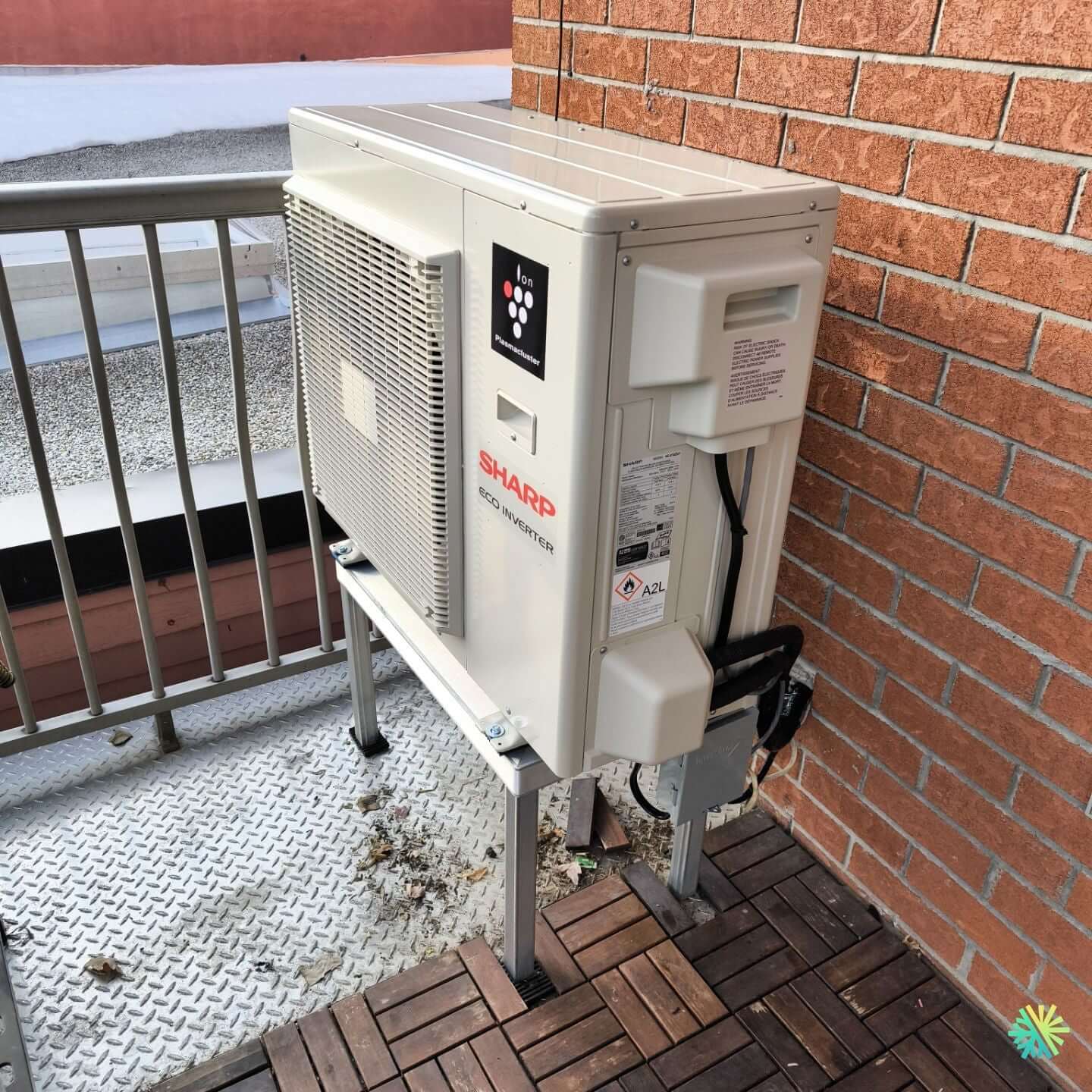

The project required the installation of the condenser on a raised support , firmly anchored to the galvanized steel balcony floor. This configuration allows:
-
Maintain free air circulation around the outdoor unit;
-
Prevent the accumulation of snow and moisture;
-
Facilitate seasonal maintenance and technical inspection.
The AirGreen team also:
-
Routed the refrigerant lines through a short, discreet route through the brick wall;
-
Protected the whole with a gray capping matching the facade for a clean and aesthetic finish;
-
Installed a gravity evacuation of condensates, thus avoiding the use of an additional pump;
-
Checked the complete insulation of the pipes to maximize thermal efficiency.
This type of installation, typical of downtown Montreal condos , requires careful planning to reconcile performance, security and architectural integration.
Challenges encountered and solutions applied
The main challenge was the limited space on the balcony and the proximity of the metal railing , which could hinder air circulation. To address this, our technicians adjusted the height of the support and optimized the orientation of the condenser to ensure a constant airflow without thermal reverberation.
Another constraint was the building's existing power supply . We made a secure connection to the dedicated panel , complying with the requirements of the Canadian Electrical Code, while ensuring optimal circuit protection (suitable circuit breaker, cable sheathing, compliant grounding).
End result: comfort, efficiency and peace of mind
The installation fits perfectly into the condo's environment: the Sharp ZU1 heat pump operates silently and ensures even heating in winter and rapid cooling in summer . The client now benefits from tailor-made thermal comfort , while reducing their energy bill and carbon footprint.
As with all our projects, we concluded the intervention with:
-
A complete performance audit ;
-
A pressure and leak test of the refrigeration circuit;
-
Personalized customer training on the use and maintenance of the heat pump.
Why choose AirGreen for your HVAC installation in Montreal
For over a decade, AirGreen has been recognized in Greater Montreal for the quality and rigor of its wall-mounted heat pump installations. Our approach is based on:
-
Personalized assessments for each type of housing;
-
Certified technicians trained in the latest R-32 technologies;
-
Fast and human after-sales service ;
-
Multi-brand expertise (Sharp, Fujitsu, Midea, Gree, Lennox, Zephyr, etc.) guarantees the right choice of device according to your needs.
Each installation is carried out according to the strictest BNQ and RBQ standards, ensuring safety, performance and long-term durability.
Conclusion
With this Sharp ZU1 heat pump installation in Rosemont–La Petite-Patrie , AirGreen has once again demonstrated its ability to combine technical excellence , thoughtful design , and respect for urban constraints . Our customers benefit from a reliable, quiet, and energy-efficient system—a real asset for the comfort and value of their property.
