A multi-zone HVAC system designed for the technical spaces of a building in Île-Bizard–Sainte-Geneviève
In Île-Bizard–Sainte-Geneviève, AirGreen completed a particularly demanding HVAC installation: the setup of a GREE FREE MATCH R32 Quad-Zone heat pump, a 4-zone, 4-head system, intended to improve thermal control in several spaces within a technical environment where reliability is not just an advantage, but a necessity.

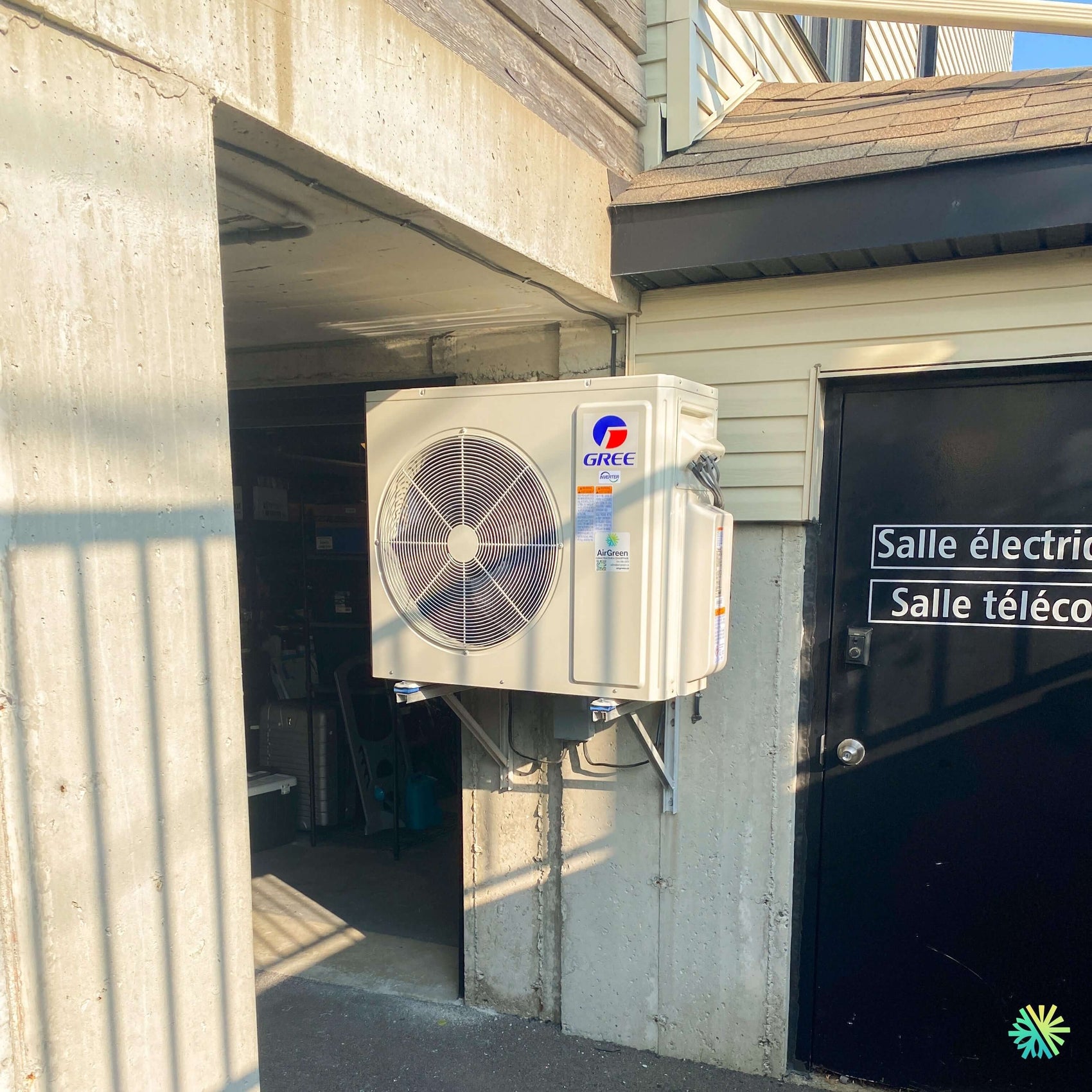

The photo taken on site perfectly illustrates the context of this intervention. It shows the GREE outdoor unit installed on a robust wall bracket, in immediate proximity to rooms identified as an electrical room and a telecom room. This detail is central to understanding the project: unlike a classic residential installation where occupant comfort is often the primary goal, this type of intervention also aims for the thermal stability of sensitive equipment, continuity of operations, and prevention of localized overheating.
In a building where electrical, telecom, or IT equipment operates for extended periods, the heat generated internally can quickly become problematic. Poorly controlled temperatures can accelerate component wear, trigger alarms, reduce system efficiency, and complicate building managers' work. It is precisely in this kind of context that a well-designed Quad-Zone heat pump becomes a strategic solution.
At AirGreen, we approached this project with particular attention to three elements: the choice of equipment, the location of the outdoor unit, and the quality of the connection between the different serviced zones.
Why the GREE FREE MATCH R32 was suitable for this multi-zone project
The GREE FREE MATCH R32 system is a multi-zone solution designed to connect several indoor units to a single compatible outdoor unit. In this 4-head installation, the building benefits from independent control in different zones, allowing the temperature to be adapted to the actual needs of each space.
This flexibility is essential in a project like this. A telecom room does not have the same needs as an office, an electrical room, or a passageway. Some spaces produce more heat, others are less occupied, and some need to maintain a more stable temperature for long periods. With a single outdoor unit and four indoor zones, the GREE FREE MATCH R32 heat pump allows for more precise management than a single-zone system.
The choice of R32 refrigerant is also an important element. Modern systems using R32 generally offer good energy efficiency and meet current market expectations in terms of performance and more responsible design. For customers who wish to invest in a sustainable solution, adapted to the needs of Greater Montreal and compatible with the realities of existing buildings, this type of system represents an excellent compromise between efficiency, flexibility, and integration.
An outdoor unit installed in a restricted and strategic space
One of the most interesting aspects of this installation is the location of the outdoor unit. In the photo, the unit is fixed to a concrete wall, near a service entrance, under a building structure, and next to a door providing access to technical rooms. This configuration required great precision.
Installing an outdoor unit in a restricted space is not just about finding a free wall. It requires validating:
- the solidity of the support;
- the clearance in front of the fan;
- access for HVAC maintenance;
- the path of the refrigerant lines;
- protection against impacts;
- the evacuation of hot or cold air discharged by the unit;
- electrical compliance;
- the safety of people circulating near the installation.
In this project in Île-Bizard–Sainte-Geneviève, the concrete wall offered a solid base, but it was essential to prevent the unit from impeding access to technical rooms. The wall bracket was therefore chosen and installed to maintain the unit at a functional height, while freeing up ground space. This solution reduces risks related to snow accumulation, debris, runoff water, and potential obstacles in a service area.
Wall installation also offers a significant advantage in buildings where outdoor space is limited. On the North Shore, the South Shore, in Montreal, in Laval, and in Longueuil, we often encounter narrow yards, service walls, parking lots, technical alleys, or areas where the unit must be installed discreetly and efficiently. AirGreen's experience in this type of configuration allows us to propose solutions that take into account both performance and the building's daily use.
The proximity of electrical and telecom rooms: a challenge for thermal stability
The presence of "electrical room" and "telecom room" indications in the image gives this installation a particular value. These spaces should not be treated as ordinary rooms. They may contain heat-sensitive equipment, including electrical panels, communication devices, control systems, routers, light servers, or other electronic components.
Excess heat in these rooms can lead to several problems:
- reduced equipment lifespan;
- triggering of alarms or protections;
- discomfort for technicians during interventions;
- instability of certain systems;
- increased need for ventilation or auxiliary cooling;
- higher energy consumption if cooling is poorly controlled.
A Quad-Zone - 4 zone - 4 head heat pump allows for better distribution of capacity according to needs. Rather than over-cooling one zone to compensate for another, each indoor head can manage its space with more precision. This is particularly useful when one room continuously produces heat, while another only needs occasional support.
An intervention where planning matters as much as installation
Before even fixing the outdoor unit, our team had to analyze the building, access points, distances between zones, drilling constraints, and connection needs. A multi-zone system requires more in-depth planning than a simple installation. It is necessary to ensure that each circuit is correctly associated with the right indoor head, that the piping lengths respect the manufacturer's limits, and that condensation drainage is well thought out.
In this type of project, a planning error can create complications after installation: unnecessary noise, uneven performance, difficult maintenance, overly visible conduits, or reduced access to technical equipment. Our goal was therefore to deliver a clean, durable, and easy-to-maintain HVAC installation.
The main steps of the intervention included:
- validation of the outdoor location;
- installation of the wall bracket on concrete;
- placement of the GREE outdoor unit;
- preparation of routes for refrigerant lines;
- connection of the four indoor zones;
- leak tightness check;
- vacuuming;
- electrical connection;
- system startup;
- zone-by-zone operational tests;
- explanation of settings to the client.
Each step was carried out with the objective of protecting the system's performance. A multi-zone heat pump can offer excellent efficiency, but only if the installation adheres to technical rules. Choosing the right equipment never replaces installation quality.
Specific challenges of an outdoor installation under a structure
The location visible in the photo presents another constraint: the unit is installed under a structure and near a side wall. In this type of configuration, air clearances must be carefully analyzed. An outdoor unit must be able to breathe properly. If the discharged air is poorly evacuated or if the space is too confined, the system can lose efficiency.
We therefore paid particular attention to the orientation of the unit, the frontal clearance of the fan, and lateral access for maintenance. The goal was to avoid air recirculation, while intelligently utilizing the available space.
The installation height was also chosen to facilitate maintenance. A unit placed too high can become difficult to maintain; too low, it can be exposed to snow accumulation, water, or impacts. Here, the wall positioning provides a good balance between protection, access, and performance.
What owners and managers should remember before installing a multi-zone heat pump
A Quad-Zone heat pump must be sized according to actual usage
One of the common errors in multi-zone projects is choosing a system solely based on the number of rooms, without analyzing the actual thermal load of each zone. A telecom room, for example, may require more cooling than a small room of the same area, simply because the equipment continuously produces heat.
At AirGreen, we consider several factors before recommending a configuration:
- area of each zone;
- type of occupation;
- presence of electrical or electronic equipment;
- sun exposure;
- building insulation;
- ceiling height;
- location of indoor heads;
- distances to the outdoor unit;
- heating and cooling needs.
This approach avoids unbalanced installations. An undersized unit will run too long and struggle to maintain temperature. An oversized unit can lead to short cycles, insufficient dehumidification, and less stable comfort. In both cases, the system's actual performance is compromised.
Mistakes to avoid in installations near technical rooms
When a heat pump is installed near an electrical or telecom room, certain mistakes absolutely must be avoided:
- blocking a service access;
- installing the unit in a location where it might be hit;
- neglecting necessary clearances;
- installing conduits without adequate protection;
- choosing a unit without considering the heat produced by the equipment;
- forgetting future maintenance;
- minimizing the importance of condensation and drainage;
- entrusting the installation to a team unfamiliar with multi-zone systems.
In this project, the outdoor positioning was designed to maintain circulation and keep technical accesses usable. The unit is present, visible, and accessible, but it does not unnecessarily clutter the space. This is exactly what we seek in a well-integrated installation.
Comfort, efficiency, and reliability: three objectives in one project
A GREE FREE MATCH R32 Quad-Zone heat pump offers more than just cooling. It also improves the building's energy management. By controlling zones separately, the client can avoid unnecessarily air conditioning or heating spaces that do not require the same operating intensity.
In a building with technical or mixed use, this flexibility is very useful. Some rooms may require a stable temperature all day, while others can be adjusted according to occupancy. The multi-zone system allows for this nuance.
For users, this translates to:
- better comfort in occupied rooms;
- a more stable temperature in sensitive areas;
- better controlled consumption;
- less reliance on portable devices;
- a more compact outdoor installation;
- better adaptation to building realities.
AirGreen: HVAC expertise adapted to buildings in Montreal and its surroundings
AirGreen carries out heat pump, wall-mounted air conditioner, multi-zone systems, and customized HVAC solutions throughout Greater Montreal, including Montreal, Laval, Longueuil, the North Shore, and the South Shore. Each sector has its peculiarities: single-family homes, condos, technical rooms, businesses, institutional buildings, offices, and mixed-use spaces.
This project in Île-Bizard–Sainte-Geneviève demonstrates our ability to intervene in configurations where available space is limited and technical needs are high. Installing an outdoor unit on a concrete wall, near an electrical room and a telecom room, requires a clear understanding of the site's constraints. Our role is to transform these constraints into a functional, clean, and durable installation.
We don't just install a device. We analyze the project, advise the client, anticipate potential problems, and install the system in a way that facilitates its long-term use.
The importance of HVAC maintenance after installation
After commissioning a Quad-Zone heat pump, HVAC maintenance becomes essential. Filters of indoor units must be cleaned regularly, condensation drains must remain clear, and the outdoor unit must be inspected to prevent obstructions.
In an environment where technical equipment is present, this vigilance is even more important. A drop in performance can quickly be felt if an area relies on the system to maintain a stable temperature. We therefore recommend a maintenance routine adapted to the building's use.
Good maintenance allows for:
- maintaining energy efficiency;
- reducing the risk of breakdowns;
- extending the system's lifespan;
- preserving air quality;
- ensuring better thermal stability;
- detecting anomalies before they become costly.
An Installation That Showcases the Value of True On-Site Expertise
This installation of a GREE FREE MATCH R32 Quad-Zone heat pump in Île-Bizard–Sainte-Geneviève clearly illustrates the reality of the HVAC profession: every project is different. Here, the challenge was not only to install four heads and an outdoor unit. It was necessary to integrate a complete system into a technical, confined environment, with access to be preserved and precise thermal needs.
The result is a solid installation, well-positioned and adapted to the building's constraints. For an owner, a co-ownership syndicate, a property manager, or a business, this type of project demonstrates the importance of choosing an HVAC contractor capable of thinking beyond the appliance itself.
With AirGreen, clients benefit from a comprehensive approach: assessment, recommendation, installation, commissioning, and post-work support. It is this rigor that ensures lasting comfort, better efficiency, and peace of mind in buildings across Montreal, Laval, Longueuil, the North Shore, and the South Shore.
