A multi-zone installation in Chomedey where the available space required a neat and perfectly controlled setup
In the Chomedey area of Laval, our AirGreen team completed the installation of a GREE FREE MATCH R32 TripleZone heat pump, a system composed of 3 zones and 3 wall units designed to improve the comfort of several rooms in the same residence. This type of project requires more thorough planning than a single-zone installation because each indoor unit must be considered as part of a whole: location, air circulation, drainage, refrigerant connection, maintenance accessibility, and visual integration.

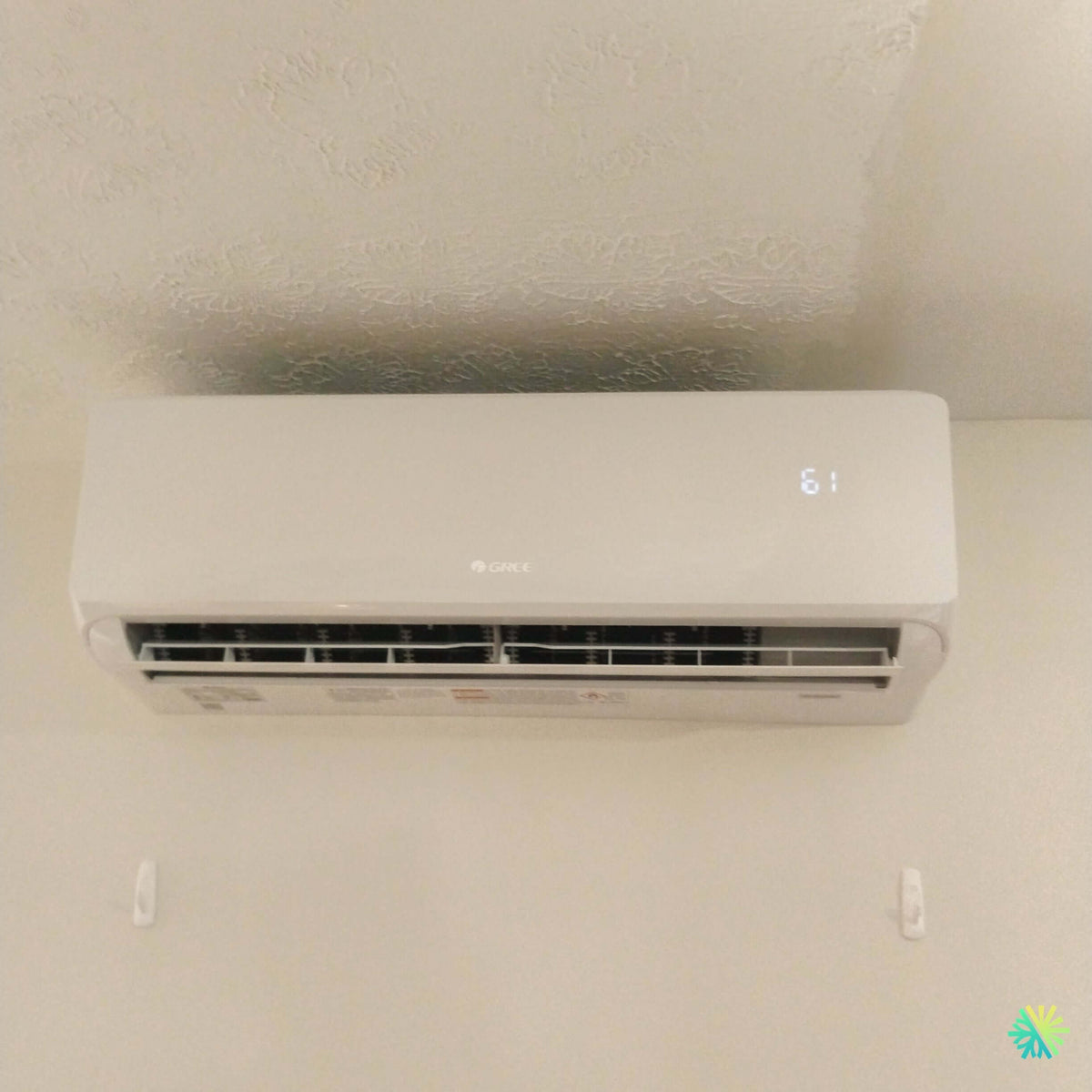

The photo shows one of the GREE wall units installed very high on the wall, just below a textured ceiling. This setup is particularly interesting technically because the space between the top of the unit and the ceiling is limited. Such a location cannot be improvised. It must be ensured that the device has enough clearance to properly intake air, that the front panel can be opened for filter cleaning, and that the louvers can direct air without obstruction. You can also see the illuminated display on the front of the unit, indicating that the unit was started and checked during commissioning.
In an already furnished residence, there are often many constraints. The walls are finished, ceilings may have delicate textures, available locations are not always ideal, and clients want an installation that remains discreet. At AirGreen, we take these details seriously because a successful HVAC installation must be both efficient, durable, and visually clean.
Why choose a TripleZone heat pump in a Chomedey home
Chomedey is a neighborhood in Laval where you can find a wide variety of homes: renovated bungalows, multi-story houses, semi-detached homes, larger condos, and family properties with multiple living areas. In many of these residences, a single wall unit is not enough to provide uniform comfort. One room may be exposed to the sun for much of the day, another may stay cooler, while an upper floor can accumulate heat in the summer.
The TripleZone heat pump GREE FREE MATCH R32 precisely meets this type of need. Thanks to its 3 wall-mounted heads, it allows control of three distinct spaces from a single outdoor unit. For occupants, this means fewer compromises daily. A bedroom can be adjusted differently from a living room, an office can be cooled during working hours, and another zone can be used only when needed.
This zone-based approach offers several practical advantages:
- better temperature control according to the actual use of each room;
- a reduction in comfort differences between floors or closed zones;
- a single outdoor unit to supply multiple spaces;
- a more discreet exterior appearance than with several single-zone systems;
- more flexible use for both cooling and heating;
- more efficient management of occupied and unoccupied zones.
For a house in Laval, this type of solution is often very relevant, especially when occupants want to improve comfort without completely changing the existing central system or without multiplying visible equipment around the property.
The GREE FREE MATCH R32 system: a multi-zone solution designed for modern residential needs
The GREE FREE MATCH R32 model is designed for multi-zone installations where several indoor units are connected to the same outdoor unit. This flexibility makes it a popular choice for residential projects where comfort, discretion, and independent control are desired.
The refrigerant R32 used in this range is part of the current technologies in the HVAC sector. It allows manufacturers to design efficient systems adapted to the requirements of modern installations. However, for professional installations, R32 requires careful handling. Connections, leak tests, vacuum pumping, and commissioning must be carried out with the right tools and by qualified technicians.
In this project in Chomedey, the goal was not just to install three wall units. It was necessary to ensure that each zone works properly, that the entire system communicates well, that the ducts are protected, that condensates are reliably drained, and that clients can use their equipment easily.
A wall head placed near the ceiling: a detail that changes everything
The unit visible in the photo is installed under a textured ceiling, with a reduced upper clearance. This kind of situation requires special attention, as a lack of clearance can harm long-term operation. A wall head must be able to draw ambient air from the top, blow conditioned or heated air from the front and bottom, and allow access to the filters for HVAC maintenance.
Before securing the unit, our technicians had to validate several elements:
- the exact height available between the ceiling and the wall head;
- the space needed to open the front panel;
- the orientation of the louvers to avoid uncomfortable airflow;
- the strength of the wall to support the device;
- the location of the drilling towards the outside or towards the line passage;
- the path of the condensation drain;
- the best position to preserve the overall appearance of the room.
The presence of the textured ceiling also added an aesthetic constraint. This type of surface can be sensitive to marks, dust, and vibrations during work. Our team therefore worked carefully to limit traces around the device and preserve a clean finish.
A discreet installation in a room with a clear wall
The image shows a fairly clear wall, with two small white hooks under the unit. In this context, the wall head becomes a visible element of the room. A slightly misaligned installation, too low or too close to an obstacle, would have been immediately noticeable. The installation had to be straight, simple, and well proportioned relative to the wall.
This attention to detail is important in residential projects. Clients don’t just want a system that works; they also want an installation that respects their home. We therefore place great importance on alignment, clean drilling, line routing, protective moldings when necessary, and the final appearance of each head.
In the case of a 3-zone heat pump, this requirement is repeated three times. Each head must be well placed in its space while integrating into the overall system layout. This is what makes multi-zone installations more complex and technically interesting.
A structured AirGreen method to ensure performance, reliability, and comfort in the three zones
A TripleZone heat pump installation cannot be approached as three separate installations in succession. The three wall units share the same outdoor unit and must operate in a coordinated manner. Overall performance depends as much on the quality of the equipment as on the precision of the installation.
At AirGreen, our method is based on clear planning before starting work. We analyze the house layout, the needs of each zone, the possibilities for routing refrigerant lines, the available outdoor location, and electrical constraints. This step helps avoid unpleasant surprises once the walls are drilled.
Planning the three zones
In a residence in Chomedey, needs can vary significantly from one room to another. An open living room may require a different capacity than a closed bedroom. A room located upstairs may have a higher heat load in summer. A workspace may require a more stable temperature during the day.
To properly configure a GREE FREE MATCH R32 system, each zone must be considered separately. The area is important, but it is not enough. We also take several factors into account:
- the orientation of the room;
- the size and type of windows;
- ceiling height;
- insulation;
- sun exposure;
- the number of occupants;
- the use of the room;
- the possibility to close or open the doors;
- the electronic devices or heat sources present.
This analysis helps avoid a common mistake: choosing a heat pump solely based on the total square footage. In a multi-zone system, comfort mainly depends on the balance between zones and the correct positioning of the heads.
The refrigerant connection: an invisible but essential step
A large part of the quality of an HVAC installation is not visible in the photo. The refrigerant lines, connections, pipe insulation, and vacuuming play a crucial role. A visually clean installation is not enough if the connections are not properly made or if the system is not commissioned according to best practices.
On a FREE MATCH R32 system, each indoor head is connected to the outdoor unit by its own lines. These routes must be organized to respect allowed lengths, limit losses, protect the pipes, and facilitate future maintenance. Connections must be precise and checked, as a refrigerant leak can affect performance, increase energy consumption, and reduce the system's lifespan.
Our technicians perform the necessary checks before full startup. This rigor is especially important with multi-zone systems, where an anomaly in a single zone can complicate overall operation.
Drainage: a point never to be neglected
Each wall-mounted head produces condensation when operating in cooling mode. This water must be properly drained, ideally by gravity when the configuration allows. When this is not possible, a drainage pump may be necessary. In all cases, drainage must be planned from the start.
A poorly installed drain can cause leaks, odors, noises, or maintenance problems. For this reason, we pay special attention to the slope, routing, accessibility, and protection of condensate pipes.
In a finished home, it is also necessary to limit the visual impact of the drainage. The goal is always to find a reliable solution that is also clean and consistent with the interior and exterior of the residence.
Commissioning: validate the three heads, not just the visible unit
The light display visible on the unit's front shows that the device has been started. This step is essential. Once the installation is complete, we test each zone individually to confirm that the system responds correctly.
The commissioning includes notably:
- checking the startup of each head;
- testing the cooling, heating, and ventilation modes according to conditions;
- validating communication with the outdoor unit;
- inspecting the motorized vents;
- checking the drainage;
- listening for unusual noises;
- checking the remote controls;
- explaining the basic settings to the customer;
- filter maintenance tips.
This step also ensures that occupants understand how to use their system properly. A multi-zone heat pump offers a lot of flexibility, but it delivers its best results when the settings are adapted to lifestyle habits.
Mistakes to avoid with a TripleZone heat pump
A well-installed multi-zone system can transform the comfort of a home. Conversely, certain mistakes can significantly reduce its benefits.
Installing heads too close to an obstacle
A wall head needs good clearance to take in and blow out air. The installation shown in the photo illustrates a case where proximity to the ceiling had to be carefully evaluated. Installing a unit too close to a ceiling, shelf, curtain, or piece of furniture can hinder air circulation and complicate maintenance.
Choosing locations based on ease rather than comfort
The best location is not always the easiest for the technician. At AirGreen, we seek a balance between performance, feasibility, and finish. A head placed in the wrong spot can create unpleasant drafts or leave certain areas uncomfortable.
Forgetting access to the filters
Cleaning the filters is one of the most important maintenance tasks to preserve the performance of a wall-mounted air conditioner or a wall-mounted heat pump. If the unit is installed too high or too tight, maintenance becomes more difficult. We always check access before finalizing the location.
Neglecting equipment compatibility
In a multizone system, the combination between the outdoor unit and the indoor heads must be consistent. Performance, capacity, and eligibility for certain grants may depend on this exact combination. Therefore, one should not assume that a model is automatically eligible or optimal without technical validation.
Grants and energy efficiency: a check according to the exact configuration
Laval homeowners who install a heat pump are often interested in financial aid programs, especially when a modern and efficient system is chosen. For a GREE FREE MATCH R32 TripleZone, eligibility may depend on the exact combination installed, current criteria, model numbers, and required documents.
At AirGreen, we support our clients in this step by providing the necessary information related to the installed equipment. We always recommend checking the applicable criteria before purchase and keeping important documents after installation, including the invoice and the system's technical information.
This rigor is particularly useful for 3-zone systems, as configurations can vary from one project to another.
A local service for Chomedey, Laval, and Greater Montreal
This installation in Chomedey is part of our daily work in Laval and throughout Greater Montreal. We regularly carry out similar projects in Montreal, Longueuil, on the North Shore, and on the South Shore. Each area has its particularities, but client expectations are often the same: a reliable solution, improved comfort, a clean installation, and honest advice.
In Laval, houses often offer great possibilities for multizone systems, but they also require a good understanding of the building. Constraints such as line routing, outdoor access, floors, and previous renovations must be considered before starting work.
Our experience allows us to anticipate these constraints and propose realistic solutions. We avoid vague promises and improvised installations. Our priority is to deliver a system that works well, remains accessible for maintenance, and respects the appearance of the house.
A result that reflects the precision required for multizone systems
This installation of a GREE FREE MATCH R32 TripleZone heat pump in Chomedey demonstrates the importance of precise work in multizone residential projects. The unit visible in the photo, installed under a textured ceiling with limited clearance, clearly illustrates the kind of detail that can make the difference between an ordinary installation and a truly mastered setup.
The installed system offers occupants independent control in three zones of the house, with a single outdoor unit and a discreet indoor integration. It is a solution suited for families who want to improve their comfort without multiplying devices or accepting a too visible installation.
With AirGreen, every project is approached with the same level of rigor: understanding the needs, choosing the right locations, installing neatly, testing thoroughly, and clearly explaining the operation to the client. For a GREE FREE MATCH R32 heat pump, this method is essential to achieve stable comfort, reliable performance, and enjoyable daily use.
