Careful integration on an urban balcony, designed for tranquility and efficiency
At AirGreen , we have just installed a Zephyr wall-mounted heat pump in an apartment in the Le Sud-Ouest district of Montreal. The building combines red brick and ribbed metal siding, with a narrow balcony on the courtyard side. This context, typical of converted former industrial zones, requires a methodical approach: small footprint , controlled vibrations and a short cooling path to maximize efficiency while preserving the peace and quiet of the occupants... and the neighbors.
The choice of equipment: a wall-mounted Zephyr for four-season comfort
The Zephyr residential range is appreciated for its inverter modulation , its silence and its compactness . In a balcony configuration, these qualities are decisive: the unit is protected from shocks, remains discreet and does not disrupt traffic.
Key points retained for this project:
-
Continuous modulation to stabilize temperature smoothly.
-
Low noise level of the condenser, essential in dense urban environments.
-
Simplified maintenance : direct access to the cards and the exchanger, washable filters on the inside.
-
Energy efficiency allowing controlled operating costs for off-season heating and summer air conditioning.
Sizing note : we systematically size based on actual volume , solar exposure and envelope losses (windows, infiltration). Here, a 9k–12k BTU capacity covers the area to be served while respecting the margins for extreme cold.

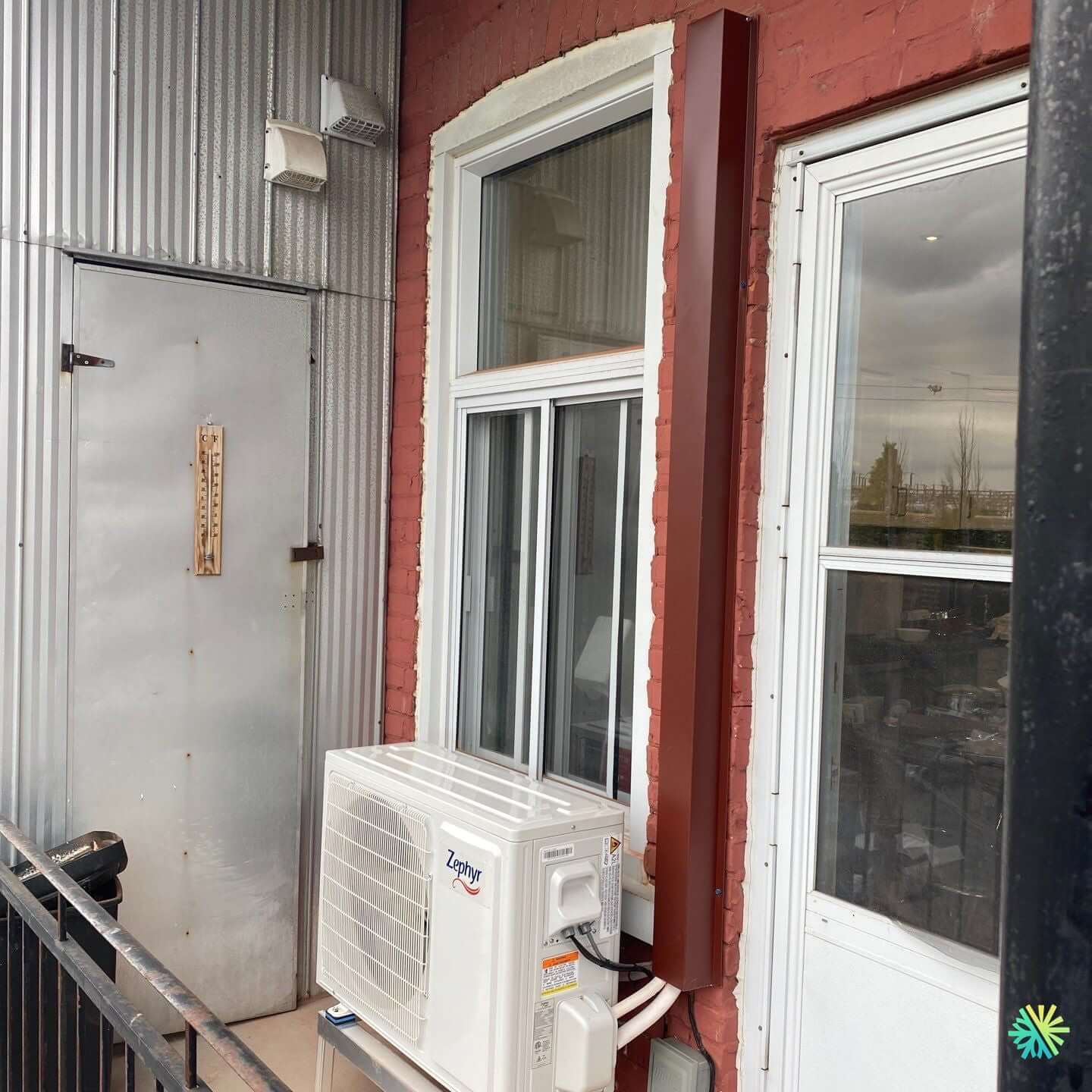

Architectural context: narrow balcony, frequent circulation, mixed facade
-
Brick facade with white joinery and red-brown vertical cladding aligned between window and door.
-
Black steel guardrail limiting the useful depth.
-
Adjacent metal gable (ribbed sheet metal) housing technical air outlets.
-
Main access via the patio door: clearances must remain free.
This framework requires protecting the connections and optimizing the management of condensates to avoid any nuisance on the balcony.
Installation details: AirGreen precision, clean and durable finish
Condenser installation
-
Installation on a shelf support with high-density anti-vibration pads .
-
Clearances respected on all four sides to ensure air exchange and facilitate maintenance.
-
Sufficient height to prevent accumulation of defrost water and dirt.
Refrigeration and finishing
-
Short length estimated at ≈ 2–3 m , which limits pressure losses and promotes compressor responsiveness.
-
Red-brown exterior cladding matching the brick for discreet visual integration; curvature radii respected to preserve the insulation.
-
Clean drilling on the inside with firestop and insulating foam ; paintable acrylic filler for a clean finish around the window.
Condensate management
-
Continuous gravity slope to the discharge point; no need for a pump (less maintenance, less noise).
-
Anti-drip tip oriented to avoid wetting the guardrail or traffic on the landing.
Food and safety
-
Dedicated circuit with gauge checked according to the nameplate.
-
External disconnection box in the immediate vicinity of the condenser (visible in the photo), at an ergonomic height and protected from the weather.
-
Grounding and tightening controlled by dynamometer.
Commissioning
-
Deep vacuum , vacuum test, then release of the fluid according to the manufacturer's procedure.
-
Superheating/subcooling check, reading of intensities , basic sound level control at the nominal level to record the reference.
Urban integration: silence and neighborhood respected
Cohabitation on a balcony requires special care:
-
Silent blocks and adjustable feet to break the transmission of vibrations into the slab.
-
Orientation of air discharges away from openings and human parking areas.
-
Fully covered connection path to prevent UV exposure and snags.
-
Aesthetics aligned with the uprights and frames: the unit visually blends into the facade.
Results: immediate comfort, controlled consumption
From the moment it is put into operation, the residence benefits from:
-
uniform cooling of the rooms served in summer;
-
efficient heating support in mid-season;
-
a discreet sound level perceived from inside as well as from the balcony;
-
simple control : Auto/Heat/Cool modes, programming and speeds adjusted to household habits.
AirGreen best practices for this type of configuration
To do
-
Keep 40 cm free at the rear and sides (according to manufacturer's guide) for good airflow.
-
Clean the condenser grille and rinse the fins if necessary (water mist, controlled pressure).
-
Wash the internal filters every 6–8 weeks during use.
-
Schedule annual HVAC maintenance : pressures, intensities, condition of insulation, tightening, deep cleaning.
To avoid
-
Stacking objects against the condenser (loss of flow, overconsumption).
-
Install a condensate pump when a gravity slope is possible.
-
Leaving a hood too dark in full sunlight without ventilation (heating of the connections).
-
Drill too low on the inside (risk of reverse slope and water backflow).
Deadlines, coordination and site cleanliness
For an urban balcony, we coordinate:
-
access to the courtyard, waste management (cardboard, plastic) and protection of traffic ;
-
dust-free installation indoors (tarpaulins, suction during drilling);
-
a complete load test and the submission of a commissioning report with photos of the key points.
Most projects like this are completed in one day , including testing and user training.
Grants and administrative support
High-performance wall-mounted heat pumps are generally eligible for provincial subsidies based on the model's performance and certifications. We:
-
check the eligibility of the chosen product;
-
prepare supporting documents (serial numbers, installation photos, structured invoices);
-
We support clients in Montreal, Laval, Longueuil, North Shore and South Shore until final deposit.
Why entrust your installation to AirGreen?
-
Detailed reading of the site (narrow balcony, neighborhood, facade materials).
-
Clean execution : careful hooding, invisible fixings, precise alignments.
-
Long-lasting performance : short lengths, controlled slopes, reduced vibrations.
-
Follow-up : maintenance reminder and responsive after-sales service.
Do you have a balcony, a terrace, or a narrow passageway to manage? We adapt the configuration , the route of the connections and the acoustic strategy for a discreet, reliable and standards-compliant result.
Conclusion
This Zephyr installation in Le Sud-Ouest illustrates our way of working: practical engineering , careful finishing and respect for the urban environment . The result: an efficient , silent and durable system, perfectly integrated into the mixed brick/metal facade, ready to offer stable comfort all year round.
