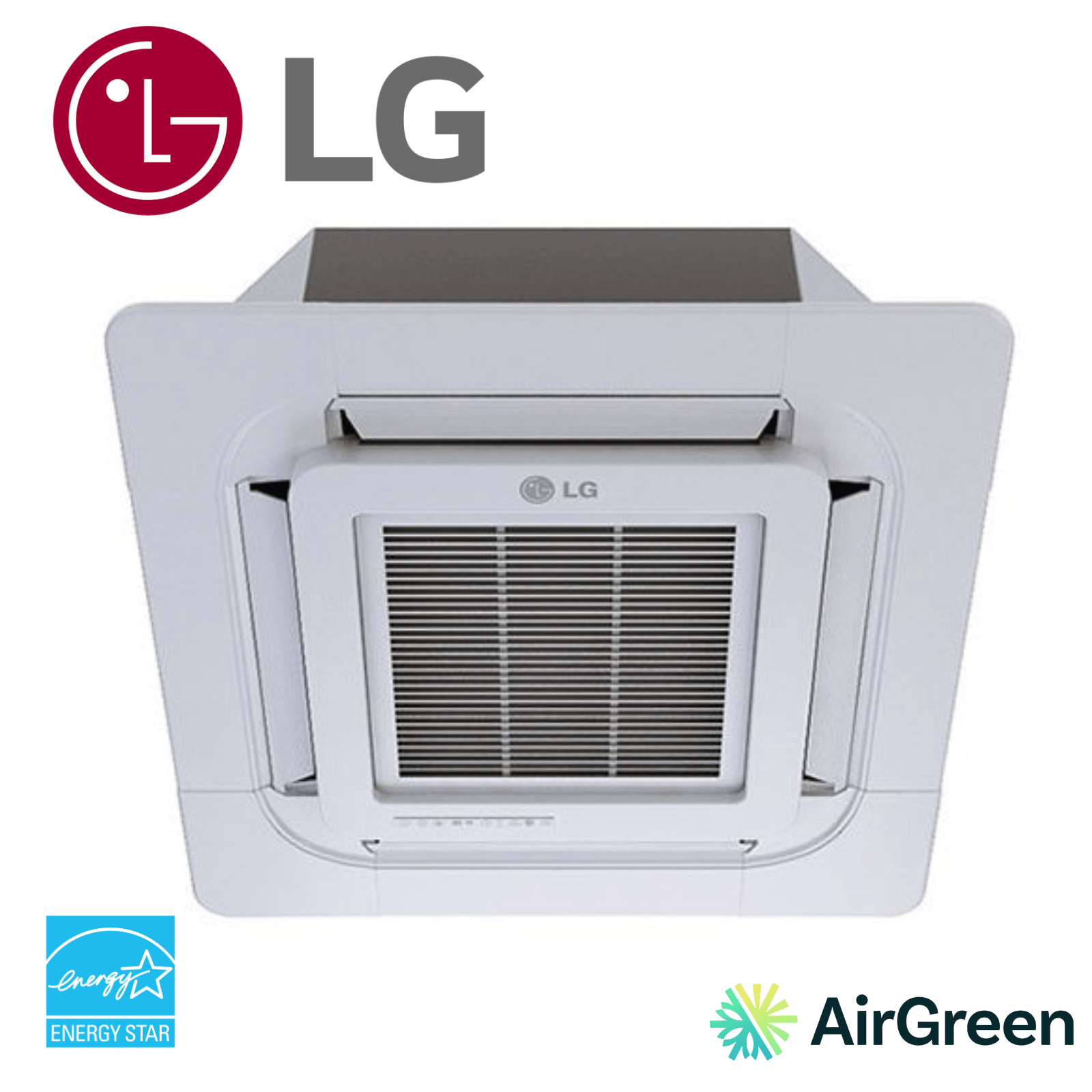

LG: 2x2 Cassette Type Ceiling Mounted | 18,000 BTU

A Discreet 2x2 Cassette for Heating and Air Conditioning Without Sacrificing Wall Space

The LG 18,000 BTU 2x2 cassette ceiling unit addresses a very specific need we often encounter at AirGreen: efficiently air conditioning and heating an open-plan room, commercial space, office, conference room, boutique, or high-end residential area where a wall unit is not ideal. In many buildings in Montreal, Laval, Longueuil, the North Shore, and the South Shore, walls are already occupied by display cases, cabinets, shelves, bookshelves, full-height windows, or architectural features. In these cases, a ceiling-recessed cassette becomes a much more coherent HVAC solution.

This LG model, consisting of the indoor unit KNUDB181A and the outdoor unit KUSXB181A, offers a nominal cooling capacity of 18,000 BTU and a published nominal heating capacity of 20,000 BTU under reference conditions. It operates with R-32 refrigerant, is ENERGY STAR® certified and ENERGY STAR® Cold Climate, and is listed on the AirGreen sheet with AHRI 214825953. The provincial LogisVert subsidy indicated on our product sheet is $1,560, as updated on November 26, 2025, subject to eligibility validation at the time of submission.

The technical data below cross-references the AirGreen sheet and the LG R32 Single-Zone Four-Way Cassette engineering manual, particularly the sections on KNUDB181A / KUSXB181A pairing, capacities, sound levels, options, electricity, drainage, and piping limits.

Why choose a cassette over a wall unit

A wall-mounted heat pump remains an excellent choice in many homes. However, a ceiling-recessed 2x2 cassette offers a major advantage: it distributes air in four directions from a central point. This reduces uncomfortable zones, especially in rooms where occupants move around, where workstations are spread across multiple sides, or where air blown directly from a wall would be poorly received.

At AirGreen, we often recommend this type of unit in the following situations:

• Professional offices in Montreal with suspended ceilings and open-plan areas.
• Businesses in Laval where walls are used for displays or signage.
• Waiting rooms, clinics, studios, and service premises where acoustic comfort is as important as performance.
• High-end condos and renovations where the interior appearance must remain clean.
• Spaces on the South Shore and in Montérégie requiring more uniform air distribution than with a standard wall unit.
• Residential open areas where the living room, dining room, and kitchen communicate without full separation.

The indoor unit is designed with four air outlets and a central return inlet. Motorized vanes allow for adjustment of the airflow direction to avoid a cold draft directly on a table, counter, workstation, or sofa. In a commercial space, this detail makes a real difference: comfort depends not only on the BTU count but also on how the air reaches the occupants.

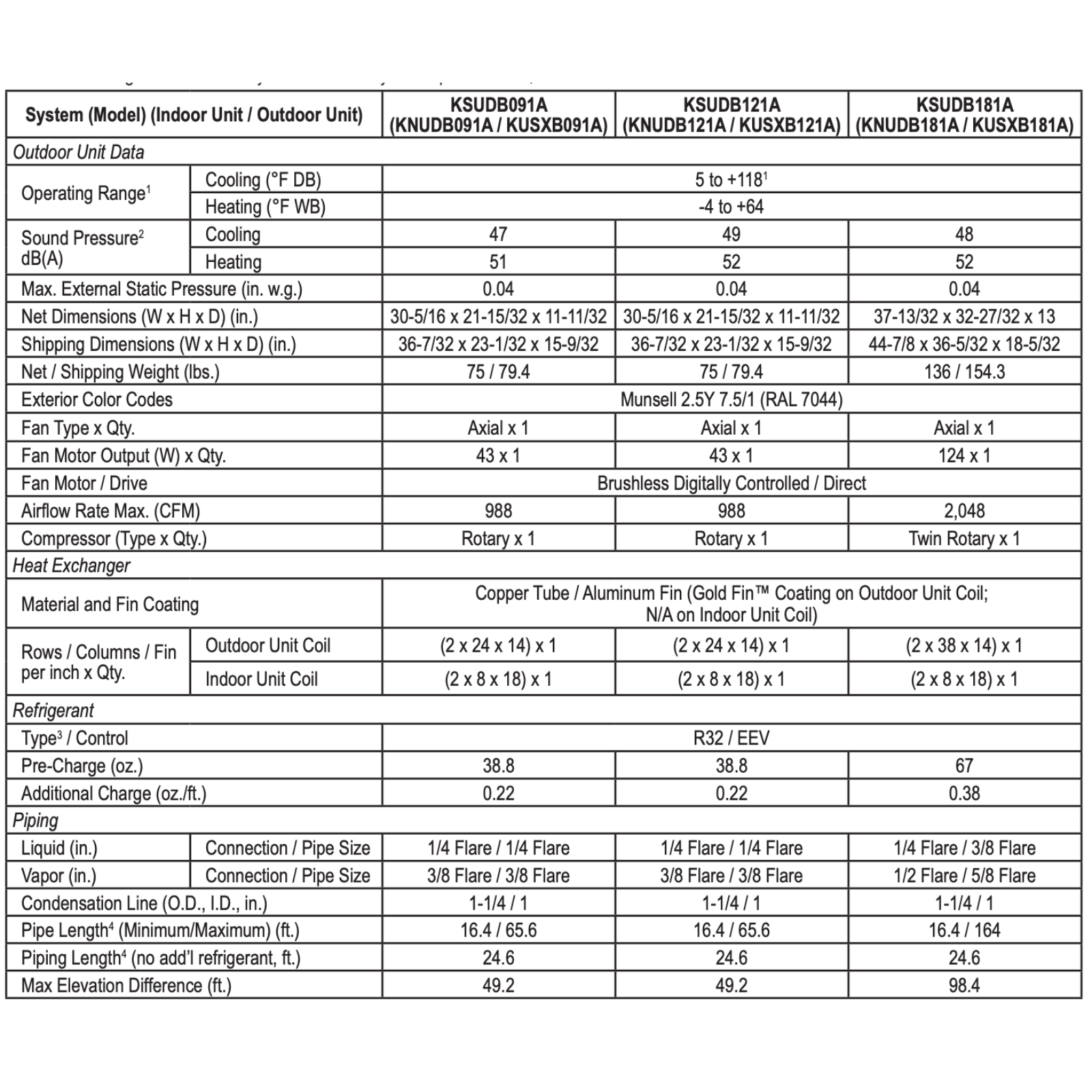

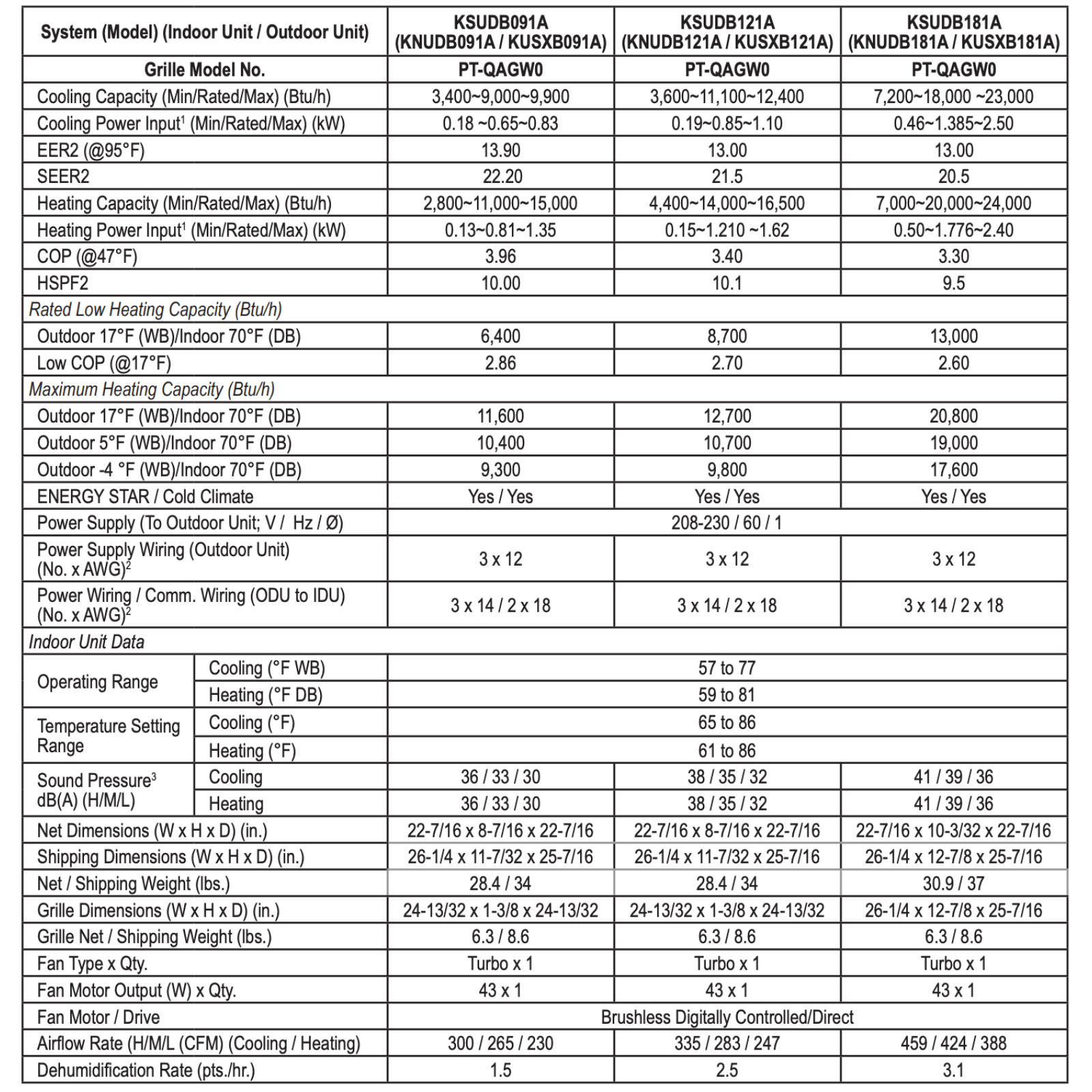

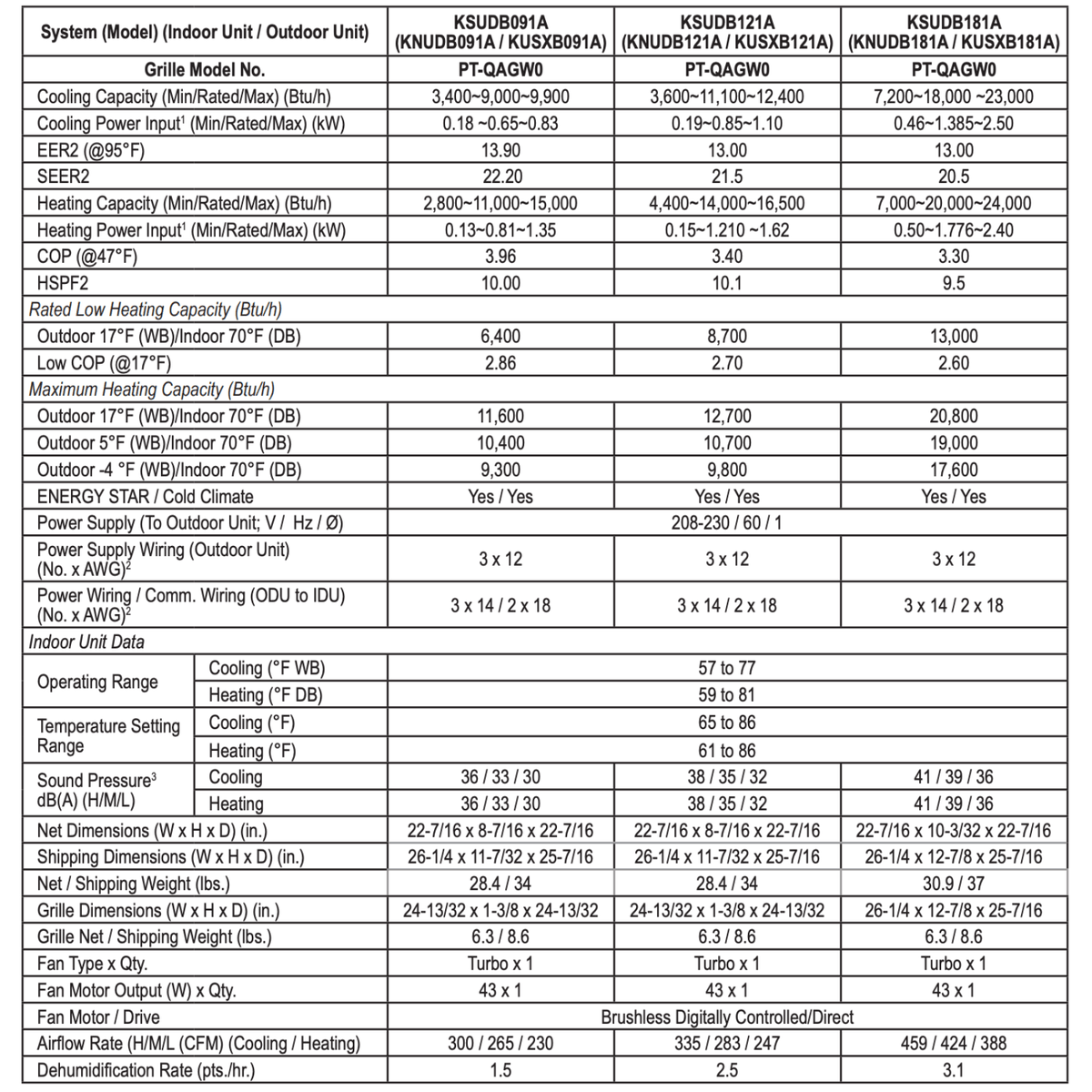

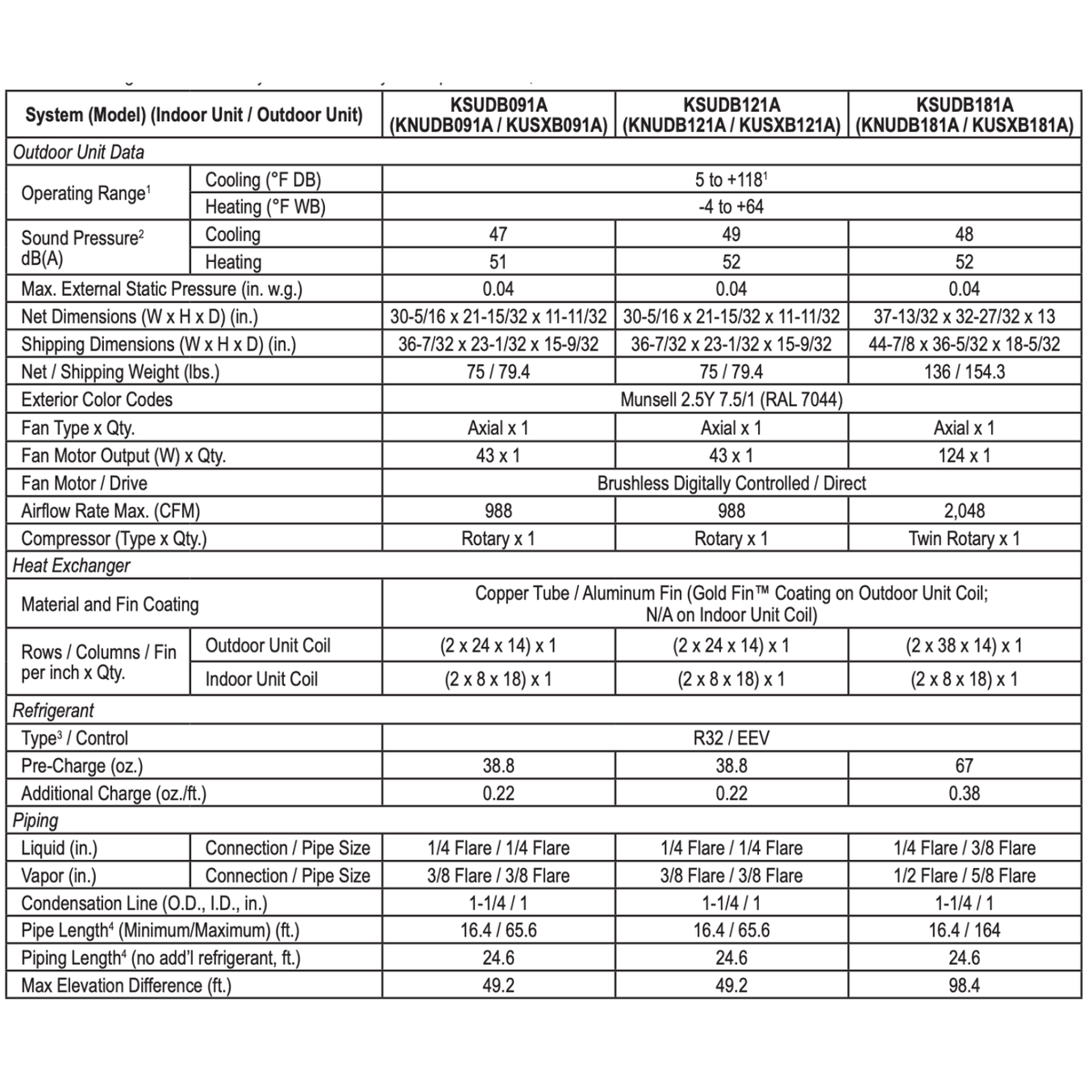

LG 2x2 18,000 BTU Cassette Technical Data Sheet

This table provides a clear overview of the system, but it does not replace a complete on-site evaluation. A successful HVAC installation depends on the actual heat load, insulation, ceiling height, sun exposure, type of glazing, ambient noise, ceiling access, refrigerant piping route, and condensate drainage.

What 18,000 BTU means in a real space

The figure 18,000 BTU often attracts attention, but it needs to be interpreted precisely. In a well-insulated interior office, 18,000 BTU can be suitable for a larger area than in a south-facing glazed commercial space. In a corner unit in Longueuil, for example, a sun-exposed storefront, a frequently opening door, and a higher ceiling can significantly increase cooling demand. Conversely, in a closed, well-insulated space with little solar gain, the same equipment can operate more gently and for longer, promoting better temperature stability.

We have often observed that clients first shop for BTU capacity, then realize that the real issue is air distribution. A wall unit of equivalent capacity can very well heat or cool a nearby area, but leave a corner less comfortable. The LG 2x2 cassette has an advantage here: its four-way airflow better covers open spaces and reduces the feeling of concentrated drafts.

For a neighborhood business in Montreal, a ceiling-mounted cassette often frees up wall space for shelves or displays. For an office in Laval, it can prevent an employee sitting directly under a wall unit from continuously receiving cold air. For a renovation on the South Shore, it can be integrated into a suspended ceiling without altering the aesthetic of the walls.

Installation, Winter Performance, and AirGreen Service: The Details That Matter

A Heat Pump Adapted to the Greater Montreal Climate

The KNUDB181A / KUSXB181A model is designed to operate in heating mode down to approximately -20 °C, an essential feature for a heat pump in Montreal, Laval, Longueuil, on the North Shore, or on the South Shore. The ENERGY STAR® Cold Climate designation confirms that this system has been rated for more demanding winter conditions than those of a temperate climate.

That said, an 18,000 BTU cassette does not automatically replace all existing heating systems in all buildings. In an old duplex in Montreal with air infiltration, poorly insulated walls, and large windows, we must calculate heat losses before recommending the device as a primary or supplementary source. In a renovated commercial space with a more efficient envelope, the same model can offer very stable comfort, especially when airflow is well planned.

R-32: Efficiency, Precautions, and Professional Responsibility

The R-32 refrigerant is increasingly present in recent HVAC equipment. It offers better energy performance than several older generations of refrigerants and has zero ozone depletion potential. However, it remains a mildly flammable refrigerant, which requires installation by qualified professionals.

This is where the choice of contractor becomes crucial. At AirGreen, we pay particular attention to the following steps:

• Verification of piping route before work.
• Compliance with diameters and lengths permitted by LG.
• Brazing, flaring, or connection according to appropriate methods.
• Leak test.
• Complete vacuum evacuation.
• Additional charge calculation if necessary.
• Condensate drainage verification.
• Commissioning and validation of heating and cooling modes.

The LG single-zone cassette also integrates a refrigerant leak detector, an important feature in a ceiling-recessed unit. This never replaces a compliant installation but adds a useful level of monitoring.

What we check before installing a 2x2 cassette

A recessed cassette is not installed like a wall unit. It requires more precise preparation, especially in existing ceilings. During a technical visit, we generally validate the following points:

1. Ceiling structure
The indoor unit must be properly suspended using threaded rods and anchored to a structure capable of supporting its weight. The suspended ceiling should never be the sole support.

2. Space available above the ceiling
The KNUDB181A cassette measures approximately 10 inches in height. Provision must also be made for access to connections, drain, wiring, and service panels.

3. Condensate drainage
The unit includes an integrated condensate pump with a published lift capacity of approximately 27 9/16 inches. Proper slope and routing are still necessary to prevent backflows, odors, overflows, or safety shutdowns.

4. Outdoor unit location
The KUSXB181A outdoor unit must be installed with required clearances, a stable base, reasonable protection against snow accumulation, and access for maintenance. On the North Shore and South Shore, prevailing winds and snow drifts must be considered from the design stage.

5. Required architectural panel
The compatible 2x2 cassette panel PT-QAGW0 is required to complete the installation. This is not a secondary decorative detail: the panel ensures proper air diffusion and filter access.

6. Electricity
The system operates at 208-230 V, with a minimum circuit ampacity of 16 A and a maximum overcurrent protection of 25 A. We always validate the electrical panel before the final submission.

Common mistakes to avoid

A ceiling cassette installation requires more coordination than a simple wall-mounted air conditioner replacement. Here are the most common mistakes we see when customers call us after a poorly planned installation elsewhere.

Underestimating drainage
A cooling cassette produces water. If the condensate line is poorly designed, the unit may shut down, leak, or cause moisture problems in the ceiling.

Installing the unit too close to an obstacle
A light fixture, a beam, a partial partition, or a dropped ceiling can hinder four-way airflow. The result: one area that is too cold and another that does not receive enough air.

Choosing capacity based solely on area
Area is useful information, but insufficient. Windows, solar orientation, number of occupants, electrical equipment, ceiling height, and insulation strongly influence the HVAC load.

Ignoring piping length
The longer the piping, the more capacity losses must be considered. For the 18,000 BTU model, the equivalent length can reach 164 ft, but cooling capacity decreases as distance increases. Rigorous design avoids unpleasant surprises.

Forgetting maintenance access
A properly installed cassette must remain accessible. The washable filter, condensate pump, connections, and panel must not become unreachable after the ceiling is finished.

HVAC maintenance: simple, but essential

The indoor unit's washable filter must be cleaned regularly. In a residence, the frequency depends on dust, pets, usage, and season. In a commercial setting, more frequent cleaning is often necessary, especially if the door opens frequently or if the environment generates particles.

Good HVAC maintenance generally includes:

• Filter cleaning.
• Cassette and panel inspection.
• Drain and condensate pump inspection.
• Preventive evaporator cleaning as needed.
• Outdoor unit inspection.
• Checking operating pressures and temperatures during a service call.
• Heating mode validation before winter.
• Cooling mode validation before summer heat.

The optional PWFMDD200 Wi-Fi module, compatible with the LG ThinQ app, can also facilitate daily management: remote settings, weekly schedules, consultation of certain alerts, and filter usage monitoring. For commercial buildings, certain wall controllers or integration solutions can be considered depending on the project.

Representative example: glazed premises in Montreal

In a typical commercial premises in eastern Montreal, the client wanted to avoid a visible wall-mounted unit behind the counter. The premises had a glazed facade, a suspended ceiling, and walls used for displays. An LG 18,000 BTU 2x2 cassette type represented a logical option because it allowed air to be diffused towards the client area, the counter, and the back of the premises without concentrating the flow on a single wall.

The critical point was not just the choice of model. Our checks focused primarily on the exact location in the ceiling, the clearance around the cassette, the path of the condensate line, the position of the outdoor unit, and the perceived noise level from the reception area. This type of project shows why an on-site evaluation is essential: two premises of the same size may require very different decisions.

Representative example: office in Laval with fixed workstations

In an office in Laval, employee comfort was the priority. A wall-mounted unit would have blown directly towards certain desks, creating a frequent complaint: one person is too cold while another is not cooled enough. The ceiling cassette allows for more balanced air distribution. In this type of space, we pay particular attention to the position of workstations, indoor noise level, occupancy schedules, and the possibility of using milder ventilation settings.

With a published indoor noise level of 36 to 41 dB(A) depending on speed, the LG 18,000 BTU model can be suitable for environments where quiet is important, provided the mechanical installation is properly done and the cassette is not placed directly above a sensitive workstation.

Why AirGreen for this LG model

Choosing AirGreen for an LG cassette heat pump installation means getting more than a standard installation. We analyze the building, the interior configuration, ceiling feasibility, noise level, drainage, outdoor location, and electrical requirements before confirming the solution.

Our clients seek us out for residential, commercial, and multi-dwelling projects in Montreal, Laval, Longueuil, on the North Shore, the South Shore, and in Montérégie because we combine installation, after-sales service, maintenance, and support for applicable grants. AirGreen holds RBQ license # 5645-9605-01, has 5M$ liability insurance, and works with experienced refrigeration technicians who understand the real constraints of Quebec buildings.

We also favor clear quotes. Before starting work, we send a detailed final offer so that the client knows what is included: equipment, labor, required accessories, materials, installation, electrical specifics, drainage, outdoor support, and available options.

For which clients is this product most relevant

The LG 2x2 Cassette Type Ceiling Unit | 18,000 BTU is particularly relevant for:

• A business owner who wants to keep their walls clear.
• An office manager looking for more uniform air distribution.
• A condo or home owner who wants a discreet solution.
• A space with a suspended ceiling and an open area.
• A room where a wall-mounted unit would be poorly positioned.
• A space requiring both air conditioning, heating, dehumidification, and acoustic comfort.
• A project where interior appearance is as important as energy performance.

However, it is not the best choice for every building. If the ceiling does not offer enough space, if drainage cannot be managed correctly, if the thermal load exceeds the realistic capacity of the unit, or if a multi-zone system would be more appropriate, we will clearly mention it during the evaluation.

Contact AirGreen for an accurate quote

To find out if the LG: 2x2 Cassette Type Ceiling Unit | 18,000 BTU is suitable for your space, contact AirGreen. We can evaluate your building, confirm potential eligibility for subsidy programs, check installation constraints, and provide you with a clear quote for your HVAC project in Montreal, Laval, Longueuil, on the North Shore, or on the South Shore.

Call us at 514-316-2973 or write to sales@airgreen.ca to schedule an estimate or get more information about this LG model.
