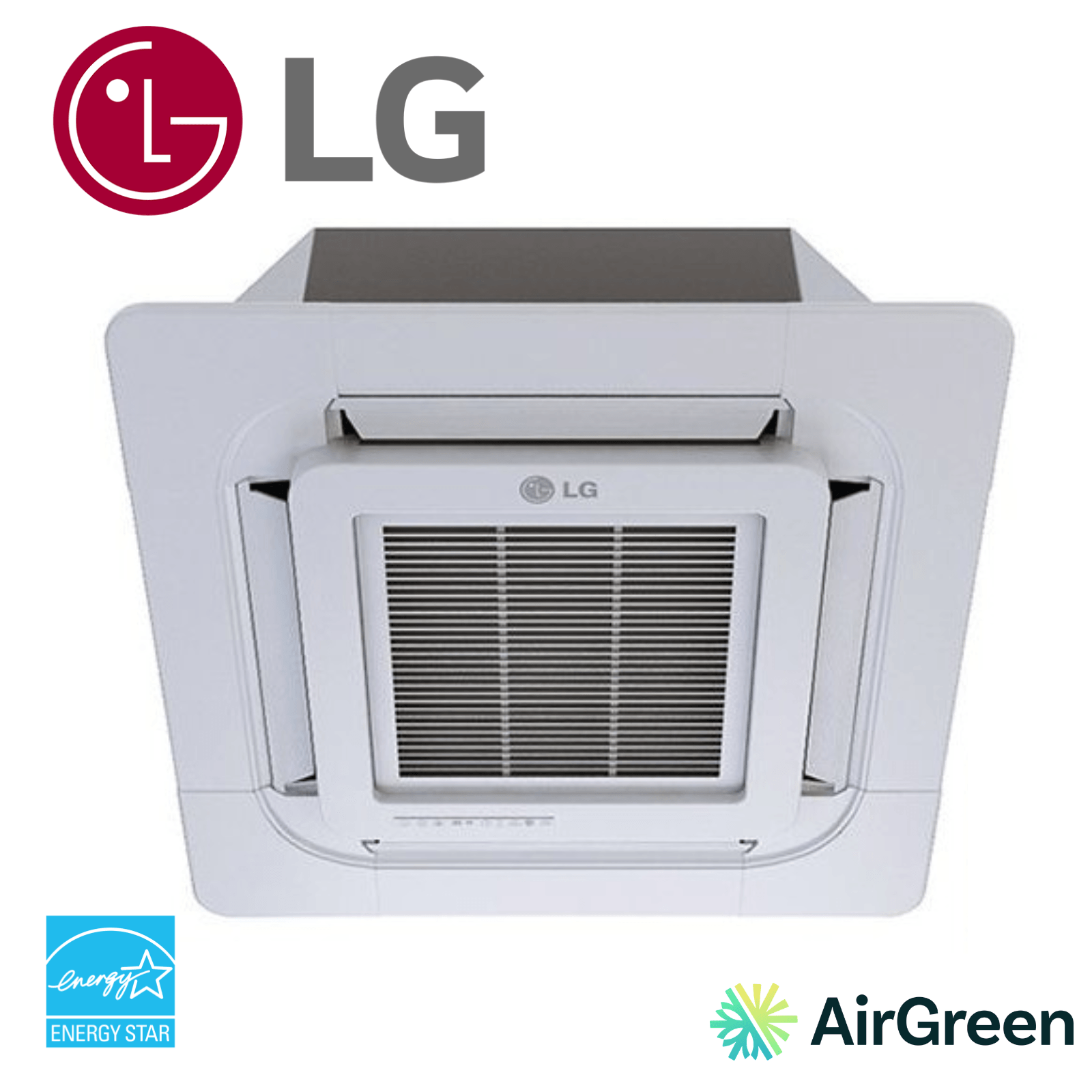

LG : 3x3 cassette ceiling-mounted unit | 42,000 BTU

A discreet HVAC solution for large spaces requiring uniform air distribution

The LG: 3x3 Cassette Ceiling Mount | 42,000 BTU is designed for environments where a traditional wall unit may not always meet the actual needs of the building: open-plan stores, offices, restaurants, training rooms, common areas in condominiums, professional premises, clean workshops, clinics, waiting rooms, or large open-plan residential spaces. At AirGreen, we recommend this type of LG 3x3 cassette heat pump when comfort needs to be distributed over a large area without interfering with interior design.

This model, consisting of the indoor unit KNSCB421A and the outdoor unit KUSXB421A, belongs to the KSSCB421A R32 Single Zone 3x3 Four-Way Ceiling Cassette series. Its nominal capacity of 42,000 BTU for air conditioning and its heating performance make it a serious choice for several HVAC projects in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore. The LG technical sheet specifically indicates a cooling capacity of 16,800 to 48,700 BTU/h, a heating capacity of 18,800 to 49,800 BTU/h, a SEER2 of 21.0, an EER2 of 13.2, and an HSPF2 of 10.8.

A cassette ceiling unit designed for commercial ceilings and open spaces

The 3x3 cassette format offers a concrete advantage: air is diffused in multiple directions from the ceiling. In a rectangular room or an open-plan area, this diffusion reduces cold spots near the unit and excessively warm areas on the opposite side of the room. For many AirGreen clients, this is precisely what distinguishes simply functional air conditioning from truly stable comfort.

The indoor unit measures approximately 37.38 x 37.38 x 9.38 inches, allowing for neat integration into a suspended ceiling or an adapted architectural configuration. The outdoor unit, with its dimensions of approximately 37.41 x 13 x 54.25 inches, must be installed with particular attention to service access, clearance, air discharge, and the perceived noise level by the neighborhood.

In several commercial air conditioning projects in Montreal and heat pump heating in Laval, we find that clients are looking for three things: a discreet appearance, reliable performance, and an installation that does not complicate the daily use of the premises. The LG cassette meets these priorities well when properly sized and positioned.

Performance adapted to the Quebec climate

This model is ENERGY STAR® and ENERGY STAR® Cold Climate certified, with ENERGY STAR ID 3544271 indicated in the product information. For building owners and managers, this certification is a useful benchmark, but it never replaces a building analysis. A 42,000 BTU heat pump must be selected based on the area, insulation, fenestration, solar orientation, number of occupants, internal loads, and type of use.

The product sheet also indicates a low-temperature heating capacity, with maintained heating performance even in cold conditions. LG technical documentation mentions maximum heating values at different outdoor temperatures, including 41,500 BTU/h at 17°F, 40,000 BTU/h at 5°F, and 35,200 BTU/h at -4°F. For a building in Quebec, this information is essential, as heating needs are not limited to mild autumn days.

At AirGreen, we always analyze the actual use of the premises before proposing a cassette heat pump installation. A restaurant with an open kitchen, for example, does not have the same thermal loads as an administrative office of the same size. A business with a door opening directly onto the street, in Longueuil or Montreal, may experience frequent losses during entries and exits. A glass-enclosed conference room on the South Shore can quickly gain heat in the afternoon. These details directly influence the final comfort.

R-32, Inverter compressor and precise temperature control

The system uses R-32 refrigerant and a variable-speed Inverter compressor. In practice, this means the equipment doesn't have to operate solely in on/off mode. It can modulate its capacity to maintain a more stable temperature, reduce sudden variations, and improve efficiency when demand is partial.

For a customer, this modulation often translates into more consistent comfort. In a service office located in Laval, for instance, an overly aggressive heat pump might quickly cool workstations near the air outlet while leaving the back of the room warmer. With a properly installed cassette, the airflow is better distributed, and the Inverter compressor adjusts its operation instead of causing short, uncomfortable cycles.

The LG model also includes an R-32 leak detection sensor, a built-in condensate pump, the Auto Restart function, Auto Changeover mode, the Jet Cool function, Swirl Wind airflow, a silent turbo fan, and Night Quiet Operation mode. Wi-Fi control is optional, especially with the compatible module indicated in the available accessories.

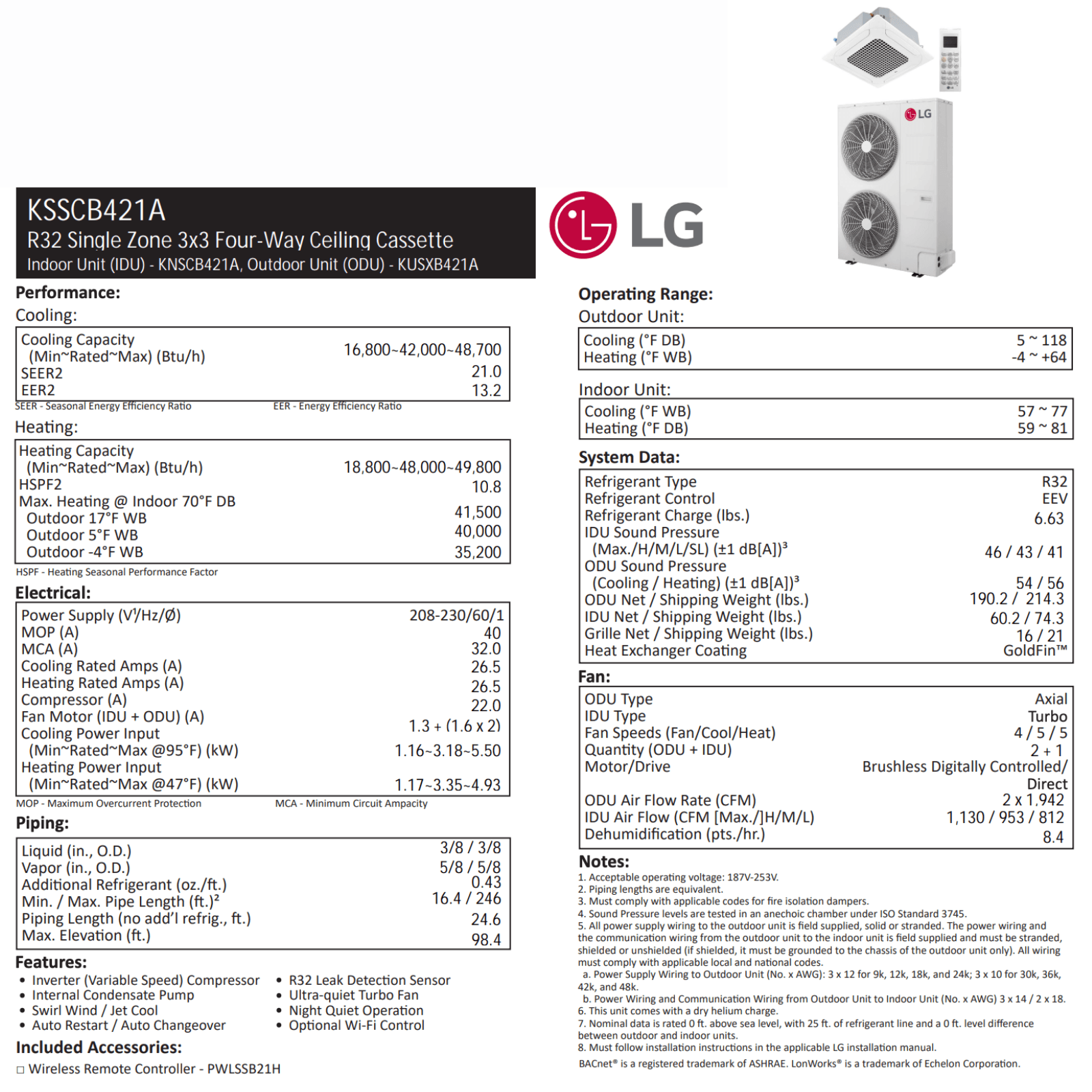

Important technical data for professional installation

Installing a ceiling cassette is never limited to fixing a unit and connecting two pipes. This type of equipment requires rigorous planning.

Here are the technical characteristics that directly influence fieldwork:

• Electrical supply: 208-230 V / 60 Hz / 1 phase
• MCA: 32 A
• MOP: 40 A
• Piping: 3/8 in for liquid and 5/8 in for vapor
• Refrigerant charge: 6.63 lbs according to the technical sheet
• Minimum / maximum piping length: 16.4 ft to 246 ft
• Length without refrigerant addition: 24.6 ft
• Maximum elevation difference: 98.4 ft
• Dehumidification: 8.4 pints per hour
• Indoor air flow: up to approximately 1,130 CFM
• Indoor sound level: approximately 46 / 43 / 41 dB(A) depending on speed
• Outdoor sound level: approximately 54 / 56 dB(A) depending on mode

These figures are useful, but their interpretation requires experience. A longer refrigerant line may necessitate a precise charge adjustment. A unit installed in a suspended ceiling must also allow access to the filter, drain, electrical connections, and service components. The positioning of the outdoor unit must respect clearances, limit air recirculation, and facilitate HVAC maintenance in both winter and summer.

The crucial role of drainage and the condensate pump

In a ceiling HVAC installation, condensate management is one of the most important points. The LG model integrates a condensate pump, which facilitates the evacuation of water produced during air conditioning and dehumidification. However, an integrated pump does not correct a poorly designed slope, an overly long drain, an inadequate trap, or an improperly protected outlet.

At AirGreen, we pay particular attention to the drain's trajectory. In a business on the North Shore, we were once called to correct an installation by a third party where the cassette functioned well refrigeration-wise, but caused repeated shutdowns due to improperly configured condensate drainage. The lesson is simple: even an excellent appliance can yield poor results if installation details are neglected.

For this LG cassette ceiling unit model, we specifically validate:

• future access to the condensate pump;
• the slope and support of the drain;
• the risk of freezing or backflow;
• the location of access panels;
• the protection of finished ceilings;
• ease of cleaning during seasonal maintenance.

Acoustic comfort to consider from the design stage

The stated indoor sound level, around 41 to 46 dB(A) depending on speed, is suitable for many commercial environments and spacious residential areas. However, acoustic comfort also depends on the type of ceiling, room reverberation, the distance between the unit and occupants, and the choice of ventilation speeds.

In a waiting room, a closed office, or a meeting room, we avoid placing the cassette directly above a workstation occupied for long periods. In an open commercial space, the ideal location is often in the center of the main area, but lighting, sprinklers, ceiling drop-downs, existing ducts, and building requirements must also be considered.

LogisVert grant and eligibility: a point to validate before work begins

The provided information indicates a $3,600 provincial LogisVert grant, with an update dated November 26, 2025. For clients in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore, this amount can make the project more advantageous, but eligibility must always be confirmed according to the type of building, the installed equipment, program criteria, and required documents.

At AirGreen, we assist our clients in this verification. We know that subsidies can influence the decision, but we recommend choosing a system suited to the building first. An eligible but improperly sized heat pump will not deliver the expected savings or comfort.

Why AirGreen installs this type of LG cassette with a tailored approach

A field evaluation before the final recommendation

We do not automatically recommend a 3x3 42,000 BTU cassette simply because a space appears large. Before proposing this LG model, we evaluate the site's actual needs. This step is essential for commercial heat pump projects, air conditioning in Montreal, heating in Laval, HVAC installation in Longueuil, or replacing an old system on the South Shore.

Our evaluation takes several elements into account:

• surface area and ceiling height;
• quality of insulation;
• sun exposure;
• presence of large display windows;
• number of occupants;
• heat-generating appliances;
• use of the premises during the day;
• electrical constraints;
• possible location of the outdoor unit;
• acceptable sound level;
• future maintenance needs.

This method avoids two common errors: installing an underpowered system that runs continuously, or installing an overpowered unit that creates short cycles, poor dehumidification, and discomfort near air outlets.

Concrete example: a commercial space with a large open area

In a typical project encountered by our teams, a commercial premises owner wanted to replace an old wall-mounted system that primarily cooled the front of the business, near the cash register, while leaving the back uncomfortable on hot days. The space had an open area, a suspended ceiling, several recessed lights, and a window display exposed to the afternoon sun.

A 3x3 cassette like this LG model was relevant because it allowed for more balanced air distribution. The main issue was not just the BTU capacity, but the distribution. After analyzing the ceiling, the refrigerant path, the drain, and the outdoor positioning, the central cassette solution offered a better compromise between performance, aesthetics, and comfort.

The expected result in this type of configuration is a more homogeneous temperature, a reduction in complaints related to areas that are too cold or too hot, and an installation that frees up walls for displays, shelving, or furniture.

Mistakes to avoid with a ceiling cassette

Even with a reliable product, several errors can compromise performance:

Choosing solely based on BTUs. A capacity of 42,000 BTU does not guarantee optimal comfort if air distribution, placement, and drainage are poorly planned.

Neglecting service access. A cassette installed without adequate access panels complicates maintenance, increases service time, and can lead to avoidable costs.

Underestimating drainage. Dehumidification of 8.4 pints per hour requires reliable drainage. A poorly designed drain can cause interruptions, damage, or odors.

Installing the outdoor unit in too confined a space. The outdoor unit needs to breathe properly. Poor airflow around the unit reduces efficiency and can increase noise.

Forgetting the actual use of the premises. A busy commercial establishment, a quiet office, and a multi-functional room do not have the same needs, even with a similar surface area.

Recommended HVAC Maintenance to Preserve Performance

A cassette system requires regular HVAC maintenance. Filters must be cleaned, the drain checked, the condensate pump inspected, coils checked, and the outdoor unit cleared of leaves, dust, debris, snow, or seasonal accumulation.

For this LG model, we generally recommend an inspection at least once a year, and sometimes more frequently in commercial environments where dust, grease, particles, or foot traffic are higher. A restaurant, clinic, or business located near a busy street in Montreal may require more frequent maintenance than an administrative office with low exposure to contaminants.

Maintenance also allows for checking that the Inverter compressor, ventilation motors, condensate pump, and sensors are working correctly. A well-maintained heat pump retains its performance better, reduces the risk of service calls, and offers more stable comfort.

Warranty, Installation, and After-Sales Service

Product information indicates a 10-year warranty on the compressor, 10 years on parts, and 0 years on labor, with the possibility of an extended warranty. For customers, it is important to understand that the manufacturer's warranty does not replace the quality of the installation. A poorly tightened connection, incorrect charge, poor drainage, or non-compliant electrical supply can lead to problems that could have been avoided.

At AirGreen, our professional refrigeration technicians install equipment according to applicable requirements, with particular attention to safety, performance, and durability. We offer clear quotes before starting work, an approach adapted to residential, commercial, and multi-unit buildings, as well as structured after-sales service for customers in Montreal, Laval, Longueuil, the North Shore, the South Shore, and Montérégie.

Who is the LG 3x3 42,000 BTU Cassette Ceiling Unit suitable for?

This model is particularly relevant for:

• businesses with an open-plan area;
• offices with suspended ceilings;
• common rooms in multi-unit buildings;
• large residential spaces where walls need to remain clear;
• premises requiring balanced air distribution;
• projects where interior aesthetics are important;
• buildings seeking a low-temperature heat pump solution certified ENERGY STAR Cold Climate.

It is less suitable for small partitioned spaces, ceilings without technical access, or buildings where cassette installation would result in too many costly modifications. In these cases, AirGreen can recommend another LG solution or a different HVAC configuration.

Request a Quote from AirGreen

The LG: 3x3 Cassette-type Ceiling Unit | 42,000 BTU is a serious solution for owners who want to combine performance, comfort, discretion, and energy efficiency. To achieve the best results, the unit must be selected, positioned, and installed with precision.

Contact AirGreen for a quote for an LG cassette heat pump, an assessment of your building, or advice on available subsidies. We serve Montreal, Laval, Longueuil, the North Shore, the South Shore, and Montérégie with a professional, clear approach tailored to each HVAC project.
