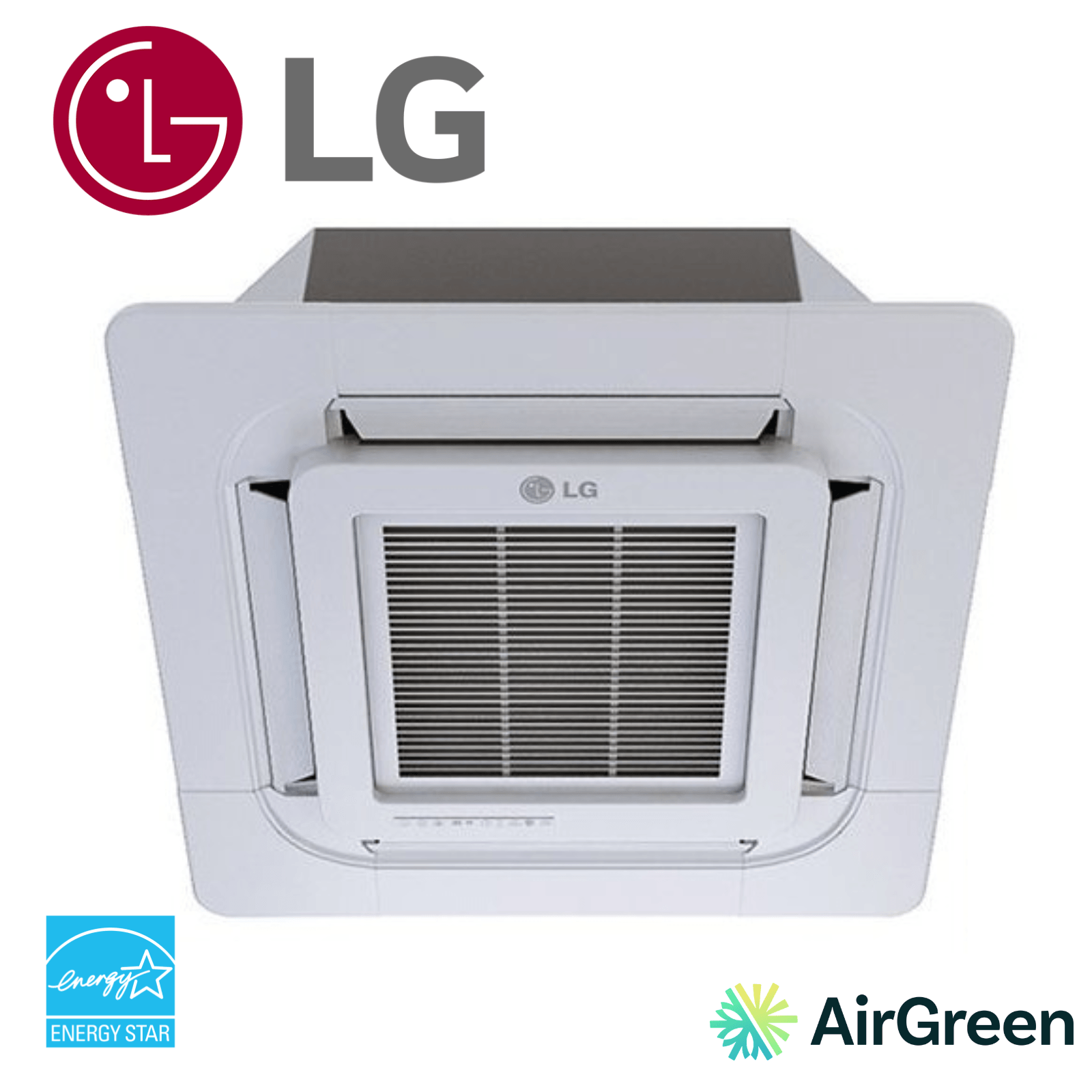

LG: 3x3 Cassette-Type Ceiling Unit | 48,000 BTU

A 3x3 cassette designed for large spaces where comfort needs to remain discreet, stable, and well-distributed

The LG 3x3 Cassette Ceiling Unit | 48,000 BTU is suitable for buildings where a traditional wall-mounted unit is not appropriate: open commercial spaces, offices, retail stores, restaurants, showrooms, multi-purpose rooms, high-end condos, residential extensions, and common areas of multi-unit dwellings. Its main strength is simple: to offer air conditioning and heat pump heating with four-way air distribution, without cluttering walls or interfering with interior design.

At AirGreen, we recommend this type of HVAC solution when the client wants an efficient, aesthetic system capable of handling a significant air volume. At 48,000 BTU in cooling, this LG cassette meets serious needs, but it also requires serious analysis: ceiling height, cassette location, clearances, piping route, condensate drainage, electrical supply, actual heat load, and outdoor unit positioning. A good cassette poorly placed will yield average results. A well-selected, precisely installed cassette can transform the comfort of an entire space.

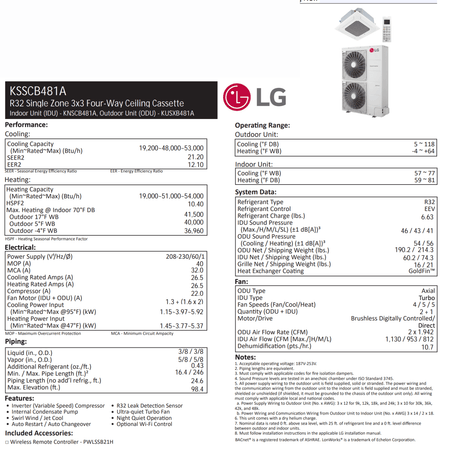

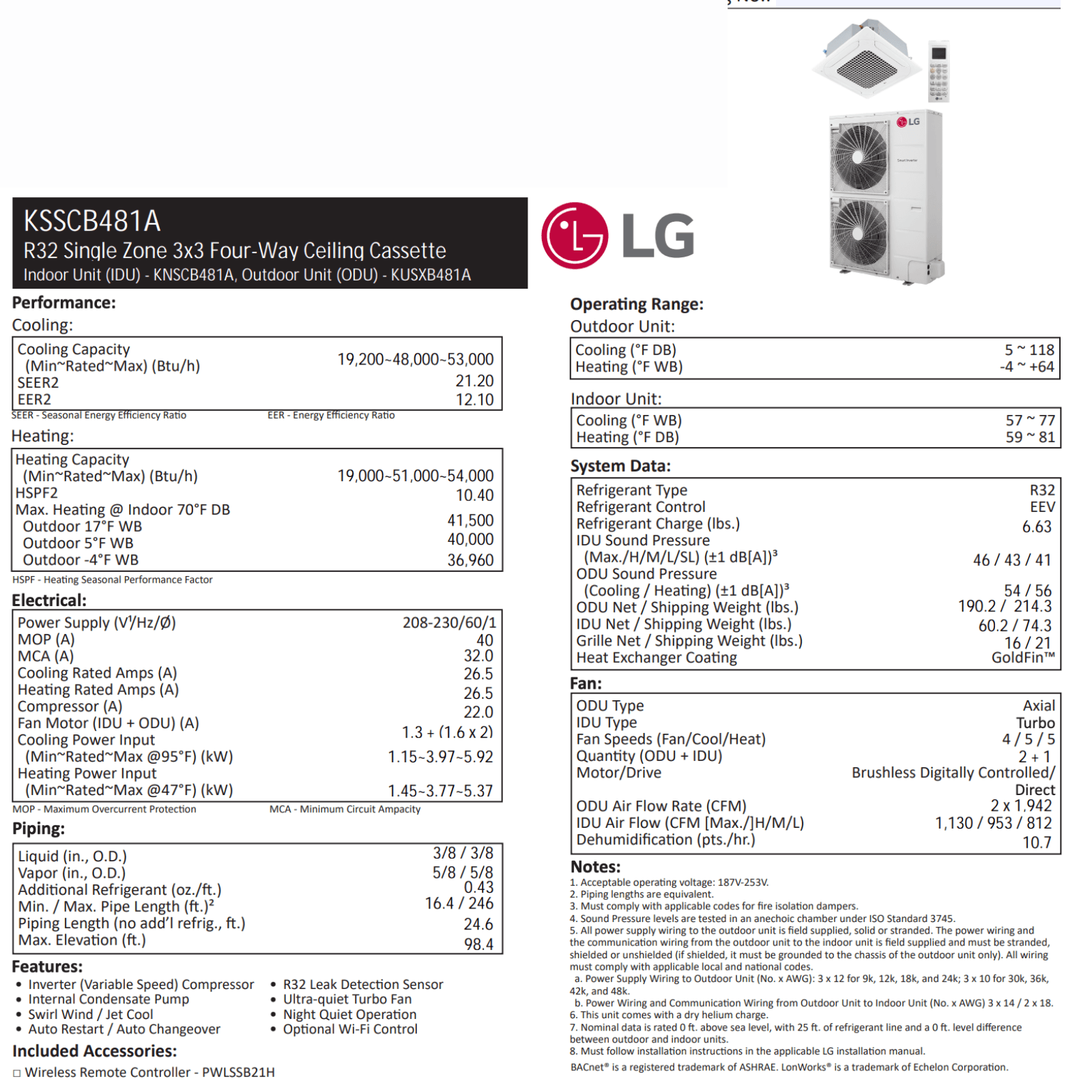

This model combines the indoor unit KNSCB481A with the outdoor unit KUSXB481A, under the LG combination KSSCB481A, with R-32 refrigerant, variable-speed Inverter compressor, internal condensate pump, R-32 leak detection sensor, Auto Restart operation, Auto Changeover mode, optional WiFi control, and required grille panel PT-AAGW0. The LG technical data sheet also indicates a cooling capacity of 19,200 to 53,000 BTU/h, a heating capacity of 19,000 to 54,000 BTU/h, a SEER2 of 21.20, an EER2 of 12.10, and an HSPF2 of 10.40, important data for comparing this product to other high-efficiency commercial and residential heat pump options.

A solution adapted to the realities of Montreal, Laval, Longueuil, the North Shore, and the South Shore

In the greater Montreal area, open-plan buildings often pose the same challenge: effective air conditioning and heating are needed without creating uncomfortable zones. In Laval, we often see businesses with sun-exposed storefronts, where the cooling load rapidly increases in the afternoon. In Longueuil and on the South Shore, many professional premises have suspended ceilings that allow for cassette integration, but drainage must be planned from the outset. On the North Shore, some newer buildings offer good technical clearances, while others require tighter coordination with electrical, ceiling, and structural elements.

The LG 3x3 48,000 BTU cassette is particularly relevant when the space needs to maintain a clean appearance. Unlike a wall-mounted unit, the cassette does not monopolize a wall for air discharge. It distributes air from the ceiling, in four directions, which helps reduce temperature differences between the window area, the back of a room, and circulation spaces.

In a retail store, this can mean fewer complaints near the checkout. In an office, it can prevent some workstations from receiving a direct blast of air. In a restaurant, it often allows for better management of variations between table areas, the entrance door, and internal heat gains. For an HVAC installation in Montreal, Laval, Longueuil, North Shore, or South Shore, this nuance makes a real difference.

Technical features that truly matter in the field

A 48,000 BTU product is not chosen based solely on its capacity figure. At AirGreen, we look at performance from several angles.

Capacity and Efficiency

This model offers a nominal cooling capacity of 48,000 BTU/h and a maximum capacity of up to 53,000 BTU/h depending on conditions. For heating, the LG data sheet indicates a range up to 54,000 BTU/h, with notable performance in cold weather: 41,500 BTU/h at 17 °F, 40,000 BTU/h at 5 °F, and 36,960 BTU/h at -4 °F, or approximately -20 °C. For Quebec's climate, these data are essential, especially when an owner wants to reduce the use of supplementary heating.

This does not mean that the cassette should automatically replace all other heating sources. The right approach is to compare the available capacity at low temperatures with the building's heat losses. In a well-insulated space, the result can be excellent. In a heavily glazed space, exposed to wind, or poorly insulated, we might recommend a supplement, a zoning strategy, or another configuration.

Sound Level and User Comfort

The indoor unit has a sound level of approximately 41 to 46 dB(A) depending on the speed, which is consistent with use in a commercial or professional environment where noise must remain under control. The indoor air flow can reach 1,130 CFM, with intermediate speeds around 953 CFM and 812 CFM. This variation is important: it allows the system to adapt to needs rather than operating abruptly.

The advertised dehumidification of 10.7 pints per hour is also a point to consider for businesses, gyms, salons, service areas, and buildings where doors open frequently during the summer. Good HVAC air conditioning is not limited to cooling the air; it must also help control humidity to improve perceived comfort.

R-32 Refrigerant and Specialized Installation

This model uses R-32, a refrigerant that requires rigorous installation practices: clean brazing, adequate vacuuming, adherence to piping lengths, leak testing, and complete commissioning. The LG data sheet mentions 3/8 inch liquid and 5/8 inch vapor piping, as well as an initial refrigerant charge of 6.63 lbs. The maximum piping length can reach 246 feet, with a length without additional refrigerant of 24.6 feet, which offers flexibility but does not replace precise planning.

At AirGreen, we always verify the actual route before confirming installation. A path that is too complex, an inadequate slope, or poor protection of the piping can reduce performance and complicate maintenance. It is often at this stage that the experience of a qualified refrigeration technician makes the difference.

LogisVert Subsidy: why the displayed amount warrants professional validation

The AirGreen product sheet indicates a LogisVert provincial subsidy of $3,864, with an update dated November 26, 2025. This amount is consistent with the calculation principle applicable to eligible efficient heat pumps when assistance is based on heating capacity at -8 °C. Hydro-Québec states that financial assistance can be $50 per 1,000 BTU/h at -8 °C for an ENERGY STAR® certified heat pump, or $120 per 1,000 BTU/h at -8 °C when it is cold-climate type, according to program requirements.

In the case of this model, the AirGreen sheet indicates a capacity at -8 °C of 32,200 BTU, which gives 32.2 x $120 = $3,864. Hydro-Québec also specifies that its search tool allows for evaluation of financial assistance based on the model number or the AHRI number, and that the AHRI number simplifies validation as it identifies a precise combination of equipment.

Our recommendation is clear: before signing, eligibility must be validated according to the address, building type, installation date, applicant's situation, and current regulations. We help our clients gather the necessary information, including model numbers, AHRI 214836842, proof of installation, invoice, and required photos when the program requests it.

Where this LG cassette stands out in a real project

A frequent scenario we encounter on the South Shore concerns commercial premises between 1,800 and 3,000 sq ft, with suspended ceilings, recessed lighting, and few walls available for an indoor unit. The client often wants to avoid visible ducts, preserve the appearance of the premises, and achieve a stable temperature from morning opening.

In this type of mandate, a 3x3 cassette can be installed in the strategic center of the area to be treated, while the outdoor unit is positioned in a location that respects noise, service accessibility, and air clearance. We then check the airflow range, the impact on workstations, the position of air returns, the path of the refrigerant line, the condensate pump, and access to the panel for HVAC maintenance.

In a professional services office in Laval, for example, a cassette can correct a typical problem: the front of the office gets too hot due to storefront windows, while the back remains cool. A bad solution would be to install a wall-mounted unit on the first available wall. A better solution involves analyzing air circulation, internal heat sources, and occupancy periods, then choosing the location that reduces temperature differences without creating a direct draft on customers.

Mistakes to avoid before installing a 48,000 BTU 3x3 cassette

Choosing the cassette solely for its appearance

A recessed cassette is elegant, but aesthetics alone are not enough. It must be confirmed that the ceiling allows for installation, that the structure can support the weight, that the grille is accessible, and that required clearances are respected. LG technical diagrams show the dimensions of the outdoor unit, indoor cassette, anchoring points, ceiling openings, and drain connection – details that we validate before proposing a definitive location.

Underestimating condensate drainage

The internal condensate pump is an advantage, but it does not make drainage automatic in all configurations. The lift height, drain slope, line insulation, access for maintenance, and prevention of backflows must be planned. Many avoidable service calls start with a poorly planned drain.

Installing without a load calculation

A 48,000 BTU unit can be too large for a well-insulated space and too small for a highly exposed location. Capacity must be evaluated based on area, height, insulation, windows, solar orientation, occupancy, internal equipment, and the actual use of the building. At AirGreen, we do not limit ourselves to a quick per-square-foot estimate.

Forgetting about electricity

The product sheet indicates a 220 V power supply, a minimum circuit amperage of 32 A, and a maximum overcurrent protection of 40 A. These data must be confirmed with the existing electrical panel. When the building is older, especially in certain areas of Montreal or Longueuil, this verification can influence the budget and timeline.

HVAC Maintenance: maintaining stable performance year after year

A ceiling cassette requires regular maintenance. Filters must be cleaned, the condensate pump checked, the drain pan inspected, the indoor coil cleaned as needed, the outdoor unit cleared, and operating parameters controlled. For a commercial space, we often recommend an HVAC maintenance frequency adapted to usage: a salon, restaurant, or dusty location requires more attention than a standard administrative office.

Preventive maintenance helps maintain comfort, but also protects the compressor, fan, electronic boards, and sensors. For an R-32 system, the quality of commissioning and technical follow-up are even more important, especially to avoid performance losses related to inadequate charge or an air circulation problem.

Why choose AirGreen for this LG 3x3 Cassette Ceiling Unit

AirGreen installs, maintains, and repairs residential and commercial HVAC systems in the greater Montreal area, in Laval, Longueuil, on the North Shore, the South Shore, and in Montérégie. Our approach is based on three elements: proper sizing, proper installation, and proper support.

We propose this LG model when its features truly match the building. We explain the limitations, options, costs, site constraints, and maintenance requirements before work begins. We prepare a clear offer, with no surprises at the end of the project, and our refrigeration technicians work according to industry standards, with the necessary experience to coordinate piping, electricity, drainage, wall control, optional WiFi, and service accessibility.

For commercial and building owners, this rigor avoids costly decisions. For residential clients with large open spaces, it provides more homogeneous comfort than with a poorly adapted wall solution. For multi-unit housing managers or mixed-use buildings, it facilitates long-term planning of HVAC installation and after-sales service.

A strategic choice for demanding large spaces

The LG 3x3 Cassette Ceiling Unit | 48,000 BTU is a serious solution for spaces where performance, visual discretion, and uniform air distribution must work together. With its Inverter compressor, ENERGY STAR® certification, cold-climate compatibility, R-32 refrigerant, heating capacity down to approximately -20 °C, and control options, it positions itself as an excellent candidate for many heat pump projects in Montreal, Laval, Longueuil, the North Shore, and the South Shore.

The actual result, however, depends on the installation. A ceiling cassette of this capacity must be integrated methodically, not simply added to an existing ceiling. At AirGreen, we take the time to evaluate the building, validate constraints, and propose a configuration that respects both comfort and system durability.

To get a price, validate possible subsidies, compare this model to other LG options, or schedule a technical visit, contact AirGreen now. Our team will assist you with a clear HVAC quote, professional installation, and reliable service throughout the greater Montreal area.
