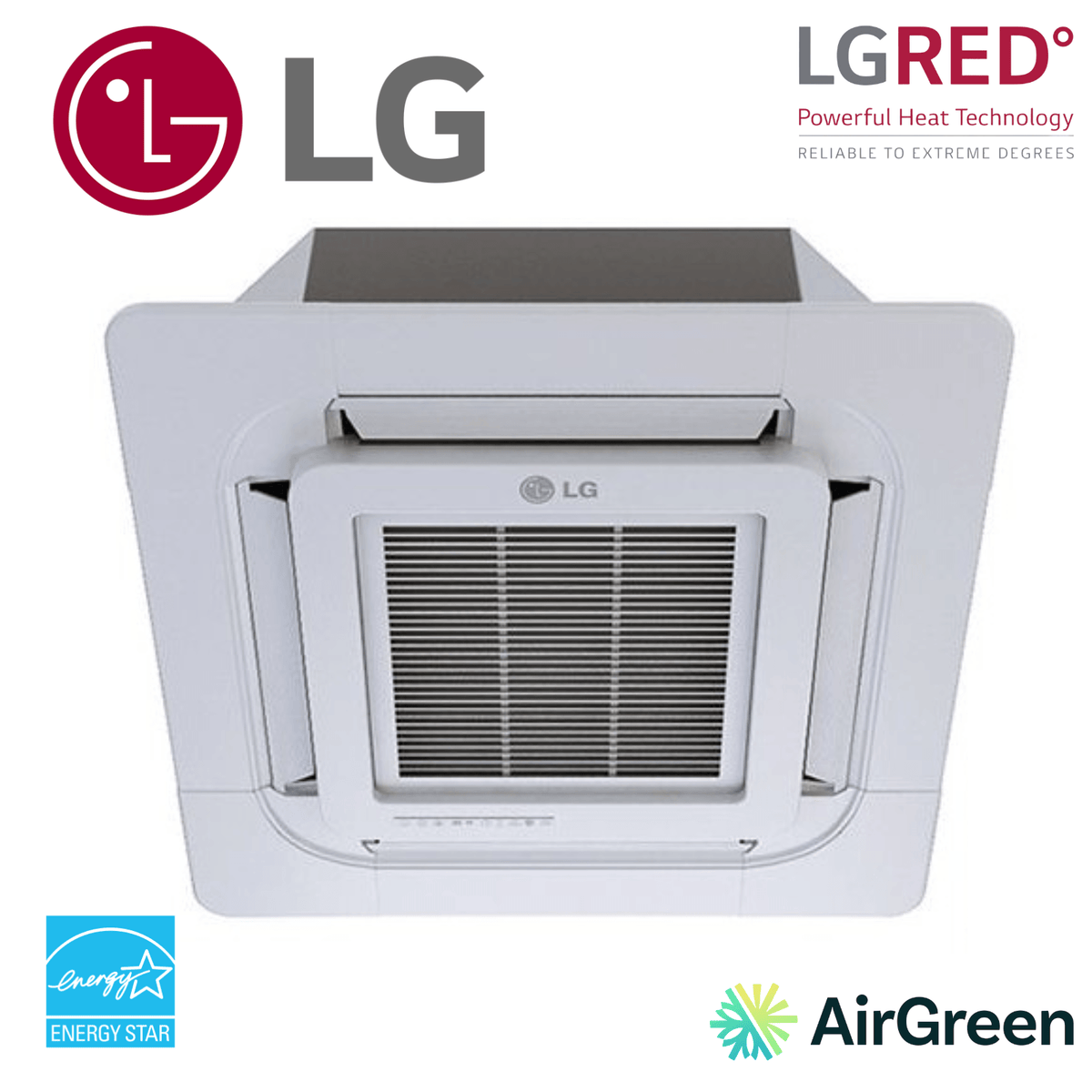

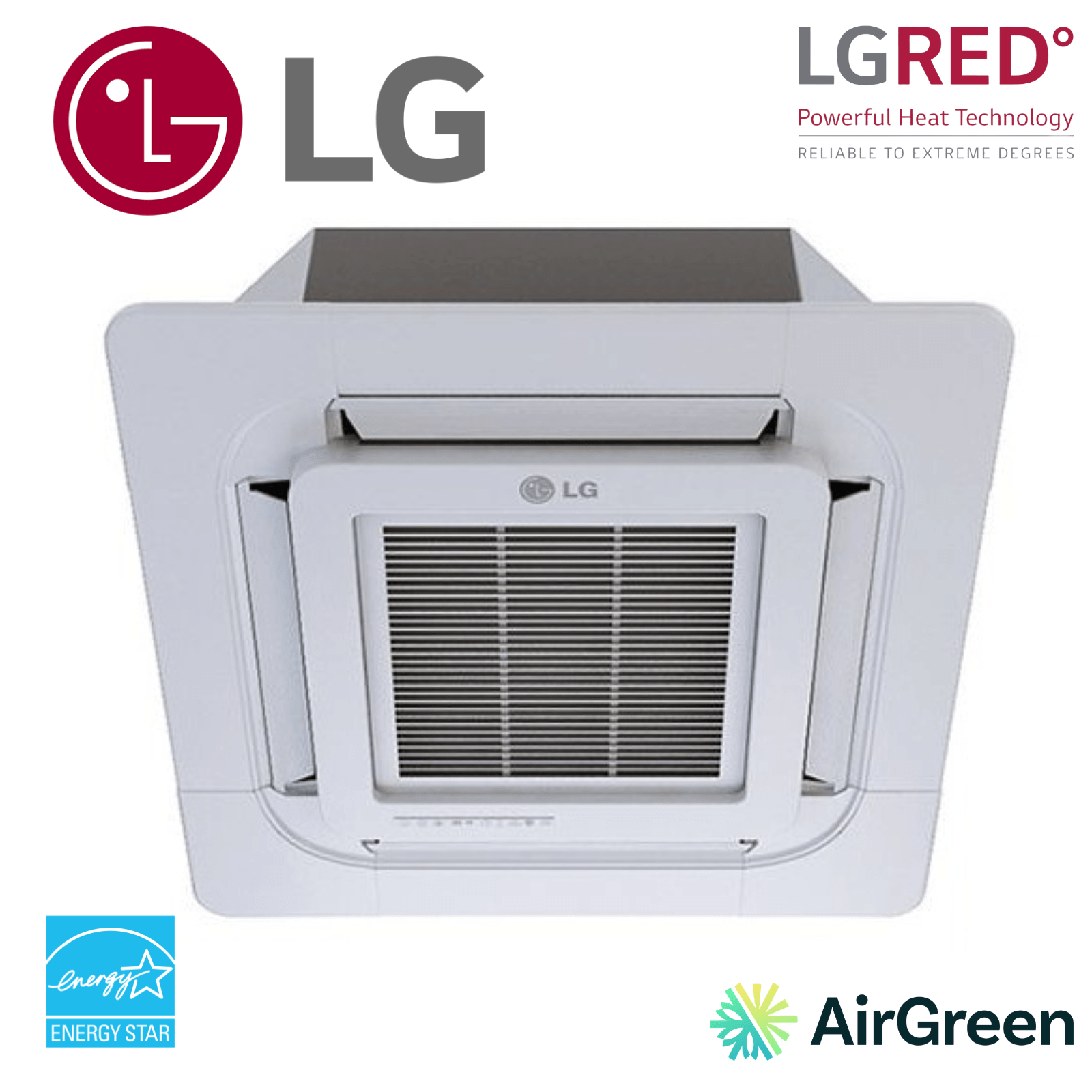

LG: 3X3 LGRED Cassette Ceiling Mounted | 36,000 BTU

A 3X3 ceiling cassette designed for open spaces that demand performance, comfort, and a clean installation

The LG 3X3 LGRED 36,000 BTU Ceiling Cassette is for homeowners, property managers, contractors, and businesses looking for a discreet, high-performance HVAC solution that integrates well into the ceiling. At AirGreen, we recommend this type of cassette heat pump when wall space is limited, when air distribution needs to be more uniform, or when a standard wall-mounted unit is not suitable for the interior design.

This single-zone system, consisting of the indoor unit KNSCB361A and the outdoor unit KUSXA361A, belongs to the LGRED series, known for its heating capacity in cold climates. The technical data in the LG KSSCA361A R32 datasheet notably confirms a nominal cooling capacity of 36,000 BTU, a nominal heating capacity of 40,000 BTU, heating operation down to -25 °C, as well as detailed installation diagrams for the outdoor unit and the indoor cassette on pages 2 and 3.

For a business in Montreal, an office in Laval, a professional space in Longueuil, an open space on the South Shore, or a multi-housing project on the North Shore, this model addresses a very specific need: to provide effective commercial air conditioning and heat pump heating without monopolizing walls or detracting from the room's aesthetics.

Why choose a ceiling cassette rather than a wall-mounted unit?

A wall-mounted unit is often an excellent option in a bedroom, living room, small office, or typical residential area. However, in certain spaces, it becomes less practical. A 3X3 ceiling cassette then becomes much more relevant.

We often recommend it in situations like these:

• a commercial space with window displays, shelves, or wall-mounted displays;
• an open-plan office where air needs to be distributed in multiple directions;
• a restaurant, waiting room, or clinic where interior appearance matters;
• a condo or penthouse with few available walls;
• a commercial space with a suspended ceiling;
• a multi-purpose room where occupants move around a lot;
• a project where concentrated airflow to a single zone is to be avoided.

The main advantage of the LG cassette-type ceiling unit is its four-way air distribution. Air is distributed from the ceiling, more evenly than with a wall-mounted unit. In practice, this helps reduce temperature differences between areas near the unit and more distant areas.

In several HVAC projects in Montreal and on the South Shore, we have seen clients switch from an overly concentrated wall unit to a ceiling cassette to correct a recurring discomfort: one section of the premises would become too cold in summer, while another remained hot. A well-positioned cassette generally allows for better air circulation, especially in rectangular rooms, open-concept spaces, and partially partitioned offices.

A 36,000 BTU capacity suitable for large volumes

With a nominal cooling capacity of 36,000 BTU, this LG model targets spaces that have higher needs than a standard residential room. Proper sizing remains essential. At AirGreen, we never recommend a unit solely because its capacity seems impressive on paper. Instead, we analyze the entire building: surface area, ceiling height, insulation, solar orientation, number of occupants, type of use, internal loads, windows, doors, existing ventilation, and ceiling configuration.

A commercial space with a large glass facade in Boucherville may require a very different approach than an interior office in Laval or a common room in a building in Longueuil. Two spaces of the same area can have very different thermal needs. That's why a professional HVAC installation is not limited to choosing a unit based on BTUs.

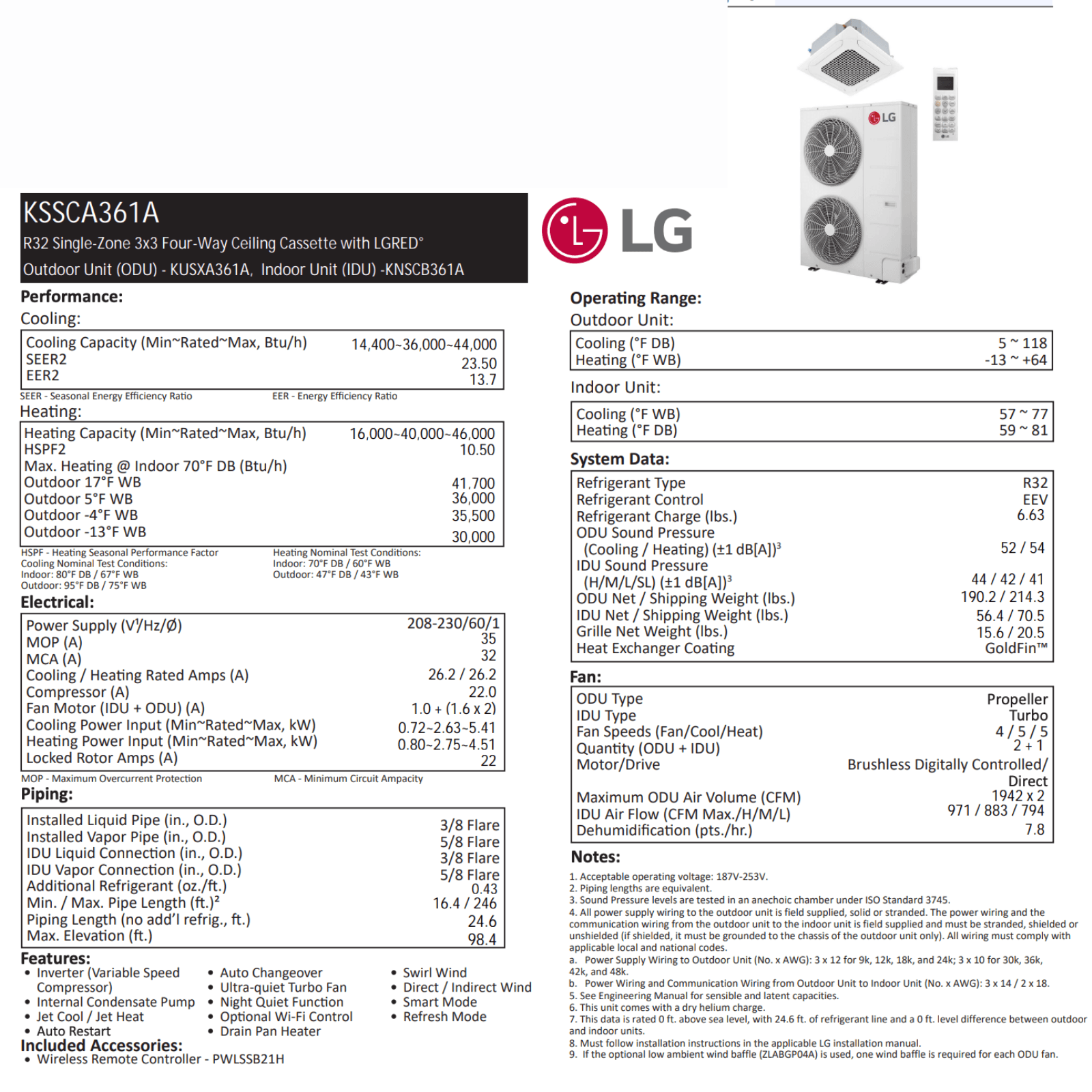

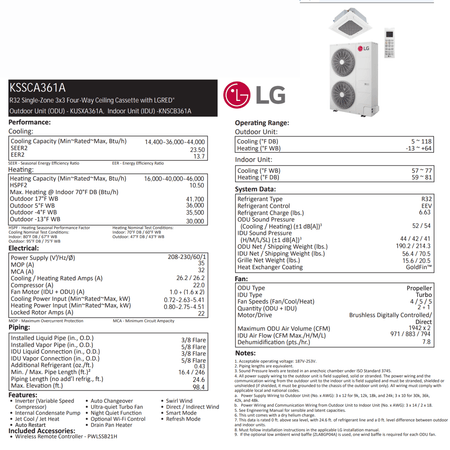

The system's performance sheet indicates a cooling range of 14,400 to 44,000 BTU/h, with a nominal value of 36,000 BTU/h. This modulation is important because the Inverter compressor adjusts its operation according to actual demand. Instead of simply turning on and off, it modulates its capacity, which promotes better comfort, more controlled consumption, and a more stable temperature.

Cold climate heating: a decisive factor in Quebec

For a property owner in Quebec, heating performance is not a minor detail. A heat pump that works well in September and October but quickly loses efficiency in January does not offer the same level of value. The LGRED 36,000 BTU is designed to meet serious winter demand.

According to LG technical data, the system can operate in heating down to -13 °F, or approximately -25 °C. The sheet also indicates maximum heating capacities of 41,700 BTU/h at 17 °F, 36,000 BTU/h at 5 °F, and 30,000 BTU/h at -13 °F. This data is particularly useful for projects in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore, where periods of intense cold must be considered from the planning stage.

In reality, we always analyze the exact role of the heat pump. In some buildings, it becomes the primary heating source for a large part of the season. In others, it works with an existing system: electric heating, furnace, boiler, baseboards, or central system. The goal is to create a coherent, reliable, and cost-effective whole, not just to add another appliance.

Energy efficiency: SEER2, HSPF2, ENERGY STAR, and usage logic

This model displays interesting efficiency values for a unit in this category, notably a SEER2 of approximately 23.50, an HSPF2 of approximately 10.50, and an EER2 of approximately 13.70 according to the LG technical sheet. It is also indicated as ENERGY STAR and ENERGY STAR Cold Climate, with ENERGY STAR ID 3544256 and AHRI number 214825957.

This information is important, but it must be interpreted correctly. An efficient appliance performs best when it is properly sized, installed, and maintained. A system that is poorly placed, improperly charged with refrigerant, poorly drained, or installed in a space whose needs have been misjudged can lose some of its advantages.

At AirGreen, we therefore attach as much importance to the quality of the heat pump installation as to the product's technical specifications. Efficiency values are the foundation. On-site work determines the actual result.

R-32 refrigerant and Inverter technology

The system uses R-32 refrigerant and EEV control, an electronic expansion valve. This combination allows for precise control of refrigerant flow according to demand. The variable speed compressor adjusts its capacity rather than always producing the same intensity of heating or cooling.

For the user, this translates to:

• more stable temperatures;
• fewer abrupt cycles;
• better comfort during mid-season periods;
• heating capacity better adapted to temperature variations;
• optimized consumption when demand is partial.

In an office, for example, needs change throughout the day. In the morning, the system may need to compensate for a lower indoor temperature. In the afternoon, the heat generated by occupants, computers, lighting, and sunlight can alter the load. Inverter modulation helps the unit adjust without over-treating the space.

Sound comfort: discreet for a high-capacity unit

The indicated indoor sound level is around 41 to 44 dB(A) depending on the fan speed. For a 36,000 BTU cassette, this is an important criterion. In a business, professional office, conference room, or office, an overly noisy unit can become irritating even if it heats and cools correctly.

The ultra-quiet Turbo fan, ventilation modes, and functions like Night Quiet Function contribute to a more pleasant experience. Ceiling diffusion also helps reduce the impression of direct drafts when properly configured.

When installing in a workspace, we pay particular attention to the cassette's location. We avoid, when possible, placing the unit directly above a fixed workstation, a meeting table, or a checkout counter. Even with good diffusion technology, the unit's position strongly influences the perception of comfort.

Dehumidification and comfort quality in summer

The indicated dehumidification capacity is 7.8 pints per hour. This data is very relevant for air conditioning in Montreal and surrounding areas, where summers can be humid. The temperature displayed on the thermostat is not always sufficient to create true comfort. Air that is too humid can make a room feel heavy even when the temperature seems correct.

A properly sized ceiling cassette can help stabilize indoor humidity, particularly in businesses, offices, and open spaces. Again, sizing matters. A unit that is too large and cools too quickly without running long enough may not control humidity as well. This is one of the errors we try to avoid when making a recommendation.

Installation: technical points AirGreen verifies before work begins

Installing an LG 3X3 ceiling cassette requires more detailed planning than a standard wall-mounted unit. The final result depends as much on the product as on the preparation of the site.

Before proposing this model, we particularly verify:

• the ceiling structure and the possibility of recessing;
• the space available above the suspended ceiling;
• the routing of refrigerant lines;
• condensate drainage;
• future access for HVAC maintenance;
• the position of the outdoor unit;
• outdoor noise constraints;
• the distance between the indoor and outdoor units;
• available electrical capacity;
• compliance with applicable codes.

The system uses 3/8 in and 5/8 in piping. The technical sheet indicates a minimum and maximum line length of 16.4 to 246 feet, with a length without refrigerant addition of 24.6 feet and a maximum elevation of 98.4 feet. This data allows for good flexibility, but it must be validated on site. The longer or more complex the run, the more important installation precision becomes.

Electrically, the sheet indicates 208-230 V / 60 Hz / 1 phase power, a MCA of 32 A, and a MOP of 35 A. For a commercial building, these parameters must be coordinated with the electrician, especially when several energy-intensive pieces of equipment already exist.

Brochure diagrams: useful for anticipating constraints

The LG technical brochure is not limited to performance figures. The diagrams on page 2 illustrate the dimensions and clearances of the outdoor unit, while page 3 details the indoor cassette, ceiling opening, suspension points, and associated components. These drawings are essential to avoid surprises on site.

In a suspended ceiling, for example, it's not enough that a tile can be removed. It's necessary to confirm the available height, the strength of the anchor points, the clearance for the drain, access to the condensate pump, and the possibility of removing the grille for maintenance. A properly installed cassette must be aesthetic, but also accessible.

This is often where field experience makes the difference. A unit may be compatible on paper, but pose problems if a beam, an existing duct, a plumbing line, or a light fixture blocks the installation. At AirGreen, we take the time to identify these constraints before work begins.

Integrated features and available accessories

This LG model includes several useful features for daily comfort and system management:

• variable speed Inverter compressor;
• internal condensate pump;
• Jet Cool and Jet Heat modes;
• auto restart;
• automatic heating/cooling changeover;
• night silence function;
• Swirl Wind for better diffusion;
• direct and indirect ventilation modes;
• Smart and Refresh modes;
• drain pan heating;
• wireless remote control included PWLSSB21H;
• optional Wi-Fi control with compatible module.

The required grille is model PT-AAGW0. Additional options can also be considered depending on the project, such as a premium panel with an air purification kit, a decorative cover, certain wall controllers, dry contacts, an AC Smart 5 central controller, or even management gateways for more complex commercial installations.

For multi-tenant buildings or businesses with multiple zones, these control options can become very useful. They allow for better management of schedules, temperature settings, and maintenance.

Common mistakes to avoid with a 36,000 BTU cassette

A ceiling cassette offers excellent comfort when chosen correctly. However, it can be disappointing if certain decisions are made too quickly. Here are the most common mistakes we see in commercial heat pump or ceiling air conditioning projects.

First mistake: choosing the unit based solely on surface area.
Surface area is an indicator, but it is not enough. Solar orientation, window displays, insulation, ceiling height, and the use of the premises completely change the calculation.

Second mistake: neglecting condensate drainage.
A cassette produces water in cooling mode. Even with an internal pump, the drain path must be reliable, accessible, and well-planned.

Third mistake: forgetting maintenance access.
A recessed unit must remain accessible. Filters, grille, pump, and drain pan must be inspectable and cleanable.

Fourth mistake: installing the unit too close to an obstruction.
A four-way cassette needs a clear environment to distribute air effectively. A light fixture, a beam, a high partition, or a bulky piece of furniture can interfere with comfort.

Fifth mistake: underestimating the outdoor unit.
The outdoor unit must breathe correctly, be stable, accessible, and positioned to limit snow accumulation, noise pollution, and service constraints.

Why entrust AirGreen with the installation of this LGRED cassette

At AirGreen, we work on residential, commercial, and multi-housing projects in Montreal, Laval, Longueuil, on the North Shore, the South Shore, and in Montérégie. Our approach is simple: recommend the right system, install it correctly, and remain available after the work is done.

For a product like the LG 3X3 Cassette Type Ceiling Unit LGRED 36,000 BTU, this approach is particularly important. It is not a unit to be installed in a hurry. It requires coordination between the ceiling structure, the refrigeration circuit, drainage, electricity, outdoor placement, and the actual needs of the building.

Field example: an open space on the South Shore

In a typical project on the South Shore, an open-plan commercial space had two problems: an existing wall-mounted unit blew too strongly towards the workstations, and the area near the windows remained uncomfortable on very hot days. The client wanted to keep their walls for interior design and reduce the visual impact of the HVAC system.

A high-capacity ceiling cassette like this LG model is well suited for this type of configuration. Positioning it in the center of the area allows for better air distribution, while four-way diffusion limits direct drafts. In this type of project, we pay particular attention to ceiling height, air return, obstacles, and perceived noise by occupants.

The most frequent comments after this type of installation concern temperature stability and the freeing up of wall space. For businesses, this last point can have real value: every available wall can be used for display, storage, product presentation, or workstation arrangement.

Field example: professional offices in Laval

In professional offices in Laval, the priority is often different. Acoustic comfort, discretion, and temperature consistency become essential. A meeting room that is too cold or an administrative area that is too hot quickly detracts from the occupants' experience.

An LGRED 36,000 BTU cassette can be relevant when a single open zone requires high capacity. Ceiling diffusion, combined with well-adjusted ventilation, prevents air from being directed towards a single person or a single row of desks. During commissioning, we adjust the louvers, operating modes, and setpoints so that the unit operates stably rather than with abrupt reactions.

Warranty, subsidy, and support

The product sheet indicates a warranty of 10 years on the compressor, 10 years on parts, and 0 year on labor, with the possibility of an extended warranty. At AirGreen, we clearly explain what the warranty covers, what depends on the manufacturer, and what can be added according to available protections.

The provided sheet also indicates a LogisVert provincial subsidy of $2,976, updated on November 26, 2025. As financial aid programs can change, we help our clients verify project eligibility, applicable requirements, and necessary documents.

Our team can also assist clients with related choices: outdoor unit location, control options, annual maintenance, Wi-Fi addition, extended protection, and coordination with other renovation or development work.

HVAC maintenance: maintaining performance year after year

A high-performance system must be maintained. For a ceiling cassette, maintenance is not just about filters. Attention must also be paid to the drain pan, condensate pump, grille cleanliness, fins, connections, refrigerant charge, and the operation of heating and cooling modes.

Regular maintenance helps to:

• preserve energy efficiency;
• reduce odor risks;
• avoid drainage problems;
• maintain good airflow;
• extend the system's lifespan;
• detect anomalies before a breakdown.

For businesses and professional buildings, we often recommend an HVAC maintenance schedule adapted to traffic and hours of use. A unit used all week in a business does not get dirty at the same rate as a residential system used only in the evening.

Who is this model best suited for?

The LG 3X3 Cassette Type Ceiling Unit LGRED 36,000 BTU is particularly suitable for clients looking for:

• a 36,000 BTU heat pump for open spaces;
• a discreet heating and air conditioning solution;
• a unit compatible with a suspended ceiling or a ceiling allowing recessed installation;
• more balanced air distribution than a wall-mounted unit;
• a system adapted to Quebec winters;
• an ENERGY STAR Cold Climate product;
• a relevant option for a business, office, condo, common room, or professional premises.

It is less appropriate if the ceiling does not allow any recessed installation, if maintenance access is impossible, or if the space to be treated comprises several closed rooms requiring distinct zones. In these cases, we can recommend another configuration, such as multiple wall-mounted units, a ducted unit, a central system, or a multi-zone solution.

Our AirGreen recommendation

We recommend this model when a client wants a high-capacity, discreet, and well-suited HVAC solution for open spaces. Its low-temperature heating capacity, Inverter modulation, four-way diffusion, R-32 refrigerant, ENERGY STAR Cold Climate certification, and control options make it a serious choice for demanding projects.

The key remains installation. A ceiling cassette must be planned before being installed. At AirGreen, we validate the space, thermal loads, electrical constraints, drainage, clearances, pipe length, and service accessibility. This rigor ensures a clean, efficient, and durable result.

For an estimate, a technical visit, or advice on the LG 3X3 Cassette Type Ceiling Unit LGRED 36,000 BTU, contact AirGreen. We serve Montreal, Laval, Longueuil, the North Shore, the South Shore, and Montérégie for residential and commercial HVAC installation, maintenance, and service.
