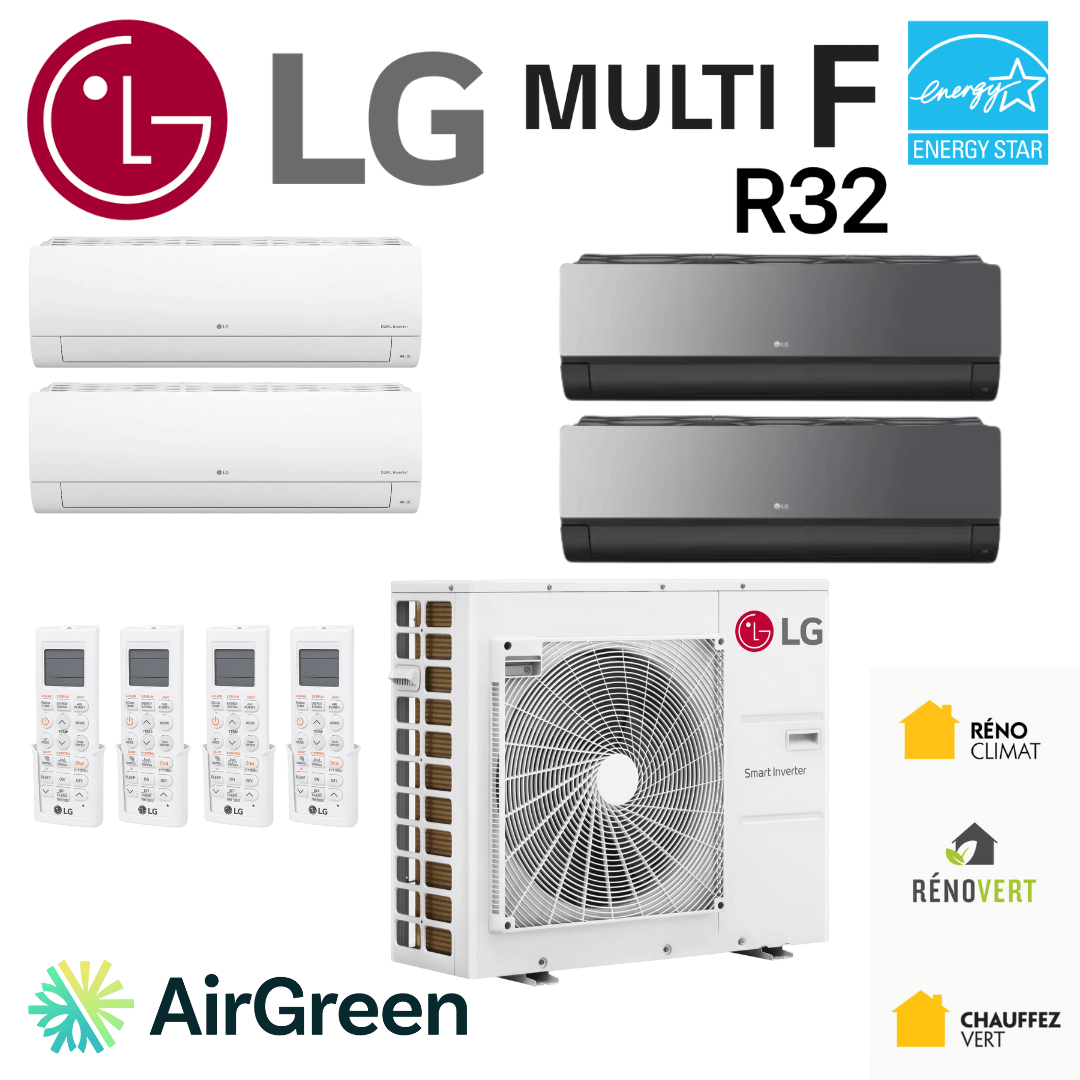

LG MULTI F R32 4-Zone Heat Pump | 48,000 BTU Compressor

A multi-zone solution designed for the real comfort of homes and plexes in Greater Montreal

A multi-zone heat pump is not a simple comfort “gadget”: it is a structured way to solve a very common problem in residential buildings in the greater Montreal , Laval , Longueuil , North Shore and South Shore area: rooms that do not behave the same way, floors that overheat, basements that remain cool, closed offices that become uncomfortable as soon as the door is closed, and glazed areas that require a rapid response to weather variations.

The LG MULTI F R32 4-Zone Heat Pump | 48,000 BTU Compressor is designed precisely for this purpose: to offer a solid foundation (a high-performance outdoor unit) and the ability to manage multiple indoor zones, each with its own specific usage requirements. At AirGreen , we offer this type of configuration when the client wants room-by-room comfort without having to rewire the entire system, or when the building's architecture makes centralized solutions more cumbersome (or less practical) in the short term.

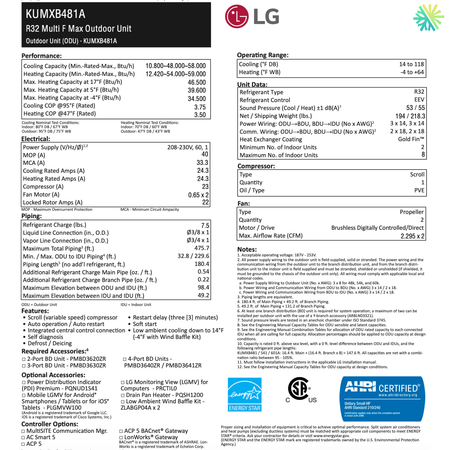

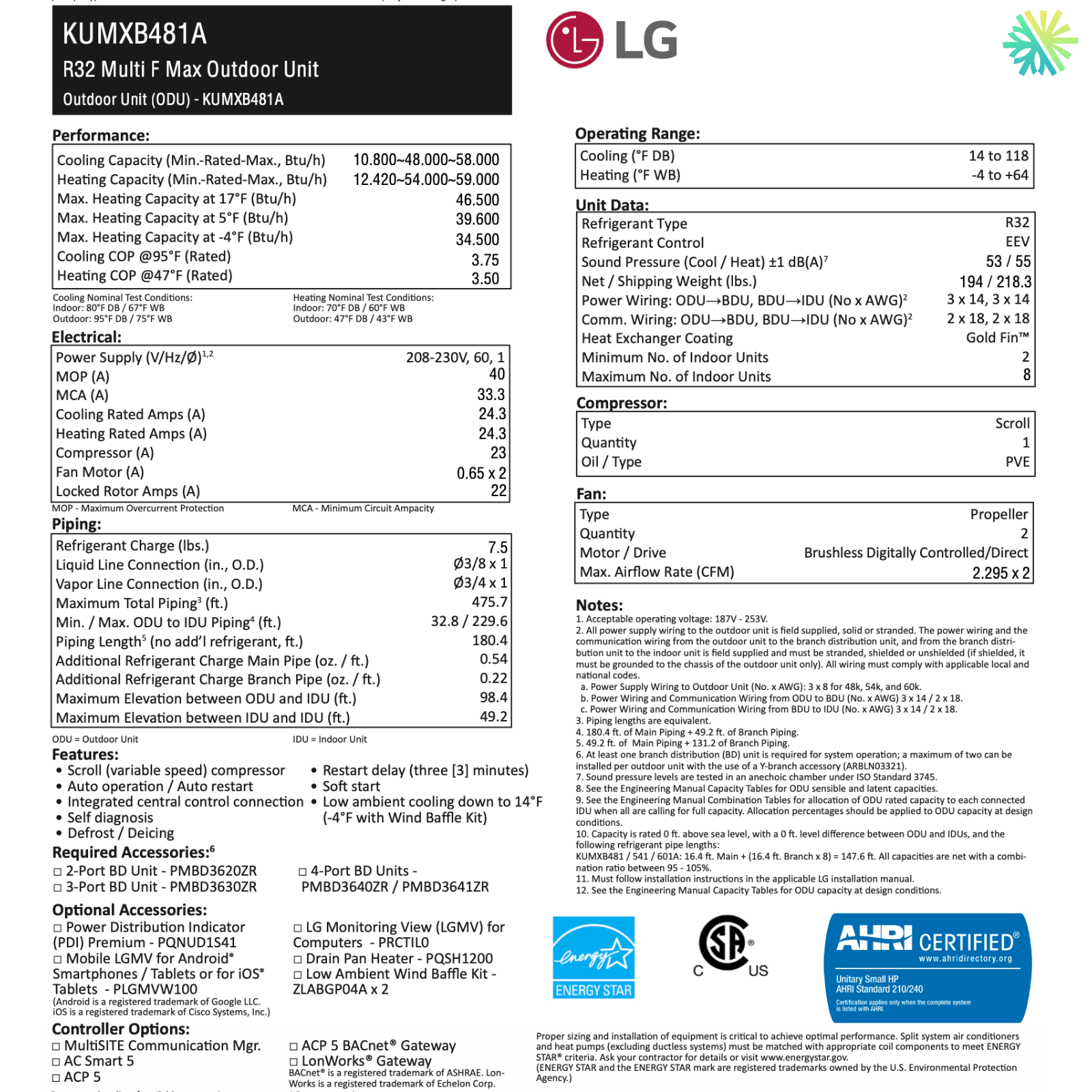

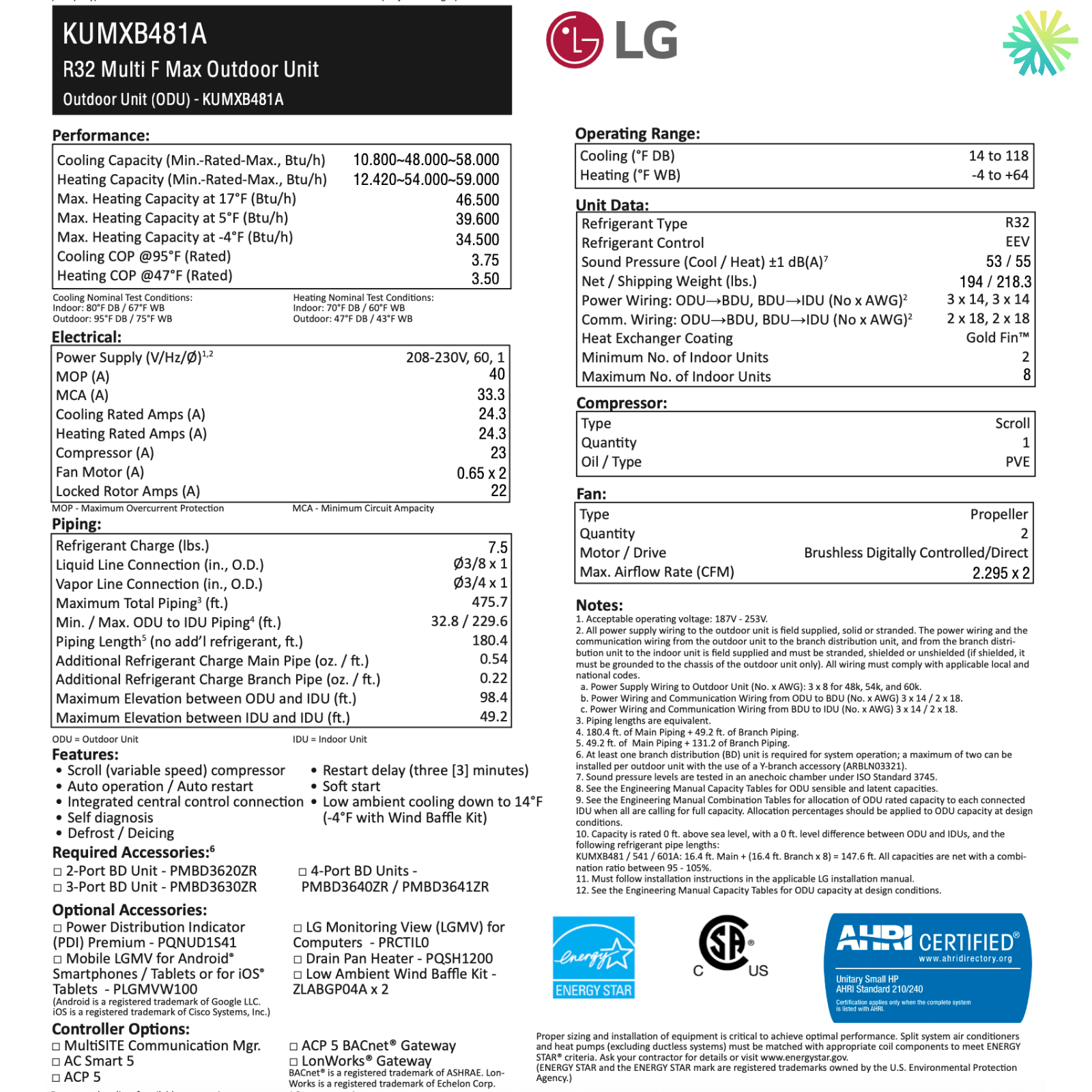

The characteristics we look for from the start (and why they matter)

Before even discussing brands or interior designs, a multi-zone system must be approached as a residential engineering project: sizing, planning, validation of constraints, and then assembly. Based on this, the “4 zones / 48,000 BTU” configuration is very interesting for several scenarios:

• Rated cooling capacity: 48,000 BTU
  Useful for larger houses, large open areas, or buildings with multiple rooms that are demanding in summer.

• Refrigerant: R-32
  A modern choice that also requires rigorous execution: clean connections, serious vacuuming, leak tests, well-protected routing.

• Wi-Fi included
  Practical for monitoring performance, adjusting instructions and avoiding “extreme settings” that negatively impact comfort and fuel consumption.

• AHRI: 215402339
  A useful reference point for compliance, comparison and certain administrative files.

• ENERGY STAR®: Yes
  An important indicator when the goal is to reconcile comfort and efficiency.

• Heating capacity advertised: down to -16°C
  A key point for Quebec: we want a heat pump that remains relevant during typical cold periods, while keeping expectations realistic according to the house, insulation and use of the zones.

• Warranty: 10-10-0 (compressor – parts – labor)
  Important information for owners: the "paper" warranty is only worthwhile if the installation and commissioning are done methodically.

Understanding multi-zone technology: what it changes in everyday life

A well-designed multi-zone system transforms the comfort experience in three very concrete ways.

1) True temperature stability, especially in multi-story buildings

In much of Montreal 's housing stock (duplexes/triplexes, narrow houses, separate floors), hot and cold air do not naturally distribute themselves. A dedicated zone per level (or per use) reduces these differences, particularly:

• between the basement and the ground floor,

• between open area and closed rooms,

• between glass-fronted rooms and more centrally located rooms.

2) Comfort adapted to the use of the rooms

A bedroom doesn't need to be treated like a living room. A home office doesn't have the same temperature tolerance as a laundry room. With multi-zone climate control, we stop "compensating" for one room by disrupting the others.

3) A smarter approach than multiplying outdoor units

In several Montreal neighborhoods and on certain streets in Laval and Longueuil , aesthetics, floor space, and the layout of balconies/staircases limit the installation of multiple condensers. A single multi-zone outdoor unit often provides a cleaner, more consistent, and easier-to-integrate result.

4 zones: how we define an effective configuration

The most common mistake is believing that "4 zones" automatically means "4 indoor units, one per room." In reality, a high-performing multi-zone system relies primarily on properly defining the zones.

At AirGreen , an area must be:

• a space with a clear logic of use,

• an area where air circulation is predictable,

• an area that does not depend on a constantly open door,

• an area where the chosen indoor unit can distribute effectively.

Typical examples of zoning that we regularly validate:

• Zone 1: Main living area (open-plan living room/kitchen/dining room)

• Zone 2: upstairs bedrooms

• Zone 3: Finished basement (family room, gym, guest bedroom)

• Zone 4: closed office / extension / glazed room (solarium, large windows, room above the garage)

This is not an automatic recipe: it's a starting point. Then, we adjust according to the orientation, insulation, lifestyle habits, and the reality of the building.

Installation: where multi-zone control is won (or lost)

A multi-zone heat pump can be excellent, but if the installation is improvised, problems always arise in the same place: noise, stability, seasonal performance, drainage, or "fussy" zones.

The routing of refrigerated lines: discipline before aesthetics

In a multi-zone system, the routing of lines is not just a visual issue: it is a mechanical and thermal issue.

At AirGreen, the goal is:

• a direct and accessible route

• robust protection (trunking, conduits, fasteners),

• continuous insulation on exposed sections,

• anti-vibration mounts in the right places,

• a clean finish that respects the facade.

In Greater Montreal, freeze/thaw cycles and humidity can accelerate the wear of poorly installed insulation, cause poorly managed condensation, or make service difficult if everything has been “hidden” in the wrong place.

Differences in elevation: managing floors intelligently

Multi-level and multi-dwelling homes require a real strategy: where to place the outdoor unit, how to distribute the runs, and how to avoid unnecessary lengths.

In several projects in Longueuil and on the South Shore , we see buildings where the best "visual" location is rarely the best "technical" location. A good multi-zone project is one that includes:

• easy access in winter,

• sufficient clearance around the unit,

• snow and ice management,

• a reasonable proximity to the most demanding areas.

Electricity: a part of the project that is never simplified

A 48,000 BTU multi-zone heater is no small undertaking. Proper planning includes:

• panel validation,

• adequate protection

• disconnect switch at the appropriate location,

• clean and safe path

• compliance and service logic.

This is often where intermittent problems (triggering, instability, defects) that waste time and money afterwards are avoided.

Choosing the interior units: the room dictates the decision

Your configuration allows for several compatible indoor unit options. For us, the mistake to avoid is simple: choosing solely based on BTU rating without considering air distribution and everyday use.

We are evaluating:

• the shape of the room (long, square, open, compartmentalized),

• the presence of corridors or blind spots,

• ceiling height,

• the position of the doors,

• sensitivity to noise (bedrooms, offices),

• aesthetics (available wall space, furniture, windows).

In a common scenario in Montreal , a client wanted to place a unit in a corner to "hide" it. On paper, this was possible. In practice, however, the air distribution would have been poor, and the unit would have overcompensated, increasing noise and energy consumption. We repositioned the unit, and the comfort level was immediately more stable.

Performance: what we clearly explain to owners

A well-designed multi-zone system provides comfort far above average, but we need to talk frankly about expectations, especially in Quebec.

Heating in winter: what makes the difference

A multi-zone heating system works very well when:

• The zones are well distributed.

• The instructions remain consistent.

• The building has no major unaddressed losses.

• The indoor units are adapted to the spaces.

What we often see: clients who want to "catch up" by 4 or 5 degrees in one area, while keeping other areas cooler. This kind of discrepancy creates less efficient cycles. Our approach: to explain a simple, stable, realistic, and optimized setpoint strategy.

Air conditioning: a 48,000 BTU unit is effective… if the air circulates.

In summer, comfort depends as much on capacity as on:

• air circulation,

• humidity management,

• the position of the indoor units,

• the logic of zones.

A common example on the North Shore : a large open-plan space with a central staircase. If the main area is poorly positioned, cool air rises, and the ground floor remains stuffy. With proper positioning and appropriate settings, the "escaping air" effect is greatly reduced.

Noise level: the final result depends on the installation

Even with advertised acceptable noise levels, the perceived noise level varies greatly:

• of the support (slab, wall, structure),

• vibrations transmitted to the lines

• the distance from the windows,

• the location in relation to corners and reflective surfaces,

• wind and turbulence around the unit.

At AirGreen, we pay particular attention to the base, anti-vibration, and rigidity of the supports, because it is the details that transform the daily experience.

Common mistakes we avoid (and often correct)

Here are the scenarios we regularly encounter when multi-zone systems have been planned too quickly:

• “Theoretical” zoning : one zone intended to serve two wings of the house. Result: one room too hot, the other too cold.

• Poorly positioned indoor units : inefficient air distribution, more frequent cycling, feeling of discomfort.

• Unnecessarily complex piping layout : more connection points, more risks, and complicated maintenance.

• Poorly managed drainage : especially in installations where aesthetics take precedence over logic.

• Extreme settings : excessively different instructions between zones, inadequate ventilation, and unrealistic expectations of recovery.

What distinguishes a reliable project: a clear design and serious commissioning, with explanations understandable to the owner.

Real-life scenarios from the greater Montreal area: why multi-zone is often the best answer

Family home in Laval: basement too cool and bedrooms too hot

In many typical houses, the upper floor heats up quickly, the basement remains cooler, and humidity builds up downstairs in the summer. A multi-zone system allows for:

• an area dedicated to the basement,

• an area dedicated to bedrooms,

• a main area for the living space,

• and an area for a more demanding room (office, extension, glass-enclosed room).

The result: fewer compromises, less “thermostat war”, and smoother management of seasonal transitions.

Duplex in Montreal: Comfort on each floor without renovating the entire building

In some duplexes/triples, installing a complete central system is possible, but sometimes disproportionate to the immediate need. Multi-zone systems offer a structured solution:

• without a complete network of conduits,

• with simpler external integration,

• and interesting flexibility if the building evolves (renovations, new division, home office).

South Shore: large windows and rapid changes

Houses with large bay windows experience significant fluctuations in sunlight. A multi-zone approach prevents the entire house from being negatively affected by the glazed area, by allocating a dedicated capacity to each zone.

Why choose AirGreen for your LG MULTI F 4 zones

This product may be excellent, but satisfaction comes primarily from how it is integrated into the reality of the building. At AirGreen , our added value is evident in:

• The design : zones, diffusion logic, line routing, location, future accessibility.

• The quality of execution : supports, finish, insulation, drainage, mechanical stability.

• Commissioning : testing, adjustments, simple and useful explanations, adaptation to lifestyle.

• Follow-up : when a client tells us “a room is behaving differently”, we know where to look: zoning, settings, air diffusion, architectural constraints.

We operate in Montreal , Laval , Longueuil , North Shore and South Shore with a pragmatic approach: to create a clean, reliable, and pleasant installation.

Next Step

Are you considering an LG MULTI F R32 4-Zone Heat Pump | 48,000 BTU to better manage your comfort room by room? Contact AirGreen for an on-site estimate and a clear proposal: zoning, configuration, integration, and an installation plan tailored to your building in Montreal , Laval , Longueuil , North Shore , and South Shore .
