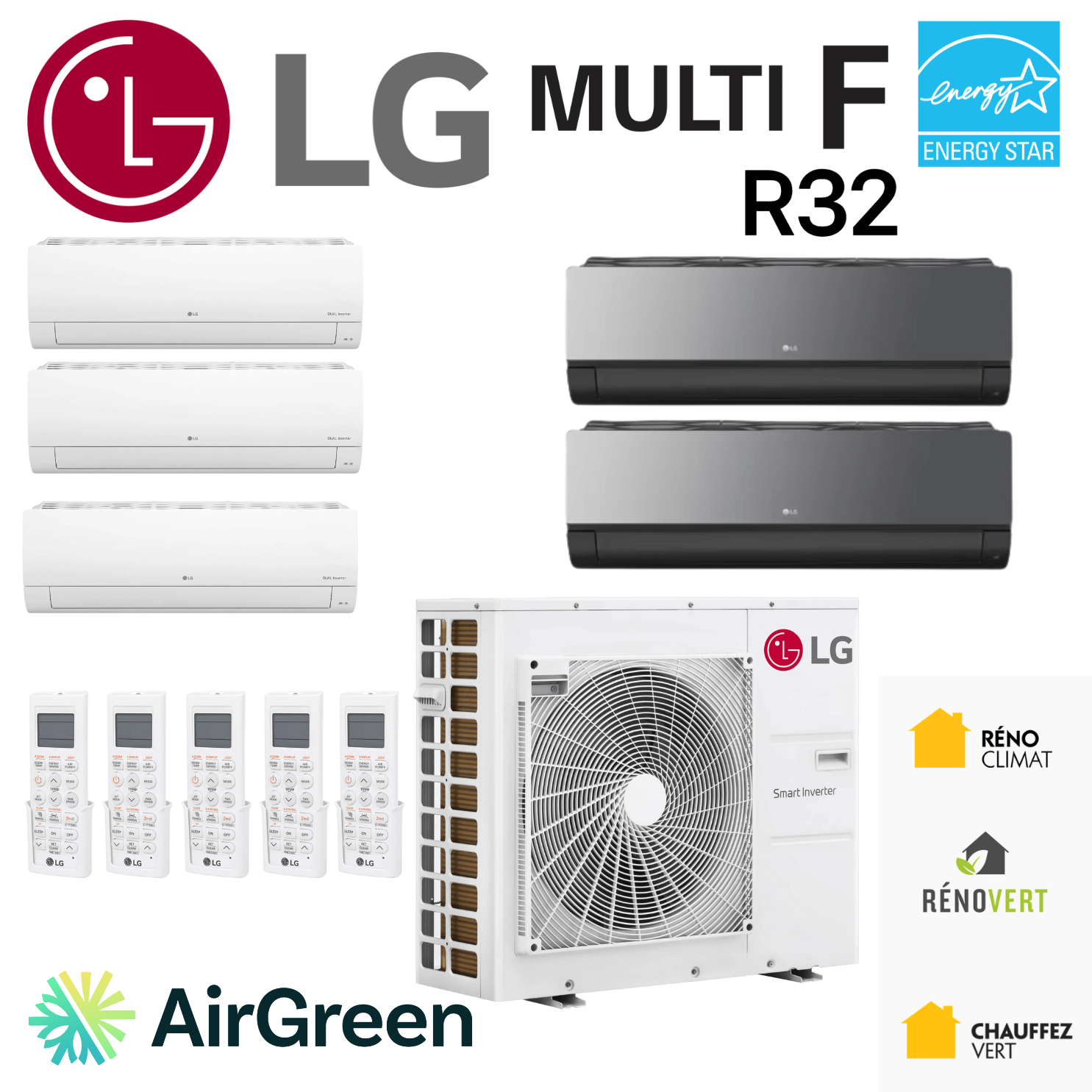

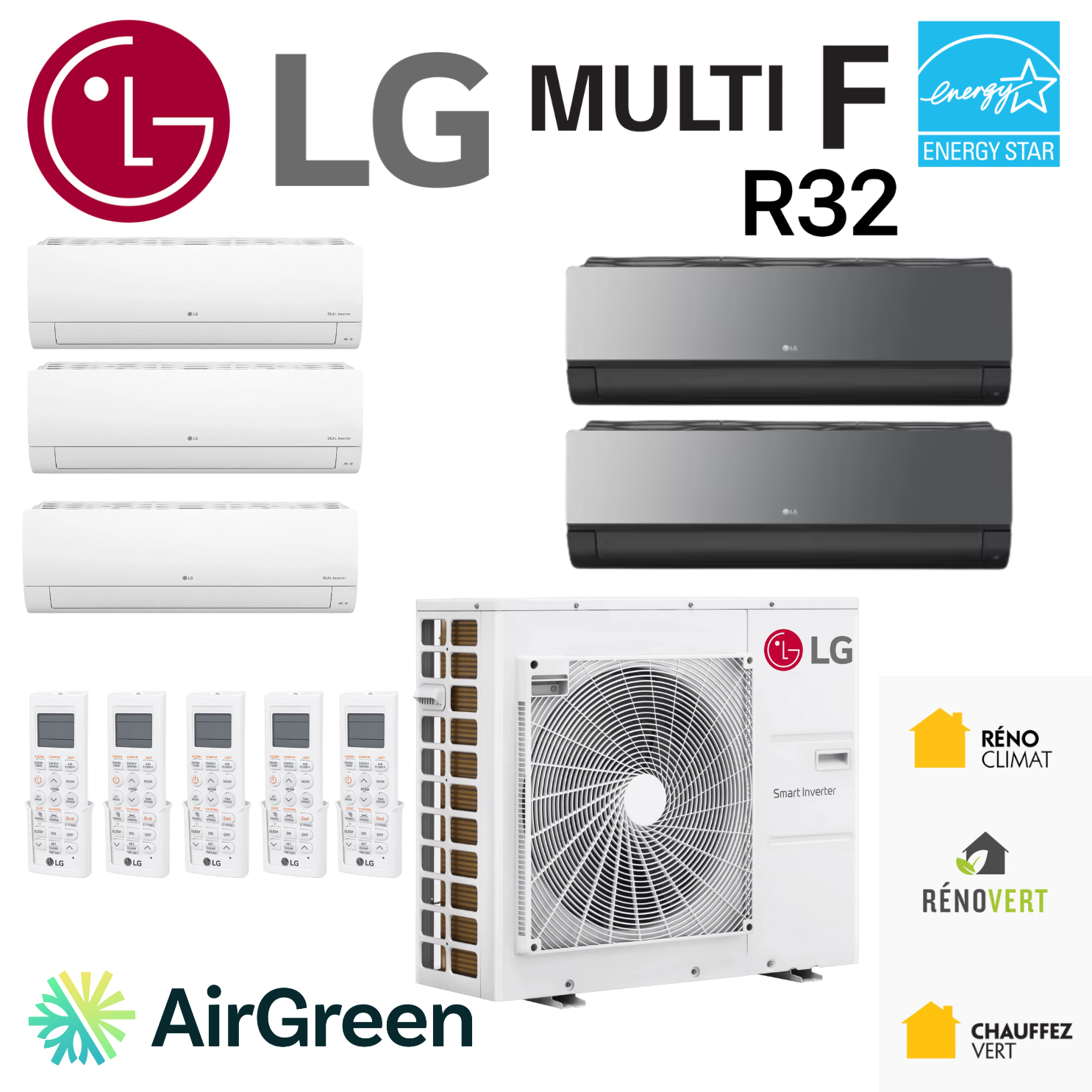

LG MULTI F R32 5-Zone Heat Pump | 48,000 BTU Compressor

A multi-zone system that meets the realities of local homes, without compromising on comfort.

In practice, a multi-zone heat pump is not simply a “convenient option”. In Greater Montreal, it is often the most rational solution when a property has conflicting needs: an open area that absorbs the sun in the afternoon, upstairs bedrooms that heat up quickly, a basement that stays cool even in the middle of summer, or a closed office that requires a stable temperature all day long.

The LG MULTI F R32 5-Zone Heat Pump | 48,000 BTU Compressor (UMXB481A) is a system designed to power multiple indoor units from a single outdoor unit, while maintaining precise zone control. In practical terms, this means fewer compromises between occupants, less temperature variation, and the ability to adapt comfort to the specific needs of each room.

At AirGreen, we regularly install multi-zone systems in Montreal, Laval, Longueuil, on the North Shore and South Shore, particularly in duplexes/triplexes, two-story houses, cottages, and renovated properties with additions. In these contexts, the multi-zone logic becomes very clear: rather than forcing a single zone to "pull" the entire house, the demand is intelligently distributed, room by room, according to actual use.

Why 5 zones is often the “right number”

Five zones is not arbitrary: it often represents a balance between flexibility and simplicity. In practice, this division is frequently used:

• Zone 1: Living room / open area (the most demanding in terms of air conditioning in summer, and often the most visible on a daily basis)

• Zone 2: Master Bedroom

• Zone 3: Other bedroom / office

• Zone 4: Basement (or family room)

• Zone 5: Kitchen / dining room (or an additional space that heats/overheats differently)

This type of distribution allows for managing variations in occupancy and sunlight without over-processing the rest of the house. The result: a more stable feeling of comfort and more precise control of the settings.

The key element: perceived comfort, not just BTUs

Many homeowners shop around by comparing only BTU capacity. However, in a multi-zone system, comfort depends as much on the design (where the units are located, how the zones are defined, how the air circulates) as on the nominal capacity. A well-designed installation makes for a pleasant system to use every day: fewer fluctuations, fewer drafts, and greater consistency.

What the LG MULTI F R32 48,000 BTU actually brings to a property in Greater Montreal

The UMXB481A model is a solid foundation for building a long-range, multi-zone system while maintaining a residential focus. Here's how we explain its features in a helpful way, as if you were conducting an assessment visit.

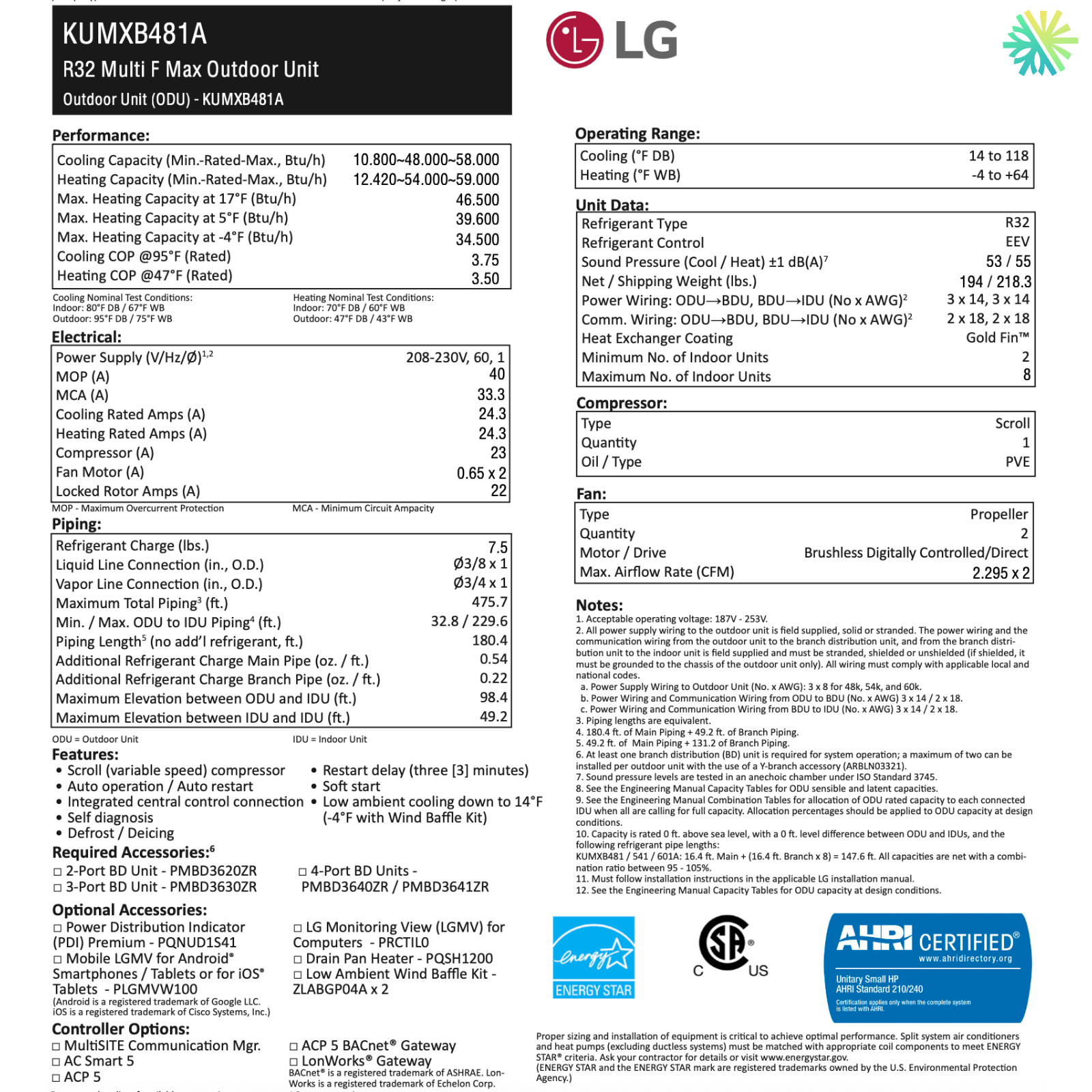

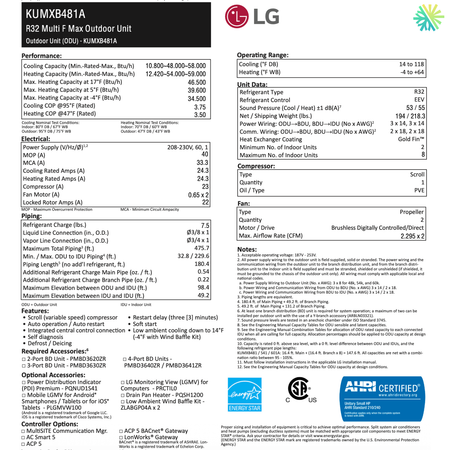

System identity and key points

• Outdoor model: UMXB481A

• Refrigerant: R-32

• WiFi included

• ENERGY STAR®: Yes

• Configuration: up to 5 zones (with compatibility for multiple indoor unit models)

In typical use, WiFi becomes a concrete advantage: quick adjustments, schedules, remote management when the house is empty, and easy correction of seasonal settings.

Heating and air conditioning: what this means in real-life use

• Cooling: 48,000 BTU (nominal cooling capacity)

• Heating: designed to maintain comfort in cold weather and operate within a range suitable for our climate

In the daily life of a homeowner, the issue is rarely "will it heat up to an extreme temperature on a specific day", but rather:

• Do the parts remain stable when it is cold for several days in a row?

• Does the air conditioning remain comfortable when the floor overheats?

• Does the system prevent large discrepancies between zones?

This is precisely where multi-zone heating becomes an advantage: the house is not a single room. Thermal behavior changes depending on the floor, orientation, insulation, windows, and the use of the rooms.

Productivity and efficiency: key takeaways

Beyond the figures, effectiveness is reflected in:

• Less unnecessary consumption (we avoid "forcing" everywhere when only certain areas need it)

• Better control over periods of vacancy (e.g., lowering office space on weekends)

• Fine-tuning to maintain comfort without excess

When we design a multi-zone system, we look for the point where efficiency and comfort align: a well-configured system doesn't need to be aggressive to be efficient.

Noise level: a major criterion in urban areas

From an acoustic standpoint, a multi-zone outdoor unit must be positioned intelligently. In several Montreal neighborhoods, the environment amplifies the sound:

• enclosed backyards

• reflective brick walls

• stairs and balconies that act as a “sounding board”

• proximity to neighbors

At AirGreen, we take a pragmatic approach to noise: it's not just about the number, it's about location, mounting (floor slab vs. wall mount), clearances, and the direction of air discharge. A good installation strategy can reduce perceived noise, even when the system is operating at high load.

Electrical: the part that is never left to chance

A multi-zone system of this capacity requires serious verification.

• voltage and compatibility

• panel capacity

• space for circuit breaker and protection

• compliance and safety

On-site, we take the time to validate these points right from the assessment stage. A successful installation is also an electrically “clean” installation: clear, compliant, and easily serviceable.

Choosing the indoor units: the true “personalization” of multi-zone heating

One of the major advantages of this LG platform is the ability to create a configuration tailored to the rooms. Indoor units of different capacities (depending on compatible models) can be combined to better suit the specific needs of each room.

• Small rooms: more modest units

• Large living spaces: more generously sized units

• Basement: choice adapted to the intended use (family room, gym, office, etc.)

At AirGreen, our approach is to avoid two common pitfalls.

Trap 1: putting “the same thing everywhere”

Some properties don't have equivalent rooms at all. Putting the same capacity in every room can create areas with excessively high and others with insufficient capacity. The result: unnecessary cycles, discomfort, and complicated settings.

Trap 2: Oversizing small rooms

An overly powerful unit in a small room can lead to more frequent starts and stops and a less stable feel. Our goal is to achieve a consistent, even temperature.

Piping, lengths, elevations: what it really changes

Multi-zone climate control requires strict adherence to driving procedures.

• optimized route

• consistent lengths between branches

• compliance with total length limits and elevation differences

• mechanical and aesthetic protection

In reality, this point is crucial. We've seen installations where pipes have been forced through difficult routes, without any service logic, resulting in exposed or unsightly passages. Conversely, clean, protected, and well-placed piping facilitates maintenance, improves durability, and provides a significantly more professional final result.

At AirGreen, we pay particular attention to:

• the direction of the exits

• access to service valves

• protection against snow, ice and impacts

• condensate drainage (to prevent water from where it shouldn't be)

• visual integration (properly aligned pipe covers, solid fixings)

R-32 refrigerant: a modern choice, but one that requires rigorous installation

R-32 is now a common refrigerant in modern systems, largely due to its efficiency and reduced environmental impact compared to older generations. For the homeowner, the key is simple: the installation quality must be impeccable.

This means:

• clean and controlled soldering

• serious vacuum pull

• leak tests

• full commissioning

• Clear and explained settings

A multi-zone system is a sophisticated system: it deserves a commissioning that matches its design.

Real-life scenarios: where this configuration becomes a clear advantage

We like to link systems to concrete situations, because that's exactly how homeowners experience their comfort.

1) Duplexes/triplexes in Montreal: areas that react differently

In several duplexes/triplexes, marked differences are observed:

• very sunny front facade

• more shaded rear

• floors that accumulate heat

• closed rooms vs open area

With a 5-head multi-zone heat pump, the zones can be adjusted according to the building's specific characteristics. In practice, this reduces common complaints such as: "it's too hot upstairs," "it's cold downstairs," and "we can't agree on the thermostat setting."

2) Cottage in Longueuil/Boucherville: habitable basement, warm upper floor in summer

The basement often becomes a living space. If treated as a secondary area, it's often uncomfortable. With a dedicated space, you can have a pleasant basement without over-air-conditioning the main floor.

3) Renovated house in Laval: extension or added rooms

An extension changes the thermal behavior of a house. Multi-zone heating allows this new reality to be integrated without "forcing" the entire building. The extension is treated as a self-contained zone, with a suitable internal unit.

Common mistakes to avoid (and how we avoid them)

Here are the errors we most often encounter during rework or optimization.

1) Define the "random" zones

A good zone is not just a room: it is a coherent space according to use, door openings, air circulation and habits.

2) Neglecting the location of the outdoor unit

A poorly positioned outside group can:

• increase perceived noise

• complicate the interview

• experience snow/ice accumulations

• expel the air in an unfavorable direction

3) Choosing indoor units based solely on price

In a multi-zone system, the choice of indoor units influences comfort, stability, and user experience. Our role is to align the choice with actual needs, not with a "standard" approach.

4) Forget the service logic

A system must be installable… but also maintainable. Access to components, routing of conduits, electrical organization: all of this counts for durability.

Our AirGreen method: a multi-zone installation designed as a complete project

At AirGreen, we treat a multi-zone installation as a coherent whole, not as a series of independent “small installations”.

Our approach includes:

• Building analysis (volumes, floors, orientation, windows, insulation)

• Defining zones according to actual use

• Selection of compatible indoor units, logically sized

• Planning driving routes and protective measures

• Electrical verification and compliance

• Clean and documented installation

• Complete setup, explanations and usage recommendations

And because customer experience matters as much as technology:

• Free on-site estimate

• Transparent pricing (final offer before work begins)

• Experienced professional refrigeration technicians

• Payment is only made at the end, when the customer is satisfied.

Warranty and service: what makes the difference after installation

The advertised warranty (compressor, parts, etc.) is one thing, but the reality of after-sales service depends primarily on:

• the quality of installation

• the clarity of the configuration

• ease of access for interventions

• project documentation (models, configuration, technical photos)

A properly installed multi-zone system is generally easier to diagnose and optimize if adjustments are needed. That's why we focus on a structured installation and clearly explained settings for the homeowner.

Summary: For whom is the LG MULTI F 48,000 BTU an excellent choice?

This LG MULTI F R32 5-Zone Heat Pump | 48,000 BTU Compressor is particularly suitable when:

• The house has several levels or a habitable basement.

• some rooms overheat in the summer

• Comfort varies greatly from one area to another.

• we want to avoid multiple outdoor units

• We want precise, piece-by-piece control.

When properly designed and installed, it offers stable comfort, intelligent zone management, and a simpler, more consistent user experience on a daily basis.

Contact AirGreen for a free on-site estimate, to validate the ideal configuration (zones and indoor units), and to receive a clear and professional proposal for your property in Montreal, Laval, Longueuil, on the North Shore or the South Shore.

Warranty: 10 years on the compressor, 10 years on parts and 6 years on labor, straight from the distributor.
