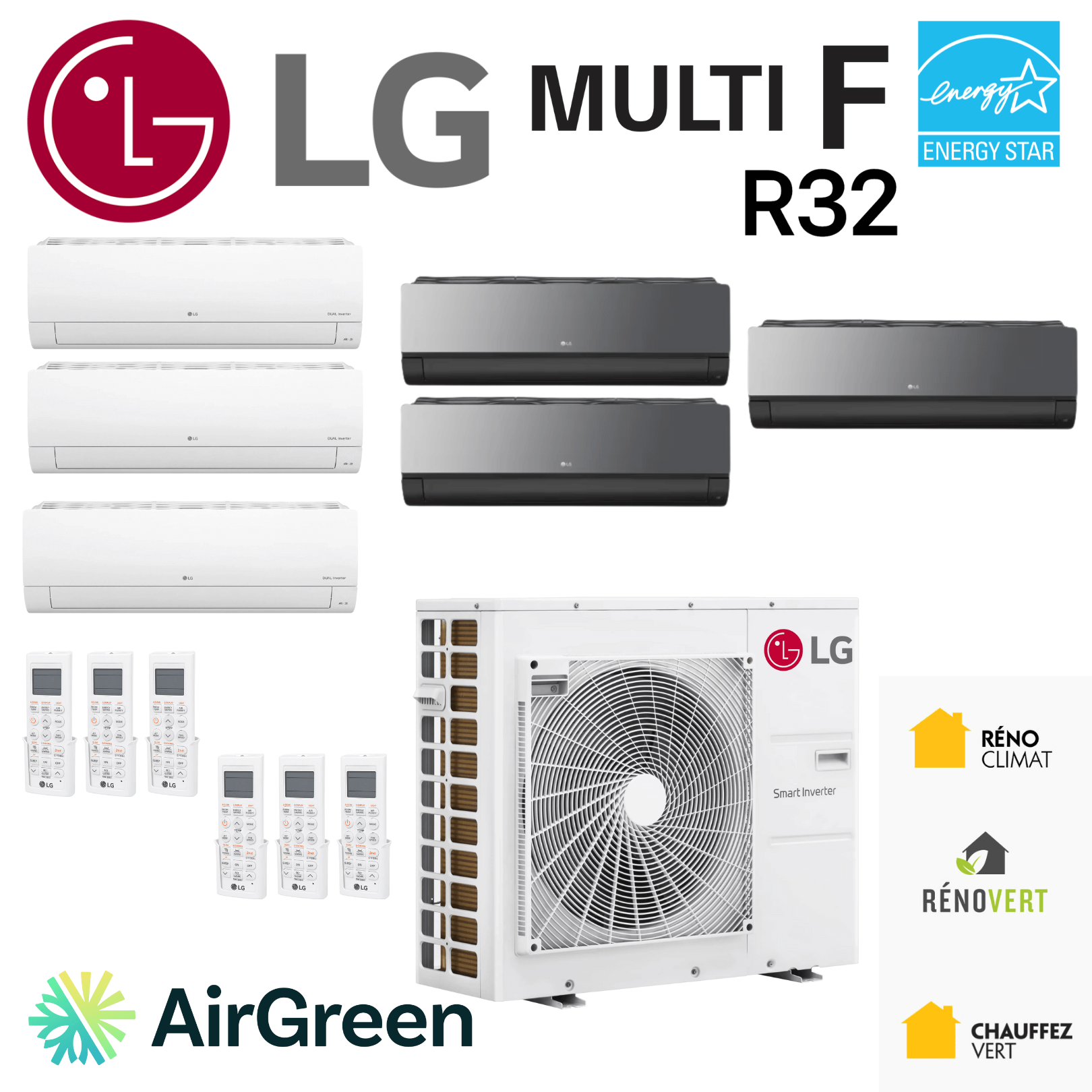

LG MULTI F R32 6-Zone Heat Pump | 48,000 BTU Compressor

When 6 zones become a real HVAC project: the Multi F logic, AirGreen version

In Greater Montreal, multi-zone heating and cooling is not a trend: it's a direct response to the reality of buildings. We see the same scenarios week after week: multi-story houses where heat is concentrated upstairs, duplexes where a cold facade creates temperature variations, glazed rear extensions that overheat in the sun, basements with higher humidity, enclosed offices that require quiet, long rooms where air circulation is poor… Under these conditions, a single wall unit cannot do everything properly, and multiplying outdoor units quickly becomes a headache (regulations, aesthetics, floor space, air circulation, neighbors, maintenance).

The LG MULTI F R32 6-Zone Heat Pump | 48000 BTU Compressor (outdoor unit UMXB481A , AHRI 215402339 ) falls squarely into the category where multi-zone technology truly shines: a robust outdoor unit , then intelligent distribution to multiple zones for consistent comfort and precise control. It offers:

• Cooling capacity: 48,000 BTU

• Heating: advertised capacity down to -16°C

• Gas: R-32

• WiFi: included

• ENERGY STAR®: Yes

• Efficiency indicators displayed on your datasheet: SEER2 , HSPF2 , EER2 , COP at -8°C

• 6 zones (with an architecture that can accommodate up to 8 zones depending on the configuration)

• Voltage: 220 V

• Electrical protection: MCA 34 A / MOP 40 A

• Displayed outdoor noise level: 55 dB(A)

• Warranty (Compressor – Parts – Labor): 10-10-6 years (extended warranty available)

• LogisVert provincial subsidy: $1690 (update indicated: November 26, 2025)

What makes this model interesting is not just the power: it is the way in which this power is distributed and used in a real project in Montreal , Laval , Longueuil , on the North Shore and the South Shore .

Who is this system really designed for?

A 48,000 BTU multi-zone heater becomes relevant when rooms have different usage patterns or heat loads. Some typical scenarios:

• 2-story single-family home + basement : open area on the main floor, bedrooms upstairs, cooler basement.

• Renovated plex : partitioned rooms, variable ceilings, uneven insulation.

• Condo : large main room + two closed bedrooms, where silence at night is essential.

• Small business : reception and open area + offices + break room, with irregular occupancy.

• Extension : new room with many windows which unbalances the whole.

In these cases, the promise of multi-zone is simple: stop “over-processing” one part to correct another .

The most important benefit: uncompromising, room-by-room comfort

A well-designed multi-zone system changes the perception of comfort. Instead of having an "acceptable" temperature everywhere, you get a predictable and stable temperature where people actually live.

• In the living room: a rapid increase in comfort, without the feeling of a constant draft.

• In the bedrooms: gentler regulation, with a clear objective: to sleep peacefully .

• In an office: a self-contained area, useful for teleworking, without modifying the entire building.

• In a basement: an approach that combines comfort and humidity management, without overheating the upper floor.

Why R-32 matters (and what it changes for the user)

R-32 is a modern choice: it allows for a more contemporary approach to performance and efficiency, while also aligning with a market shift towards refrigerants with a reduced environmental impact. For a homeowner, the benefits are primarily twofold:

• A solution compatible with current trends in the HVAC industry

• A more sustainable equipment strategy, particularly when investing in a long-term multi-zone system

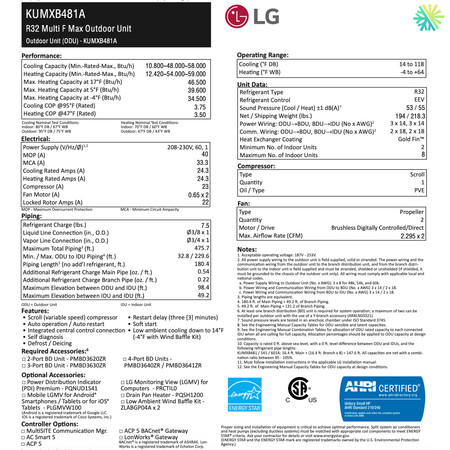

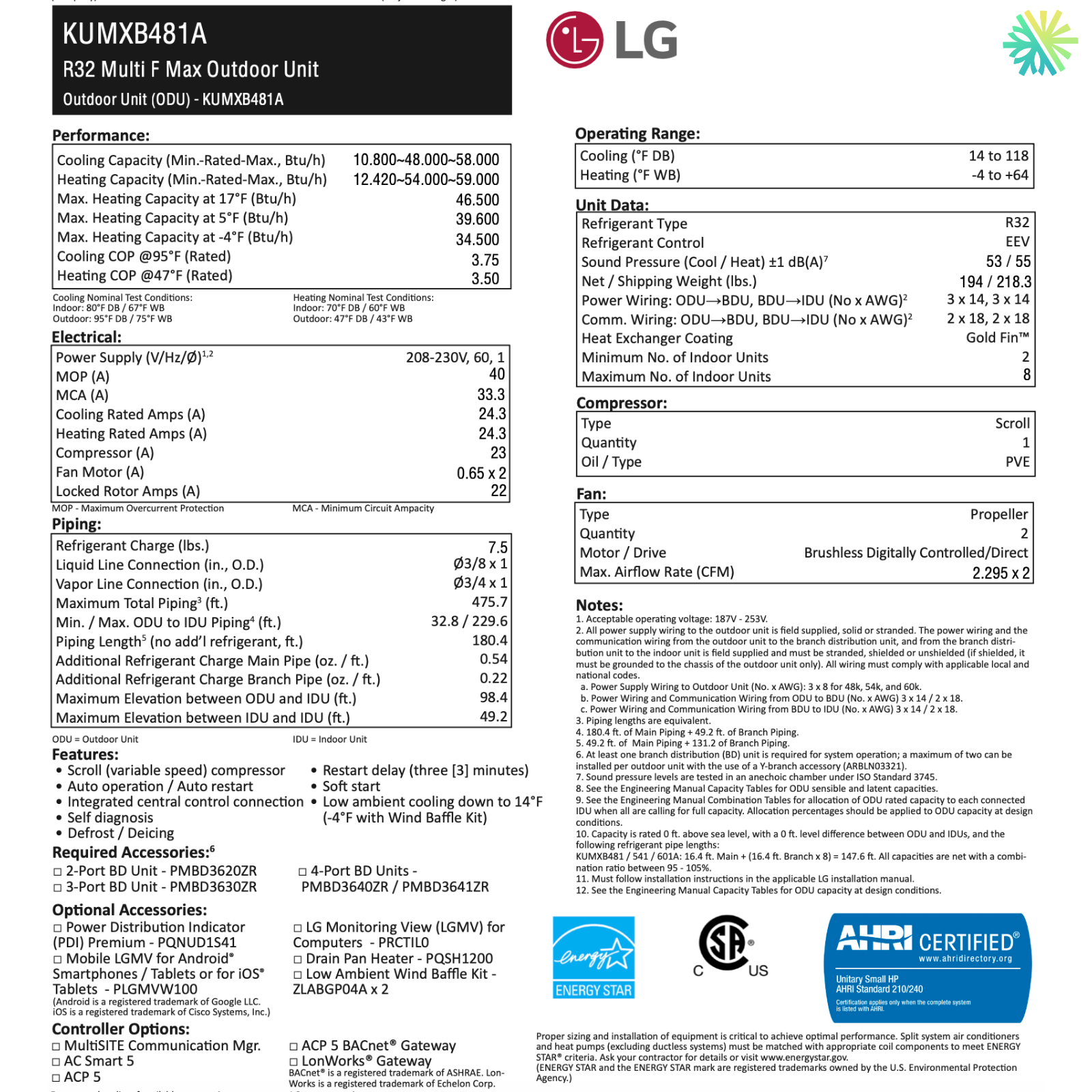

The specifications that guide a real purchasing decision

In a multi-zone system, some figures are more crucial than others. Here are the ones that guide the design and installation:

• UMXB481A : 48,000 BTU outdoor unit

• Zones: 6 (possible configurations of up to 8 indoor units depending on choice and layout)

• Power at -8°C: 33,800 BTU (displayed)

• Power at -15°C: 37,800 BTU (displayed)

• Outdoor noise level: 55 dB(A) (displayed)

• MCA 34 A / MOP 40 A (displayed)

• External dimensions: 37.41 x 15.66 x 54.34 in

• WiFi included

• 10-10-6 year warranty

This data provides a framework. Then, everything hinges on the design: selection of indoor units, zone allocation, piping routes, layout, drainage, electrical, service access, and quality of commissioning.

Indoor units: the flexibility that makes all the difference

The product sheet indicates several possible interior models (depending on the areas and needs), including: KNUAK091A, KNUAK121A, NUAK181A, KNMAB071A, KNUAB091A, KNUAB121A, KNMAB151A, KNUAB181A, KNMAB241A .

The advantage is being able to create a customized system:

• a unit suitable for a bedroom (priority: silence and stability)

• a unit suitable for a large room (priority: airflow and coverage)

• a unit suitable for a secondary space (priority: independent control, occasional use)

The golden rule: the zones must reflect the life of the building , not just its plan.

A point often misunderstood: 6 zones does not mean 6 times the same thing

We regularly encounter projects where the goal is "one zone per room" without any nuance. This isn't always optimal. A zone can be:

• a room

• two small adjoining rooms if usage is consistent

• a living/dining room combination if the air circulates naturally

• a full basement if the thermal load is homogeneous

The goal is to avoid a system that fluctuates: too strong in one zone, too weak in another. A multi-zone system must remain stable ; otherwise, comfort becomes inconsistent and fuel consumption increases.

Realistic case study: a typical daily life in Montreal

Let's take a very common situation: a house in Montreal with an open-concept main floor, two closed bedrooms upstairs, and a finished basement. The initial complaint often sounds something like this:

• “The living room is fine, but the upstairs is always different.”

• “The basement remains damp and cool.”

• “At night, we want quiet in the rooms, not aggressive ventilation.”

• “In the summer, the rear extension becomes a greenhouse.”

The multi-zone system precisely addresses these friction points. By distributing the zones according to their use (and not solely according to the layout), we obtain:

• consistent comfort every day

• a calmer night

• independent control of sensitive parts

• improved control of glazed parts

Common mistakes we avoid from the design stage

A multi-zone system can be extraordinary… or disappointing, if the design is flawed. Here are the most costly mistakes:

• Oversizing rooms : short cycles, sensation of variations, perceived noise, unstable comfort.

• Undersizing the open area : the main area “pulls” the whole system, the other areas suffer.

• Ignoring orientation and fenestration : a room facing south does not have the same load as a room facing north.

• Creating too many ultra-small zones : this multiplies conflicting needs, instead of stabilizing them.

• Choosing an outdoor location without thinking : air recirculation, snow, vibration, neighbors.

On a 48,000 BTU multi-zone unit, good design is noticeable in three areas: stability , perceived silence , and intuitive control .

Multi-zone installation: what we do differently to avoid returns and maximize reliability

A multi-zone installation is not “six installations”

It's a single, complex installation where everything is connected: piping, distribution, drainage, cabling, control, and commissioning. The goal is to deliver a system that:

• heats and cools as expected

• remains silent and stable

• is easily diagnosed

• It can be maintained without unnecessary disassembly.

• complies with building standards and constraints

1) The on-site survey: the basis of everything

Even with a very comprehensive technical specification, we must look at the reality:

• distances between areas

• access to walls, ceilings, technical voids

• possible location for the outdoor unit

• aesthetic constraints (facade, alley side, co-ownership)

• electrical panel and available capacity

• Condensate management (where do the drains go?)

It is often at this stage that unpleasant surprises are avoided: a pipe route that seemed simple on the plan can be complicated in reality (beams, bricks, finished ceilings, existing conduits).

2) Choosing the outdoor location: performance + neighborhood

A 48,000 BTU multi-zone heater needs to breathe. Poor placement can create:

• air recirculation

• performance losses

• perceived noise higher

• accumulation of snow or ice

• Difficult access to the service

We favor a layout that protects the unit, maintains good clearance, and minimizes the impact on the neighborhood. In Montreal, this is particularly important in narrow alleyways, or when the backyard is close to bedroom windows.

3) Snow, de-icing and runoff management

In Quebec's climate, winter is not a minor detail: it's a season of normal operation. The outdoor unit defrosts. This involves:

• defrosting water to manage

• Risk of ice on the ground if drainage is not planned

• need for sufficient clearance

• choice of a robust support (wall, slab, structure) depending on the site

Good support and flow management prevent recurring problems (ice, vibration noise, instability, difficult maintenance).

4) Piping: cleanliness and logic before speed

In a multi-zone system, the piping is the circulatory system. We prioritize:

• logical paths, without unnecessary detours

• clean passages (finishing, pipe covers, sealing)

• a reduction of vibrations (fixings, mechanical protection)

• a service-oriented approach: access, diagnose, intervene

In Laval or on the North Shore, we often see houses with easier basement access: more "technical" and very clean routes are possible. In some central Montreal areas, brick walls, tight spaces, and facade constraints must be considered. The method adapts, but the standard remains the same: a durable and clean installation.

5) Drainage of indoor units: an underestimated point

During cooling, the indoor units produce condensate. Poorly designed drainage can cause:

• repression

• smells

• traces on the wall

• complicated interview

We plan systematically:

• the drain path

• the slope

• frost protection (if applicable)

• long-term reliability, not just "so that it sinks"

6) Electrical: safety, compliance and margin

With 220 V , a 34 A MCA , and a 40 A MOP , we're talking about a system that needs to be properly powered. A well-designed circuit is:

• appropriate protection

• correctly sized wiring

• clean and watertight connection

• execution that facilitates maintenance

In some older buildings in Montreal, panel analysis is essential: it prevents "forcing" an installation to operate at an uncertain electrical capacity. On the South Shore, you sometimes see newer panels, but it's still necessary to verify the actual load, especially when the building has other energy-intensive equipment.

7) Commissioning: where quality is visible

A multi-zone system is not simply a matter of “install and go”. The commissioning process must confirm:

• the behavior of the zones

• temperature stability

• the response from the internal units

• the proper functioning of the controls

• the absence of vibration and abnormal noise

• consistency of settings (e.g., gentler ventilation for bedrooms)

This step is often what transforms a decent installation into a truly pleasant one to live in.

8) Noise: figures vs. perception

An outdoor noise level displayed at 55 dB(A) gives an idea, but perception depends mainly on:

• the surface behind the unit (brick, fence, wood)

• the distance to the windows

• the support (wall, slab, structure)

• anti-vibration devices

• air circulation

Our goal is to reduce perceived noise, not just meet a specific number. Intelligent placement and stable mounting make a huge difference.

9) Field experience: 6 zones, finally “predictable” comfort

In a typical project (2 floors + basement), the difference is quickly noticeable when the design is well done:

• the upper floor no longer “detaches” from the ground floor

• The basement becomes more comfortable without overheating upstairs.

• the rooms remain stable at night

• The open area no longer overwhelms the other areas

This result comes from a simple logic: the zones are sized according to real needs, and the system is not forced to compensate constantly.

10) Maintenance and longevity: what we explain clearly

A multi-zone system is reliable when it is simply maintained. The essential steps:

• Indoor unit filters : regular cleaning (depending on usage, dust, pets)

• Outdoor clearance : snow, leaves, ice, obstacles

• Drain inspection : preventing backflow and odors

• AirGreen preventative maintenance : inspection, operational check, performance validation, and usage advice

Maintenance prevents drops in efficiency and protects comfort over the seasons.

Why choose AirGreen for an LG Multi F 48,000 BTU multi-zone heater?

A 6-zone system isn't purchased like a "standard" unit. It's a complete HVAC project where the quality of design and execution makes all the difference. At AirGreen, we focus on:

• a structured approach (areas, use, real constraints)

• a clean and durable installation (finish, service, reliability)

• a thorough commissioning (stability, adjustments, actual comfort)

• clear follow-up (maintenance, advice, continuity)

We serve Montreal , Laval , Longueuil , the North Shore and the South Shore , with the same requirement: to deliver a multi-zone system that is forgotten on a daily basis… because it works simply, efficiently, and without compromise.

Next Step

For a free on-site estimate , a comprehensive recommendation (zone allocation, indoor unit selection, layout, electrical requirements, expected performance), and a clear installation plan, contact AirGreen Heat Pumps, Air Conditioning & Heating . We will guide you toward a coherent, reliable, and optimized multi-zone configuration for your building.

Warranty: 10 years on the compressor, 10 years on parts and 6 years on labor, straight from the distributor.
