LG TripleZone MULTI F R32 Heat Pump | 24000 BTU Compressor

A multi-zone heat pump designed for the realities of buildings in and around Montreal

In Greater Montreal, the most frequent request we hear isn't "I want the biggest machine," but rather: "I want to stop managing rooms that don't match." A living room with lots of windows that heats up in the sun, an upstairs bedroom that becomes uncomfortable in the summer, a closed office for teleworking, a basement that stays cool… These discrepancies are typical in Montreal , Laval , Longueuil , on the North Shore and the South Shore , especially in duplexes/triplexes, renovated bungalows, and open-concept houses.

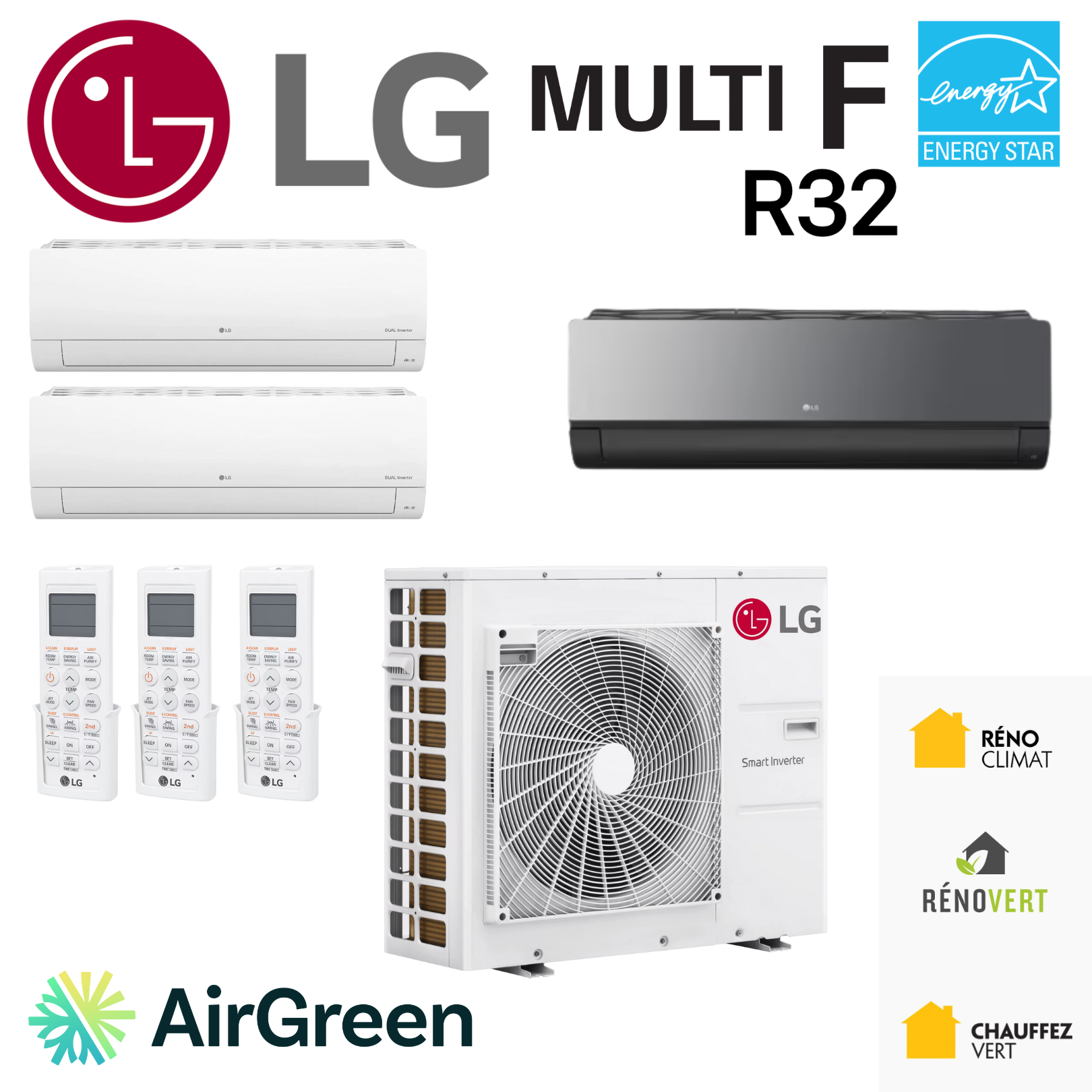

The LG MULTI F R32 TripleZone Heat Pump | 24000 BTU Compressor (outdoor unit KUMXB241A ) precisely meets this need: a single outdoor unit and up to three independent indoor zones . In practical terms, this allows you to:

• stabilize comfort room by room instead of “heating/cooling the whole house”;

• limit temporary solutions (noisy portable air conditioners, permanent auxiliary heating);

• reduce external bulk (one unit rather than several);

• to obtain a coherent, clean system, better suited to actual use.

Several elements on your product page are already very telling for a serious buyer: WiFi included , AHRI: 214848483 , ENERGY STAR®: Yes , R-32 refrigerant, 220V voltage , MCA 17A / MOP 20A (according to the data displayed on your page), as well as a 10-10-0 warranty (compressor/parts/labor). Also noteworthy is the LogisVert provincial subsidy of $765 (as of November 26, 2025), which can influence the net cost depending on the project.

Why “TripleZone” is changing the way we heat and cool

A multi-zone heat pump doesn't operate on the same principle as a 1:1 system (one indoor unit, one outdoor unit). Here, the goal is to optimize comfort according to the use of each room.

Concrete examples of situations where TripleZone makes a real difference:

• Bedroom + living room + office : the bedroom remains stable at night without putting stress on the living room.

• Ground floor + upper floor + basement : we correct the natural differences in heat stratification.

• Open area + 2 closed rooms : we stop blindly compensating with baseboards.

• Duplex/triplex : finer management of living areas, even when rooms are separated.

In practice, this translates into a simpler routine: we no longer constantly "play" with thermostats, we adjust a zone according to the need, and we avoid permanent compromises.

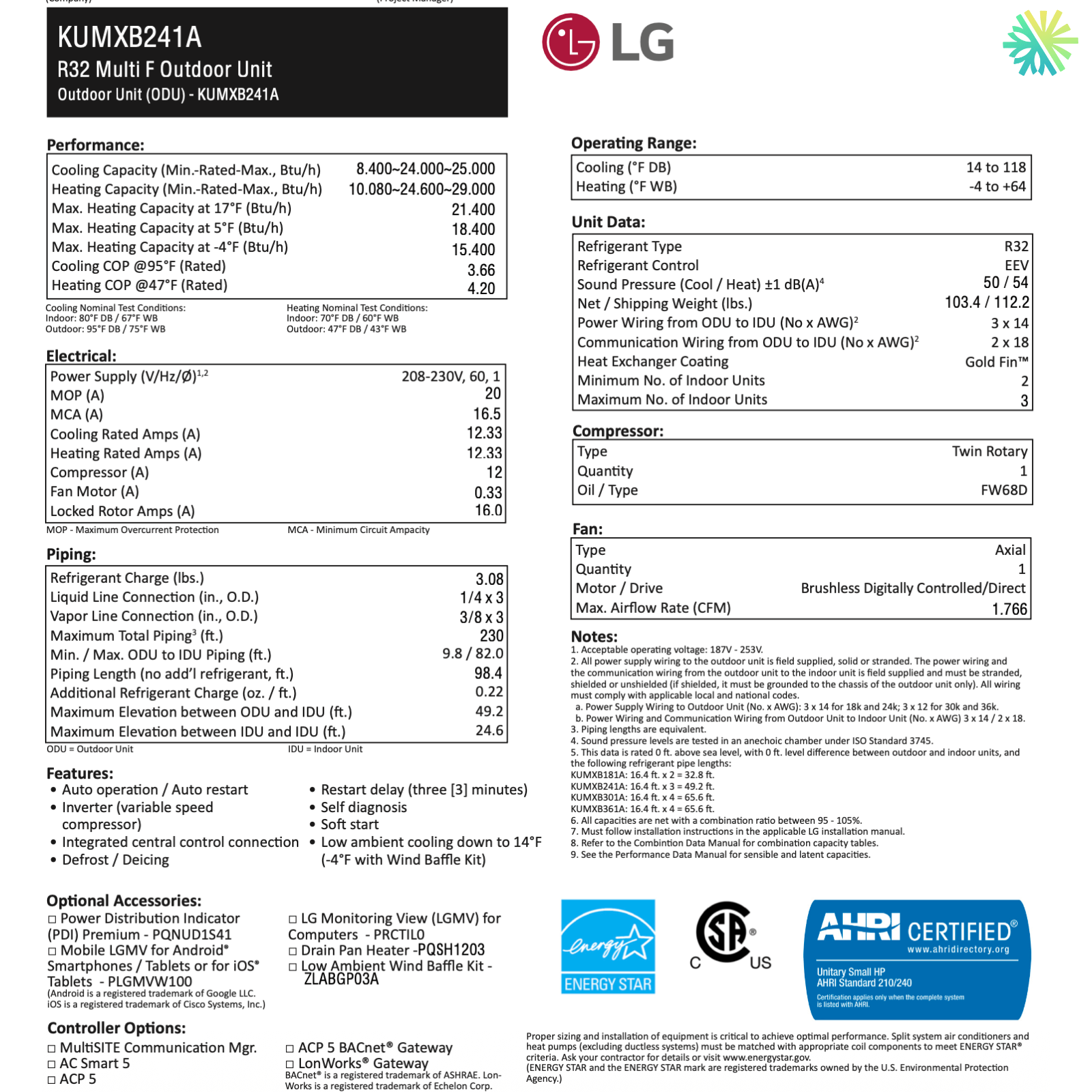

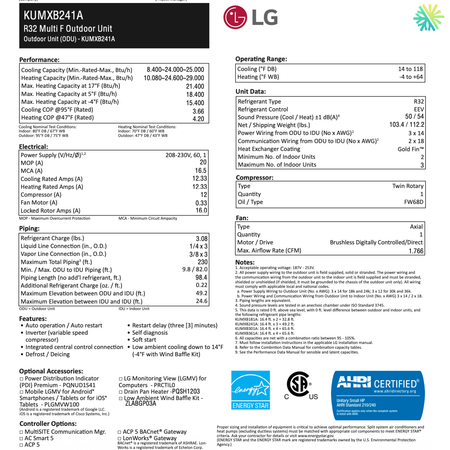

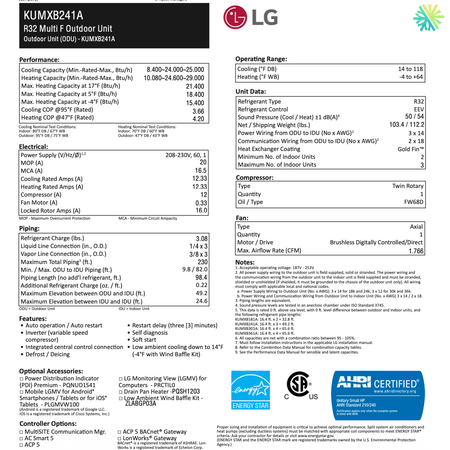

Capabilities and useful technical data (no fluff).

This model is positioned within an interesting performance range for a multi-zone residential project:

• Nominal cooling: 24,000 BTU , with a maximum capacity that can increase (depending on conditions).

• Gas: R-32 , a modern refrigerant, very common in current product ranges.

• Possible indoor units (depending on your page): KNUAK091A, KNUAK121A, NUAK181A, KNMAB071A, KNUAB091A, KNUAB121A, KNMAB151A, KNUAB181A . This allows for a "tailor-made" composition according to the rooms.

• External dimensions (depending on your page): approximately 34.25 x 15.19 x 25.59 in .

• Outdoor noise level (depending on your page): approximately 54 dB(A) .

What matters to a homeowner isn't just the technical specifications: it's the consistency between zones, the quality of the installation, and the final settings. Multi-zone systems are less forgiving of inaccuracies. That's also why on-site assessment is so valuable.

Choosing the right indoor units: our field method

A TripleZone system truly excels when the selection of indoor units reflects the building's specific characteristics. At AirGreen, we always consider:

• Orientation and solar gain : a south-facing room in Boucherville or Pointe-Claire does not behave the same way as a room in the shade.

• Actual insulation : a partial renovation in a Villeray plex can have a very variable envelope from one room to another.

• Closed doors : a bedroom closed at night needs dedicated control, not "air pushed" from the living room.

• Acceptable internal noise : an office area often requires quiet and stable operation.

• Lifestyle habits : teleworking, children, unoccupied rooms, schedules, etc.

Our approach is simple: size to reduce differences, not to create a feeling of “cold blast” in air conditioning or “aggressive blast” in heating.

Multi-zone installation: the details that prevent problems later

A multi-zone HVAC system is more technically complex than a 1:1 system, primarily due to the piping, cumulative lengths, elevation changes, and the required refrigerant charge. Without getting into formulas, here's what this means in practice:

• Piping routes : the more areas there are, the more important the planning becomes (passages, chutes, drilling, external aesthetics).

• Length management : we avoid “detours” which complicate balancing, while respecting the constraints of the building.

• Elevation changes : in a multi-story house, the positioning of the outdoor unit and the trajectory of the lines become strategic.

• Drainage : each indoor unit has its own requirements; a well-designed drainage system prevents odors, backflow, and repeated interventions.

• Service access : we install for today, but also for future maintenance (and to reduce intervention time).

In Montreal , one of the frequent challenges is space: outdoor stairs, alleyways, narrow backyards, and close neighbors. On the North and South Shores, constraints related to terrain, snow, and clearances are more common. In both cases, a well-thought-out installation makes all the difference.

Noise and neighbors: how to preserve peace and quiet

The perceived noise level doesn't depend solely on the rating on the product sheet. It depends heavily on the installation. We systematically check:

• the distance to walls and reflective surfaces;

• vibration transmission (support, anchoring, surface);

• the orientation in relation to the bedroom windows;

• managing airflow and snow/ice accumulation in winter.

In certain Montreal neighborhoods (shared courtyards, close neighbors), we prioritize locations that protect tranquility. In Laval or Longueuil , acoustic comfort can sometimes be improved simply by optimizing orientation and support. These are details, but they are details that matter every day.

Two real-life scenarios we often see (and how TripleZone helps)

Scenario 1: Plex in Montreal with closed rooms
In a typical duplex (kitchen/living room on the ground floor, separate bedrooms, hallways), one often observes:

• a hot living room in summer because of the windows;

• a room that is too cold or too hot depending on the season;

• an “intermediate” part that is difficult to adjust.

A properly configured TripleZone allows these spaces to be treated as real zones. The result: fewer discrepancies, fewer constant adjustments, and more stable comfort.

Scenario 2: House in Laval with a warmer main floor and a cooler basement
Here, the problem is a classic one:

• the floor needs more intensive air conditioning;

• the ground floor is swaying;

• The basement remains cool, but can become damp.

With three zones, we can balance without "forcing everything". In summer, the upper floor receives the necessary attention; in winter, we stabilize the occupied zones without over-consuming in the secondary spaces.

Common mistakes to avoid with a TripleZone system (the real experience gain)

We emphasize these points because they are frequent sources of dissatisfaction, even with a good machine:

1. Installing three indoor units without considering their use
   Three zones are not automatically “better”. Each zone must meet a clear need.

2. Underestimating the impact of closed doors
   A closed zone requires a dedicated strategy. Otherwise, we compensate with extreme temperatures.

3. Neglecting drainage and access
   A difficult-to-maintain installation becomes costly in the long run. We install systems to make maintenance simple.

4. Thinking that all parts must be identical
   The goal of a multi-zone system is precisely to accept that the house is uneven and to make it comfortable despite that.

5. Ignoring exterior aesthetics
   In Montreal and several areas of the South Shore , appearance (ducts, pathways, finish) really matters. A clean installation is noticeable.

HVAC Maintenance: What Protects Performance Year After Year

A multi-zone system is reliable when it is maintained logically. We recommend:

• Regular cleaning of indoor unit filters (especially during peak season).

• Check for clearances around the outdoor unit (leaves, snow, ice).

• Watch for simple signs: reduced airflow, new noise, persistent odor, sudden temperature changes.

• Periodic HVAC maintenance to validate the general condition (drainage, connections, cleanliness, operation).

An important point: in a multi-zone system, a localized problem (a heavily clogged filter in a single room, a partially blocked drain) can give the impression that "the system is underperforming." Often, the solution is simple when addressed early.

Why AirGreen is a good choice for an LG MULTI F Triple Zone installation

Installing an LG TripleZone MULTI F R32 heat pump requires more than a standard installation: it requires planning the zones, managing piping and aesthetic constraints, validating the electrical system, and adjusting the system to be comfortable to live in.

At AirGreen, we operate daily in Montreal , Laval , Longueuil , on the North Shore and the South Shore , with a results-oriented method:

• selection of consistent areas;

• Clean installation and designed for service;

• settings and usage tips to avoid comfort discrepancies;

• clear guidance on subsidies and the most logical setup.

Next Step
For a quote, a Triple Zone configuration recommendation (choice of indoor units, location, constraints, electrical compatibility), or an on-site estimate, contact AirGreen . We offer a precise HVAC solution tailored to your building and your comfort priorities.
