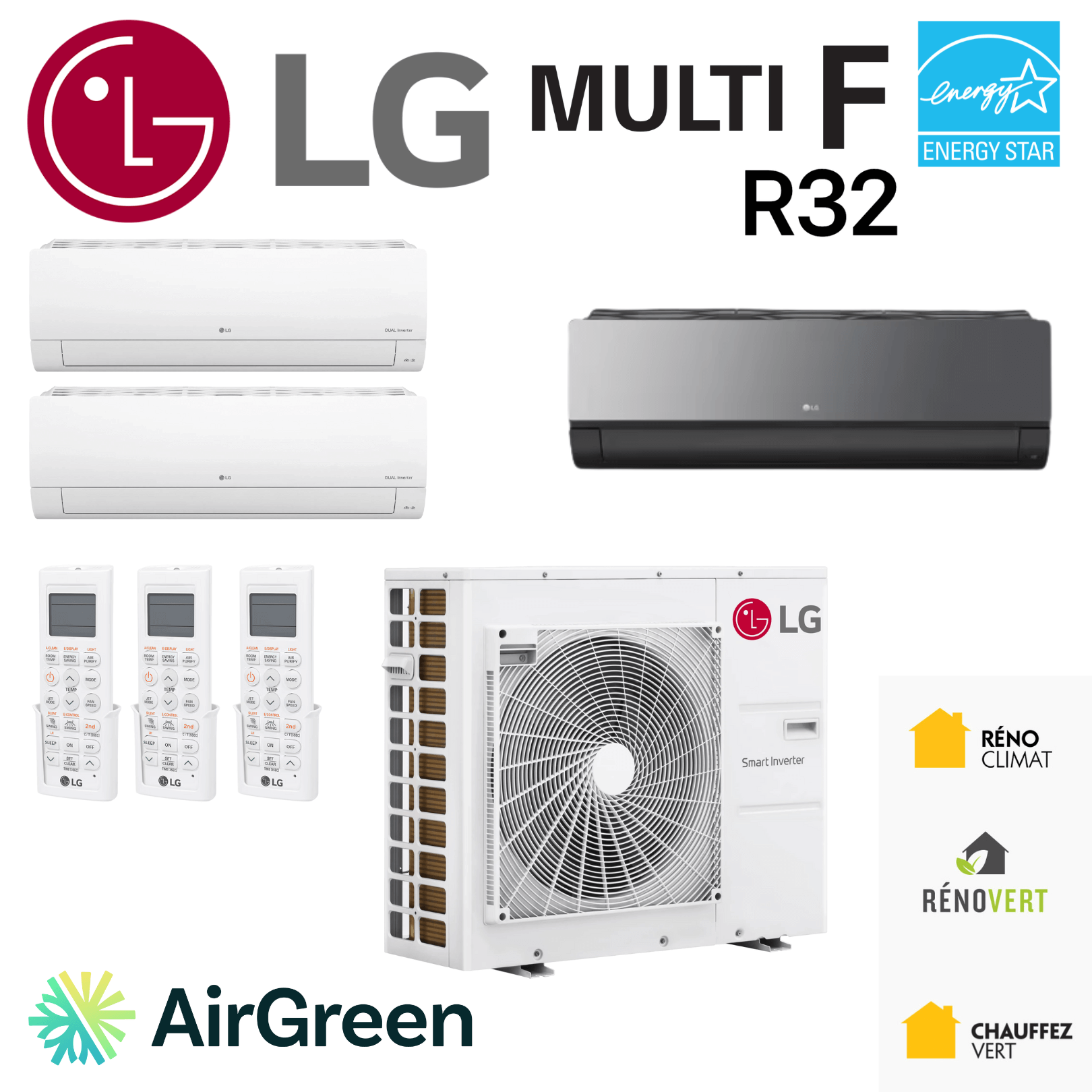

LG TripleZone MULTI F R32 Heat Pump | 30,000 BTU Compressor

Three zones (and more), one compressor: comfort that reflects the reality of homes here

In Montreal , Laval , Longueuil , on both the North and South Shores , homes don't all react the same way to the seasons: an open-concept living room that traps heat in the summer, upstairs bedrooms that become uncomfortable with the first heat waves, a closed office that cools down too quickly, or a basement that feels damp even when the temperature is normal. In these cases, a single air supply or a single, larger wall unit often results in compromises: too cold here, not cold enough there, and temperature fluctuations that recur day after day.

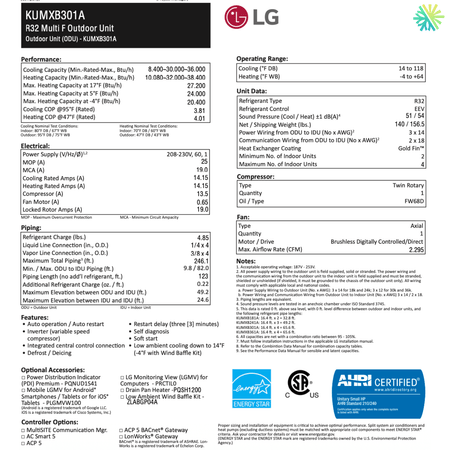

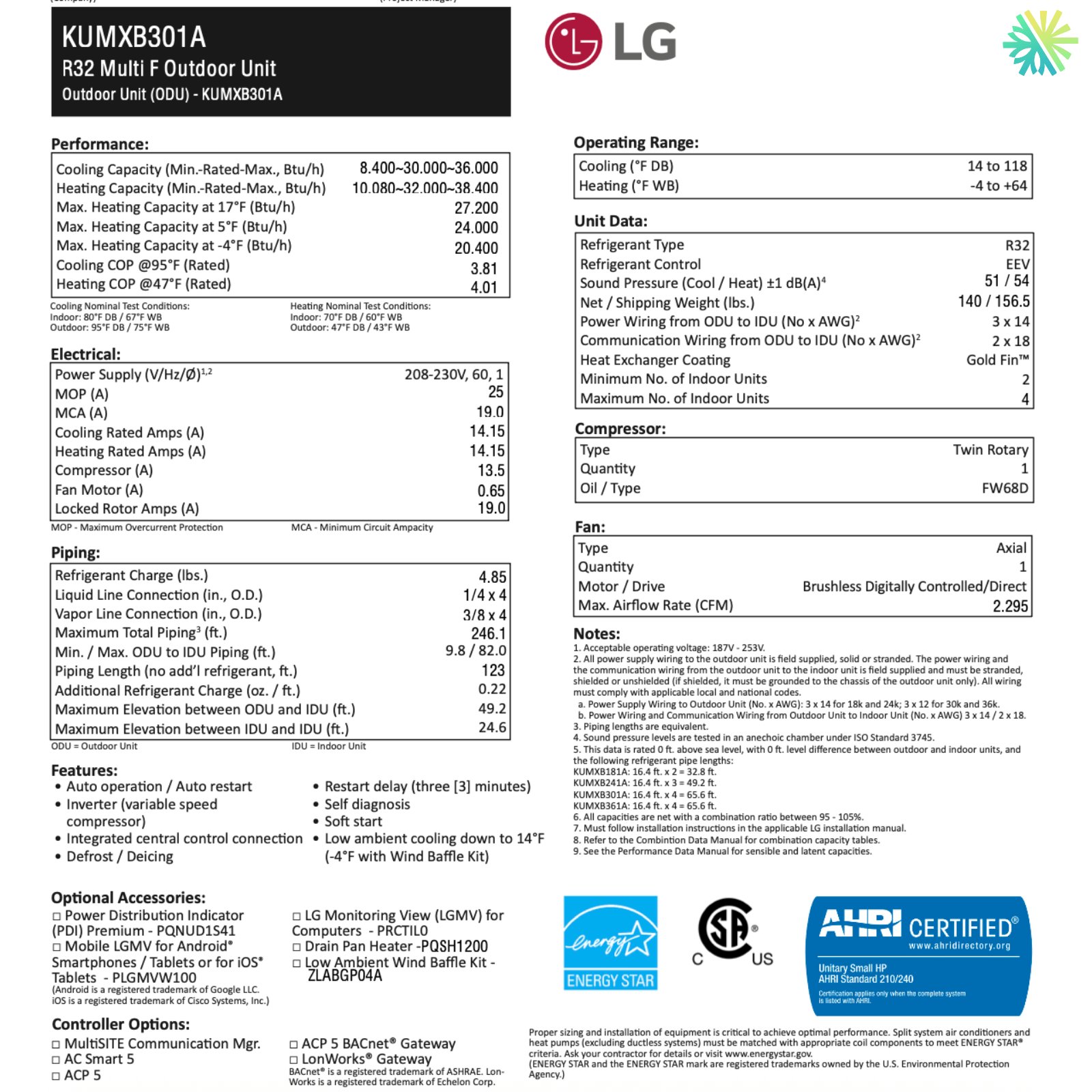

The LG MULTI F R32 Triple Zone Heat Pump | 30,000 BTU Compressor (outdoor unit KUMXB301A ) provides a structured solution to this problem: a single outdoor unit capable of stably supplying three zones , with configuration flexibility that also allows for future expansion (up to a maximum of four zones depending on the chosen design). The goal is not simply to provide air conditioning or heating, but to offer comfort in each room , tailored to lifestyle, sunlight exposure, insulation, and the rhythm of the day.

For whom is this TripleZone most relevant?

At AirGreen, we favor this type of solution when the client describes one of these realities to us:

• Multi-story house : warmer bedrooms in summer, more stable ground floor, cooler basement.

• Duplex / triplex : "difficult" rooms (rear, staircase, mezzanine), irregular air circulation.

• Teleworking : an office occupied during the day, bedrooms mainly in the evening, and needs that change from one area to another.

• Open area with large windows : significant solar load and rapid temperature variations.

• Targeted comfort without multiplying outdoor units : aesthetics, noise, courtyard space, location constraints.

What “30,000 BTU” means in a multi-zone

A 30,000 BTU capacity for air conditioning is a valuable reserve, but the key factor in multi-zone systems is the ability to modulate intelligently. A high-performance outdoor unit doesn't operate on an "on/off" basis: it adjusts its speed and power according to the actual demand of the indoor zones. In practical terms, this means:

• Improved temperature stability (fewer fluctuations).

• A more consistent feeling of comfort, even when the weather changes abruptly (frequent in Greater Montreal).

• Consumption that is more consistent with actual usage, especially when all areas are not being used at the same time.

Multi-zone explained clearly: the mechanics of comfort room by room

A multi-zone system functions like a platform: the outdoor unit produces cooling or heating, then distributes this energy to several indoor units (wall-mounted, depending on the chosen configuration). Each indoor unit has its own control, its own setpoint, and its own operating cycle.

In a typical daily life:

• In the evening, bedrooms often require more air conditioning than the living room.

• During the day, the office becomes the priority.

• On weekends, the open area can be the most busy area.

Multi-zone technology avoids unnecessarily air-conditioning unoccupied rooms, while maintaining sufficient overall power when several zones require it at the same time.

R-32: a current choice, more consistent for 2025

The choice of R-32 has a direct impact on the modern approach to HVAC systems: it is a newer refrigerant, reflecting a gradual evolution of market standards and expectations. In practice, what is most noticeable is greater consistency in newer installations: equipment designed for R-32, adapted procedures, and a performance logic that aligns with the new generation of heat pumps.

At AirGreen, we integrate this parameter right from the initial estimate: site selection, piping plan, service access, and rigorous commissioning. Multi-zone systems leave no room for error: a clean installation is the foundation of reliability.

WiFi included: only useful if used correctly

WiFi is not a gimmick when it comes to multiple zones. When used correctly, it helps to:

• Adjusting a zone remotely (e.g., reducing the air conditioning in the basement when no one is going down there).

• Harmonize instructions when the family does not have the same preferences.

• Monitor habits and avoid extreme settings (which create unnecessary cycles).

Our practical advice: in multi-zone climate control, it's better to aim for consistent settings (reasonable differences between zones) rather than pushing one zone to its maximum while the others remain at the opposite end. Comfort is improved... and the engine operates more smoothly.

Choosing the indoor units: the part that too many installations simplify

The KUMXB301A outdoor unit is only part of the equation. The success of a TripleZone system depends largely on the choice of indoor units and their distribution.

Examples of realistic (and frequent) configurations

Here are some typical combinations that we use as a basis for reflection, which we then adjust according to the house, insulation, volumes and use:

1) Open area + two bedrooms

• 18,000 BTU for the living area (living room/kitchen)

• 9,000 BTU for the master bedroom

• 7,000 BTU for a second bedroom or office

This configuration is often suitable for homes where the living area is very exposed to the sun, and where the bedrooms require quieter and more stable comfort at night.

2) Ground floor + first floor + basement

• A main wall unit on the ground floor (sized according to the open area)

• A dedicated unit on the upper floor (to prevent the air from rising improperly)

• A smaller unit in the basement (comfort + control of perceived humidity)

Here, the advantage of multi-zone is clear: each level behaves differently. A single wall unit cannot correct these three behaviors at once.

Air distribution: avoid areas that are "too direct"

A common mistake with wall-mounted units is poor placement, which directs airflow straight onto a sofa, bed, or workstation. In an AirGreen installation, air distribution is treated as a central element:

• Positioning to sweep the room, not to "blow on the occupants".

• Respect clearances to limit turbulence.

• Orienting the shutters to reduce drafts, especially in bedrooms.

In projects in Longueuil and on the South Shore , bedrooms often feature a predetermined furniture layout (windows, wardrobes, bed). A thoughtful placement avoids constant adjustments by the client and improves long-term satisfaction.

Pipe lengths and elevation differences: the reality of duplexes and narrow houses

In Montreal, many buildings require more complex pipe runs: alleyways, exterior staircases, party walls, balconies, and restricted access points. Multi-zone systems have the advantage of centralizing the exterior, but they demand rigorous pipe planning.

At AirGreen, we prepare the installation like a route:

• A clean, discreet, easy-to-maintain pathway.

• Pipe protection and neat finish.

• Drainage management and prevention of condensation risks.

An often overlooked detail: a route that is too long or poorly designed can complicate future servicing. We prioritize a design that remains accessible, because an HVAC system must be able to be maintained without unnecessary disassembly.

Noise: something we address from the moment of the site visit

The perceived noise level does not depend solely on the advertised figure. It depends greatly on:

• The surface on which the outdoor unit is placed (concrete, structure, support).

• Nearby walls that can reflect sound.

• Distance from a room, a terrace, or the neighborhood.

• From the location (corner of courtyard, alley, narrow side of house).

Our method: choose a location that minimizes resonance, properly stabilize the unit, and ensure adequate clearances for good airflow. A well-designed installation protects comfort… and neighborly relations, which is very important in an urban environment like Montreal .

Low-temperature heating: comfort and defrost management

Heating in winter isn't simply a matter of "it heats up" or "it doesn't heat up." In Greater Montreal, the main challenge is stability : maintaining a feeling of comfort despite defrost cycles, winds, and rapid temperature changes.

On a multi-zone system:

• One area may be more sensitive (e.g., a bedroom above a garage).

• Another one can remain stable (e.g., central lounge).

• The system must intelligently distribute demand, without creating temperature “roller coasters”.

Our experience: customer satisfaction is much higher when the zone design is consistent (good sizing + good placement + reasonable instructions). Defrosting then becomes a normal and minimally disruptive phenomenon, rather than a source of inconvenience.

Effectiveness: what the customer really notices

Beyond the technical indicators, the benefits most frequently cited after a well-designed TripleZone installation are:

• Fewer discrepancies between parts.

• A more comfortable sleep thanks to a stable and quiet bedroom area.

• The possibility of reducing air conditioning in unoccupied areas.

• An impression of "easy" comfort, without constant adjustments.

In Laval and on the North Shore , many houses have rooms at the front with extensive glazing. A dedicated zone allows for the correction of solar gain without excessively cooling the rooms at the rear.

Mistakes to avoid: things we regularly correct

We sometimes intervene on multi-zone installations that were carried out haphazardly. The recurring problems are almost always the same:

1) Poor distribution of capacities by area

Placing an undersized unit in a challenging room (e.g., a sunlit bedroom) creates recurring complaints. Conversely, oversizing a small room can lead to shorter cycles and less consistent comfort. Our approach: sizing based on actual use, exposure, and volume, followed by fine-tuning.

2) Sloppy driving and finishing

In a multi-zone system, there are more pipes. Without careful finishing, the exterior appearance deteriorates quickly. We prioritize a clean installation: logical routing, solid connections, protection, and a discreet appearance.

3) Poorly managed drainage

Improvised drainage can lead to damage, stains, or runoff in the wrong place. We plan drainage according to the building, and we validate the slope, outlets, and seasonal considerations.

4) Inconsistent settings

Extreme temperature settings (very cold in one area and very hot in another) disrupt stability. We explain a simple strategy to the client: realistic settings, gradual adjustments, and consistency between zones.

LogisVert grant and project value

The product sheet mentions a $1000 LogisVert provincial grant (update indicated at the end of November 2025). In many projects, this assistance helps make the multi-zone option more advantageous, especially when the client wants to improve the overall comfort of the home rather than "fixing just one room".

Why choose AirGreen for an LG MULTI F TripleZone

Installing a TripleZone system isn't just about mounting an outdoor unit and three wall units. It's a project that requires:

• An understanding of the actual charges per zone.

• Planning of pipes, drainage and aesthetics.

• A thorough commissioning (tests, validation of the operation of each zone).

• A sustainability-oriented approach: accessibility of the service, cleanliness of the facility, clear documentation.

At AirGreen, our priority is to deliver a multi-zone system that works well from day one, and remains reliable in the long term, under the specific conditions of Montreal , Laval , Longueuil , North Shore and South Shore .

Next Step

For a TripleZone LG MULTI F R32 30,000 BTU heat pump truly suited to your home, contact AirGreen . We provide on-site estimates and offer a coherent zone configuration, with meticulous and long-lasting installation throughout Montreal , Laval , Longueuil , the North Shore , and the South Shore .
