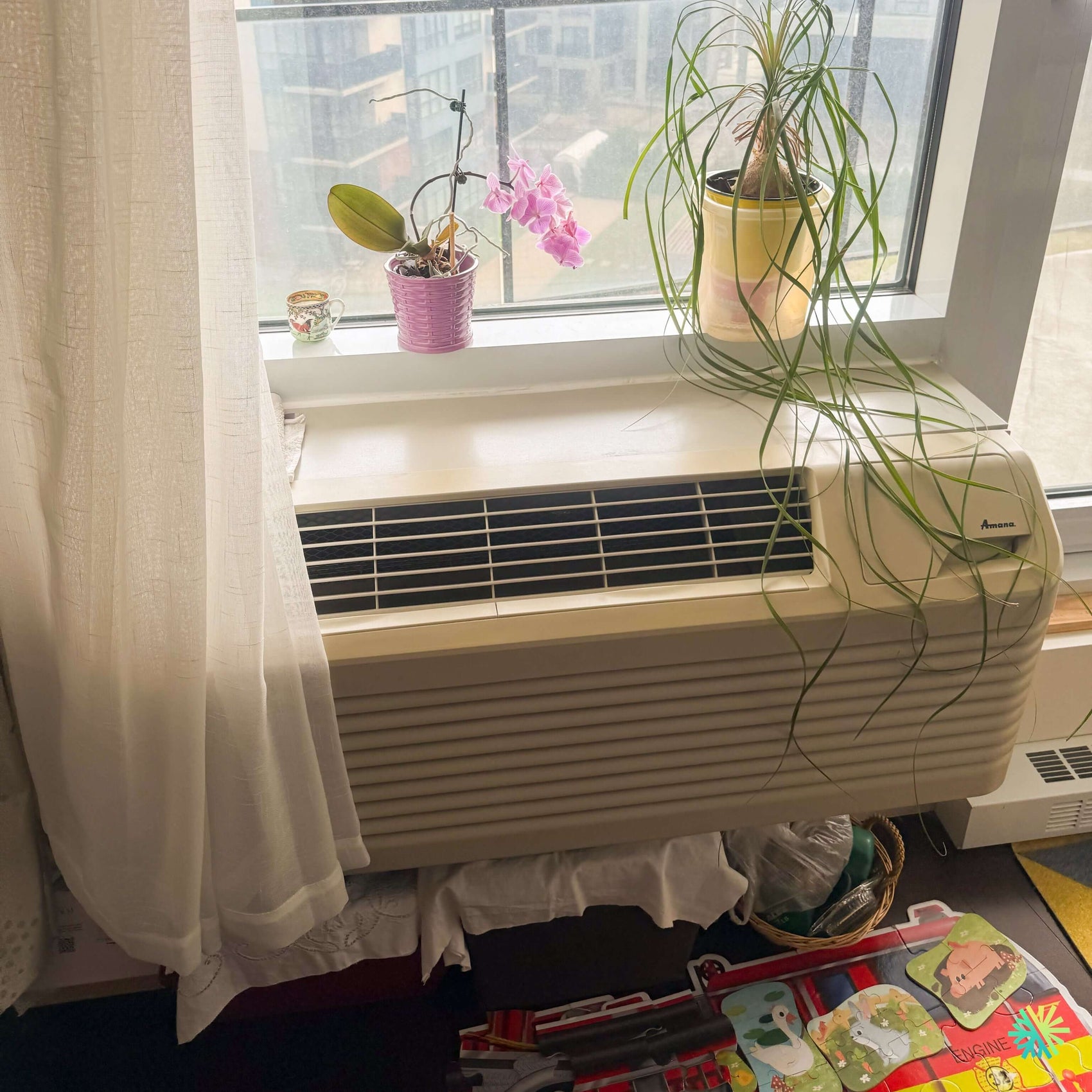

An Amana PTAC embedded under a window that was blowing less effectively and required a proper HVAC tune-up
In Saint-Léonard, our AirGreen team was called for a service call on an Amana PTAC installed under a large window, in a high-rise residential unit. The client contacted us because the device was no longer delivering the same performance as before: the air came out with less force, the room took longer to cool, and a duller noise was heard when the fan ran at high speed.
The system visible on site was an Amana PTAC / standalone terminal air conditioner, a very common device in condos, rental housing, senior residences, hotels, and multi-residential buildings. Unlike a wall-mounted heat pump with a separate outdoor unit, the PTAC combines several components in a single casing embedded through the wall or under the window: indoor coil, outdoor coil, fan, condensate tray, compressor, electronic control, and air intake.
In this specific case, the device was installed under a window, with curtains, plants, and household objects nearby. This detail may seem trivial, but it directly affects the performance of a PTAC. Such a device must draw air from the room, filter it, pass it over the indoor coil, then redistribute it properly. If the air return is partially blocked, if the filters are saturated, or if the grille is obstructed, the machine can quickly lose efficiency.
Symptoms reported by the client
Before our arrival, the client had noticed several signs of deterioration:
- The blown air was less powerful;
- Cooling was slower in the main room;
- The device made a louder noise than before;
- A slight dust smell appeared at startup;
- The system seemed to run longer to achieve the same result;
- The facade became warmer during certain cycles.
These symptoms often point the diagnosis toward an air circulation, maintenance, condensate, or internal ventilation problem. On an Amana PTAC, one should not jump too quickly to a compressor failure. Many performance issues come from a neglected filter, a clogged coil, a partially blocked drain pan, or a fan working against an obstruction.
Inspection of the unit and its environment
Our technician began by inspecting the immediate environment of the PTAC. The unit was placed under a window with plants on the sill, a curtain to the left, and several objects on the floor. Even though the installation was functional, some elements reduced the quality of air passage.
A PTAC must be able to breathe freely. The curtain must not cover the intake or exhaust grille. Plants should not fall in front of the air outlet. Objects on the floor must not block access to the front panel for maintenance. In this case, part of the airflow was disrupted by the interior layout, which contributed to the impression of reduced performance.
We also checked the module’s front panel, the condition of the grilles, the presence of dust in the openings, the stability of the casing, and possible signs of abnormal condensation. The unit was not completely broken down, but it clearly showed signs of a system needing a full HVAC service.
Technical diagnosis of the Amana PTAC
After the visual inspection, we proceeded with internal checks. On a PTAC / VTAC, accessing the components requires method: the front panel must be carefully removed, filters checked, coils inspected, fan controlled, condensate tray examined, and electrical behavior validated.
Filters and air return
The first observation concerned the filters. They were loaded with fine dust, which limited air flow. A dirty filter forces the fan to work harder, reduces the volume of air processed, and can cause a drop in air conditioning performance. The customer then feels a less comfortable room, even if the compressor is still running.
We cleaned the reusable filters and checked their condition. When a filter is too deformed, sagging, or poorly repositioned, it allows dust to pass through to the coil, which worsens the problem. In this case, cleaning and repositioning helped restore better suction.
Clogged interior coil
The indoor coil showed an accumulation of dust and fine particles. This buildup acts as a barrier between the air and the cold surface of the coil. Result: the device cools less efficiently, the fan works harder, and humidity may be less well managed.
We performed a careful cleaning of the indoor coil using a method suited to this type of device. The goal was to improve heat exchange without damaging the fins. On a PTAC, these fins are delicate; overly aggressive cleaning can bend them and further reduce air circulation.
Fan and operating noise
The noise reported by the customer mainly came from the fan forcing air through a restricted passage. Once the filters were removed, we inspected the fan wheel, mounting points, and front panel vibrations. A slightly misaligned panel can amplify sound, especially in a quiet room.
We cleaned the fan area, tightened accessible components, and repositioned the front panel correctly. After these adjustments, the operating noise was more consistent and less heavy.
Condensate tray and drainage
Another important point concerned the condensate tray. A PTAC produces water when it removes humidity from the air. If the drainage is partially blocked, humidity can accumulate, create odors, promote sticky dust, and reduce comfort.
We inspected the tray, removed visible deposits, and cleared the drainage path. This step is essential to avoid odors, overflows, and humidity problems around the device. In several buildings in Montreal, especially in Saint-Léonard, PTACs run for several hours a day in summer; clean drainage is therefore essential.
Electrical checks and compressor behavior
After mechanical cleaning, we checked the electrical behavior of the device. The compressor started correctly, and no major anomaly justified an expensive replacement. We checked the startup, the fan, the controls, and the device’s response to different demands.
It is common for a customer to fear that the compressor is broken when the PTAC cools less effectively. In this case, the compressor was not the main cause. The problem was mainly due to a lack of air circulation and insufficient maintenance around the filters, the coil, and the condensate tray.
This distinction is important. A poor diagnosis can lead to unnecessary component replacement or even premature recommendation to replace the entire device. At AirGreen, we always prioritize a structured approach: observe, clean, measure, test, then conclude.
An intervention that restored comfort without unnecessary major replacement
The intervention on this Amana PTAC in Saint-Léonard restored more stable performance without major replacement. Cleaning the filters, coil, fan, and condensate tray corrected the main causes of the problem. Adjustments to the front panel and recommendations about the space around the device also helped reduce noise and improve airflow.
Result after the service call
After restarting, the blown air was more consistent, the noise was less noticeable, and the room cooling improved. The client also received practical advice to prevent the problem from returning quickly.
We recommended:
- keep curtains away from the air outlet grille;
- avoid placing objects directly in front of the device;
- clean the filters regularly during the warm season;
- watch for any musty smell at startup;
- have the PTAC inspected if noise increases or if water seems to accumulate;
- schedule preventive maintenance before periods of high heat.
These tips are simple, but they make a real difference. A poorly ventilated PTAC can consume more energy, cool less effectively, and prematurely wear out its components. Regular maintenance extends the device’s lifespan and improves daily comfort.
Common mistakes with PTACs
The first mistake is treating a PTAC like a fixed piece of furniture that is forgotten. Even if it is built into the window, it remains a complete HVAC unit that requires maintenance.
The second mistake is blocking the front with curtains, plants, baskets, or furniture. The device must freely draw in and blow out air to function properly.
The third mistake is only cleaning the visible exterior. A clean grille does not mean that the coil, filters, or condensate tray are clean.
The fourth mistake is waiting for the device to stop working completely. In many cases, intervention before the breakdown can prevent a more costly repair.
Why AirGreen also services PTAC units
AirGreen is often associated with wall-mounted heat pumps, wall air conditioners, central heat pumps, and multi-zone systems, but our HVAC expertise also covers PTAC / VTAC type devices. These systems are very common in Greater Montreal, especially in buildings where installing a traditional outdoor unit is not possible.
We operate in Montreal, Laval, Longueuil, on the North Shore and the South Shore to diagnose issues with performance, noise, drainage, odor, ventilation, defrosting, electronic controls, and power supply. Each device requires an approach adapted to its environment, especially when installed in an occupied dwelling with access and space constraints.
Precise HVAC service for a compact but complex device
The Amana PTAC in Saint-Léonard clearly illustrates an important reality: a compact device can hide several causes of failure. A drop in performance is not always linked to a major defective component. In this case, the problem mainly came from a combination of details: clogged filters, dirty coil, disrupted airflow, condensate tray to clean, and front panel to reposition.
The repair restored comfort without involving the customer in unnecessary expenses. This is exactly the role of a good service call: to identify the real cause, fix what needs to be fixed, explain the steps to take, and validate the result.
For an Amana PTAC, a wall-mounted heat pump, a wall air conditioner, a central heat pump, or any other residential equipment, AirGreen applies the same technical rigor. We aim to protect the customer's performance, reliability, and comfort while avoiding unnecessary interventions.
