A unit recessed under the window that no longer cooled like before
In a residence located in Le Sud-Ouest, Montreal, our AirGreen team was called for a service call on an Amana PTAC, a compact unit installed under a window, integrated into a wall opening. This type of equipment, often used in condos, rental buildings, student residences, urban housing, and open-concept units, generally combines air conditioning, ventilation, and sometimes an electric heating mode or heat pump depending on the model configuration.
The client contacted us because the unit no longer provided the same comfort as before. The PTAC would start, the fan still blew, the mechanical controls responded, but the air produced seemed insufficiently cool. During direct sunlight, the room quickly became uncomfortable, especially near the large window. The client also noticed a louder noise than usual, a vibration at startup, and a slightly dusty smell during the first cycles.

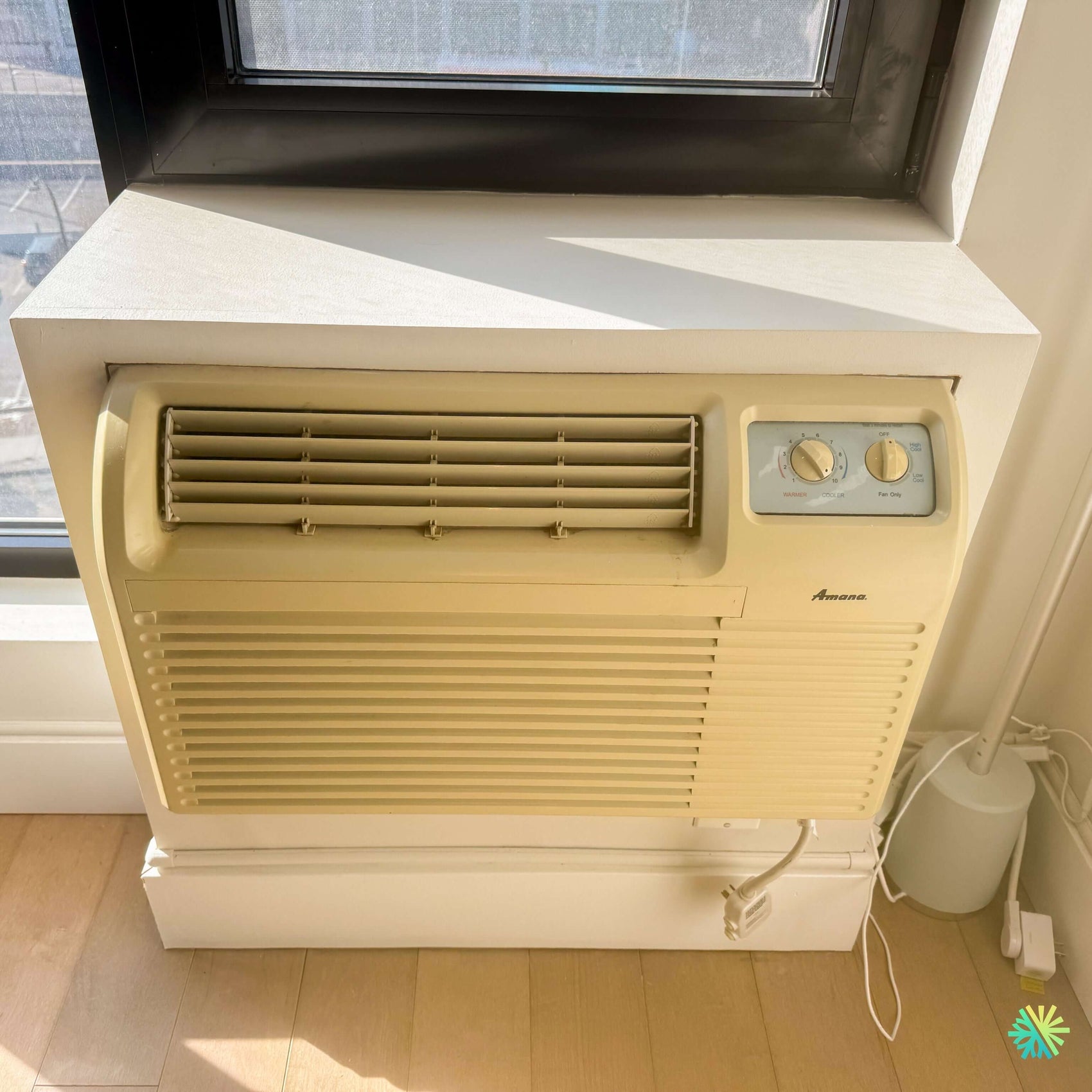

In the photo, you can clearly see an Amana unit of the PTAC / VTAC type, installed under a window with a beige interior facade, horizontal louvers, a lower air return grille, and manual controls on the right side. The unit was a compact residential model, roughly in the 9,000 to 12,000 BTU range, suitable for a main room or moderately sized living area. Although this type of unit seems simple to use, diagnosing it requires a rigorous method, as several different problems can cause the same symptoms: clogged filter, dirty coil, worn-out fan motor, inaccurate thermostat, misaligned louver, poor drainage, outdoor air restriction, or weakened electrical component.
Our goal was to determine whether the Amana PTAC could be reliably put back into service, or if its age and overall condition justified a recommendation for replacement instead.
First observation: a PTAC exposed to dust, sun, and frequent use
The location of the unit played an important role in the diagnosis. Installed directly under a window, the PTAC had to compensate for heat gains from the glazing, especially when the sun hit the room. In urban housing in the Southwest, this type of setup is common: large windows, limited space, shared exterior walls, and few options to install a traditional wall-mounted heat pump.
The front panel showed normal signs of aging: yellowed plastic, slightly dusty grille, worn mechanical controls, and shutters that no longer directed the air with the same precision. These details do not automatically mean the unit is defective, but they indicate that thorough maintenance is needed before making a final diagnosis.
Upon our arrival, we began by checking:
- the unit’s reaction in air conditioning mode;
- the operation of the mode selector;
- the response of the mechanical thermostat;
- the fan speed;
- the temperature of the blown air;
- the cleanliness of the filter;
- the visible condition of the indoor coil;
- the presence of vibrations;
- the electrical connection;
- the airflow around the front grille.
The customer regularly used the unit during hot days, but no full maintenance had been done for some time. This is a key point with PTACs: unlike a wall-mounted heat pump with a separate outdoor unit, everything is concentrated in a single casing. Any dirt quickly affects performance.
Observed symptoms: ventilation present, weak cooling, and mechanical noise
The first test confirmed that the PTAC was not completely broken. The fan started, the selector responded, and the unit produced some cooling. However, the temperature difference between the return air and the blown air was not as convincing as it should have been for a unit in good condition.
The noise at startup also gave us a clue. It was not a violent knocking or a sound of a blocked compressor, but rather a vibration transmitted through the front panel and the shutters. This type of noise can come from a dirty fan, a poorly seated panel, a slightly loose bracket, or a motor working harder due to restricted airflow.
We also noticed that the lower front panel, which serves as the air intake, was partially clogged with dust. On a PTAC, this grille is critical: if air doesn’t return properly to the unit, the coil can’t perform its heat exchange efficiently. The result: the unit runs longer, consumes more energy, and cools less effectively.
HVAC diagnosis: check the air before blaming the compressor
In this type of service call, the first mistake would be to quickly conclude that the compressor is defective. A PTAC that cools poorly can indeed have a refrigeration issue, but in many cases, the cause is primarily airflow.
We carefully removed the front panel to access the internal components. The filter was dirty, the indoor coil had a buildup of fine dust, and some areas around the air intake restricted airflow. This buildup forced the ventilation motor to work harder and reduced the unit’s ability to transfer heat outside.
The mechanical thermostat was also checked. On older Amana models with rotary controls, the reading can become less accurate over time. The knob may seem properly set, but the actual response of the unit doesn’t always match the temperature felt in the room. We tested the thermostat’s response by gradually adjusting the setpoint and observing the compressor’s stops and starts.
The electrical connection was also inspected. Since the unit is installed in a compact indoor space, it’s important to avoid improper extension cords, overloaded power strips, or unstable connections. A PTAC requires a stable power supply; poor power can cause shutdowns, overheating, or intermittent operation.
Targeted cleaning, restoration, and recommendations to extend the PTAC’s lifespan
After the diagnosis, our intervention focused on restoring the components that directly affected performance. The filter was cleaned, the grilles were cleared, the front panel was correctly repositioned, and the accessible areas of the indoor coil were carefully treated. We also checked that the air vents were directing air properly into the room rather than towards the window sill.
Intervention on airflow and vibration reduction
Cleaning the air intake immediately improved the fan’s performance. A fan that works with less strain produces a steadier sound and allows the coil to operate under better conditions. We then corrected the positioning of the front panel, which vibrated slightly when the unit shifted to a higher speed.
The horizontal louvers were adjusted to allow more even air distribution. This detail is important in a room with a sun-exposed window: if cold air is directed too low or blocked by the structure around the unit, the perceived comfort decreases, even if the machine is working properly.
After reassembly, we restarted the unit in cooling mode. The noise was more consistent, ventilation freer, and the air blown cooler. The customer noticed a perceptible difference without immediate replacement of the unit.
Checking drainage and humidity
A PTAC also handles air humidity. If the internal drainage is partially blocked, water can accumulate in the tray, create odors, promote buildup, and sometimes cause unwanted leaks. In this case, no active leak was visible on the floor, but we checked accessible areas to confirm that moisture was not abnormally stagnant.
The dusty smell reported by the customer mainly came from buildup on internal surfaces and restarting after a period of less frequent use. After cleaning and extended ventilation, the odor decreased.
When to repair and when to replace an Amana PTAC?
One important aspect of this service call was to assess the relevance of a repair. Amana PTAC units are robust devices, but their cost-effectiveness depends on several factors: unit age, parts availability, compressor condition, noise level, energy efficiency, quality of wall installation, and frequency of use.
In this specific case, the unit was still functional. It did not show any immediate major failure of the compressor or fan. The recommendation was therefore to continue use after maintenance, while monitoring certain signs:
- rapid loss of cooling;
- complete compressor shutdown;
- metallic noise or strong vibration;
- overheating smell;
- circuit breaker trips;
- water leak on the floor;
- controls that no longer respond;
- very low ventilation despite a clean filter.
If these symptoms recur, replacing the PTAC with a newer model might make more sense than a series of spot repairs.
Common mistakes with PTAC units in condos and urban apartments
We often encounter the same problems during our interventions in Montreal, Laval, Longueuil, on the North Shore, and the South Shore. PTACs are sometimes seen as simple window air conditioners, whereas they require much more precise attention.
Blocking air intake with furniture or curtains
The lower grille must remain clear. Furniture, curtains, decorative boxes, or even objects placed too close can significantly reduce performance.
Using an inadequate extension cord
A PTAC must be powered safely. A light extension cord or an unsuitable power strip can create an overheating risk.
Cleaning only the exterior
Wiping the front is not enough. The filter, grilles, coil, and accessible internal areas must be maintained.
Letting the unit run continuously despite low efficiency
When a PTAC runs all day without adequately cooling, intervention is necessary. The problem can worsen and increase electricity consumption.
Final result: improved comfort and informed decision
At the end of the intervention in Le Sud-Ouest, the Amana PTAC had regained more stable operation. The client received a clear explanation of the unit’s actual condition, the limitations related to its age, and the steps to take to maintain its performance during the hot season.
This intervention demonstrates the importance of a complete HVAC diagnosis. An old unit is not always condemned, but it must be evaluated methodically. In this case, targeted cleaning, airflow verification, control checks, and an electrical inspection restored comfort without immediate replacement.
