A Sharp MultiZone heat pump installed under a balcony: a service call where the location mattered as much as the machine
In Saint-Laurent, a client contacted us about a performance issue with a Sharp MultiZone heat pump installed outdoors, under a wooden balcony structure. The outdoor compressor, visually identified as a Sharp Multi Inverter unit, was placed in a tight space, directly under the stairs and the rear balcony of the residence. This type of configuration is not uncommon in Montreal, especially in residential neighborhoods where yards are narrow, access is limited, and HVAC units often have to coexist with balconies, fences, basement windows, electrical conduits, and storage spaces.
The client reported a typical but never trivial situation: the heat pump was working, but its performance seemed irregular. Some areas of the house struggled to reach the requested temperature, the heating cycle seemed longer than usual, and the outdoor unit appeared to be working harder, especially during colder or more humid periods. In some cases, this type of symptom can be related to a refrigerant shortage, a faulty sensor, an electronic board, a ventilation problem, a restriction in the outdoor coil, or poor air evacuation around the compressor.
At AirGreen, we approach this kind of service call with a clear method: never conclude too quickly. An effective HVAC repair starts with a careful observation of the entire installation, not just the device itself. In this particular case, the environment around the machine was a central factor in the diagnosis.
Equipment description: a compact but clearance-demanding Sharp MultiZone heat pump

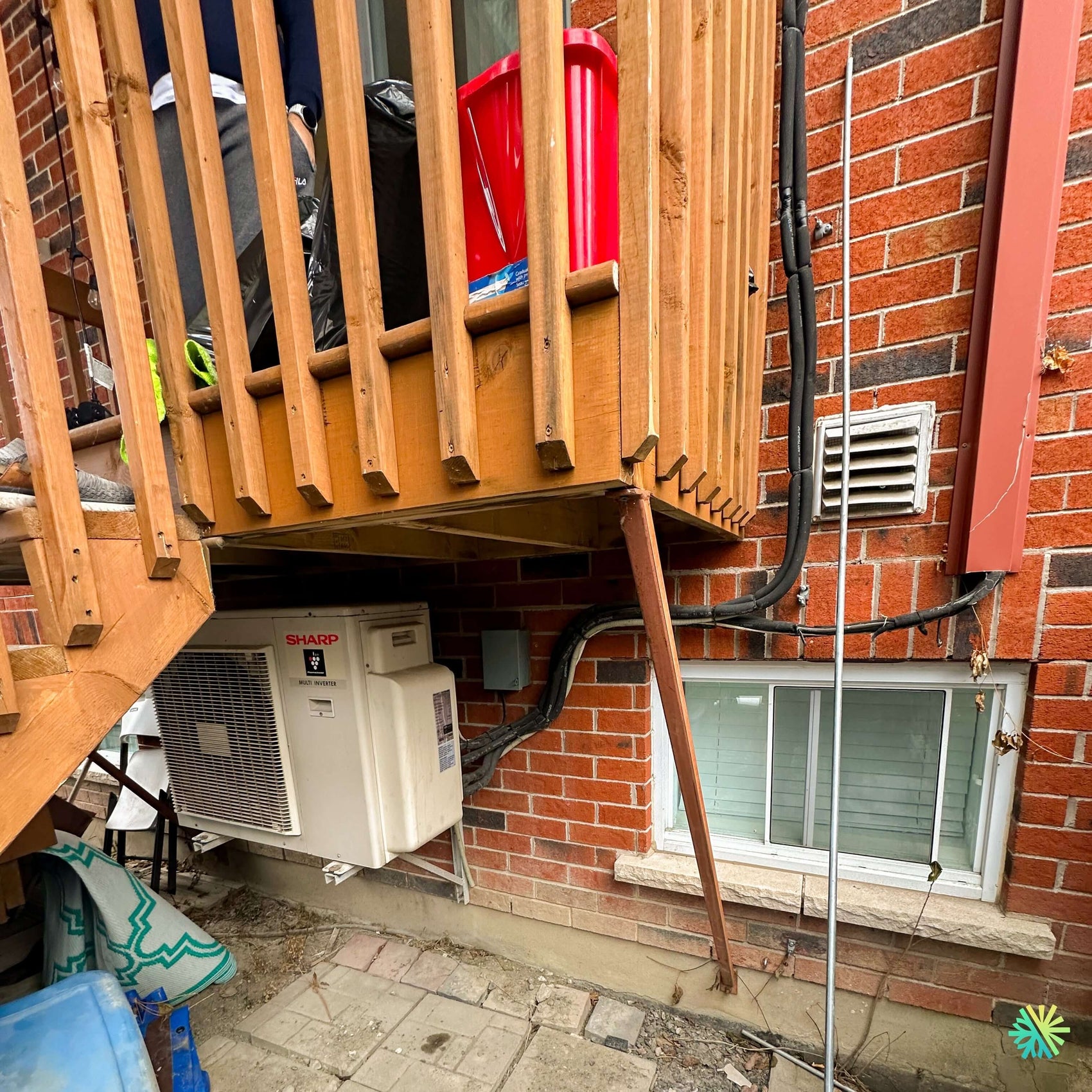

The outdoor unit observed was a Sharp MultiZone heat pump, designed to supply more than one indoor unit. This type of system is appreciated because it allows heating and cooling multiple rooms with a single outdoor compressor. In a house in Saint-Laurent, this solution can be very effective, especially when you want to avoid a central heat pump or when the indoor space does not allow for the addition of ducts.
However, a MultiZone heat pump requires particularly careful installation. Unlike a simple single-head wall system, it must manage multiple refrigerant circuits, multiple temperature demands, and more complex modulation cycles. The machine adjusts its power according to the needs of the indoor zones, making the proper functioning of the outdoor unit essential.
On site, several visual elements caught our attention:
- The outdoor unit was installed under a wooden balcony, with limited vertical clearance.
- The side of the unit was close to a brick wall and a basement window.
- The refrigerant and electrical lines ran along the wall in a dense path.
- The space around the compressor also served as a passage and storage area.
- Natural ventilation around the unit was reduced by the balcony and staircase structure.
These details are important because a heat pump does not just produce heating or cooling: it exchanges heat with the outside air. When air circulation around the outdoor coil is poor, the machine must compensate, pressures can vary, cycles can become longer, and defrosting may trigger more often.
Reported symptoms: unstable heating, prolonged cycles, and uneven performance
The customer did not describe a complete breakdown. The heat pump started, the indoor units responded, but comfort was no longer as stable. This type of complaint requires a lot of attention, as it can be more difficult to diagnose than a completely stopped unit.
The observed and reported symptoms corresponded to a combination of possible factors:
- Loss of heating performance, especially when multiple zones were requesting heat simultaneously.
- Longer cycles, giving the impression that the outdoor unit was struggling.
- Frequent defrost cycles, sometimes interpreted as a malfunction by the customer.
- Increased noise or vibration, probably amplified by the wooden structure above and around the unit.
- Less warm air blown in certain rooms, especially when demand was high.
In a MultiZone system, it is always necessary to check whether the problem is widespread or limited to a single zone. A single indoor wall unit that heats poorly can indicate an indoor sensor, a fan motor, a clogged filter, or a local issue. But when multiple zones seem affected, you need to trace back to the outdoor unit, the refrigerant circuit, operating parameters, and installation conditions.
The AirGreen diagnosis: complete inspection of the environment, coil, and operating parameters
Our technician started with a complete visual inspection. The goal was to understand how air circulated around the outdoor unit. In this installation in Saint-Laurent, the machine was protected from the weather by the balcony, which may seem advantageous at first glance. But in practice, too tight a protection can become an air trap.
In heating mode, the outdoor unit expels cold air. If this cold air remains trapped under the balcony structure, the heat pump risks reusing some of this already cooled air. This is often called air recirculation. The result is simple: the machine works under more difficult conditions than expected, even if the actual outdoor temperature is not extreme.
We then checked the condition of the outdoor coil. In tight spaces, dust, dead leaves, fibers, yard debris, and urban particles can accumulate more quickly. A partially clogged coil reduces heat exchange. Even a thin layer of dirt can affect performance, especially on an inverter heat pump that continuously modulates.
The checks included:
- Inspection of the outdoor coil.
- Checking the fan blade and outdoor ventilation motor.
- Control of clearance around the machine.
- Checking supports and vibration points.
- Inspection of visible refrigerant pipes.
- Checking the insulation on the refrigerant lines.
- Validation of accessible electrical connections.
- Reading the discharge temperatures at the indoor units.
- Analysis of the machine’s behavior during heating demand.
- Observation of the defrost cycle.
No conclusion was drawn before comparing the symptoms with field measurements. This is an essential step in a Sharp heat pump repair, as a misinterpretation can lead to unnecessary replacement of costly parts.
A targeted repair: restore airflow, stabilize operation, and prevent recurrence
After the checks, the main problem was neither a faulty compressor nor a major electronic board failure. The device was functional, but its performance was affected by a combination of factors: lack of clearance, buildup on the coil, limited airflow under the balcony, and some vibrations transmitted by the immediate environment.
The solution was therefore structured around three objectives: improve heat exchange, secure visible elements, and give the client concrete recommendations to prevent the problem from recurring.
Technical cleaning of the outdoor coil
The first step was cleaning the outdoor coil. On a MultiZone heat pump, this intervention should not be improvised. It is important to avoid damaging the fins, protect electrical components, and work with appropriate pressure. Too aggressive cleaning can cause more damage than it fixes.
The coil was cleared and cleaned to promote better airflow. This operation allows the outdoor unit to better capture heat in winter and better reject heat in summer. For a device installed under a balcony, this step is especially important because the reduced space encourages dirt buildup around the machine.
After cleaning, the unit’s behavior was rechecked during operation. The machine breathed better, cycles seemed more regular, and the indoor units responded more efficiently to demand.
Checking outdoor ventilation and clearances
One of the most important points of this service call was the physical setup. The Sharp unit was installed in a space where ventilation could be compromised. A heat pump must not only be accessible: it must have enough air around it to operate properly.
We explained to the client that certain objects placed near the unit, such as bins, bags, panels, or seasonal items, can reduce performance even if they do not directly touch the device. The problem becomes more noticeable in winter when the machine has to extract heat from already cold air. A partial obstruction can be enough to cause longer cycles or a feeling of insufficient heating.
In this case, we recommended keeping the space around the compressor as clear as possible, especially in front of the ventilation grille and around the air exhaust. Under a balcony, it is important to avoid turning the area into permanent storage. This is a common mistake we encounter in Montreal, Laval, Longueuil, on the North Shore and the South Shore, especially when the unit is installed in a narrow backyard.
Vibration correction and support inspection
The wooden structure around the unit could amplify certain noises. An inverter heat pump like a Sharp MultiZone modulates its speed according to demand. It can therefore produce different sounds from one cycle to another. This is not necessarily abnormal, but when the device is placed under a balcony, vibrations can be transmitted to the boards, steps, or railings.
We checked the wall supports, the points of support, and visible elements likely to vibrate. Some adjustments were made to limit resonances. The goal was not only to reduce noise but also to prevent premature wear of connections and lines. Continuous vibration can, over time, weaken a fastening point or wear down insulation.
Inspection of refrigerant lines and insulation
The refrigerant lines were visible along the brick wall. This type of routing requires special attention, especially when the lines pass under a structure and run alongside several obstacles. We inspected the condition of the insulation, the bends, the points of friction, and the areas where the lines could be exposed.
Damaged insulation on a refrigerant line can reduce system efficiency and create condensation. In some cases, it can also contribute to a misreading of symptoms, as the client notices reduced performance without an actual component failure. Here, the goal was to ensure that the lines remained protected and that nothing was rubbing against the wood structure or masonry.
Operation validation after intervention
Once the corrections were made, we put the heat pump back into demand mode and observed its behavior. In a serious HVAC repair, the final test is as important as the intervention itself. It is not enough to clean or adjust: you must confirm that the system responds better.
We checked the blowing temperature, the response of the indoor units, the operation of the outdoor fan, and the cycle stability. The client was able to see that the device operated more consistently. The machine did not need to be replaced, and no major parts were changed during this intervention. The result was based more on an accurate diagnosis, reconditioning of the outdoor unit, and correction of environmental factors.
Why the location of an outdoor heat pump can cause real problems
This intervention in Saint-Laurent illustrates an important reality: a high-performance heat pump can deliver poor results if its installation environment is unfavorable. An outdoor unit placed under a balcony is not automatically problematic, but it requires a more thorough analysis.
The main risks are:
- Recirculation of cold air in winter, which reduces heating efficiency.
- Heat buildup in summer, which complicates air conditioning.
- Snow or ice accumulation, especially if balcony water drains near the unit.
- Difficulty accessing for maintenance, which can delay cleanings.
- Amplified vibrations, caused by proximity to wood.
- Accelerated dirt buildup, if the area is used for storage or passage.
For homeowners in Montreal and surrounding areas, this kind of detail can make a big difference. A Sharp, Mitsubishi, Gree, Fujitsu, Daikin, or Midea heat pump can be excellent on paper, but it needs sufficient clearance and maintenance suited to its actual location.
Mistakes to avoid with a MultiZone heat pump installed in a backyard
After this intervention, we also took the time to give the client practical advice. The goal was to prevent recurrences and extend the system’s lifespan.
Here are the most common mistakes to avoid:
- Placing bins, bags, boxes, or furniture too close to the outdoor unit.
- Allowing leaves and debris to accumulate under the balcony.
- Ignoring changes in noise or vibration.
- Closing several indoor zones thinking to save energy, then requesting a strong heating boost throughout the house.
- Neglecting to clean the indoor filters.
- Believing that frequent defrosting is always normal.
- Waiting for a complete breakdown before having the unit inspected.
A MultiZone heat pump works best when zones are used consistently. If a room is kept very cold and then a rapid increase is requested, the machine must work hard. When multiple indoor units demand at the same time, the outdoor compressor must modulate higher. If air circulation around it is poor, performance can drop.
HVAC expertise tailored to the realities of Saint-Laurent buildings
Saint-Laurent features a wide variety of buildings: single-family homes, duplexes, triplexes, condominiums, buildings with rear balconies, narrow yards, and sometimes complex outdoor facilities. For AirGreen, every service call is different because each building presents its own challenges.
In this case, our role was not just to repair a heat pump. We had to understand the interaction between the device, the balcony, the brick wall, the ducts, the clearances, and the usage habits. It is this comprehensive approach that makes a real difference.
We regularly intervene for wall-mounted heat pump repairs, MultiZone heat pumps, wall air conditioners, central heat pumps, electric furnaces, air exchangers, and other HVAC equipment in Greater Montreal. Whether in Saint-Laurent, Montreal, Laval, Longueuil, on the North Shore or the South Shore, our priority remains the same: diagnose correctly, repair efficiently, and clearly explain to the client what truly affects their system’s performance.
Final result: a more stable Sharp system and a client better equipped to prevent problems
At the end of the intervention, the Sharp MultiZone heat pump was operating more stably. The outdoor unit was breathing better, cycles were more consistent, and the indoor zones responded more reliably. The client also received precise recommendations on maintaining the space around the compressor, a crucial point for this particular installation under a balcony.
This repair shows that an HVAC service call does not always mean replacing a part. Sometimes, the real solution lies in a combination of several technical actions: cleaning, checking parameters, mechanical adjustment, inspecting ducts, and improving the air conditions around the unit. This is exactly what restored comfort in this Saint-Laurent residence.
For AirGreen, this type of intervention truly represents our way of working: a rigorous field analysis, precise technical actions, and a concrete understanding of the installation challenges specific to homes in Greater Montreal.
