A Bora wall-mounted heat pump installed very high: a precise diagnosis to restore effective airflow

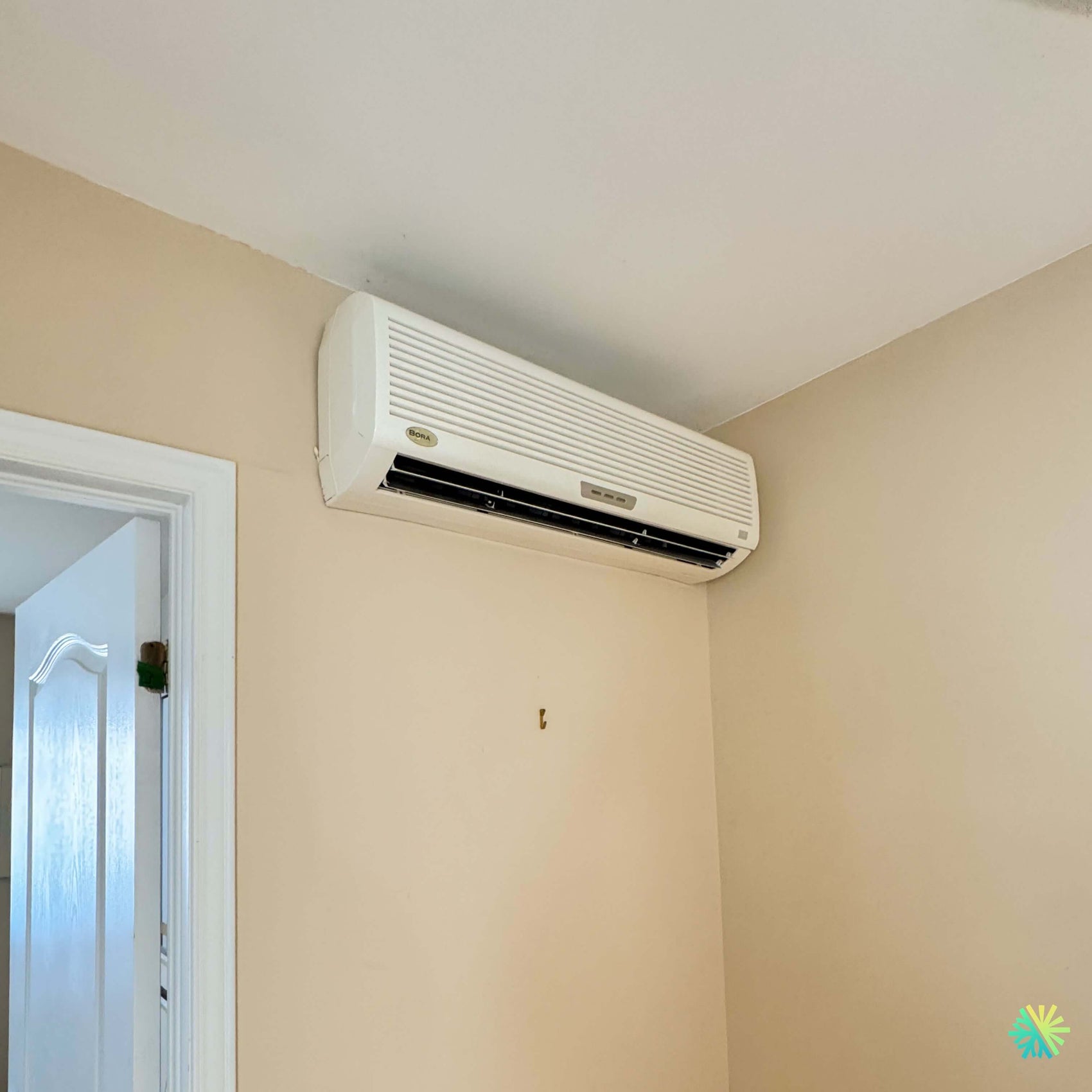

In this residential area of Ahuntsic-Cartierville, Montreal, our AirGreen team was called for a HVAC service call on a Bora wall-mounted heat pump installed in a narrow room, very close to the ceiling and immediately next to a door frame. The indoor unit, compact wall format, had the characteristics of a first-generation residential device: long and thin front panel, horizontal diffusion louvers, front intake grille, and integrated controls on the front of the unit.
Even though the full nameplate was not visible in the service photo, the observed configuration matched a typical residential capacity Bora wall-mounted heat pump, probably in the range of 9,000 to 12,000 BTU, used to cool and heat a main area or a closed room. The main issue reported by the client was a loss of efficiency: the unit was running, but the air seemed less powerful, comfort was uneven, and the machine took longer to reach the requested temperature.
At AirGreen, this type of intervention requires a very structured approach. A wall-mounted heat pump that still starts is not necessarily in good working condition. A drop in performance can come from a clogged filter, a dirty indoor fan, a dirty evaporator coil, a damper problem, a partially blocked drain, a poorly positioned sensor, insufficient refrigerant charge, or an installation that limits air circulation. In this specific case, the location of the indoor unit played an important role in our diagnosis.
The context of the service call in Ahuntsic-Cartierville
The client had noticed that the Bora wall-mounted heat pump no longer delivered the same performance as before. The room took longer to cool, the airflow seemed less consistent, and a slight feeling of humid air persisted after some cycles. The device being placed very high, almost touching the ceiling, regular filter maintenance was less obvious for the owner. This is a situation we often encounter in Montreal, especially in older housing where the available space to install a wall unit is limited by doors, moldings, wall corners, or ceiling height.
In many homes and plexes in Ahuntsic-Cartierville, wall systems have sometimes been installed in compromise areas: above a door, in a corner, or on a short wall available between two openings. These locations can work, but they require rigorous installation and more attentive maintenance. When the indoor unit is very close to the ceiling, the return air can be influenced by heat buildup at the top of the room, and filter cleaning is often postponed because access is less convenient.
Visible signs on the Bora indoor unit
From the visual inspection, several elements guided our analysis:
- indoor unit installed very high, with little space above;
- device positioned near a wall corner and a door opening;
- old facade, typical of an earlier generation of wall-mounted heat pumps;
- louvers open, but air distribution possibly uneven;
- front grille can accumulate dust and particles;
- maintenance access more difficult due to height;
- possibility of tangential fan clogging inside.
These signs do not automatically mean that a part is defective. Rather, they indicate that a performance diagnosis is necessary before recommending a replacement. At AirGreen, we always prioritize a complete technical evaluation before concluding that a device needs to be changed. Several older wall-mounted heat pumps can still function properly when cleaned, adjusted, and properly checked.
HVAC Diagnosis: Understanding Why Comfort Had Decreased
Our diagnosis began with a check of the general operation of the indoor unit. We observed the startup, response to commands, operation of the louvers, ventilation, blown air temperature, and the device's behavior during a complete cycle.
Filter and air intake inspection
The filters of a wall-mounted heat pump play an essential role. When they are dirty, the device breathes poorly. Airflow decreases, the indoor coil works under poor conditions, and the customer often feels a loss of power, even if the outdoor compressor is still running.
In this case, access to the filters was less convenient due to the unit’s height. This often explains why maintenance is neglected. We therefore removed and inspected the filters, then assessed the condition of the intake grille. A dust buildup was present, which could reduce airflow and contribute to the reported discomfort.
Evaporator coil inspection
The indoor coil, also called the evaporator, was then examined. On an older Bora wall-mounted heat pump, a partially clogged coil can cause several symptoms:
- less cold air when cooling;
- less warm air when heating;
- longer cycles;
- more noticeable air noise;
- increased condensation;
- risk of ice formation;
- feeling of humidity in the room.
Even when filters are cleaned regularly, some fine dust can pass into the unit and accumulate on the coil. Over the years, this layer reduces heat exchange. In an urban neighborhood like Ahuntsic-Cartierville, indoor dust, particles from open windows, renovations, pets, and humidity can accelerate this clogging.
Fan turbine inspection
The indoor turbine, often called the tangential wheel, is a frequently overlooked component. It can accumulate a layer of dust, debris, and sometimes biofilm. When this wheel is dirty, it no longer pushes air with the same force. The customer may feel that the heat pump is running but that it “no longer pushes.”
Our technician checked the fan wheel to confirm if it was contributing to the reduced airflow. In this type of service call, targeted internal cleaning can change the device's behavior without having to replace major components.
Service performed on the Bora wall-mounted heat pump
The intervention was carried out in several stages to address the probable causes of the performance drop.
Cleaning of filters and front panel
We started by cleaning the filters and accessible sections of the front panel. This simple step is fundamental. On a wall unit, room air is drawn in from the top or front, passes through the filters, crosses the coil, then is redistributed by the flaps. Any obstruction along this path reduces efficiency.
After cleaning, the airflow had already improved. This result confirmed that dirt buildup was contributing to the problem.
Targeted internal cleaning
We then proceeded with a more thorough cleaning of the accessible areas of the indoor unit. The goal was to clear the coil, air outlet, and flaps to allow more uniform distribution. This intervention is especially important on older units, as dust accumulated over several years can gradually reduce performance without causing a sudden breakdown.
In a wall-mounted heat pump repair, you should not only look for a broken part. You must also restore normal operating conditions. A clean unit exchanges heat better, consumes less energy for the same result, and provides more stable comfort.
Condensate drainage check
Since the client mentioned a feeling of humidity, we also paid attention to the drainage. In air conditioning, the indoor unit produces condensation water. This water must drain properly through the drain. If the drain is partially clogged, poorly angled, or dirty, the unit can emit a musty smell, produce flowing noises, or eventually cause a water leak.
In this case, no active leak was detected at the time of service, but we checked the overall drainage behavior and advised the client to watch for any signs of water under the unit, especially during the hot and humid days of the Montreal summer.
Control of the flap and air distribution
The air distribution flap was also inspected. When the flaps are dirty, misaligned, or partially blocked, the air can be unevenly distributed in the room. Since the unit is installed in a corner, the direction of the air becomes even more important. We adjusted the orientation to improve distribution in the occupied area while avoiding blowing directly on the door opening.
Result: a cleaner device, improved airflow, and a reassured client
After the intervention, the Bora wall-mounted heat pump regained more stable operation. The airflow was more consistent, distribution better oriented, and the response to temperature changes more coherent. The client also better understood the limitations related to the unit’s location: a very high installation close to the ceiling requires more frequent maintenance and special attention to the filters.
The main goal of this service call was not only to restore the machine’s condition but also to prevent future deterioration. A wall-mounted heat pump operating with reduced airflow can strain unnecessarily. In the long term, this can increase wear, reduce comfort, and create more expensive symptoms to fix.
Mistakes to avoid with a wall-mounted heat pump installed near the ceiling
Waiting for the device to stop working completely
A loss of airflow, less effective air conditioning, or a feeling of humidity are already warning signs. Waiting for a complete breakdown can turn simple maintenance into a more costly repair.
Cleaning only the visible filters
Filters are important, but they are not the only components to maintain. The coil, fan, flaps, and drain can also get clogged. Superficial cleaning is not always enough, especially on an older unit.
Ignoring the impact of the location
A unit installed very high, near a corner or above an opening, can operate properly, but its air distribution must be well adjusted. The choice of mode, fan speed, and flap orientation directly affect comfort.
Using the device without annual or periodic maintenance
In areas like Montreal, Laval, Longueuil, the North Shore and the South Shore, wall-mounted heat pumps are often used intensively: air conditioning in summer, heating in spring and fall, sometimes as the main heating source in winter. Frequent use requires regular maintenance.
What this intervention reveals about older Bora units
Bora wall-mounted heat pumps still in service can offer acceptable performance when well maintained. However, with age, components become more sensitive to dirt buildup, electrical fluctuations, sensor issues, and airflow restrictions. The goal of professional service is to determine whether the unit deserves to be kept running or if replacement becomes more logical in the medium term.
In this intervention in Ahuntsic-Cartierville, the unit did not show immediate signs of a major failure. The priority was therefore to clean, check, adjust, and advise. This approach helps the client avoid premature expenses while getting a clear reading of the system’s actual condition.
AirGreen: service, repair, and maintenance of wall-mounted heat pumps in Greater Montreal
AirGreen works on wall-mounted heat pumps, wall air conditioners, MultiZone heat pumps, central systems, and various residential HVAC equipment. Our technicians serve Montreal, Laval, Longueuil, the North Shore, and the South Shore with an approach focused on real diagnostics, service quality, and solution durability.
A service call like this shows the importance of a complete inspection. A machine can run without running properly. AirGreen’s role is to identify the exact causes: lack of maintenance, blockage, poor drainage, noise, loss of efficiency, electrical failure, defective component, or less optimal installation.
For effective HVAC repair, every detail matters: the unit’s location, filter condition, coil cleanliness, drainage quality, air distribution, and system behavior during real cycles. This thoroughness helps restore comfort, improve performance, and reassure the client with honest recommendations.
