A heat pump breaks down on a humid day: field diagnosis
One June morning in Pointe-Claire , on Montreal's West Island , a customer contacted us after noticing that their Haier wall-mounted heat pump refused to start. The outdoor unit produced no sound, while the indoor unit displayed an intermittent error code. At AirGreen , we know that this type of failure is often linked to an internal electrical problem or a faulty communication board .

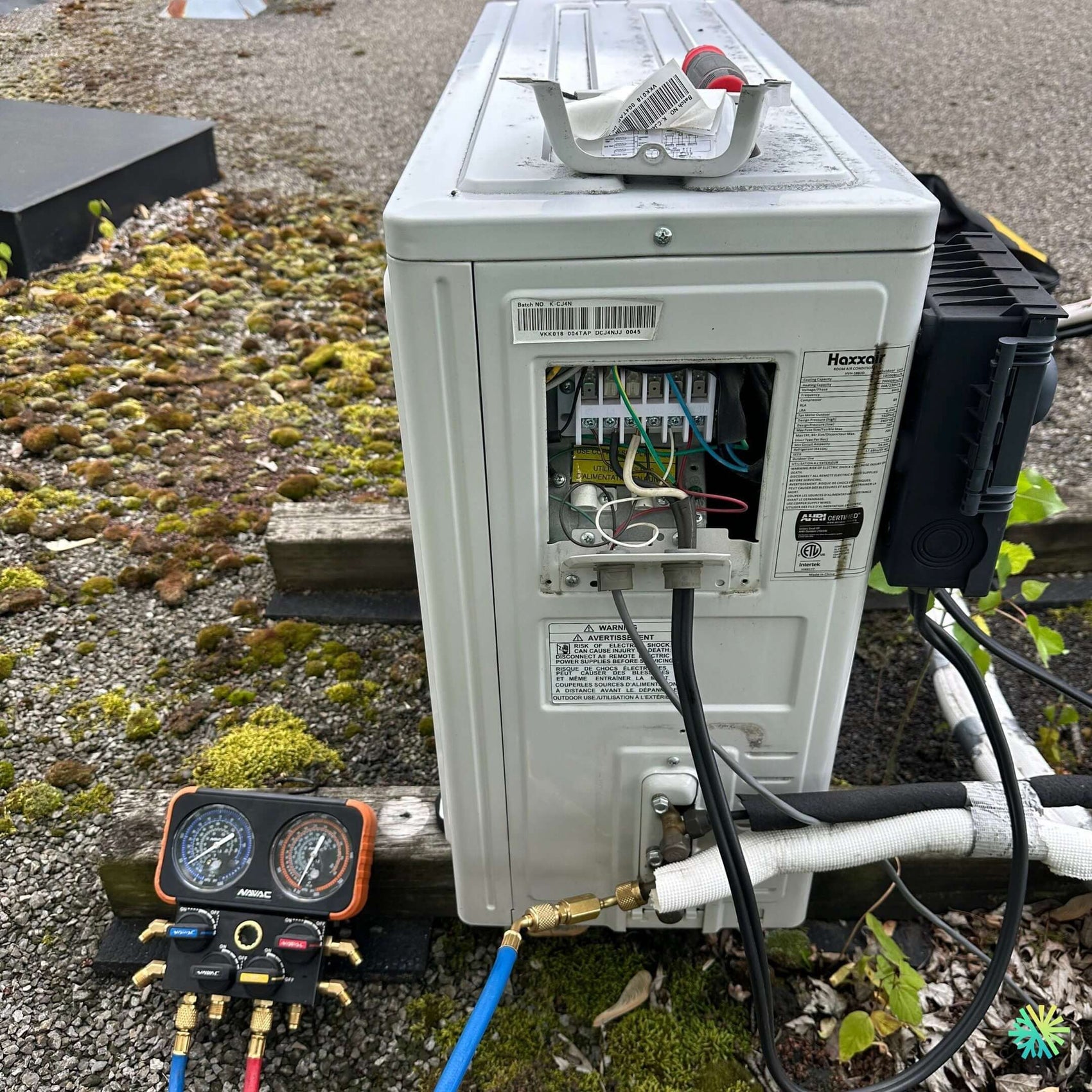

The image received from the customer showed a disassembled outdoor unit , with access to the electrical connection box and a measuring manifold already connected for pressure control. This configuration directed us towards both an electrical and refrigeration check, to quickly identify the cause of the failure.
Step 1: Check voltages and communication
Our technician first checked the supply voltage at the circuit breaker and at the terminal block of the outdoor unit:
-
240 V present between the main lines;
-
no signal return between the indoor and outdoor communication terminals.
This finding suggested a loss of communication between the electronic boards . We therefore continued the diagnosis inside the control panel, measuring the continuity and resistance on the communication cable connecting the two units.
Result: the cable had an internal cut , probably caused by the wire being crushed during a previous maintenance operation.
Step 2: Inspection of the refrigeration circuit
While the power was off, our team also checked the R-410A refrigerant circuit using the connected manifold. Static pressures were within the normal range, indicating no refrigerant leaks . This confirmed that the problem was purely electrical , not mechanical.
We then replaced the three-core communication cable with an approved cable with reinforced insulation and a cross-section adapted to the requirements of the manufacturer Haier.
Step 3: Replace the internal fuse and perform a complete system test
Upon opening the main board (PCB), our technician noticed that the built-in fuse was also blown—a direct result of the short circuit caused by the damaged cable.
The intervention therefore included:
-
Replacement of the main fuse 3A/250V ;
-
Cleaning the connectors to prevent future oxidation;
-
Checking the grounding wiring ;
-
Soft restart of the system to test communication and compressor operation.
Upon powering up, the heat pump restarted normally. The communication lights remained stable, and the compressor started with a pressure build-up in accordance with the manufacturer's specifications.
Result: a restored system and a reassured customer
In less than an hour, the Haier system was fully operational . The customer was comfortable again and was impressed by the speed of the diagnosis. We also added additional protection to the communication cable , using an insulating sheath resistant to thermal variations and vibrations.
Finally, our technician recommended an annual AirGreen maintenance , which includes:
-
a voltage and continuity check on the main connections;
-
an inspection of electronic cards ;
-
and a complete check of the refrigeration circuit to ensure constant performance.
