A stuck front panel, weakened airflow, and an LG wall-mounted heat pump that no longer responded normally
In a residential area of Montreal, our AirGreen team responded to a HVAC service call on a LG wall-mounted heat pump from the ARTCOOL series, a model known for its distinctive design with a motorized front panel and wide air distribution. The customer contacted us because the indoor unit was no longer working as before: the front panel remained partially open, the flaps seemed to respond poorly to commands, and the airflow had become weak, especially in heating mode.
At first glance, the device still seemed powered on. The display responded, the LG logo was visible, and the wall unit started when the setpoint was changed. Yet, the machine no longer delivered stable comfort. The customer noticed a clear difference between the usual operation of the heat pump and its recent behavior: the blown air was less powerful, the room took longer to reach the desired temperature, and the movement of the front panel no longer seemed synchronized with the operating cycle.
On a LG ARTCOOL wall-mounted heat pump, this type of symptom requires special attention. Unlike a simpler wall unit, this model uses a motorized front mechanism that directly affects air distribution. If the panel gets stuck, if the flaps don’t position correctly, or if the fan is clogged, the device may continue to start but lose a significant part of its performance.
At AirGreen, we never treat a failure of this type as just an aesthetic issue. A misaligned front panel can hide a problem with the flap motor, position sensor, electronic board, dirt inside the indoor unit, or air restriction. Our goal was therefore to follow a thorough process: observe the device’s behavior, test the controls, inspect the ventilation, clean critical components, and verify the system’s response after intervention.

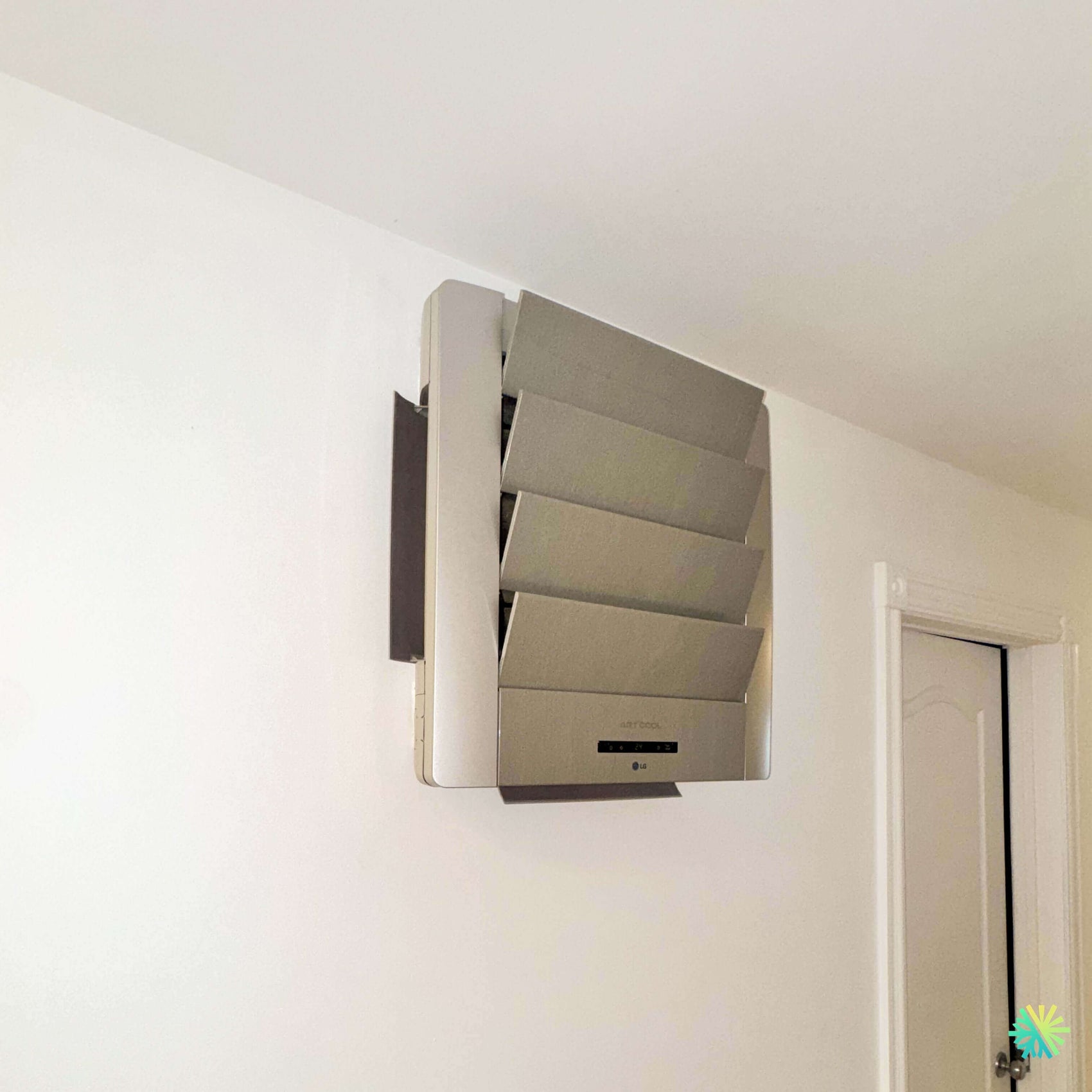

A wall-mounted LG ARTCOOL heat pump installed high up
The indoor unit was installed near the ceiling, in a residential room, with relatively clear access on the wall. This position is common for a wall-mounted heat pump, as it allows good air diffusion in the room when the flaps and airflow work properly. However, the high installation also makes maintenance easier to neglect. Filters, the turbine, and the indoor exchanger can accumulate dust and residues without the customer noticing immediately.
The observed model corresponds to an LG unit of the ARTCOOL type, with a wide front panel that opens to allow air circulation. This design is popular in houses and condos in Montreal, Laval, Longueuil, on the North Shore and the South Shore, but it requires precise diagnosis when the front mechanism no longer behaves normally.
Upon our arrival, several signs were visible:
- front panel abnormally open;
- flaps positioned irregularly;
- less direct air diffusion;
- risk of dirt accumulated behind the panel;
- limited side access for quick inspection;
- need to check the flap motor and electronic control;
- possibility of incorrect position feedback from the panel.
The customer wanted to know if the device could be repaired or if replacement should be considered. Our first technical response was to check the actual condition of the machine before drawing a conclusion.
Symptoms reported by the customer
The customer had noticed a gradual deterioration. The heat pump was not completely stopped, but its behavior was becoming irregular. The most significant symptoms were as follows:
- front panel that remained open after certain cycles;
- flaps that no longer oriented correctly;
- weaker airflow than before;
- less effective heating in the room;
- prolonged operation without quickly reaching the requested temperature;
- feeling that the device was straining without providing enough comfort;
- concern about an electronic board or an internal motor.
These symptoms are common when several small issues combine. A dirty filter can reduce airflow. A clogged turbine can decrease blowing power. A stuck flap can prevent air from diffusing properly. A temperature sensor poorly influenced by the airflow can trigger inconsistent cycles. An electronic board can also improperly control the front panel motor.
Our role was to identify the main cause, then check if other elements contributed to the problem.
Initial diagnosis: power, controls, and unit response
We first confirmed that the indoor unit was receiving power and responding to commands. A wall-mounted heat pump repair always starts with the basics: checking if the unit starts, if the modes change correctly, if the fan responds to requested speeds, and if the flaps execute their normal sequence.
We tested:
- heating mode;
- cooling mode, depending on possible conditions;
- ventilation-only mode;
- the different blowing speeds;
- the flap orientation control;
- complete stop and restart;
- the front panel’s reaction at the beginning and end of the cycle.
The motorized panel did not always complete its full sequence. It positioned itself, but with noticeable hesitation. The airflow was also lower than expected for a wall unit of this category. This indicated that the problem was not only with the front mechanism; the airflow also needed to be inspected.
Inspection of filters and indoor heat exchanger
Once the unit was secured, we opened it to inspect the filters and accessible surfaces. The filters showed a buildup of dust. It was not a total blockage, but enough to reduce the machine’s breathing.
On an LG wall-mounted heat pump, dirty filters can cause several effects:
- reduced airflow;
- increased heating or cooling time;
- longer cycles;
- more noticeable ventilation noise;
- poor heat exchange;
- risk of condensation or frost depending on conditions;
- premature fatigue of the ventilation motor.
We cleaned the filters and inspected the indoor heat exchanger. The exchanger showed light to moderate deposits, consistent with a gradual loss of performance. Air was still passing through, but not with the desired efficiency. We therefore performed a technical cleaning of the accessible areas to restore better heat transfer.
Indoor turbine inspection
The turbine is one of the most important components in this type of service call. Many customers clean the filters, but the turbine is often forgotten. Yet, it is the one that actually moves the air in the room.
In this case, the inspection showed dust buildup on the turbine blades. When the blades are loaded, the motor may run normally but move much less air. The customer hears the unit running but feels weak airflow. This situation often creates the impression that the heat pump “no longer heats,” while the problem actually comes from the air distribution.
We carefully cleaned the turbine, taking care not to unbalance the fan wheel. After this step, the airflow improved noticeably.
Motorized front panel diagnosis
The most distinctive point of this intervention was the front panel of the LG ARTCOOL model. We inspected the opening mechanism, hinges, resistance points, and motor response. In many cases, a panel that stays open can be caused by:
- dust or residue in the mechanism;
- weakened damper motor;
- imprecise position sensor;
- mechanical obstruction;
- unstable electronic control;
- slightly misaligned panel;
- sequence interrupted by power loss or sudden stop.
We performed several open and close cycles. After cleaning and slight realignment of the panel, the sequence improved. The motor still responded, which avoided the need for immediate component replacement. However, we explained to the customer that if the panel started to jam again, a more thorough check of the damper motor or control board would be necessary.
Sensor and regulation check
A wall unit installed near the ceiling can sometimes read a different temperature than what is felt in the occupied area. In heating mode, warm air rises; if the sensor is influenced by a pocket of warm air near the unit, the system may slow down too early. In cooling mode, poor airflow can also distort the reading.
We checked the consistency between the ambient temperature, the setpoint, and the heat pump’s response. After improving the airflow, the regulation became more stable. This step is essential because a sensor that better reads the environment allows the system to better meet the customer’s actual demand.
Condensate drain inspection
Even though the call mainly concerned the front panel and airflow, we also inspected the condensate drain. On a wall-mounted heat pump, a partially clogged drain can cause water leaks in cooling mode, odors, or moisture buildup inside the indoor unit.
We confirmed that the flow was functional and that nothing indicated an active leak at the time of the intervention. This preventive check is important, especially for customers who use their device as much in summer as during transition periods.
Outdoor unit check
An LG indoor unit may seem to be the source of the problem, but we always check the outdoor unit when overall performance is at issue. The wall-mounted heat pump depends on the compressor, outdoor fan, operating pressures, refrigerant charge, and electrical connections between the two units.
We checked:
- Outdoor unit startup;
- Fan operation;
- Absence of abnormal noise;
- Consistency of response to mode changes;
- Visible signs of frost or overheating;
- General condition of accessible connections;
- Cycle stability after indoor restoration.
No immediate signs of major external failure were observed during the call. The performance loss was mainly related to the indoor unit: reduced airflow, poorly synchronized front panel, and the need for a complete technical cleaning.
Intervention carried out and result obtained
The AirGreen intervention restored the LG ARTCOOL wall-mounted heat pump to a much more stable operating condition. We performed:
- Filter cleaning;
- Technical cleaning of the indoor heat exchanger;
- Turbine cleaning;
- Front panel mechanism check;
- Slight panel realignment;
- Motorized flap tests;
- Control regulation check;
- Condensate drain check;
- Outdoor unit validation;
- Complete operational tests.
After restarting, the front panel responded better, the airflow was stronger, and the room reacted more quickly to demand. The customer noticed that the unit no longer just blew weakly: it started distributing air more effectively again.
Common mistakes to avoid with an LG ARTCOOL wall-mounted heat pump
This type of model requires some special precautions.
Forcing the front panel by hand
When a motorized panel remains open or seems stuck, do not force it. This can damage the motor, hinges, or internal mechanism. Instead, cut the power according to the proper procedure and request a diagnosis.
Clean only the filters
Filters are important, but they are not the only components to maintain. The turbine and the indoor heat exchanger directly affect comfort.
Ignoring low airflow
Low airflow can indicate a blockage, a tired motor, a dirty turbine, or inadequate regulation. The faster the intervention, the simpler the repair.
Constantly using automatic mode
Automatic mode can sometimes complicate comfort analysis. For stable heating or clear air conditioning, it is often better to explicitly select the desired mode.
Waiting for a complete breakdown
A device that still works, but less well, deserves an inspection. It is often at this point that a targeted HVAC repair can prevent premature replacement.
A precise HVAC repair to extend the life of an LG wall-mounted heat pump
This service call on an LG wall-mounted heat pump in Montreal shows that a visible problem, such as a stuck front panel, can be linked to a combination of technical factors. In this case, the ARTCOOL mechanism needed to be checked, but the performance drop also came from reduced airflow and necessary interior maintenance.
Our intervention restored better air circulation, stabilized the operation of the front panel, checked the regulation, and confirmed that the outdoor unit was responding correctly. The client regained a more reliable, quieter, and more efficient system in the serviced room.
AirGreen regularly handles LG wall-mounted heat pump repairs, issues with motorized louvers, ventilation failures, condensate leaks, performance drops, unusual noises, error codes, and comprehensive HVAC system diagnostics. We serve Montreal, Laval, Longueuil, the North Shore, and the South Shore, with a structured, professional approach focused on sustainable solutions.
A wall-mounted heat pump that blows weakly, displays an open panel, or no longer heats as before should not be ignored. In many cases, a well-executed repair can restore comfort without replacing the equipment. This is exactly what we accomplished during this intervention on an LG ARTCOOL unit.
