An old GoldStar wall air conditioner that was leaking, cooling poorly, and required a precise diagnosis
In Rosemère, on the North Shore, our AirGreen team was called for a HVAC service call on an old GoldStar wall air conditioner installed in a bright living room. The indoor unit, mounted on the wall above a clear space, showed several concerning symptoms: uneven cooling, low airflow, a musty smell at startup, and water appearing under the unit after certain extended operating periods.
The client was still using this system because it sometimes managed to cool the room, but its behavior had become unpredictable. On hot days, the unit would start, blow air for a while, then seem to lose efficiency. The lower flap remained partially open, the airflow was no longer uniform across the entire width of the unit, and a slight trace of moisture appeared near the bottom of the cabinet. This type of situation is very common with older wall air conditioners installed for many years in residences in Montreal, Laval, Longueuil, the North Shore, and the South Shore.
The visible equipment was a GoldStar wall unit, a brand still found in many homes where systems were installed before the arrival of newer generations of high-efficiency wall-mounted heat pumps. The exact model was not readable on the front, but the unit’s size and configuration matched a residential wall unit of about 9,000 to 12,000 BTU, mainly intended for cooling an open area or a main room.
Our intervention had a clear objective: to identify whether the problem was due to a lack of refrigerant, internal clogging, a condensate issue, an electrical failure, or a mechanical defect in the indoor fan. With an older device, you should never assume the cause is singular. Several small problems combined can produce the same symptoms as a major failure.
Symptoms reported before our arrival
The client described a situation that had gradually worsened. At first, the GoldStar wall air conditioner simply seemed less powerful. Then, other signs appeared:
- Slower cooling than before;
- Low airflow, especially in the center of the air outlet;
- A damp smell during the first cycles;
- Light vibration noise when the fan speed increased;
- Droplets under the unit after long use;
- The impression that the unit was running without actually lowering the room temperature.
This kind of combination often points to an airflow and drainage problem. However, a loss of performance can also be caused by insufficient refrigerant charge, a partially iced evaporator, a poorly positioned temperature sensor, or unstable electronic control.
At AirGreen, we avoid makeshift repairs. A wall unit may seem simple from the outside, but it contains several essential components: control board, ventilation motor, fan, evaporator, condensate tray, drain, sensors, motorized flaps, filters, electrical connections, and communication with the outdoor unit. Diagnosis must follow a logical method.
First inspection: what the wall unit revealed

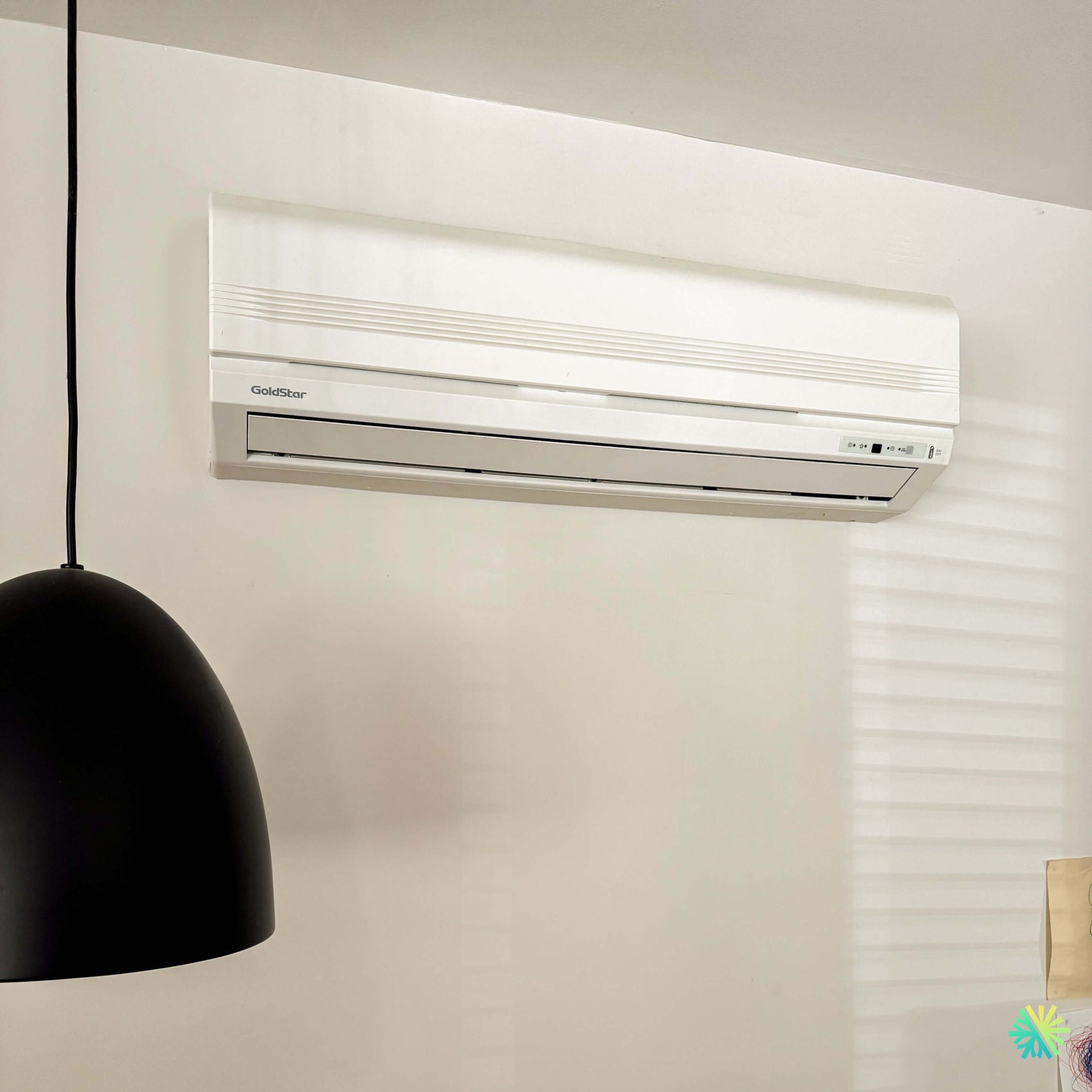

The photo shows a wall unit neatly installed on an interior wall, in a room where air circulation seems important for daily comfort. The unit is old, with a front panel slightly yellowed by time, a deeper design than recent models, and diffusion flaps typical of older generation wall air conditioners.
At first glance, several clues warranted a check:
A partially open outlet flap
The lower flap seemed not to return perfectly to its normal position. On older units, the flap mechanism can get dirty, misaligned, or slightly stuck. This can affect air distribution and give the impression that the system is blowing less effectively.
A front panel that often hides internal dust
Even when the outside looks relatively clean, the inside of a wall air conditioner can contain a significant buildup of dust on the filters, fan, and evaporator. This buildup reduces airflow, promotes odors, and can cause excessive condensation.
A risk of a partially clogged drain
Water droplets under the unit are rarely normal. In most cases, condensation water should flow through the internal tray to the drain. If this path is blocked by dust, algae, deposits, or an inadequate slope, the water can flow back inside and drip on the wall.
An old unit that requires complete testing
With a GoldStar device of this generation, it is necessary to check parts availability, component condition, and the balance between repair cost and remaining lifespan. Our role is to repair when it makes sense, but also to advise the client when replacement becomes more advantageous.
HVAC diagnosis: finding the real cause of the problem
Our technician started by turning on the system to observe its actual behavior. We checked the operating modes, remote control response, fan speeds, flap movement, blowing temperature, and cycle stability.
Filter and evaporator check
The filters showed a notable accumulation of fine dust. This was not surprising: wall units installed in living spaces continuously draw in ambient air, including household dust, textile particles, pet hair, humidity, and cooking residues when the room is near an open kitchen.
Behind the filters, the evaporator also showed signs of dirt buildup. A dirty coil prevents air from passing properly through the fins. The system may then run longer, consume more, and produce less comfort.
Ventilation turbine inspection
The turbine was one of the most important points of the diagnosis. On a wall air conditioner, the fan wheel often accumulates a layer of damp dust on its blades. This layer alters the wheel’s balance, reduces airflow, and can create a vibration noise.
In this specific case, the turbine was dirty enough to explain a significant part of the blowing problem. The motor responded, but the air distribution was weakened by internal buildup.
Condensate drainage test
We then tested the condensate tray drainage. The drain was not completely blocked, but it was heavily slowed down. Water drained with difficulty, which explained the droplets after a prolonged cycle. A partially clogged drain can be more deceptive than a fully blocked one: the device seems to work normally for a few minutes, then water gradually accumulates until it overflows.
Electrical and mechanical inspection
We inspected the accessible connections, the ventilation motor, the temperature sensor, and the flaps. No immediate signs of short circuit or major failure of the electronic board were observed. However, the flap required cleaning and slight realignment to prevent it from partially blocking the air outlet.
Thermal performance check
Once the initial observations were made, we measured the temperature difference between the return air and the blown air. The initial difference was insufficient, mainly because the airflow was affected and heat exchange was not efficient. Before concluding a refrigerant problem, internal restrictions had to be corrected first.
Repair performed: technical cleaning, drain unblocked, and ventilation restored
The intervention was carried out in several steps to restore stable operation of the GoldStar wall air conditioner.
Thorough cleaning of filters and evaporator
We removed the filters, cleaned accessible surfaces, and treated the evaporator with a method suited to the unit’s age. On older units, care must be taken not to damage the fins, plastics, or weakened attachments.
Cleaning the evaporator improved air passage and reduced damp odors. An unpleasant smell at startup often comes from a combination of dust, stagnant moisture, and micro-deposits in the condensate tray.
Turbine cleaning
The turbine was targetedly cleaned to remove deposits accumulated on the blades. This step is essential when a customer complains of low airflow. A unit may have good cooling capacity, but if the turbine doesn’t move enough air, comfort will not follow.
After cleaning, the airflow was more consistent and the vibration noise had decreased.
Unblocking the condensate drain
The drain was cleared to restore normal flow. We removed deposits that were slowing water passage, then validated the drainage with a flow test. The condensate tray was also cleaned to prevent remaining residues from returning to the drain.
In this type of repair, the result must be confirmed immediately. We don’t just blow into the drain: we test the flow to ensure that water exits properly and does not return to the indoor unit.
Replacement of a small worn drainage fitting
A small segment of the internal drainage fitting showed signs of wear and stiffness. We replaced it to improve sealing and reduce the risk of future leaks. It wasn’t a major part, but in a wall system, a worn fitting can be enough to cause visible infiltration on the wall.
Realignment of the diffusion vent
The vent was cleaned, checked, and realigned. The goal was to allow a more even distribution of cold air. A blocked or poorly positioned vent can create a cold spot directly under the unit while leaving the rest of the room uncomfortable.
Complete test after repair
After the intervention, we restarted the system and observed several cycles. The airflow was stronger, operation quieter, condensate drainage restored, and the temperature difference returned to a much more consistent range for this type of device.
Result: a more stable device and restored comfort
At the end of the service call in Rosemère, the customer noticed an immediate improvement in airflow. The air circulated better, the musty smell decreased, vibration noise was reduced, and no water droplets appeared under the unit during the extended test.
We also explained to the customer that this type of GoldStar device can still be maintained and repaired in some cases, but its age must be considered. If an electronic board, motor, or compressor failure occurs later, it might be wiser to consider replacing it with a modern wall heat pump, which is more efficient, quieter, and better suited to the Greater Montreal climate.
What to remember from a wall air conditioner repair in Rosemère
A leaking wall air conditioner is not always at the end of its life
When a customer sees water under their wall unit, the first concern is often to believe the device is irreparable. However, an internal leak very often comes from a drainage problem, a dirty tray, inadequate slope, or a clogged evaporator.
In this specific case, the GoldStar wall air conditioner did not need to be replaced immediately. It mainly needed a serious diagnosis, technical cleaning, and drain correction.
Surface cleaning is not always enough
Cleaning the filters is important, but it doesn’t solve all problems. Over time, dust passes through the filters and accumulates on the turbine, evaporator, and condensate tray. A superficial cleaning can give the impression that the device is clean while the internal components remain heavily affected.
Professional maintenance allows treating areas that the user cannot easily reach.
Older devices require a cautious approach
An older device can be fragile. Plastics can break, screws can be difficult to remove, and some parts are no longer easily available. That’s why we work methodically, without unnecessarily forcing the components.
Our priority is to extend the equipment's lifespan when reasonable, while avoiding creating new problems during the intervention.
Mistakes to avoid with a GoldStar wall air conditioner
Continuing to use the device when it is leaking
Water can damage the wall, paint, moldings, or even nearby electrical components. As soon as a leak appears, the drain and condensate pan must be checked.
Setting the temperature too low to compensate for poor performance
Lowering the setpoint does not fix an airflow problem. On the contrary, it can prolong cycles and promote ice formation if air does not circulate properly.
Ignoring ventilation noise
A vibration can indicate a dirty, unbalanced fan or a worn-out motor. The longer you wait, the greater the risk of wear.
Cleaning the interior with unsuitable products
Some household products can damage plastics, leave odors, or cause sticky residues. HVAC devices require appropriate cleaning methods.
Automatically assuming a refrigerant leak
Low cooling does not always mean there is a refrigerant leak. In many cases, the problem first comes from airflow, dirt buildup, or drainage. Adding refrigerant without diagnosis can mask the real cause.
Why AirGreen is called for this type of HVAC repair
Our team regularly works on wall air conditioners, wall heat pumps, MultiZone systems, central systems, and HVAC accessories throughout Greater Montreal. Every service call is handled with a practical approach: understand the symptom, test the device, fix the cause, validate the result, and advise the client transparently.
In Rosemère, as elsewhere on the North Shore, homes often have wall systems installed for many years. Some still work properly but require more specialized maintenance. Others are nearing the end of their lifespan and need to be honestly evaluated. Our role is to help the client make the right decision, without unnecessary replacement and without poorly targeted repairs.
We also serve Montreal, Laval, Longueuil, the South Shore, and several surrounding municipalities for service calls, maintenance, repair, and replacement of residential HVAC systems.
When should you repair and when should you replace?
In the case of this GoldStar wall air conditioner in Rosemère, the repair was relevant because the motor was responsive, the unit could still produce cold air, and the main issues were related to maintenance, drainage, and ventilation.
Replacement becomes more logical when:
- the electronic board is defective and hard to find;
- the compressor no longer starts;
- a major refrigerant leak is confirmed;
- the repair cost approaches that of a new device;
- the device is too noisy despite maintenance;
- energy consumption is high;
- comfort remains insufficient after repair;
- the customer wants to switch to an efficient wall heat pump for heating and cooling.
For this customer, we recommended monitoring the device’s behavior over the next few weeks and scheduling regular maintenance if the system continues to be used. This approach maximizes the remaining lifespan while keeping a clear view of future options.
A service call that restored value to an old system
This intervention in Rosemère clearly illustrates the importance of a complete diagnosis. The problem was not a spectacular breakdown, but an accumulation of factors: dirty filters, clogged turbine, slow drain, slight misalignment of the flap, and reduced thermal performance due to lack of air circulation.
By fixing these issues, we helped the GoldStar wall air conditioner regain much more stable operation. The customer was able to continue using their system with more confidence, while knowing which limits to watch.
At AirGreen, we know that every device has its story. Some systems deserve careful repair. Others need to be replaced at the right time. In both cases, our commitment remains the same: to offer precise, honest HVAC service focused on the real comfort of the customer.
Need a wall air conditioner repair in Rosemère or elsewhere in Greater Montreal?
If your wall air conditioner leaks, cools poorly, makes noise, emits a musty smell, or no longer responds properly to the remote control, AirGreen can provide a professional diagnosis. We repair and maintain wall systems in Montreal, Laval, Longueuil, the North Shore, and the South Shore, with a technical approach tailored to each device.
A well-cleaned, well-drained, and well-adjusted wall system can regain surprising performance, even when it is older. The important thing is to act before small symptoms become a major breakdown.
